Helper to enable IP flow monitoring on a set of Nodes. More...

#include "flow-monitor-helper.h"

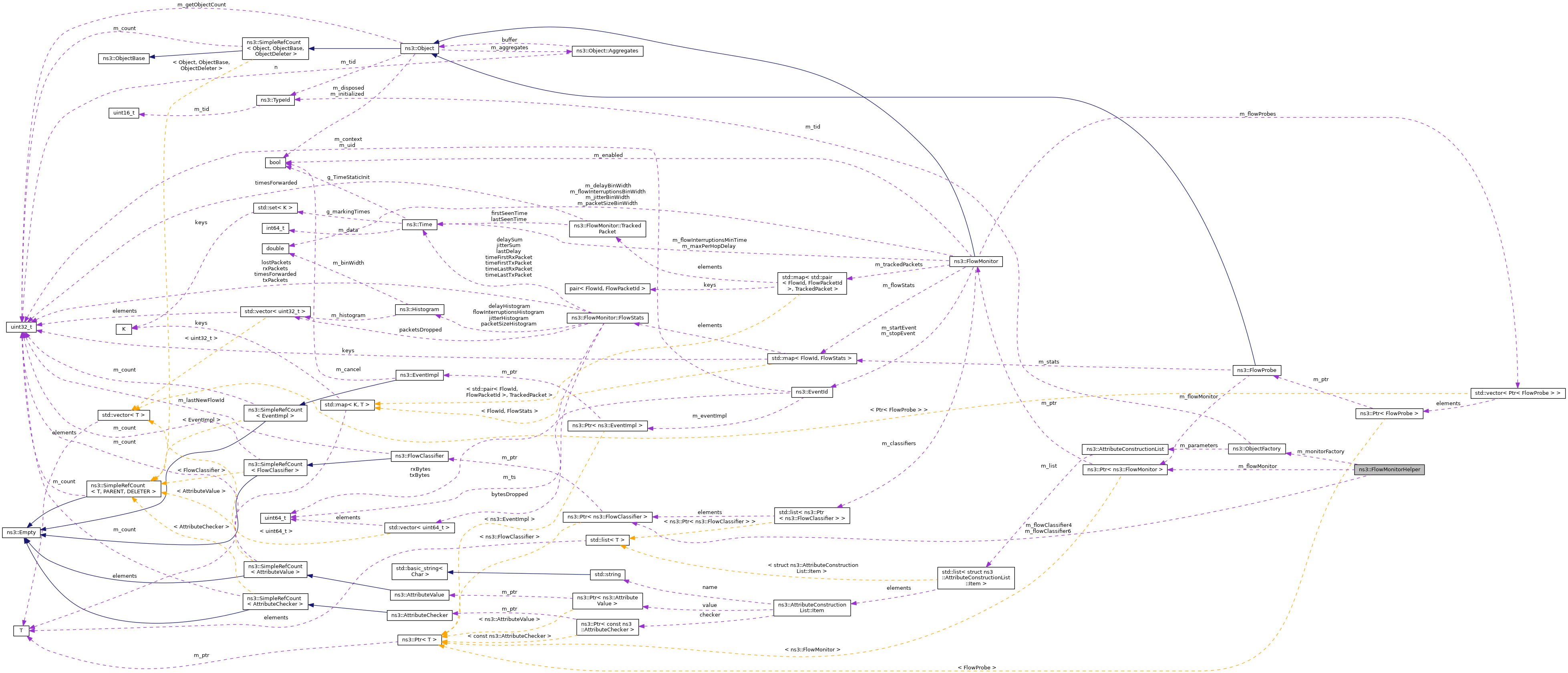

Collaboration diagram for ns3::FlowMonitorHelper:

Public Member Functions
	FlowMonitorHelper ()

	FlowMonitorHelper (const FlowMonitorHelper &)=delete

	~FlowMonitorHelper ()

Ptr< FlowClassifier >	GetClassifier ()
	Retrieve the FlowClassifier object for IPv4 created by the Install* methods. More...

Ptr< FlowClassifier >	GetClassifier6 ()
	Retrieve the FlowClassifier object for IPv6 created by the Install* methods. More...

Ptr< FlowMonitor >	GetMonitor ()
	Retrieve the FlowMonitor object created by the Install* methods. More...

Ptr< FlowMonitor >	Install (NodeContainer nodes)
	Enable flow monitoring on a set of nodes. More...

Ptr< FlowMonitor >	Install (Ptr< Node > node)
	Enable flow monitoring on a single node. More...

Ptr< FlowMonitor >	InstallAll ()
	Enable flow monitoring on all nodes. More...

FlowMonitorHelper &	operator= (const FlowMonitorHelper &)=delete

void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but writes to a file instead. More...

void	SerializeToXmlStream (std::ostream &os, uint16_t indent, bool enableHistograms, bool enableProbes)
	Serializes the results to an std::ostream in XML format. More...

std::string	SerializeToXmlString (uint16_t indent, bool enableHistograms, bool enableProbes)
	Same as SerializeToXmlStream, but returns the output as a std::string. More...

void	SetMonitorAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute for the to-be-created FlowMonitor object. More...

Private Attributes
Ptr< FlowClassifier >	m_flowClassifier4
	the FlowClassifier object for IPv4 More...

Ptr< FlowClassifier >	m_flowClassifier6
	the FlowClassifier object for IPv6 More...

Ptr< FlowMonitor >	m_flowMonitor
	the FlowMonitor object More...

ObjectFactory	m_monitorFactory
	Object factory. More...

Detailed Description

Helper to enable IP flow monitoring on a set of Nodes.

Definition at line 40 of file flow-monitor-helper.h.

Constructor & Destructor Documentation

◆ FlowMonitorHelper() [1/2]

ns3::FlowMonitorHelper::FlowMonitorHelper ( )

Definition at line 35 of file flow-monitor-helper.cc.

References m_monitorFactory, and ns3::ObjectFactory::SetTypeId().

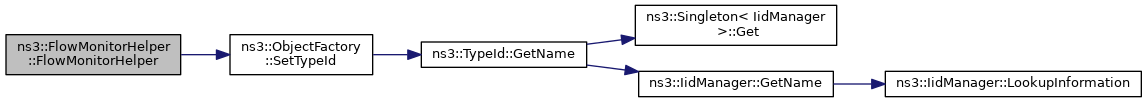

Here is the call graph for this function:

◆ ~FlowMonitorHelper()

ns3::FlowMonitorHelper::~FlowMonitorHelper ( )

Definition at line 40 of file flow-monitor-helper.cc.

References m_flowClassifier4, m_flowClassifier6, and m_flowMonitor.

◆ FlowMonitorHelper() [2/2]

ns3::FlowMonitorHelper::FlowMonitorHelper ( const FlowMonitorHelper & )

delete

Member Function Documentation

◆ GetClassifier()

Ptr< FlowClassifier > ns3::FlowMonitorHelper::GetClassifier ( )

Retrieve the FlowClassifier object for IPv4 created by the Install* methods.

Returns: a pointer to the FlowClassifier object

Definition at line 72 of file flow-monitor-helper.cc.

References m_flowClassifier4.

Referenced by experiment(), and Install().

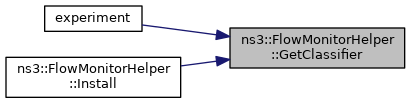

Here is the caller graph for this function:

◆ GetClassifier6()

Ptr< FlowClassifier > ns3::FlowMonitorHelper::GetClassifier6 ( )

Retrieve the FlowClassifier object for IPv6 created by the Install* methods.

Returns: a pointer to the FlowClassifier object

Definition at line 82 of file flow-monitor-helper.cc.

References m_flowClassifier6.

Referenced by Install().

Here is the caller graph for this function:

◆ GetMonitor()

Ptr< FlowMonitor > ns3::FlowMonitorHelper::GetMonitor ( )

Retrieve the FlowMonitor object created by the Install* methods.

Returns: a pointer to the FlowMonitor object

Definition at line 58 of file flow-monitor-helper.cc.

References ns3::ObjectFactory::Create(), m_flowClassifier4, m_flowClassifier6, m_flowMonitor, and m_monitorFactory.

Referenced by Install().

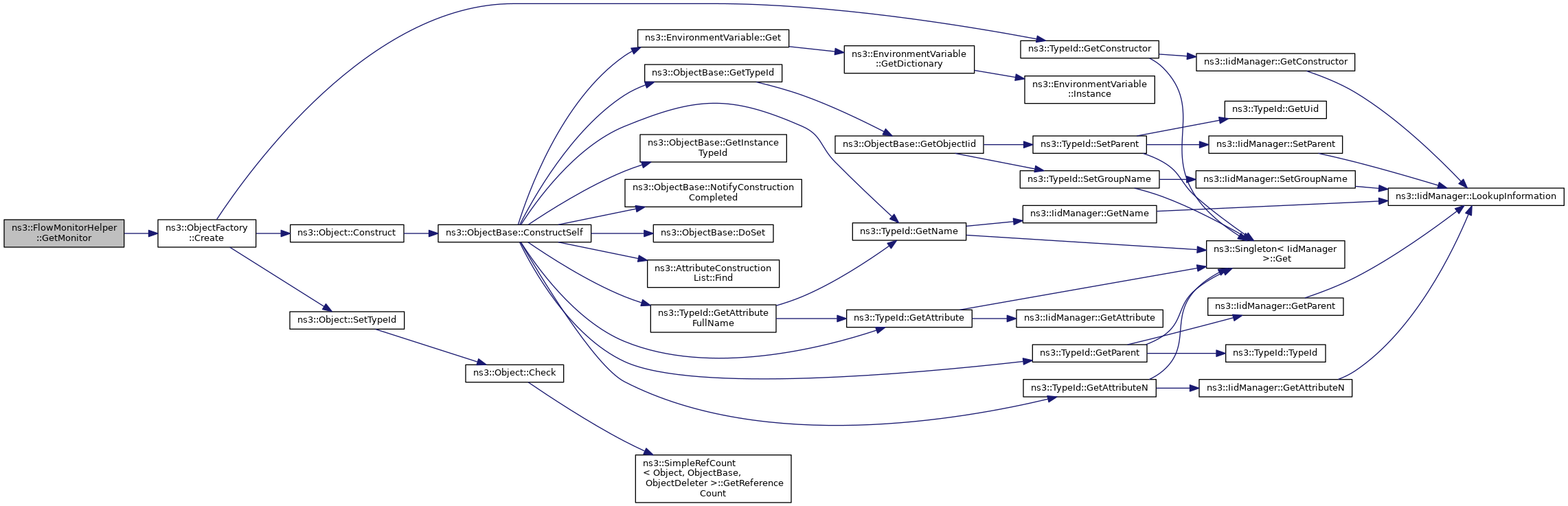

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [1/2]

Ptr< FlowMonitor > ns3::FlowMonitorHelper::Install ( NodeContainer nodes )

Enable flow monitoring on a set of nodes.

Parameters

nodes A NodeContainer holding the set of nodes to work with.

Returns: a pointer to the FlowMonitor object

Definition at line 113 of file flow-monitor-helper.cc.

References ns3::Object::GetObject(), Install(), m_flowMonitor, and nodes.

Referenced by Install(), and InstallAll().

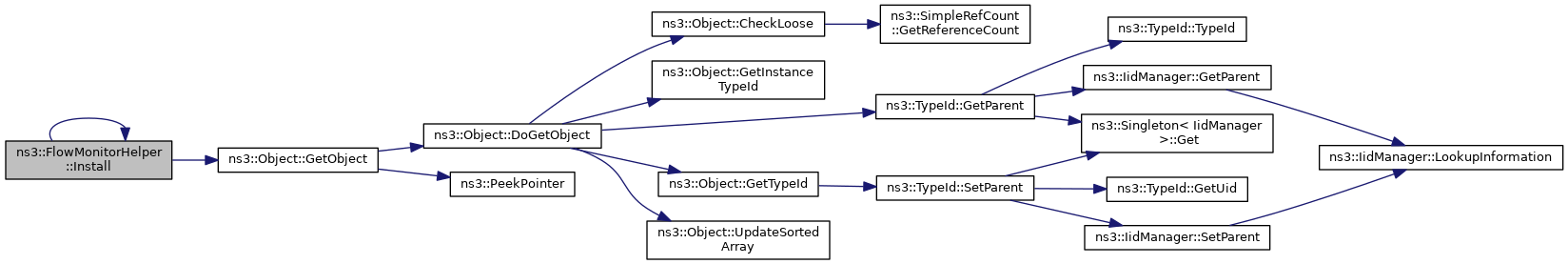

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/2]

Ptr< FlowMonitor > ns3::FlowMonitorHelper::Install ( Ptr< Node > node )

Enable flow monitoring on a single node.

Parameters

node	A Ptr<Node> to the node on which to enable flow monitoring.

Returns: a pointer to the FlowMonitor object

Definition at line 92 of file flow-monitor-helper.cc.

References GetClassifier(), GetClassifier6(), GetMonitor(), ns3::Object::GetObject(), and m_flowMonitor.

Here is the call graph for this function:

◆ InstallAll()

Ptr< FlowMonitor > ns3::FlowMonitorHelper::InstallAll ( )

Enable flow monitoring on all nodes.

Returns: a pointer to the FlowMonitor object

Definition at line 127 of file flow-monitor-helper.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), Install(), and m_flowMonitor.

Referenced by experiment(), and Experiment::Run().

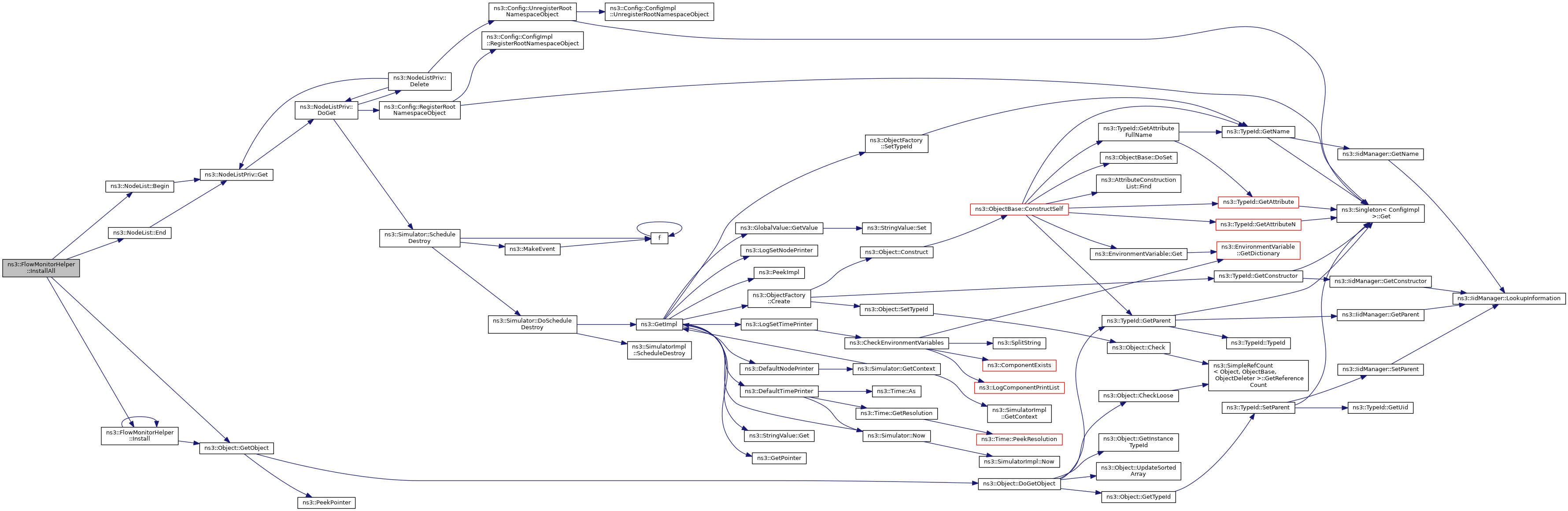

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

FlowMonitorHelper & ns3::FlowMonitorHelper::operator= ( const FlowMonitorHelper & )

delete

◆ SerializeToXmlFile()

void ns3::FlowMonitorHelper::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead.

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 164 of file flow-monitor-helper.cc.

References m_flowMonitor.

Referenced by Experiment::Run().

Here is the caller graph for this function:

◆ SerializeToXmlStream()

void ns3::FlowMonitorHelper::SerializeToXmlStream	(	std::ostream &	os,
		uint16_t	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 141 of file flow-monitor-helper.cc.

References m_flowMonitor.

◆ SerializeToXmlString()

std::string ns3::FlowMonitorHelper::SerializeToXmlString	(	uint16_t	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string.

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Returns: the XML output as string

Definition at line 153 of file flow-monitor-helper.cc.

References m_flowMonitor.

◆ SetMonitorAttribute()

void ns3::FlowMonitorHelper::SetMonitorAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Set an attribute for the to-be-created FlowMonitor object.

Parameters

n1	attribute name
v1	attribute value

Definition at line 52 of file flow-monitor-helper.cc.

References m_monitorFactory, and ns3::ObjectFactory::Set().

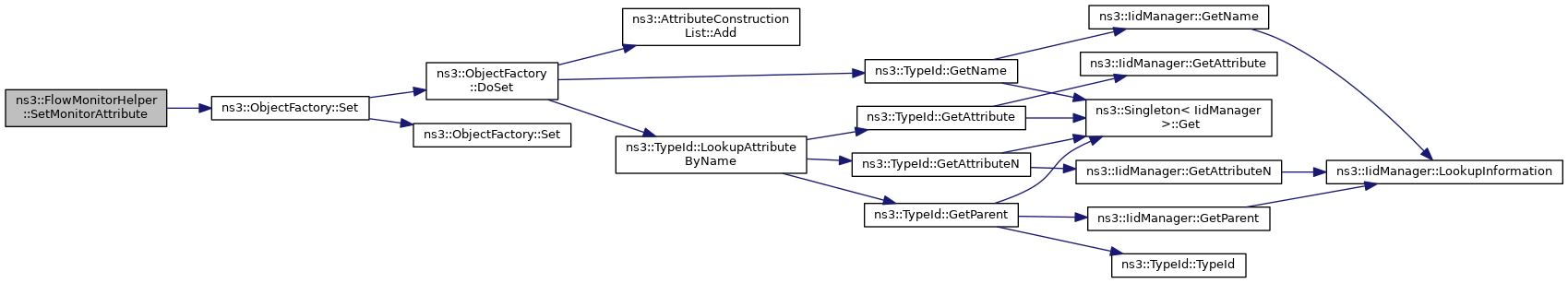

Here is the call graph for this function:

Member Data Documentation

◆ m_flowClassifier4

Ptr<FlowClassifier> ns3::FlowMonitorHelper::m_flowClassifier4

private

the FlowClassifier object for IPv4

Definition at line 125 of file flow-monitor-helper.h.

Referenced by ~FlowMonitorHelper(), GetClassifier(), and GetMonitor().

◆ m_flowClassifier6

Ptr<FlowClassifier> ns3::FlowMonitorHelper::m_flowClassifier6

private

the FlowClassifier object for IPv6

Definition at line 126 of file flow-monitor-helper.h.

Referenced by ~FlowMonitorHelper(), GetClassifier6(), and GetMonitor().

◆ m_flowMonitor

Ptr<FlowMonitor> ns3::FlowMonitorHelper::m_flowMonitor

private

the FlowMonitor object

Definition at line 124 of file flow-monitor-helper.h.

Referenced by ~FlowMonitorHelper(), GetMonitor(), Install(), InstallAll(), SerializeToXmlFile(), SerializeToXmlStream(), and SerializeToXmlString().

◆ m_monitorFactory

ObjectFactory ns3::FlowMonitorHelper::m_monitorFactory

private

Object factory.

Definition at line 123 of file flow-monitor-helper.h.

Referenced by FlowMonitorHelper(), GetMonitor(), and SetMonitorAttribute().

The documentation for this class was generated from the following files:

src/flow-monitor/helper/flow-monitor-helper.h
src/flow-monitor/helper/flow-monitor-helper.cc
