ns3::VhtPpdu Class Reference

VHT PPDU (11ac) More...

#include "vht-ppdu.h"

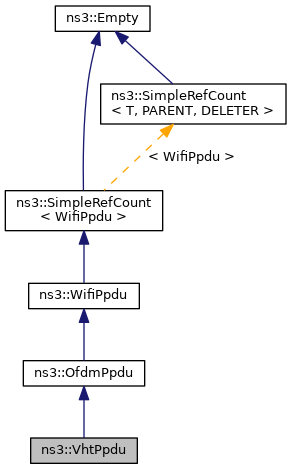

Inheritance diagram for ns3::VhtPpdu:

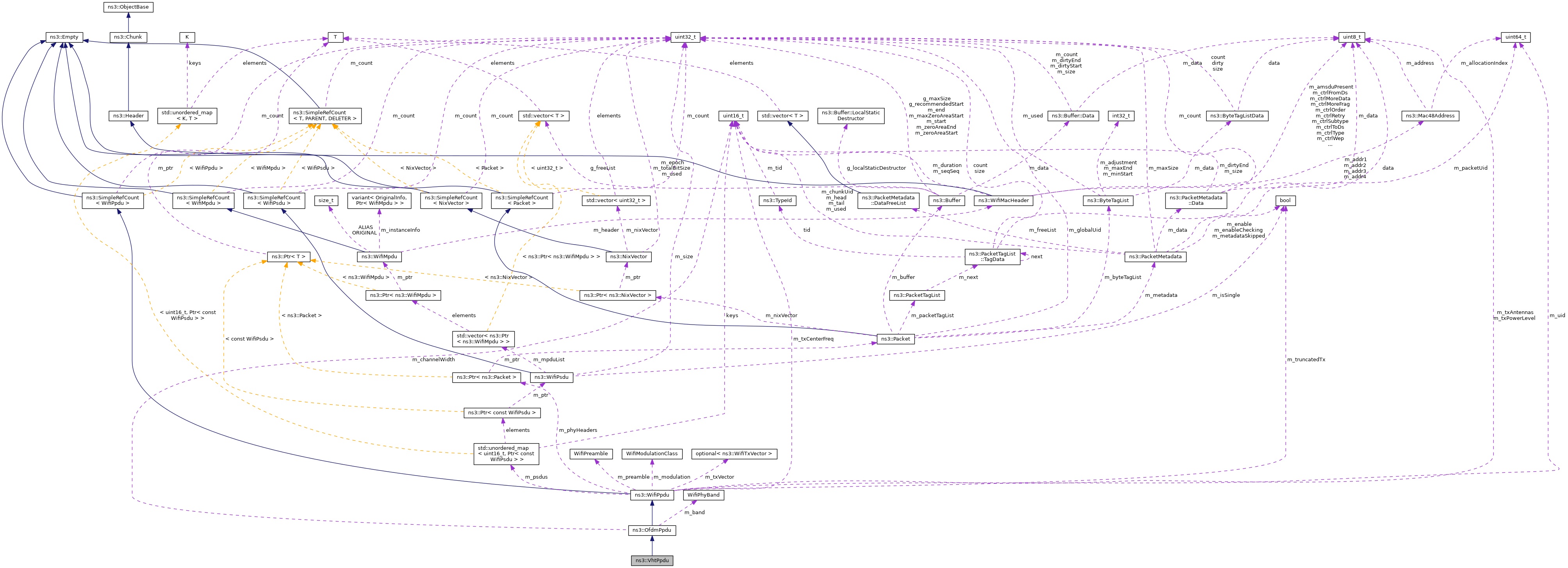

Collaboration diagram for ns3::VhtPpdu:

Classes
class	VhtSigHeader
	VHT PHY header (VHT-SIG-A1/A2/B). More...

Public Member Functions
	VhtPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid)
	Create a VHT PPDU. More...
Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...
Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...
WifiPpduType	GetType () const override
	Return the PPDU type (. More...
Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, WifiPhyBand band, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...
Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...
Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...
Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...
	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...
virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...
virtual Ptr< WifiPpdu >	Copy () const
	Copy this instance. More...
bool	DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
	Check whether the given PPDU overlaps a given channel. More...
WifiModulationClass	GetModulation () const
	Get the modulation used for the PPDU. More...
WifiPreamble	GetPreamble () const
	Get the preamble of the PPDU. More...
Ptr< const WifiPsdu >	GetPsdu () const
	Get the payload of the PPDU. More...
virtual uint16_t	GetStaId () const
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...
virtual uint16_t	GetTransmissionChannelWidth () const
	Get the channel width over which the PPDU will effectively be transmitted. More...
uint16_t	GetTxCenterFreq () const
virtual Time	GetTxDuration () const
	Get the total transmission duration of the PPDU. More...
const WifiTxVector &	GetTxVector () const
	Get the TXVECTOR used to send the PPDU. More...
virtual WifiPpduType	GetType () const
	Return the PPDU type (. More...
uint64_t	GetUid () const
	Get the UID of the PPDU. More...
bool	IsTruncatedTx () const
void	Print (std::ostream &os) const
	Print the PPDU contents. More...
void	ResetTxVector () const
	Reset the TXVECTOR. More...
void	SetTruncatedTx ()
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...
void	UpdateTxVector (const WifiTxVector &updatedTxVector) const
	Update the TXVECTOR based on some information known at the receiver. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Private Member Functions
WifiTxVector	DoGetTxVector () const override
	Get the TXVECTOR used to send the PPDU. More...
virtual void	SetLSigHeader (LSigHeader &lSig, Time ppduDuration) const
	Fill in the L-SIG header. More...
virtual void	SetPhyHeaders (const WifiTxVector &txVector, Time ppduDuration)
	Fill in the PHY headers. More...
void	SetTxVectorFromPhyHeaders (WifiTxVector &txVector, const LSigHeader &lSig, const VhtSigHeader &vhtSig) const
	Fill in the TXVECTOR from PHY headers. More...
void	SetVhtSigHeader (VhtSigHeader &vhtSig, const WifiTxVector &txVector, Time ppduDuration) const
	Fill in the VHT-SIG header. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiPpdu
virtual std::string	PrintPayload () const
	Print the payload of the PPDU. More...
Protected Attributes inherited from ns3::OfdmPpdu
WifiPhyBand	m_band
	the WifiPhyBand used to transmit that PPDU More...
Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...
Ptr< Packet >	m_phyHeaders
	the PHY headers contained in this PPDU More...
WifiPreamble	m_preamble
	the PHY preamble More...
WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...
uint16_t	m_txCenterFreq
	the center frequency (MHz) used for the transmission of this PPDU More...
std::optional< WifiTxVector >	m_txVector
	the TXVECTOR at TX PHY or the reconstructed TXVECTOR at RX PHY (or std::nullopt if TXVECTOR has not been reconstructed yet) More...
uint64_t	m_uid
	the unique ID of this PPDU More...

Detailed Description

VHT PPDU (11ac)

VhtPpdu stores a preamble, PHY headers and a PSDU of a PPDU with VHT header

Definition at line 44 of file vht-ppdu.h.

Constructor & Destructor Documentation

VhtPpdu()

ns3::VhtPpdu::VhtPpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		uint16_t	txCenterFreq,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid
	)

Create a VHT PPDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
txCenterFreq	the center frequency (MHz) that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU

Definition at line 35 of file vht-ppdu.cc.

References NS_LOG_FUNCTION, and SetPhyHeaders().

Referenced by Copy().

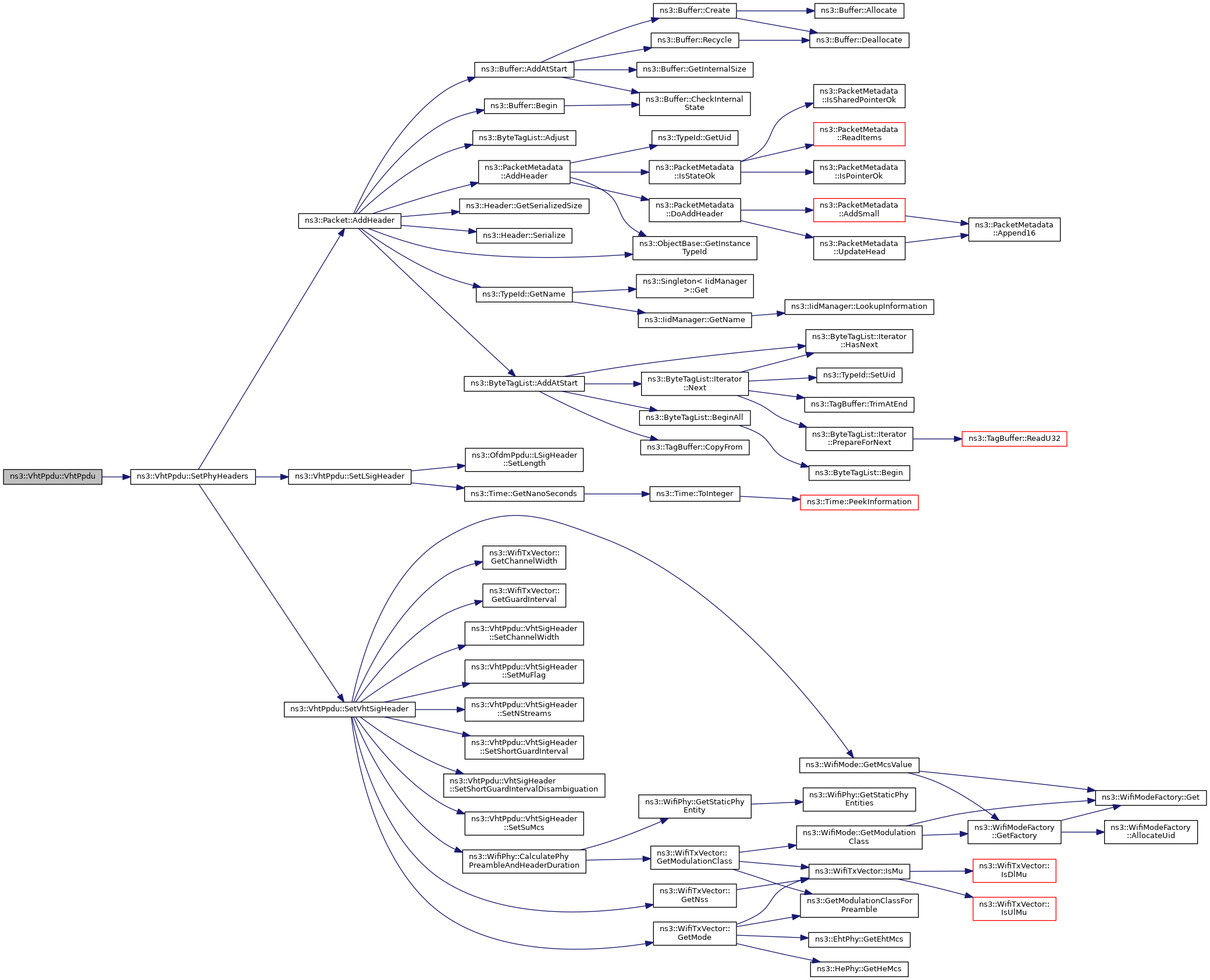

Here is the call graph for this function:

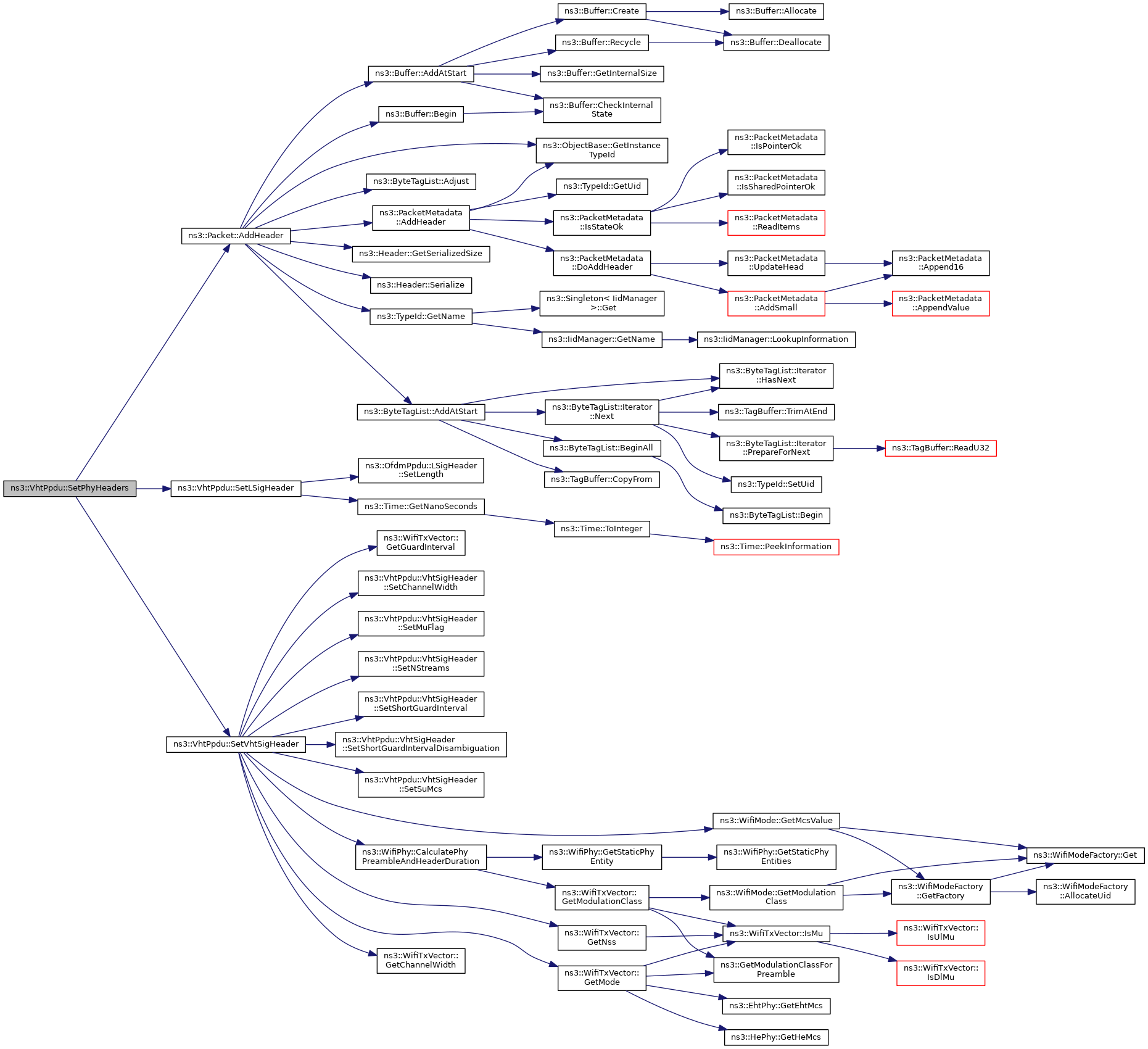

Here is the caller graph for this function:

Member Function Documentation

Copy()

Ptr< WifiPpdu > ns3::VhtPpdu::Copy ( ) const

overridevirtual

Copy this instance.

Returns

a Ptr to a copy of this instance.

Reimplemented from ns3::OfdmPpdu.

Definition at line 185 of file vht-ppdu.cc.

References VhtPpdu().

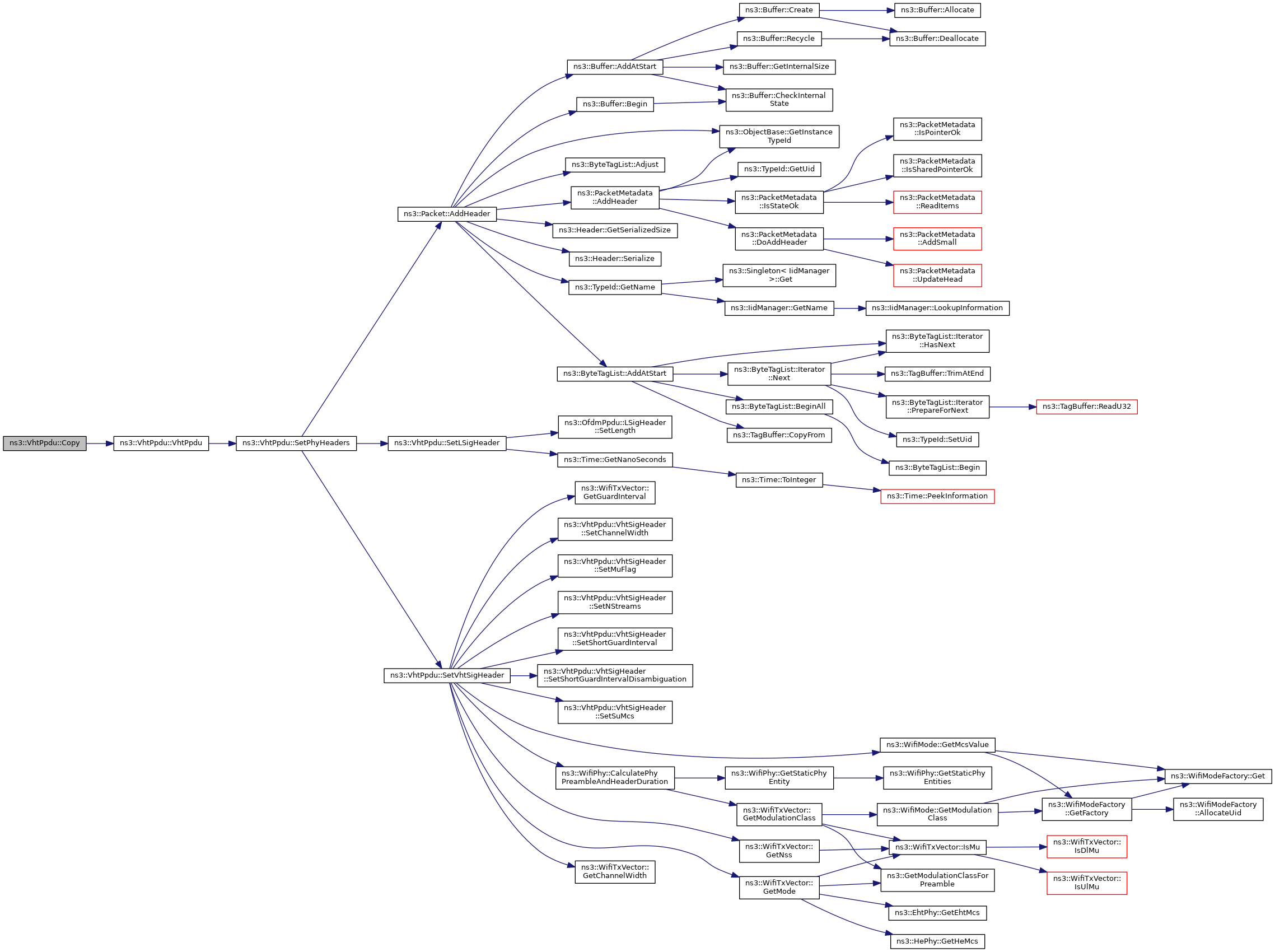

Here is the call graph for this function:

DoGetTxVector()

WifiTxVector ns3::VhtPpdu::DoGetTxVector ( ) const

overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns

the TXVECTOR of the PPDU.

Reimplemented from ns3::OfdmPpdu.

Definition at line 104 of file vht-ppdu.cc.

References ns3::Packet::Copy(), ns3::WifiPpdu::m_phyHeaders, ns3::WifiPpdu::m_preamble, NS_FATAL_ERROR, ns3::WifiTxVector::SetPreambleType(), and SetTxVectorFromPhyHeaders().

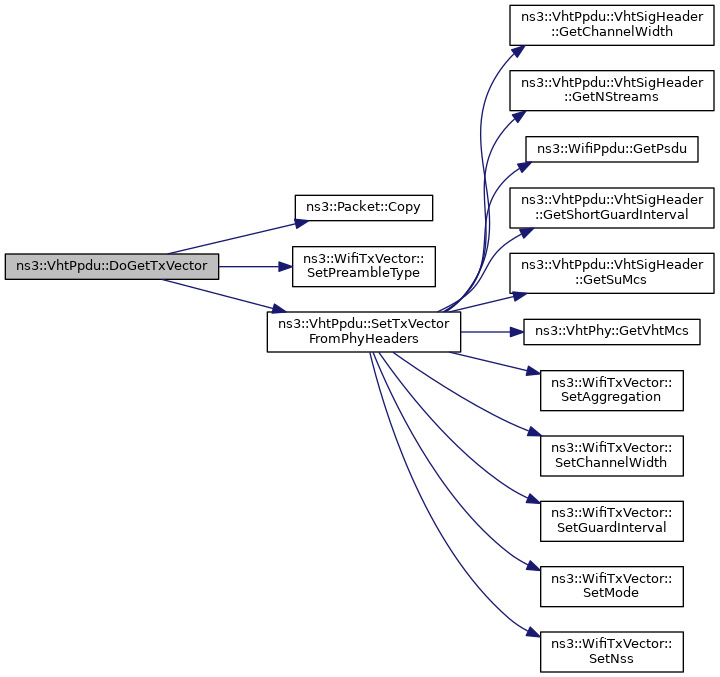

Here is the call graph for this function:

GetTxDuration()

Time ns3::VhtPpdu::GetTxDuration ( ) const

overridevirtual

Get the total transmission duration of the PPDU.

Returns

the transmission duration of the PPDU

Reimplemented from ns3::OfdmPpdu.

Definition at line 145 of file vht-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::Packet::Copy(), ns3::WifiTxVector::GetGuardInterval(), ns3::OfdmPpdu::LSigHeader::GetLength(), ns3::Time::GetNanoSeconds(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardIntervalDisambiguation(), ns3::WifiPpdu::GetTxVector(), ns3::WifiPpdu::m_phyHeaders, ns3::MicroSeconds(), ns3::NanoSeconds(), and ns3::Seconds().

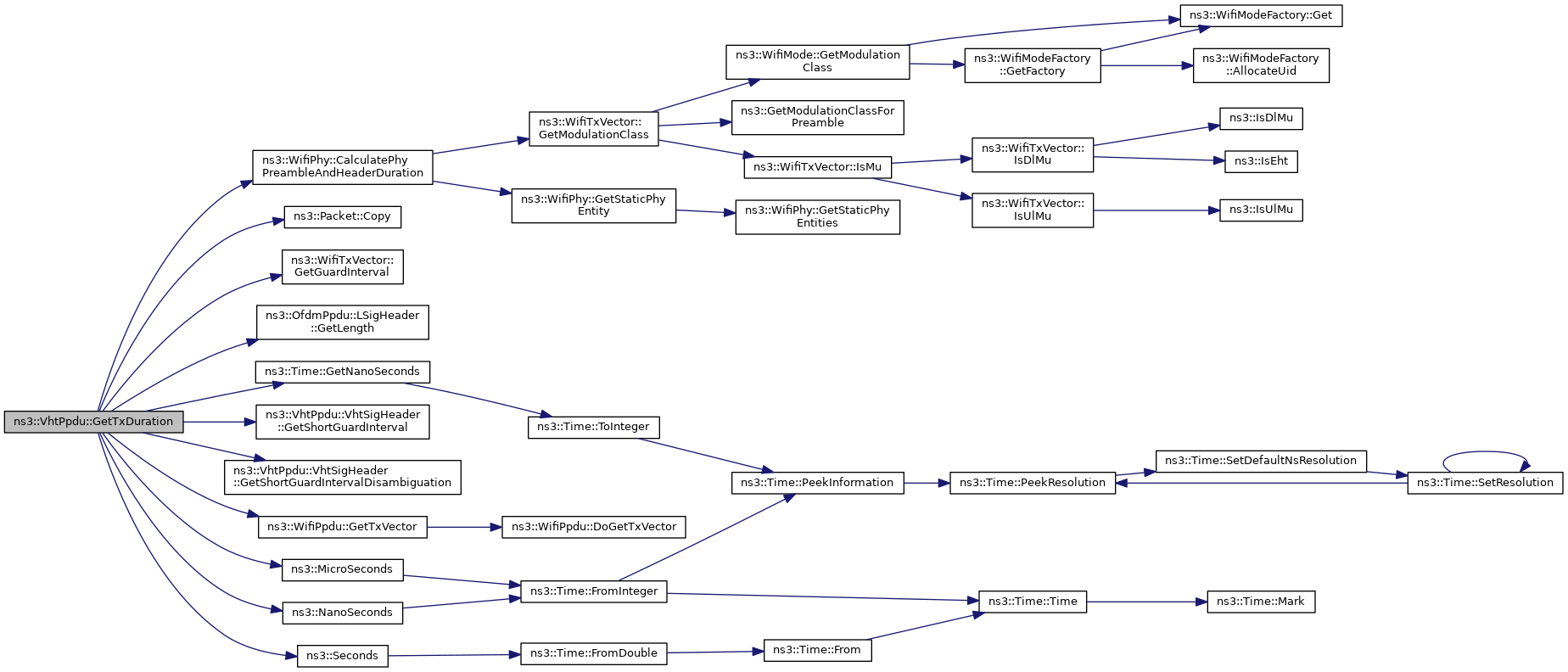

Here is the call graph for this function:

GetType()

WifiPpduType ns3::VhtPpdu::GetType ( ) const

overridevirtual

Return the PPDU type (.

See also

WifiPpduType)

Returns

the PPDU type

Reimplemented from ns3::WifiPpdu.

Definition at line 191 of file vht-ppdu.cc.

References ns3::WifiPpdu::m_preamble, ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, and ns3::WIFI_PREAMBLE_VHT_MU.

SetLSigHeader()

void ns3::VhtPpdu::SetLSigHeader ( LSigHeader &  lSig, Time  ppduDuration  ) const

privatevirtual

Fill in the L-SIG header.

Parameters

lSig	the L-SIG header to fill in
ppduDuration	the transmission duration of this PPDU

Definition at line 73 of file vht-ppdu.cc.

References ns3::Time::GetNanoSeconds(), and ns3::OfdmPpdu::LSigHeader::SetLength().

Referenced by SetPhyHeaders().

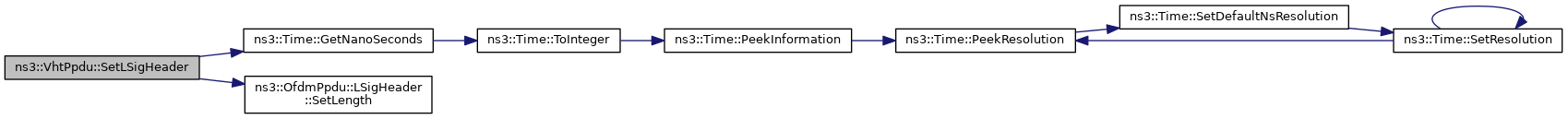

Here is the call graph for this function:

Here is the caller graph for this function:

SetPhyHeaders()

void ns3::VhtPpdu::SetPhyHeaders ( const WifiTxVector &  txVector, Time  ppduDuration  )

privatevirtual

Fill in the PHY headers.

Parameters

txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU

Definition at line 53 of file vht-ppdu.cc.

References ns3::Packet::AddHeader(), ns3::WifiPpdu::m_phyHeaders, NS_LOG_FUNCTION, SetLSigHeader(), and SetVhtSigHeader().

Referenced by VhtPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

SetTxVectorFromPhyHeaders()

void ns3::VhtPpdu::SetTxVectorFromPhyHeaders ( WifiTxVector &  txVector, const LSigHeader &  lSig, const VhtSigHeader &  vhtSig  ) const

private

Fill in the TXVECTOR from PHY headers.

Parameters

txVector	the TXVECTOR to fill in
lSig	the L-SIG header
vhtSig	the VHT-SIG header

Definition at line 133 of file vht-ppdu.cc.

References ns3::VhtPpdu::VhtSigHeader::GetChannelWidth(), ns3::VhtPpdu::VhtSigHeader::GetNStreams(), ns3::WifiPpdu::GetPsdu(), ns3::VhtPpdu::VhtSigHeader::GetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::GetSuMcs(), ns3::VhtPhy::GetVhtMcs(), ns3::WifiTxVector::SetAggregation(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), and ns3::WifiTxVector::SetNss().

Referenced by DoGetTxVector().

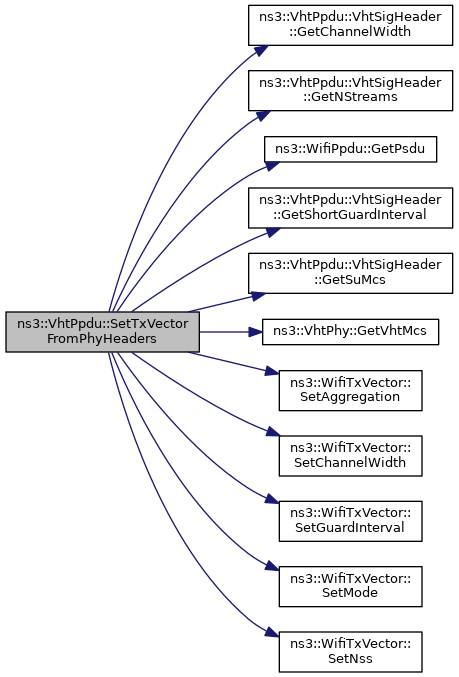

Here is the call graph for this function:

Here is the caller graph for this function:

SetVhtSigHeader()

void ns3::VhtPpdu::SetVhtSigHeader ( VhtSigHeader &  vhtSig, const WifiTxVector &  txVector, Time  ppduDuration  ) const

private

Fill in the VHT-SIG header.

Parameters

vhtSig	the VHT-SIG header to fill in
txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU

Definition at line 83 of file vht-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiPpdu::m_preamble, ns3::VhtPpdu::VhtSigHeader::SetChannelWidth(), ns3::VhtPpdu::VhtSigHeader::SetMuFlag(), ns3::VhtPpdu::VhtSigHeader::SetNStreams(), ns3::VhtPpdu::VhtSigHeader::SetShortGuardInterval(), ns3::VhtPpdu::VhtSigHeader::SetShortGuardIntervalDisambiguation(), ns3::VhtPpdu::VhtSigHeader::SetSuMcs(), and ns3::WIFI_PREAMBLE_VHT_MU.

Referenced by SetPhyHeaders().

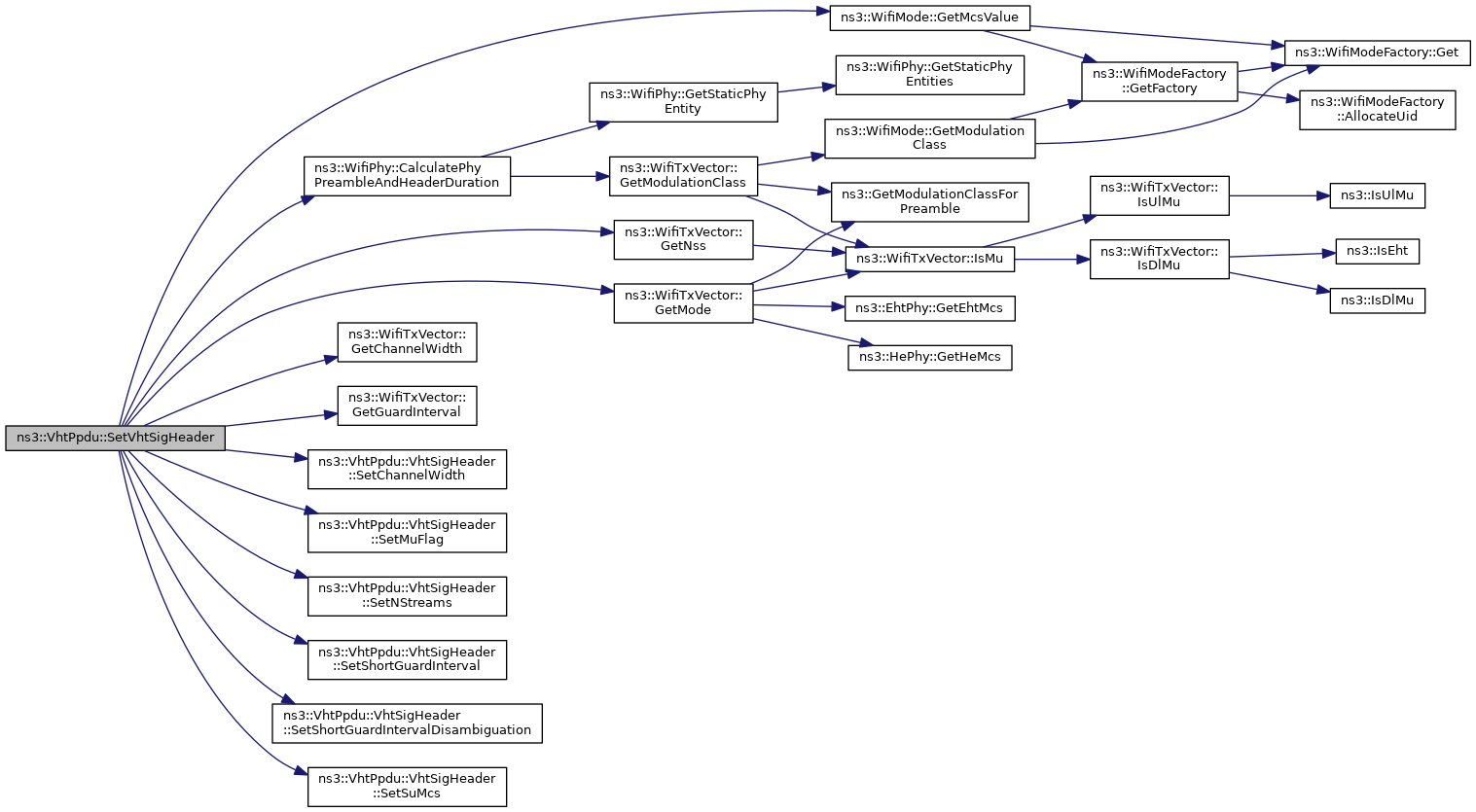

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/wifi/model/vht/vht-ppdu.h
• src/wifi/model/vht/vht-ppdu.cc
