ns3::LbtsMessage Class Reference

Structure used for all-reduce LBTS computation. More...

#include "distributed-simulator-impl.h"

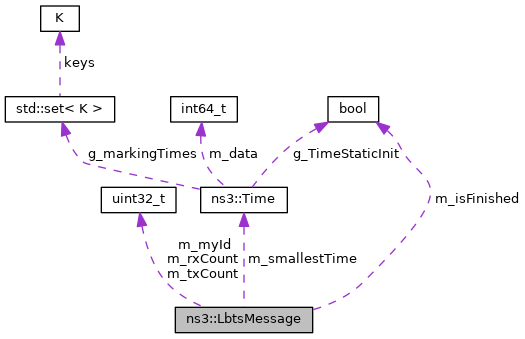

Collaboration diagram for ns3::LbtsMessage:

Public Member Functions
	LbtsMessage ()
	LbtsMessage (uint32_t rxc, uint32_t txc, uint32_t id, bool isFinished, const Time &t)
	~LbtsMessage ()
uint32_t	GetMyId () const
uint32_t	GetRxCount () const
Time	GetSmallestTime ()
uint32_t	GetTxCount () const
bool	IsFinished () const

Private Attributes
bool	m_isFinished
	true when this rank has no more events. More...
uint32_t	m_myId
	System Id of the rank sending this LBTS. More...
uint32_t	m_rxCount
	Count of received messages. More...
Time	m_smallestTime
	Earliest next event timestamp. More...
uint32_t	m_txCount
	Count of transmitted messages. More...

Detailed Description

Structure used for all-reduce LBTS computation.

Definition at line 43 of file distributed-simulator-impl.h.

Constructor & Destructor Documentation

LbtsMessage() [1/2]

ns3::LbtsMessage::LbtsMessage ( )

inline

Definition at line 46 of file distributed-simulator-impl.h.

LbtsMessage() [2/2]

ns3::LbtsMessage::LbtsMessage ( uint32_t  rxc, uint32_t  txc, uint32_t  id, bool  isFinished, const Time &  t  )

inline

Parameters

rxc	received count
txc	transmitted count
id	mpi rank
isFinished	whether message is finished
t	smallest time

Definition at line 61 of file distributed-simulator-impl.h.

~LbtsMessage()

ns3::LbtsMessage::~LbtsMessage

(

)

Definition at line 50 of file distributed-simulator-impl.cc.

Member Function Documentation

GetMyId()

uint32_t ns3::LbtsMessage::GetMyId

(

)

const

Returns

id which corresponds to mpi rank

Definition at line 73 of file distributed-simulator-impl.cc.

References m_myId.

GetRxCount()

uint32_t ns3::LbtsMessage::GetRxCount

(

)

const

Returns

received count

Definition at line 67 of file distributed-simulator-impl.cc.

References m_rxCount.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

GetSmallestTime()

Time ns3::LbtsMessage::GetSmallestTime

(

)

Returns

smallest time

Definition at line 55 of file distributed-simulator-impl.cc.

References m_smallestTime.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

GetTxCount()

uint32_t ns3::LbtsMessage::GetTxCount

(

)

const

Returns

transmitted count

Definition at line 61 of file distributed-simulator-impl.cc.

References m_txCount.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

IsFinished()

bool ns3::LbtsMessage::IsFinished

(

)

const

Returns

true if system is finished

Definition at line 79 of file distributed-simulator-impl.cc.

References m_isFinished.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

Member Data Documentation

m_isFinished

bool ns3::LbtsMessage::m_isFinished

private

true when this rank has no more events.

Definition at line 98 of file distributed-simulator-impl.h.

Referenced by IsFinished().

m_myId

uint32_t ns3::LbtsMessage::m_myId

private

System Id of the rank sending this LBTS.

Definition at line 96 of file distributed-simulator-impl.h.

Referenced by GetMyId().

m_rxCount

uint32_t ns3::LbtsMessage::m_rxCount

private

Count of received messages.

Definition at line 95 of file distributed-simulator-impl.h.

Referenced by GetRxCount().

m_smallestTime

Time ns3::LbtsMessage::m_smallestTime

private

Earliest next event timestamp.

Definition at line 97 of file distributed-simulator-impl.h.

Referenced by GetSmallestTime().

m_txCount

uint32_t ns3::LbtsMessage::m_txCount

private

Count of transmitted messages.

Definition at line 94 of file distributed-simulator-impl.h.

Referenced by GetTxCount().

---

The documentation for this class was generated from the following files:

• src/mpi/model/distributed-simulator-impl.h
• src/mpi/model/distributed-simulator-impl.cc
