ns3::CommonInfoBasicMle Struct Reference

Common Info field of the Basic Multi-Link element. More...

#include "multi-link-element.h"

Collaboration diagram for ns3::CommonInfoBasicMle:

Classes
struct	EmlCapabilities
	EML Capabilities subfield. More...
struct	MediumSyncDelayInfo
	Medium Synchronization Delay Information subfield. More...
struct	MldCapabilities
	MLD Capabilities subfield. More...

Public Member Functions
uint8_t	Deserialize (Buffer::Iterator start, uint16_t presence)
	Deserialize the Common Info field. More...
uint16_t	GetPresenceBitmap () const
	Get the Presence Bitmap subfield of the Common Info field. More...
uint8_t	GetSize () const
	Get the size of the serialized Common Info field. More...
void	Serialize (Buffer::Iterator &start) const
	Serialize the Common Info field. More...

Public Attributes
std::optional< uint8_t >	m_bssParamsChangeCount
	BSS Parameters Change Count. More...
std::optional< EmlCapabilities >	m_emlCapabilities
	EML Capabilities. More...
std::optional< uint8_t >	m_linkIdInfo
	Link ID Info. More...
std::optional< MediumSyncDelayInfo >	m_mediumSyncDelayInfo
	Medium Synchronization Delay Information. More...
std::optional< MldCapabilities >	m_mldCapabilities
	MLD Capabilities. More...
Mac48Address	m_mldMacAddress
	Subfields. More...

Detailed Description

Common Info field of the Basic Multi-Link element.

See Sec. 9.4.2.312.2.2 of 802.11be D1.5

Definition at line 46 of file multi-link-element.h.

Member Function Documentation

Deserialize()

uint8_t ns3::CommonInfoBasicMle::Deserialize	(	Buffer::Iterator	start,
		uint16_t	presence
	)

Deserialize the Common Info field.

Parameters

start	iterator pointing to where the Common Info field should be read from
presence	the value of the Presence Bitmap field indicating which subfields are present in the Common Info field

Returns

the number of bytes read

Definition at line 99 of file multi-link-element.cc.

References m_bssParamsChangeCount, m_emlCapabilities, m_linkIdInfo, m_mediumSyncDelayInfo, m_mldCapabilities, m_mldMacAddress, NS_ABORT_MSG_IF, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

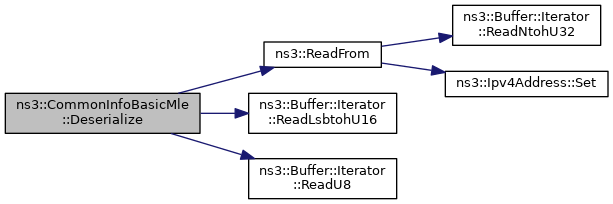

Here is the call graph for this function:

GetPresenceBitmap()

uint16_t ns3::CommonInfoBasicMle::GetPresenceBitmap

(

)

const

Get the Presence Bitmap subfield of the Common Info field.

CommonInfoBasicMle.

Returns

the Presence Bitmap subfield of the Common Info field

Definition at line 35 of file multi-link-element.cc.

References m_bssParamsChangeCount, m_emlCapabilities, m_linkIdInfo, m_mediumSyncDelayInfo, and m_mldCapabilities.

GetSize()

uint8_t ns3::CommonInfoBasicMle::GetSize

(

)

const

Get the size of the serialized Common Info field.

Returns

the size of the serialized Common Info field

Definition at line 46 of file multi-link-element.cc.

References m_bssParamsChangeCount, m_emlCapabilities, m_linkIdInfo, m_mediumSyncDelayInfo, and m_mldCapabilities.

Referenced by Serialize().

Here is the caller graph for this function:

Serialize()

void ns3::CommonInfoBasicMle::Serialize

(

Buffer::Iterator &

start

)

const

Serialize the Common Info field.

Parameters

start

iterator pointing to where the Common Info field should be written to

Definition at line 60 of file multi-link-element.cc.

References GetSize(), m_bssParamsChangeCount, m_emlCapabilities, m_linkIdInfo, m_mediumSyncDelayInfo, m_mldCapabilities, m_mldMacAddress, two-ray-to-three-gpp-ch-calibration::start, and ns3::WriteTo().

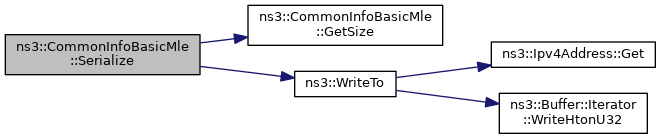

Here is the call graph for this function:

Member Data Documentation

m_bssParamsChangeCount

std::optional<uint8_t> ns3::CommonInfoBasicMle::m_bssParamsChangeCount

BSS Parameters Change Count.

Definition at line 88 of file multi-link-element.h.

Referenced by Deserialize(), BasicMultiLinkElementTest::DoRun(), BasicMultiLinkElementTest::GetMultiLinkElement(), GetPresenceBitmap(), GetSize(), and Serialize().

m_emlCapabilities

std::optional<EmlCapabilities> ns3::CommonInfoBasicMle::m_emlCapabilities

EML Capabilities.

Definition at line 91 of file multi-link-element.h.

Referenced by Deserialize(), GetPresenceBitmap(), GetSize(), and Serialize().

m_linkIdInfo

std::optional<uint8_t> ns3::CommonInfoBasicMle::m_linkIdInfo

Link ID Info.

Definition at line 87 of file multi-link-element.h.

Referenced by Deserialize(), BasicMultiLinkElementTest::DoRun(), BasicMultiLinkElementTest::GetMultiLinkElement(), GetPresenceBitmap(), GetSize(), and Serialize().

m_mediumSyncDelayInfo

std::optional<MediumSyncDelayInfo> ns3::CommonInfoBasicMle::m_mediumSyncDelayInfo

Medium Synchronization Delay Information.

Definition at line 90 of file multi-link-element.h.

Referenced by Deserialize(), BasicMultiLinkElementTest::DoRun(), BasicMultiLinkElementTest::GetMultiLinkElement(), GetPresenceBitmap(), GetSize(), and Serialize().

m_mldCapabilities

std::optional<MldCapabilities> ns3::CommonInfoBasicMle::m_mldCapabilities

MLD Capabilities.

Definition at line 92 of file multi-link-element.h.

Referenced by Deserialize(), GetPresenceBitmap(), GetSize(), and Serialize().

m_mldMacAddress

Mac48Address ns3::CommonInfoBasicMle::m_mldMacAddress

Subfields.

MLD MAC Address

Definition at line 86 of file multi-link-element.h.

Referenced by Deserialize(), BasicMultiLinkElementTest::DoRun(), BasicMultiLinkElementTest::GetMultiLinkElement(), and Serialize().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/eht/multi-link-element.h
• src/wifi/model/eht/multi-link-element.cc
