Class to allow the Spectrum Analysis. More...

#include "spectrum-analyzer-helper.h"

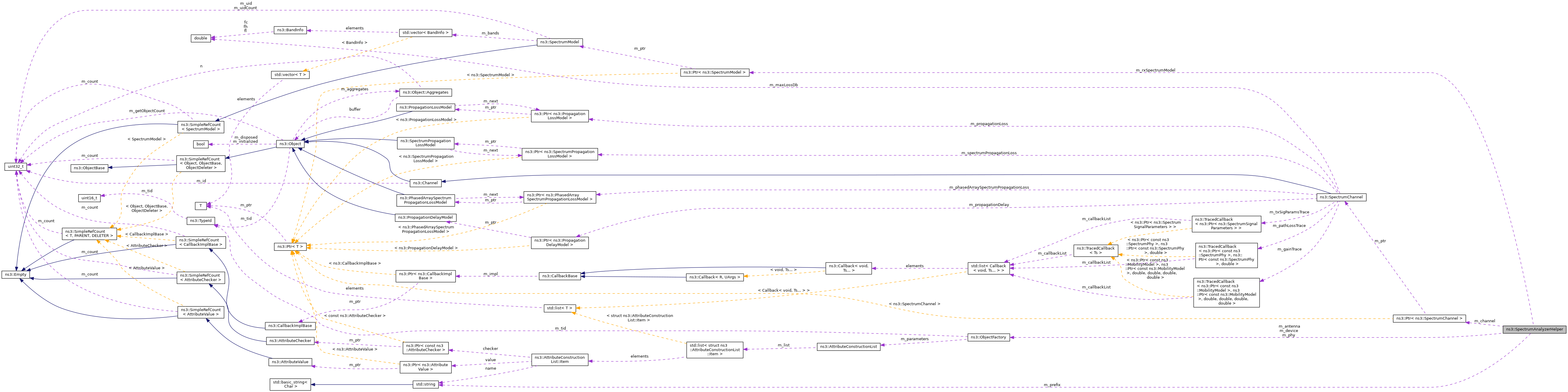

Collaboration diagram for ns3::SpectrumAnalyzerHelper:

Public Member Functions
	SpectrumAnalyzerHelper ()

	~SpectrumAnalyzerHelper ()

void	EnableAsciiAll (std::string prefix)
	Enable ASCII output. More...

NetDeviceContainer	Install (NodeContainer c) const

NetDeviceContainer	Install (Ptr< Node > node) const

NetDeviceContainer	Install (std::string nodeName) const

template<typename... Ts>
void	SetAntenna (std::string type, Ts &&... args)

void	SetChannel (Ptr< SpectrumChannel > channel)
	Set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper. More...

void	SetChannel (std::string channelName)
	Set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper. More...

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)

void	SetPhyAttribute (std::string name, const AttributeValue &v)

void	SetRxSpectrumModel (Ptr< SpectrumModel > m)
	Set the spectrum model used by the created SpectrumAnalyzer instances to represent incoming signals. More...

Private Attributes
ObjectFactory	m_antenna
	Object factory for the Antenna objects. More...

Ptr< SpectrumChannel >	m_channel
	Channel. More...

ObjectFactory	m_device
	Object factory for the NetDevice objects. More...

ObjectFactory	m_phy
	Object factory for the phy objects. More...

std::string	m_prefix
	Prefix for the output files. More...

Ptr< SpectrumModel >	m_rxSpectrumModel
	Spectrum model. More...

Detailed Description

Class to allow the Spectrum Analysis.

Definition at line 42 of file spectrum-analyzer-helper.h.

Constructor & Destructor Documentation

◆ SpectrumAnalyzerHelper()

ns3::SpectrumAnalyzerHelper::SpectrumAnalyzerHelper ( )

Definition at line 68 of file spectrum-analyzer-helper.cc.

References m_antenna, m_device, m_phy, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

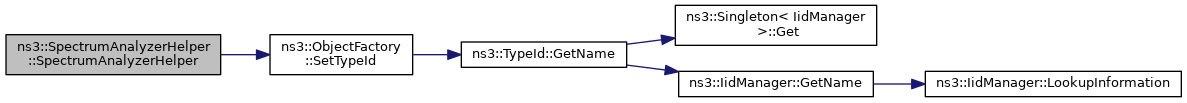

Here is the call graph for this function:

◆ ~SpectrumAnalyzerHelper()

ns3::SpectrumAnalyzerHelper::~SpectrumAnalyzerHelper ( )

Definition at line 76 of file spectrum-analyzer-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ EnableAsciiAll()

void ns3::SpectrumAnalyzerHelper::EnableAsciiAll ( std::string prefix )

Enable ASCII output.

This will create one filename for every created SpectrumAnalyzer instance.

Parameters

prefix the prefix of the filename of the traces that will be created.

Definition at line 118 of file spectrum-analyzer-helper.cc.

References m_prefix, and NS_LOG_FUNCTION.

◆ Install() [1/3]

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( NodeContainer c ) const

Parameters

c	the set of nodes on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 125 of file spectrum-analyzer-helper.cc.

References ns3::Node::AddDevice(), ns3::NodeContainer::Begin(), ns3::Config::ConnectWithoutContext(), ns3::ObjectFactory::Create(), ns3::AsciiTraceHelper::CreateFileStream(), first::devices, ns3::NodeContainer::End(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::Node::GetId(), ns3::Object::GetObject(), m_antenna, m_channel, m_device, m_phy, m_prefix, m_rxSpectrumModel, ns3::MakeBoundCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, third::phy, and ns3::WriteAveragePowerSpectralDensityReport().

Referenced by Install().

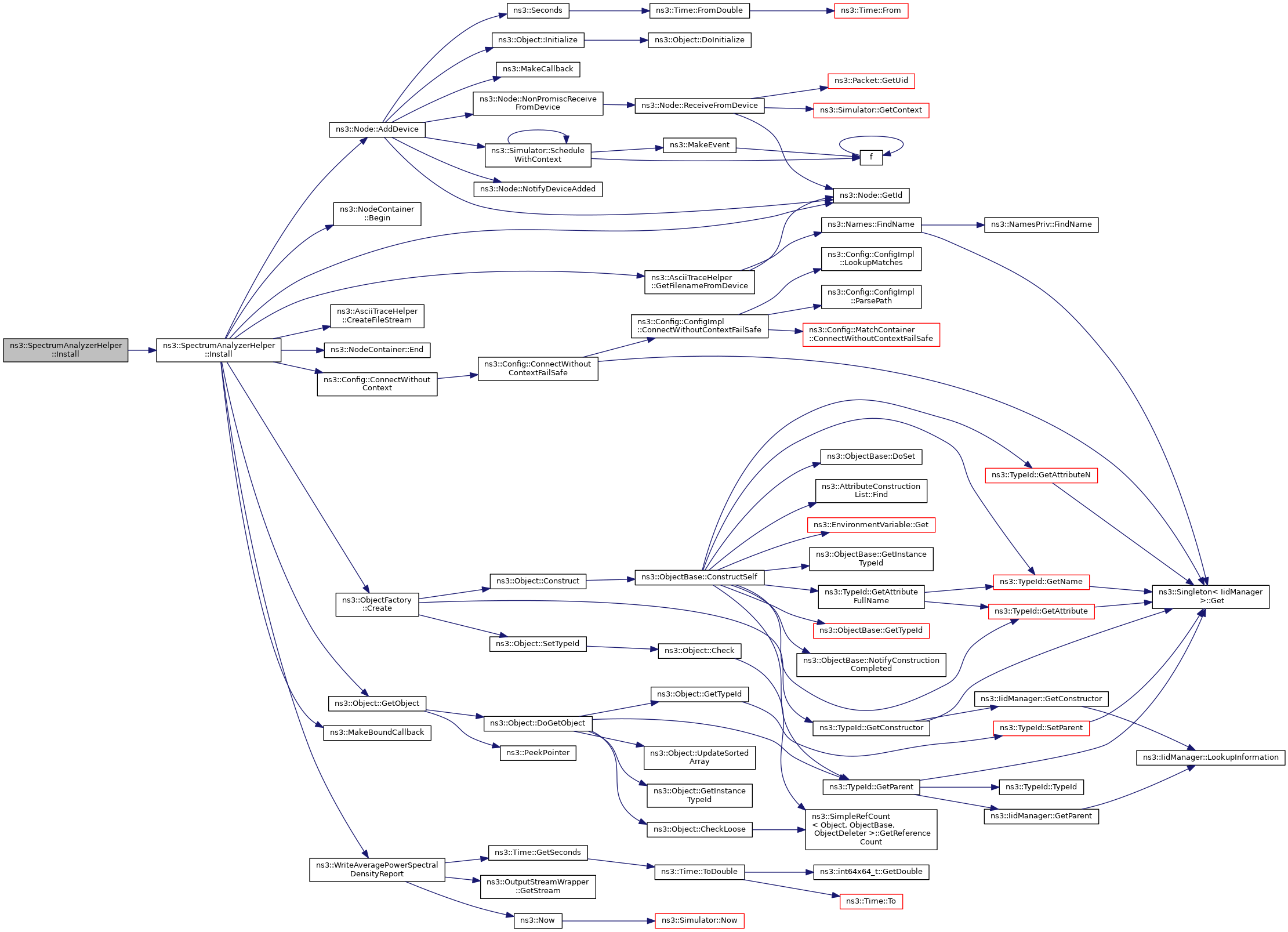

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/3]

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( Ptr< Node > node ) const

Parameters

node	the node on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 190 of file spectrum-analyzer-helper.cc.

References Install(), and NS_LOG_FUNCTION.

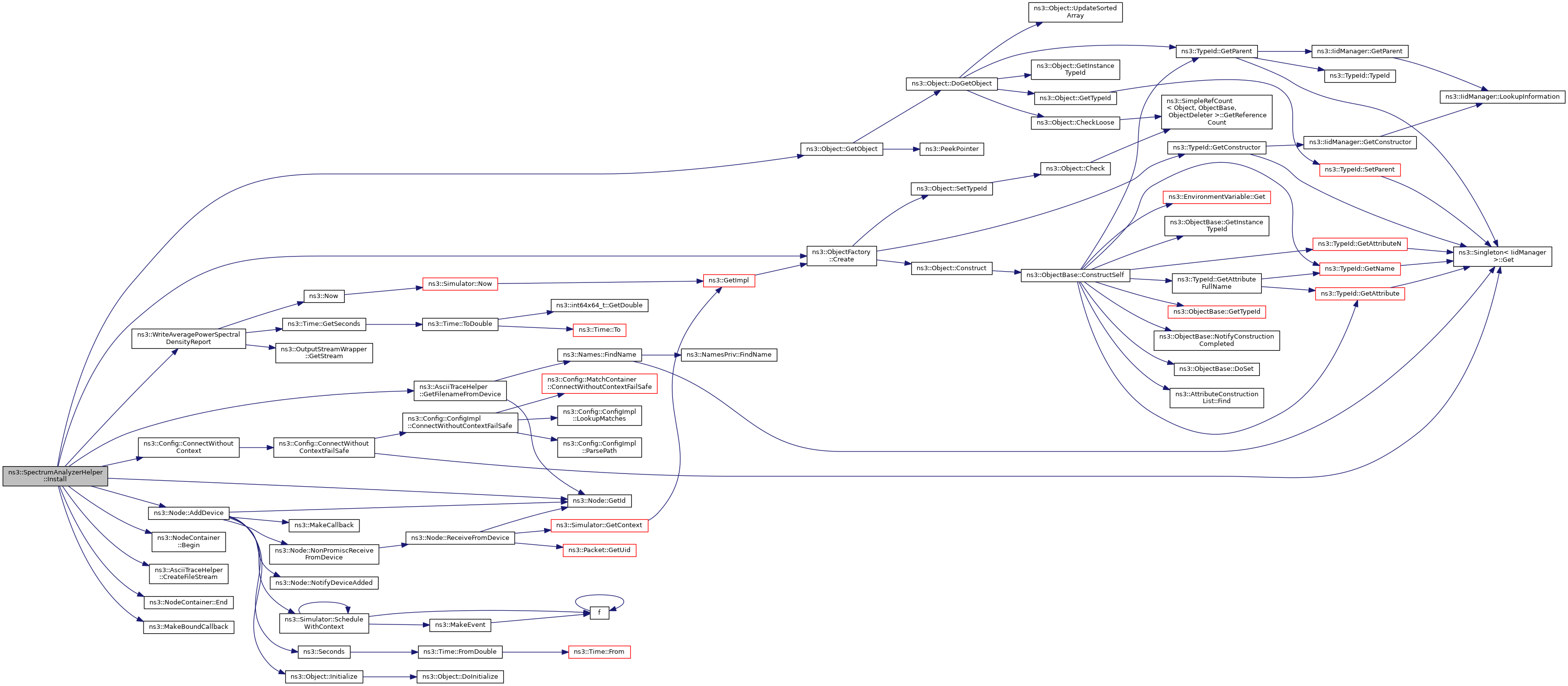

Here is the call graph for this function:

◆ Install() [3/3]

NetDeviceContainer ns3::SpectrumAnalyzerHelper::Install ( std::string nodeName ) const

Parameters

nodeName the name of node on which a device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 197 of file spectrum-analyzer-helper.cc.

References Install(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetAntenna()

template<typename... Ts>

void ns3::SpectrumAnalyzerHelper::SetAntenna	(	std::string	type,
		Ts &&...	args
	)

Template Parameters

Ts	[deduced] Argument types

Parameters

	type	the type of the model to set
[in]	args	Name and AttributeValue pairs to set.

Configure the AntennaModel instance for each new device to be created

Definition at line 136 of file spectrum-analyzer-helper.h.

References check-style-clang-format::args, m_antenna, and check-style-clang-format::type.

◆ SetChannel() [1/2]

void ns3::SpectrumAnalyzerHelper::SetChannel ( Ptr< SpectrumChannel > channel )

Set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper.

Parameters

channel

Definition at line 82 of file spectrum-analyzer-helper.cc.

References third::channel, m_channel, and NS_LOG_FUNCTION.

◆ SetChannel() [2/2]

void ns3::SpectrumAnalyzerHelper::SetChannel ( std::string channelName )

Set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper.

Parameters

channelName

Definition at line 89 of file spectrum-analyzer-helper.cc.

References third::channel, m_channel, and NS_LOG_FUNCTION.

◆ SetDeviceAttribute()

void ns3::SpectrumAnalyzerHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

Definition at line 104 of file spectrum-analyzer-helper.cc.

References m_device, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

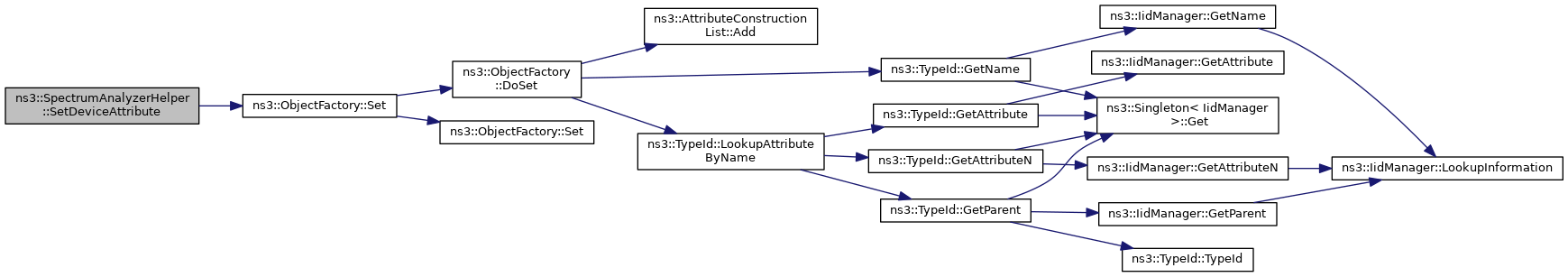

Here is the call graph for this function:

◆ SetPhyAttribute()

void ns3::SpectrumAnalyzerHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

Definition at line 97 of file spectrum-analyzer-helper.cc.

References m_phy, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetRxSpectrumModel()

void ns3::SpectrumAnalyzerHelper::SetRxSpectrumModel ( Ptr< SpectrumModel > m )

Set the spectrum model used by the created SpectrumAnalyzer instances to represent incoming signals.

Parameters

m

Definition at line 111 of file spectrum-analyzer-helper.cc.

References two-ray-to-three-gpp-ch-calibration::m, m_rxSpectrumModel, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_antenna

ObjectFactory ns3::SpectrumAnalyzerHelper::m_antenna

private

Object factory for the Antenna objects.

Definition at line 123 of file spectrum-analyzer-helper.h.

Referenced by SpectrumAnalyzerHelper(), Install(), and SetAntenna().

◆ m_channel

Ptr<SpectrumChannel> ns3::SpectrumAnalyzerHelper::m_channel

private

Definition at line 125 of file spectrum-analyzer-helper.h.

Referenced by Install(), and SetChannel().

◆ m_device

ObjectFactory ns3::SpectrumAnalyzerHelper::m_device

private

Object factory for the NetDevice objects.

Definition at line 122 of file spectrum-analyzer-helper.h.

Referenced by SpectrumAnalyzerHelper(), Install(), and SetDeviceAttribute().

◆ m_phy

ObjectFactory ns3::SpectrumAnalyzerHelper::m_phy

private

Object factory for the phy objects.

Definition at line 121 of file spectrum-analyzer-helper.h.

Referenced by SpectrumAnalyzerHelper(), Install(), and SetPhyAttribute().

◆ m_prefix

std::string ns3::SpectrumAnalyzerHelper::m_prefix

private

Prefix for the output files.

Definition at line 127 of file spectrum-analyzer-helper.h.

Referenced by EnableAsciiAll(), and Install().

◆ m_rxSpectrumModel

Ptr<SpectrumModel> ns3::SpectrumAnalyzerHelper::m_rxSpectrumModel

private

Spectrum model.

Definition at line 126 of file spectrum-analyzer-helper.h.

Referenced by Install(), and SetRxSpectrumModel().

The documentation for this class was generated from the following files:

src/spectrum/helper/spectrum-analyzer-helper.h
src/spectrum/helper/spectrum-analyzer-helper.cc
