Base classes which provide memory management and object aggregation. More...

Collaboration diagram for Object:

Files
file	attribute-construction-list.cc
	ns3::AttributeConstructionList implementation.

file	attribute-construction-list.h
	ns3::AttributeConstructionList declaration.

file	object-base.cc
	ns3::ObjectBase class implementation.

file	object-base.h
	ns3::ObjectBase declaration and NS_OBJECT_ENSURE_REGISTERED() macro definition.

file	object-factory.cc
	ns3::ObjectFactory class implementation.

file	object-factory.h
	ns3::ObjectFactory class declaration.

file	object-test-suite.cc
	Object test suite.

file	object.cc
	ns3::Object class implementation.

file	object.h
	ns3::Object class declaration, which is the root of the Object hierarchy and Aggregation.

file	type-id.cc
	ns3::TypeId and ns3::IidManager implementations.

file	type-id.h
	ns3::TypeId declaration; inline and template implementations.

file	type-traits-test-suite.cc
	TypeTraits test suite.

file	type-traits.h
	ns3::TypeTraits introspection declaration and template implementation.

Classes
class	ns3::AttributeConstructionList
	List of Attribute name, value and checker triples used to construct Objects. More...

class	ns3::IidManager
	TypeId information manager. More...

class	ns3::Object
	A base class which provides memory management and object aggregation. More...

class	ns3::ObjectBase
	Anchor the ns-3 type and attribute system. More...

struct	ns3::ObjectDeleter
	Standard Object deleter, used by SimpleRefCount to delete an Object when the reference count drops to zero. More...

class	ns3::ObjectFactory
	Instantiate subclasses of ns3::Object. More...

class	ns3::TypeId
	a unique identifier for an interface. More...

struct	ns3::TypeTraits< T >
	Inspect a type to deduce its features. More...

Macros
#define	IID "IidManager"

#define	IIDL IID << ": "

#define	NS_OBJECT_ENSURE_REGISTERED(type)
	Register an Object subclass with the TypeId system.

#define	NS_OBJECT_TEMPLATE_CLASS_DEFINE(type, param)
	Explicitly instantiate a template class with one template parameter and register the resulting instance with the TypeId system.

#define	NS_OBJECT_TEMPLATE_CLASS_TWO_DEFINE(type, param1, param2)
	Explicitly instantiate a template class with two template parameters and register the resulting instance with the TypeId system.

Functions
template<typename T , typename... Args>
Ptr< T >	ns3::CreateObjectWithAttributes (Args... args)
	Allocate an Object on the heap and initialize with a set of attributes.

template<typename T , typename... Args>
Ptr< T >	ns3::CreateObject (Args &&... args)
	Create an object by type, with varying number of constructor parameters.

Detailed Description

Base classes which provide memory management and object aggregation.

Macro Definition Documentation

◆ IID

#define IID "IidManager"

Internal:: IidManager shorthand for use in NS_LOG

Definition at line 372 of file type-id.cc.

◆ IIDL

#define IIDL IID << ": "

Internal:: IidManager shorthand for use in NS_LOG

Definition at line 378 of file type-id.cc.

◆ NS_OBJECT_ENSURE_REGISTERED

#define NS_OBJECT_ENSURE_REGISTERED ( type )

Value:

    static struct Object##type##RegistrationClass                                                  \
    {                                                                                              \
        Object##type##RegistrationClass()                                                          \
        {                                                                                          \
            NS_WARNING_PUSH_DEPRECATED;                                                            \
            ns3::TypeId tid = type::GetTypeId();                                                   \
            tid.SetSize(sizeof(type));                                                             \
            tid.GetParent();                                                                       \
            NS_WARNING_POP;                                                                        \
        }                                                                                          \
    } Object##type##RegistrationVariable

Register an Object subclass with the TypeId system.

This macro should be invoked once for every class which defines a new GetTypeId method.

If the class is in a namespace, then the macro call should also be in the namespace.

Definition at line 46 of file object-base.h.

◆ NS_OBJECT_TEMPLATE_CLASS_DEFINE

#define NS_OBJECT_TEMPLATE_CLASS_DEFINE	(	type,
		param
	)

Value:

    template class type<param>;                                                                    \
    template <>                                                                                    \
    std::string DoGetTemplateClassName<type<param>>()                                              \
    {                                                                                              \
        return std::string("ns3::") + std::string(#type) + std::string("<") +                      \
               std::string(#param) + std::string(">");                                             \
    }                                                                                              \
    static struct Object##type##param##RegistrationClass                                           \
    {                                                                                              \
        Object##type##param##RegistrationClass()                                                   \
        {                                                                                          \
            ns3::TypeId tid = type<param>::GetTypeId();                                            \
            tid.SetSize(sizeof(type<param>));                                                      \
            tid.GetParent();                                                                       \
        }                                                                                          \
    } Object##type##param##RegistrationVariable

Explicitly instantiate a template class with one template parameter and register the resulting instance with the TypeId system.

This macro should be invoked once for every required instance of a template class with one template parameter which derives from the Object class and defines a new GetTypeId method.

If the template class is in a namespace, then the macro call should also be in the namespace.

Note: The type names used as arguments for this macro, being used to form a class name and a variable name, CANNOT contain the scope resolution operator (::)

Template Parameters

type	the template class
param	the first template parameter

Definition at line 78 of file object-base.h.

◆ NS_OBJECT_TEMPLATE_CLASS_TWO_DEFINE

#define NS_OBJECT_TEMPLATE_CLASS_TWO_DEFINE	(	type,
		param1,
		param2
	)

Value:

    template class type<param1, param2>;                                                           \
    template <>                                                                                    \
    std::string DoGetTemplateClassName<type<param1, param2>>()                                     \
    {                                                                                              \
        return std::string("ns3::") + std::string(#type) + std::string("<") +                      \
               std::string(#param1) + std::string(",") + std::string(#param2) + std::string(">");  \
    }                                                                                              \
    static struct Object##type##param1##param2##RegistrationClass                                  \
    {                                                                                              \
        Object##type##param1##param2##RegistrationClass()                                          \
        {                                                                                          \
            ns3::TypeId tid = type<param1, param2>::GetTypeId();                                   \
            tid.SetSize(sizeof(type<param1, param2>));                                             \
            tid.GetParent();                                                                       \
        }                                                                                          \
    } Object##type##param1##param2##RegistrationVariable

Explicitly instantiate a template class with two template parameters and register the resulting instance with the TypeId system.

This macro should be invoked once for every required instance of a template class with two template parameters which derives from the Object class and defines a new GetTypeId method.

If the template class is in a namespace, then the macro call should also be in the namespace.

Note: The type names used as arguments for this macro, being used to form a class name and a variable name, CANNOT contain the scope resolution operator (::)

Template Parameters

type	the template class
param1	the first template parameter
param2	the second template parameter

Definition at line 116 of file object-base.h.

Function Documentation

◆ CreateObject()

template<typename T , typename... Args>

Ptr< T > ns3::CreateObject ( Args &&... args )

Create an object by type, with varying number of constructor parameters.

Template Parameters

T	[explicit] The type of the derived object to construct.

Parameters

[in] args Arguments to pass to the constructor.

Returns: The derived object.

Definition at line 579 of file object.h.

References ns3::CompleteConstruct().

Referenced by ns3::Ipv4L3Protocol::AddInterface(), ns3::Ipv6L3Protocol::AddInterface(), TestChildQueueDisc::CheckConfig(), Ipv4L3ProtocolTestCase::DoRun(), Ipv6L3ProtocolTestCase::DoRun(), PointToPointTest::DoRun(), ns3::Ipv4L3Protocol::SetupLoopback(), and ns3::Ipv6L3Protocol::SetupLoopback().

Here is the call graph for this function:

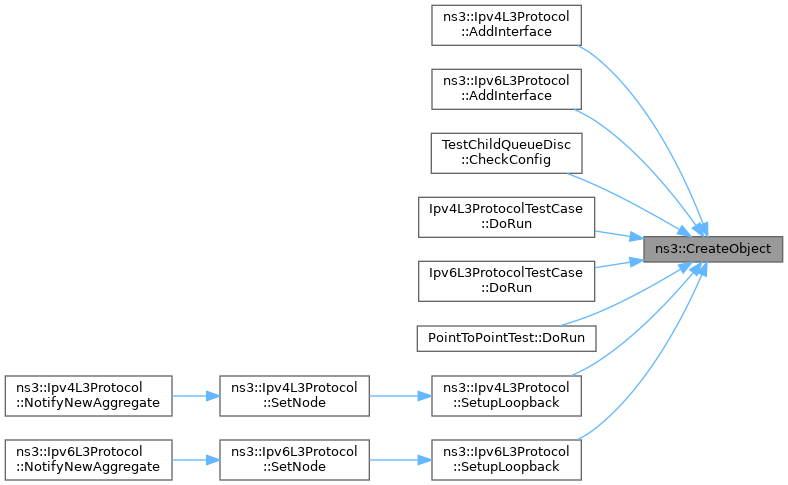

Here is the caller graph for this function:

◆ CreateObjectWithAttributes()

template<typename T , typename... Args>

Ptr< T > ns3::CreateObjectWithAttributes ( Args... args )

Allocate an Object on the heap and initialize with a set of attributes.

Template Parameters

T	[explicit] The requested Object type.
Args	[deduced] The type of the sequence of name-value pairs.

Parameters

[in] args A sequence of name-value pairs of the attributes to set.

Returns: A pointer to a newly allocated object.

The args sequence can be made of any number of pairs, each consisting of a name (of std::string type) followed by a value (of const AttributeValue & type).

Definition at line 228 of file object-factory.h.

References ns3::ObjectFactory::Create(), ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::CobaltQueueDisc::CheckConfig(), ns3::CoDelQueueDisc::CheckConfig(), ns3::FifoQueueDisc::CheckConfig(), ns3::PieQueueDisc::CheckConfig(), and ns3::RedQueueDisc::CheckConfig().

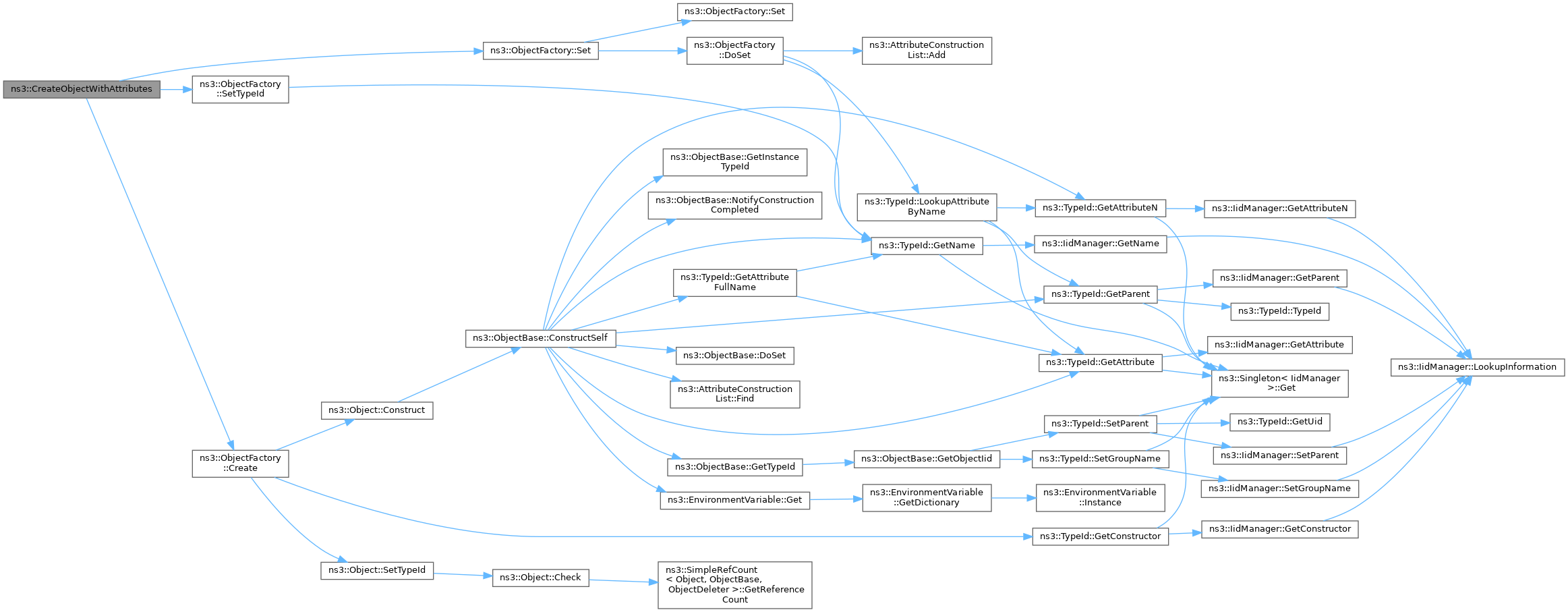

Here is the call graph for this function:
