Class implementing the phased array model virtual base class. More...

#include "phased-array-model.h"

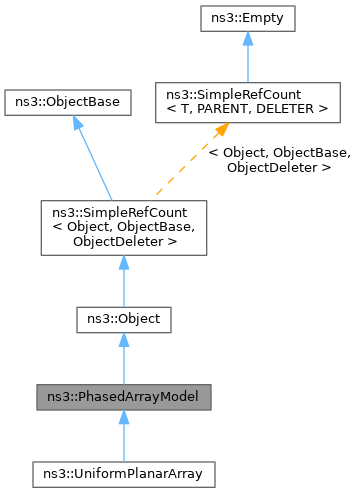

Inheritance diagram for ns3::PhasedArrayModel:

Collaboration diagram for ns3::PhasedArrayModel:

Public Types
using	ComplexVector = ComplexMatrixArray
	the underlying Valarray

Public Member Functions
	PhasedArrayModel ()
	Constructor.

	~PhasedArrayModel () override
	Destructor.

Ptr< const AntennaModel >	GetAntennaElement () const
	Returns a pointer to the AntennaModel instance used to model the elements of the array.

ComplexVector	GetBeamformingVector () const
	Returns the beamforming vector that is currently being used.

ComplexVector	GetBeamformingVector (Angles a) const
	Returns the beamforming vector that points towards the specified position.

virtual std::pair< double, double >	GetElementFieldPattern (Angles a) const =0
	Returns the horizontal and vertical components of the antenna element field pattern at the specified direction.

virtual Vector	GetElementLocation (uint64_t index) const =0
	Returns the location of the antenna element with the specified index, normalized with respect to the wavelength.

uint32_t	GetId () const
	Returns the ID of this antenna array instance.

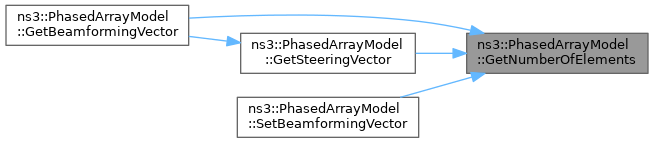

virtual size_t	GetNumberOfElements () const =0
	Returns the number of antenna elements.

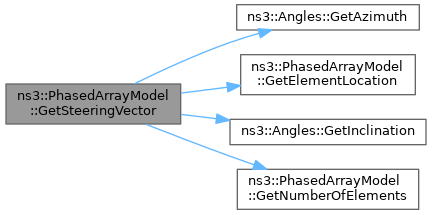

ComplexVector	GetSteeringVector (Angles a) const
	Returns the steering vector that points toward the specified position.

double	norm (const ComplexVector &complexVector) const
	Computes the Frobenius norm of the complex vector.

void	SetAntennaElement (Ptr< AntennaModel > antennaElement)
	Sets the antenna model to be used.

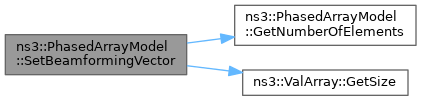

void	SetBeamformingVector (const ComplexVector &beamformingVector)
	Sets the beamforming vector to be used.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

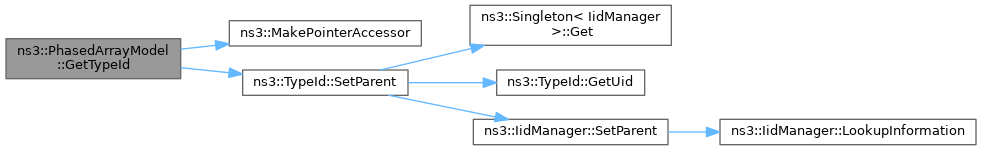

static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Attributes
Ptr< AntennaModel >	m_antennaElement
	the model of the antenna element in use

ComplexVector	m_beamformingVector
	the beamforming vector in use

uint32_t	m_id {0}
	the ID of this antenna array instance

bool	m_isBfVectorValid
	ensures the validity of the beamforming vector

Static Protected Attributes
static uint32_t	m_idCounter = 0
	the ID counter that is used to determine the unique antenna array ID

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Class implementing the phased array model virtual base class.

Introspection did not find any typical Config paths.

Attributes

AntennaElement: A pointer to the antenna element used by the phased array
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::AntennaModel>
- Initial value: 0xd80b00
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 36 of file phased-array-model.h.

Member Typedef Documentation

◆ ComplexVector

using ns3::PhasedArrayModel::ComplexVector = ComplexMatrixArray

the underlying Valarray

Definition at line 56 of file phased-array-model.h.

Constructor & Destructor Documentation

◆ PhasedArrayModel()

ns3::PhasedArrayModel::PhasedArrayModel ( )

Constructor.

Definition at line 58 of file phased-array-model.cc.

References m_id, and m_idCounter.

◆ ~PhasedArrayModel()

ns3::PhasedArrayModel::~PhasedArrayModel ( )

override

Destructor.

Definition at line 64 of file phased-array-model.cc.

Member Function Documentation

◆ GetAntennaElement()

Ptr< const AntennaModel > ns3::PhasedArrayModel::GetAntennaElement ( ) const

Returns a pointer to the AntennaModel instance used to model the elements of the array.

Returns: pointer to the AntennaModel instance

Definition at line 143 of file phased-array-model.cc.

References m_antennaElement, and NS_LOG_FUNCTION.

◆ GetBeamformingVector() [1/2]

PhasedArrayModel::ComplexVector ns3::PhasedArrayModel::GetBeamformingVector ( ) const

Returns the beamforming vector that is currently being used.

Returns: the current beamforming vector

Definition at line 94 of file phased-array-model.cc.

References m_beamformingVector, m_isBfVectorValid, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ GetBeamformingVector() [2/2]

PhasedArrayModel::ComplexVector ns3::PhasedArrayModel::GetBeamformingVector ( Angles a ) const

Returns the beamforming vector that points towards the specified position.

Parameters

a	the beamforming angle

Returns: the beamforming vector

Definition at line 104 of file phased-array-model.cc.

References GetNumberOfElements(), GetSteeringVector(), MRG32k3a::norm, and NS_LOG_FUNCTION.

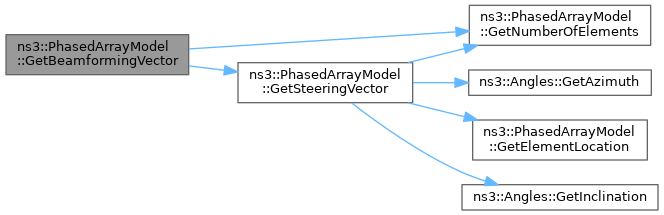

Here is the call graph for this function:

◆ GetElementFieldPattern()

virtual std::pair< double, double > ns3::PhasedArrayModel::GetElementFieldPattern ( Angles a ) const

pure virtual

Returns the horizontal and vertical components of the antenna element field pattern at the specified direction.

Single polarization is considered.

Parameters

a	the angle indicating the interested direction

Returns: a pair in which the first element is the horizontal component of the field pattern and the second element is the vertical component of the field pattern

Implemented in ns3::UniformPlanarArray.
