ns3::RocketfuelTopologyReader Class Reference

Topology file reader (Rocketfuel-format type). More...

#include "rocketfuel-topology-reader.h"

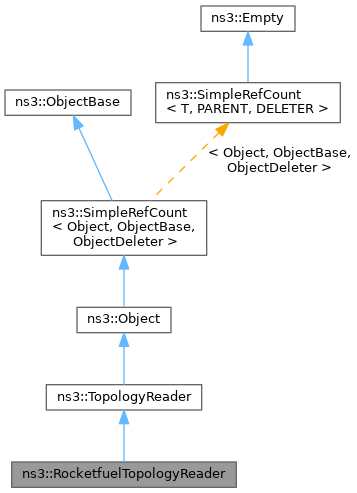

+ Inheritance diagram for ns3::RocketfuelTopologyReader:
+ Collaboration diagram for ns3::RocketfuelTopologyReader:

Public Member Functions

 RocketfuelTopologyReader ()

 RocketfuelTopologyReader (const RocketfuelTopologyReader &)=delete

 ~RocketfuelTopologyReader () override

RocketfuelTopologyReaderoperator= (const RocketfuelTopologyReader &)=delete

NodeContainer Read () override
 Main topology reading function.

- Public Member Functions inherited from ns3::TopologyReader
 TopologyReader ()

 TopologyReader (const TopologyReader &)=delete

 ~TopologyReader () override

void AddLink (Link link)
 Adds a link to the topology.

std::string GetFileName () const
 Returns the input file name.

ConstLinksIterator LinksBegin () const
 Returns an iterator to the the first link in this block.

bool LinksEmpty () const
 Checks if the block contains any links.

ConstLinksIterator LinksEnd () const
 Returns an iterator to the the last link in this block.

int LinksSize () const
 Returns the number of links in this block.

TopologyReaderoperator= (const TopologyReader &)=delete

virtual NodeContainer Read ()=0
 Main topology reading function.

void SetFileName (const std::string &fileName)
 Sets the input file name.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::TopologyReader
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Types

enum  RF_FileType { RF_MAPS , RF_WEIGHTS , RF_UNKNOWN }
 Enum of the possible file types. More...


Private Member Functions

NodeContainer GenerateFromMapsFile (const std::vector< std::string > &argv)
 Topology read function from a file containing the nodes map.

NodeContainer GenerateFromWeightsFile (const std::vector< std::string > &argv)
 Topology read function from a file containing the nodes weights.

RF_FileType GetFileType (const std::string &buf)
 Classifies the file type according to its content.


Private Attributes

int m_linksNumber
 Number of links.

std::map< std::string, Ptr< Node > > m_nodeMap
 Map of the nodes (name, node).

int m_nodesNumber
 Number of nodes.


Additional Inherited Members

- Public Types inherited from ns3::TopologyReader
typedef std::list< Link >::const_iterator ConstLinksIterator
 Constant iterator to the list of the links.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Topology file reader (Rocketfuel-format type).

Introspection did not find any typical Config paths.

http://www.cs.washington.edu/research/networking/rocketfuel/

May 2nd, 2010: Currently only support "weights" file and "cch" file. http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 47 of file rocketfuel-topology-reader.h.

Member Enumeration Documentation

◆ RF_FileType

Enum of the possible file types.

Enumerator
RF_MAPS
RF_WEIGHTS
RF_UNKNOWN

Definition at line 101 of file rocketfuel-topology-reader.h.

Constructor & Destructor Documentation

◆ RocketfuelTopologyReader() [1/2]

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( )

Definition at line 55 of file rocketfuel-topology-reader.cc.

References m_linksNumber, m_nodesNumber, and NS_LOG_FUNCTION.

◆ ~RocketfuelTopologyReader()

ns3::RocketfuelTopologyReader::~RocketfuelTopologyReader ( )
override

Definition at line 62 of file rocketfuel-topology-reader.cc.

References NS_LOG_FUNCTION.

◆ RocketfuelTopologyReader() [2/2]

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( const RocketfuelTopologyReader )
delete

Member Function Documentation

◆ GenerateFromMapsFile()

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromMapsFile ( const std::vector< std::string > &  argv)
private

Topology read function from a file containing the nodes map.

Parser for the *.cch file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz

Parameters
[in]argvArgument vector.
Returns
The container of the nodes created (or empty container if there was an error).

Definition at line 127 of file rocketfuel-topology-reader.cc.

References ns3::Names::Add(), ns3::TopologyReader::AddLink(), m_linksNumber, m_nodeMap, m_nodesNumber, nodes, NS_LOG_INFO, NS_LOG_WARN, and ns3::PrintNodeInfo().

Referenced by Read().

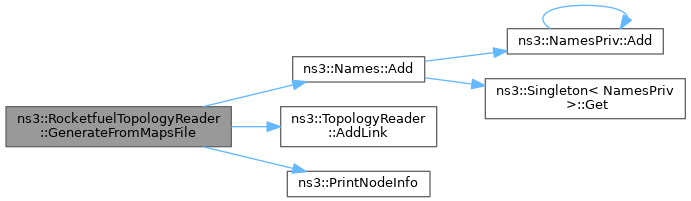

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GenerateFromWeightsFile()

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromWeightsFile ( const std::vector< std::string > &  argv)
private

Topology read function from a file containing the nodes weights.

Parser for the weights.* file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz

Parameters
[in]argvArgument vector.
Returns
The container of the nodes created (or empty container if there was an error).

Definition at line 254 of file rocketfuel-topology-reader.cc.

References ns3::Names::Add(), ns3::TopologyReader::AddLink(), ns3::TopologyReader::LinksBegin(), ns3::TopologyReader::LinksEnd(), m_linksNumber, m_nodeMap, m_nodesNumber, nodes, NS_LOG_INFO, and NS_LOG_WARN.

Referenced by Read().

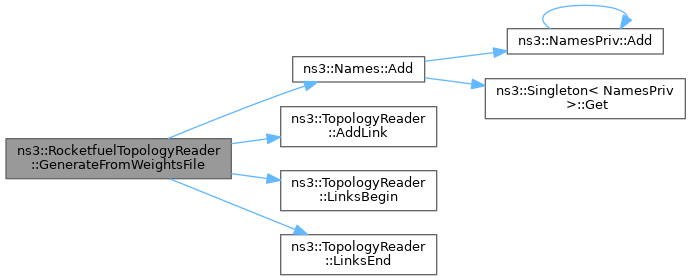

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetFileType()

RocketfuelTopologyReader::RF_FileType ns3::RocketfuelTopologyReader::GetFileType ( const std::string &  buf)
private

Classifies the file type according to its content.

Parameters
bufthe first line of the file being read
Returns
The file type (RF_MAPS, RF_WEIGHTS, or RF_UNKNOWN)

Definition at line 323 of file rocketfuel-topology-reader.cc.

References RF_MAPS, RF_UNKNOWN, RF_WEIGHTS, ns3::rocketfuel_maps_regex(), and ns3::rocketfuel_weights_regex().

Referenced by Read().

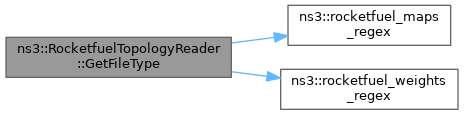

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RocketfuelTopologyReader::GetTypeId ( )
static

Get the type ID.

Returns
The object TypeId

Definition at line 46 of file rocketfuel-topology-reader.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ operator=()

RocketfuelTopologyReader & ns3::RocketfuelTopologyReader::operator= ( const RocketfuelTopologyReader )
delete

◆ Read()

NodeContainer ns3::RocketfuelTopologyReader::Read ( )
overridevirtual

Main topology reading function.

This method opens an input stream and reads the Rocketfuel-format file. Every row represents a topology link (the ids of a couple of nodes), so the input file is read line by line to figure out how many links and nodes are in the topology.

Returns
The container of the nodes created (or empty container if there was an error)

Implements ns3::TopologyReader.

Definition at line 346 of file rocketfuel-topology-reader.cc.

References GenerateFromMapsFile(), GenerateFromWeightsFile(), ns3::TopologyReader::GetFileName(), GetFileType(), nodes, NS_LOG_INFO, NS_LOG_WARN, RF_MAPS, RF_UNKNOWN, RF_WEIGHTS, ns3::rocketfuel_maps_regex(), and ns3::rocketfuel_weights_regex().

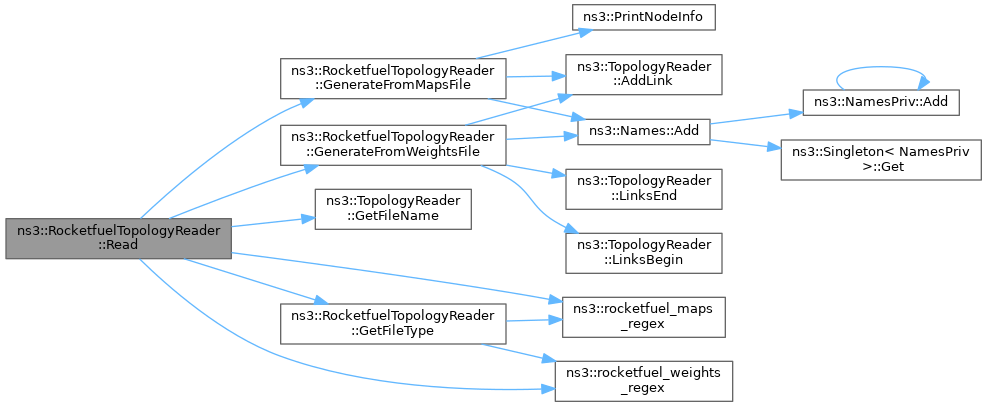

+ Here is the call graph for this function:

Member Data Documentation

◆ m_linksNumber

int ns3::RocketfuelTopologyReader::m_linksNumber
private

Number of links.

Definition at line 116 of file rocketfuel-topology-reader.h.

Referenced by RocketfuelTopologyReader(), GenerateFromMapsFile(), and GenerateFromWeightsFile().

◆ m_nodeMap

std::map<std::string, Ptr<Node> > ns3::RocketfuelTopologyReader::m_nodeMap
private

Map of the nodes (name, node).

Definition at line 118 of file rocketfuel-topology-reader.h.

Referenced by GenerateFromMapsFile(), and GenerateFromWeightsFile().

◆ m_nodesNumber

int ns3::RocketfuelTopologyReader::m_nodesNumber
private

Number of nodes.

Definition at line 117 of file rocketfuel-topology-reader.h.

Referenced by RocketfuelTopologyReader(), GenerateFromMapsFile(), and GenerateFromWeightsFile().


The documentation for this class was generated from the following files:
