ns3::DataCollectionObject Class Reference

Base class for data collection framework objects. More...

#include "data-collection-object.h"

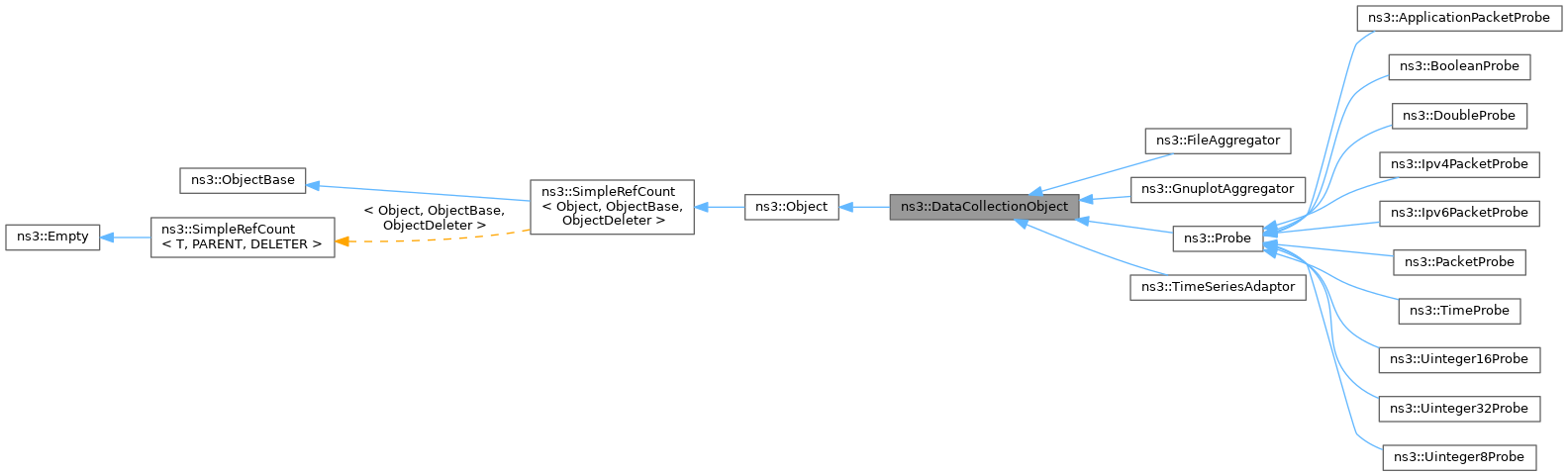

+ Inheritance diagram for ns3::DataCollectionObject:

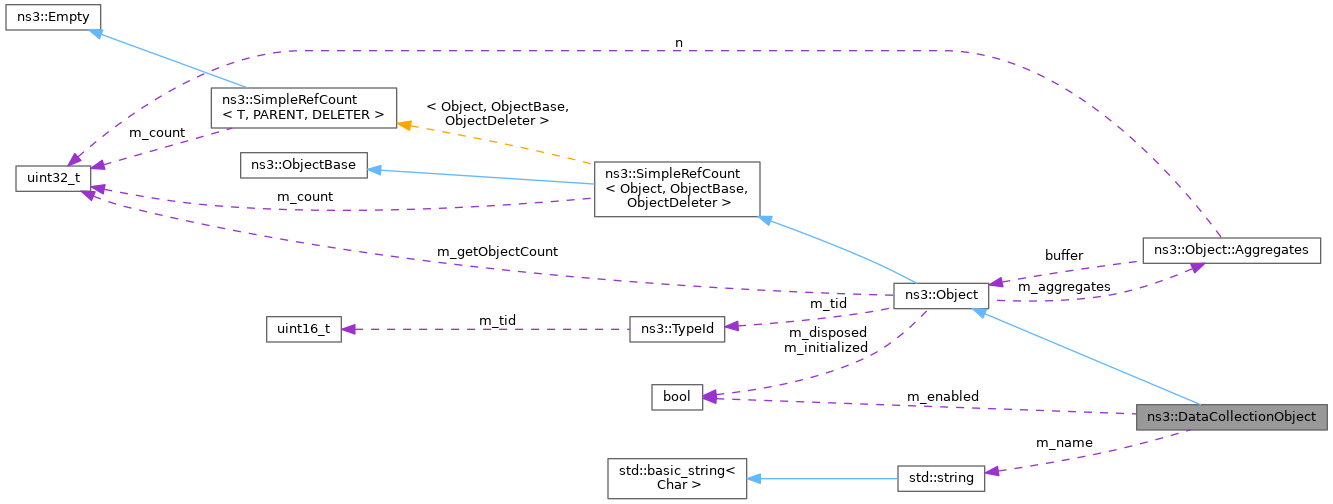

+ Collaboration diagram for ns3::DataCollectionObject:

Public Member Functions

 DataCollectionObject ()

 ~DataCollectionObject () override

void Disable ()
 Unset the status of an individual object.

void Enable ()
 Set the status of an individual object.

std::string GetName () const
 Get the object's name.

virtual bool IsEnabled () const
 Check the status of an individual object.

void SetName (std::string name)
 Set the object's name.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Attributes

bool m_enabled
 Object's activation state.

std::string m_name
 Name of the object within the data collection framework.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Base class for data collection framework objects.

Introspection did not find any typical Config paths.

All data collection objects have 1) a string name, and 2) enabled or disabled status.


Attributes

  • Enabled: Object's enabled status
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwriteread
  • Name: Object's name
    • Set with class: ns3::StringValue
    • Underlying type: std::string
    • Initial value: unnamed
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 38 of file data-collection-object.h.

Constructor & Destructor Documentation

◆ DataCollectionObject()

ns3::DataCollectionObject::DataCollectionObject ( )

Definition at line 54 of file data-collection-object.cc.

◆ ~DataCollectionObject()

ns3::DataCollectionObject::~DataCollectionObject ( )
override

Definition at line 58 of file data-collection-object.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Disable()

void ns3::DataCollectionObject::Disable ( )

Unset the status of an individual object.

Definition at line 95 of file data-collection-object.cc.

References m_enabled, and NS_LOG_FUNCTION.

◆ Enable()

void ns3::DataCollectionObject::Enable ( )

Set the status of an individual object.

Definition at line 88 of file data-collection-object.cc.

References m_enabled, and NS_LOG_FUNCTION.

◆ GetName()

std::string ns3::DataCollectionObject::GetName ( ) const

Get the object's name.

Returns
the object's name

Definition at line 70 of file data-collection-object.cc.

References m_name.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::DataCollectionObject::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 34 of file data-collection-object.cc.

References GetName(), m_enabled, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), SetName(), and ns3::TypeId::SetParent().

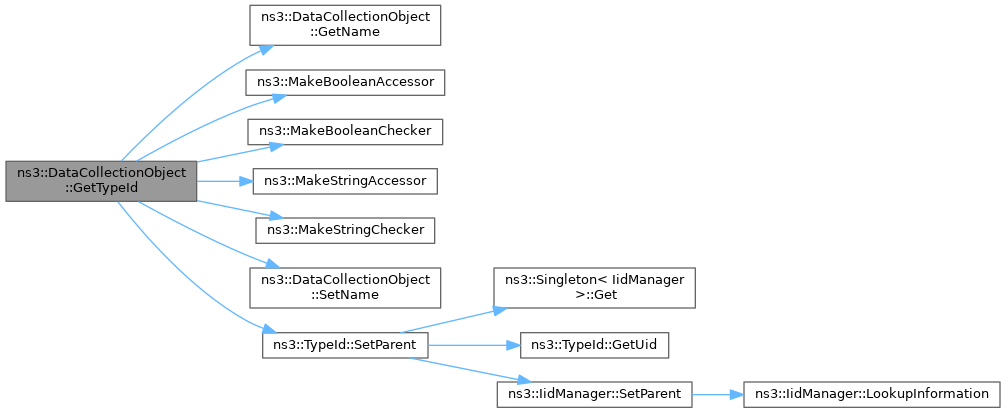

+ Here is the call graph for this function:

◆ IsEnabled()

bool ns3::DataCollectionObject::IsEnabled ( ) const
virtual

Check the status of an individual object.

Returns
true if the object is enabled

Reimplemented in ns3::Probe.

Definition at line 64 of file data-collection-object.cc.

References m_enabled.

Referenced by ns3::Probe::IsEnabled(), and ns3::TimeSeriesAdaptor::TraceSinkDouble().

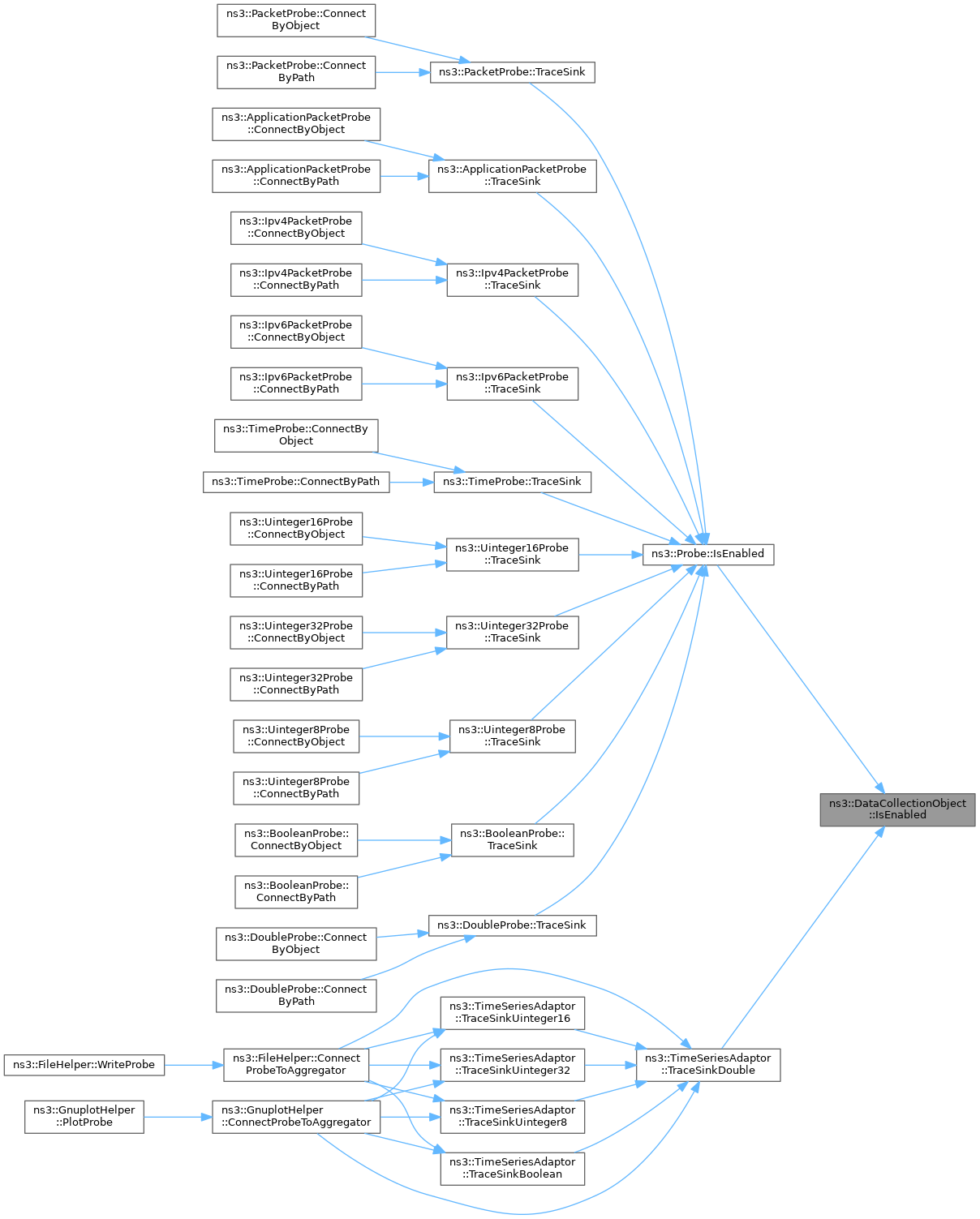

+ Here is the caller graph for this function:

◆ SetName()

void ns3::DataCollectionObject::SetName ( std::string  name)

Set the object's name.

Parameters
namethe object's name

Definition at line 76 of file data-collection-object.cc.

References m_name, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_enabled

◆ m_name

std::string ns3::DataCollectionObject::m_name
protected

Name of the object within the data collection framework.

Definition at line 78 of file data-collection-object.h.

Referenced by GetName(), and SetName().


The documentation for this class was generated from the following files:
