IEEE802.15.4-2006 PHY PIB Attributes Table 23 in section 6.4.2. More...

#include "lr-wpan-phy.h"

Inheritance diagram for ns3::LrWpanPhyPibAttributes:

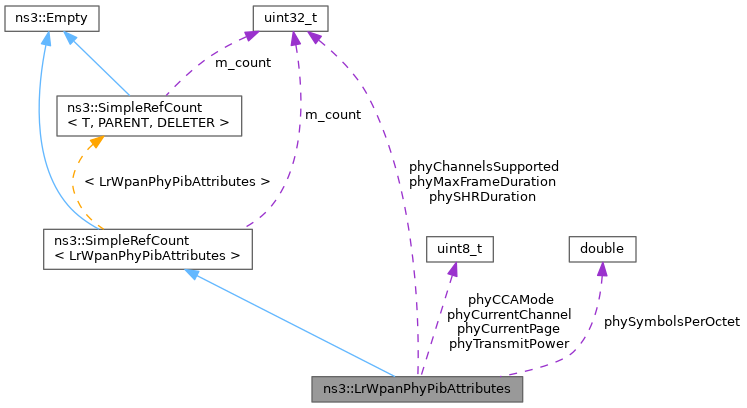

Collaboration diagram for ns3::LrWpanPhyPibAttributes:

Public Attributes
uint8_t	phyCCAMode
	CCA mode.

uint32_t	phyChannelsSupported [32]
	BitField representing the available channels supported by a channel page.

uint8_t	phyCurrentChannel
	The RF channel to use.

uint8_t	phyCurrentPage
	Current channel page.

uint32_t	phyMaxFrameDuration
	The maximum number of symbols in a frame.

uint32_t	phySHRDuration
	The duration of the synchronization header (SHR) in symbols.

double	phySymbolsPerOctet
	The number of symbols per octet.

uint8_t	phyTransmitPower
	2 MSB: tolerance on the transmit power, 6 LSB: Tx power in dBm relative to 1mW (signed int in 2-complement format)

Additional Inherited Members
Public Member Functions inherited from ns3::SimpleRefCount< LrWpanPhyPibAttributes >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Detailed Description

IEEE802.15.4-2006 PHY PIB Attributes Table 23 in section 6.4.2.

Definition at line 159 of file lr-wpan-phy.h.

Member Data Documentation

◆ phyCCAMode

uint8_t ns3::LrWpanPhyPibAttributes::phyCCAMode

CCA mode.

Definition at line 166 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanPhy::EndCca(), and ns3::LrWpanPhy::PlmeSetAttributeRequest().

◆ phyChannelsSupported

uint32_t ns3::LrWpanPhyPibAttributes::phyChannelsSupported[32]

BitField representing the available channels supported by a channel page.

Definition at line 162 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::ChannelSupported(), ns3::LrWpanPhy::PageSupported(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), and ns3::LrWpanPhy::SetPhyOption().

◆ phyCurrentChannel

uint8_t ns3::LrWpanPhyPibAttributes::phyCurrentChannel

The RF channel to use.

Definition at line 161 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::CheckInterference(), ns3::LrWpanPhy::EndCca(), ns3::LrWpanPhy::EndEd(), ns3::LrWpanPhy::EndRx(), ns3::LrWpanPhy::GetCurrentChannelNum(), ns3::LrWpanPhy::GetCurrentSignalPsd(), ns3::LrWpanPhy::PlmeGetAttributeRequest(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), ns3::LrWpanPhy::SetPhyOption(), ns3::LrWpanPhy::SetRxSensitivity(), and ns3::LrWpanPhy::StartRx().

◆ phyCurrentPage

uint8_t ns3::LrWpanPhyPibAttributes::phyCurrentPage

Current channel page.

Definition at line 167 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::ChannelSupported(), ns3::LrWpanPhy::GetCurrentPage(), ns3::LrWpanPhy::PlmeGetAttributeRequest(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), and ns3::LrWpanPhy::SetPhyOption().

◆ phyMaxFrameDuration

uint32_t ns3::LrWpanPhyPibAttributes::phyMaxFrameDuration

The maximum number of symbols in a frame.

Definition at line 168 of file lr-wpan-phy.h.

◆ phySHRDuration

uint32_t ns3::LrWpanPhyPibAttributes::phySHRDuration

The duration of the synchronization header (SHR) in symbols.

Definition at line 169 of file lr-wpan-phy.h.

◆ phySymbolsPerOctet

double ns3::LrWpanPhyPibAttributes::phySymbolsPerOctet

The number of symbols per octet.

Definition at line 170 of file lr-wpan-phy.h.

◆ phyTransmitPower

uint8_t ns3::LrWpanPhyPibAttributes::phyTransmitPower

2 MSB: tolerance on the transmit power, 6 LSB: Tx power in dBm relative to 1mW (signed int in 2-complement format)

Definition at line 164 of file lr-wpan-phy.h.

Referenced by ns3::LrWpanPhy::LrWpanPhy(), ns3::LrWpanPhy::PlmeSetAttributeRequest(), and ns3::LrWpanPhy::SetRxSensitivity().

The documentation for this struct was generated from the following file:

src/lr-wpan/model/lr-wpan-phy.h
