ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker Class Reference

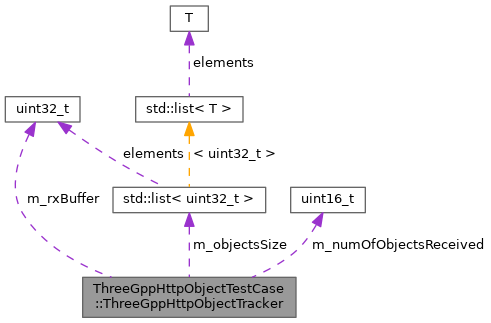

Collaboration diagram for ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker:

Public Member Functions
	ThreeGppHttpObjectTracker ()
	Creates a new instance with all counters begin at zero.
uint16_t	GetNumOfObjectsReceived () const
bool	IsEmpty () const
bool	ObjectReceived (uint32_t &txSize, uint32_t &rxSize)
	Shall be invoked after all parts of a complete object have been received.
void	ObjectSent (uint32_t size)
	Shall be invoked when a whole object has been transmitted.
void	PartReceived (uint32_t size)
	Shall be invoked when an object part has been received.

Private Attributes
uint16_t	m_numOfObjectsReceived
	Number of whole objects that have been received so far.
std::list< uint32_t >	m_objectsSize
	Each entry is the size (in bytes) of object transmitted.
uint32_t	m_rxBuffer
	The accumulated size (in bytes) of parts of a whole object.

Detailed Description

Internal:

Internal class used by ThreeGppHttpObjectTestCase. Keep track of the number of object and bytes that have been sent and received in the simulation by listening to the relevant trace sources.

Definition at line 118 of file three-gpp-http-client-server-test.cc.

Constructor & Destructor Documentation

ThreeGppHttpObjectTracker()

ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::ThreeGppHttpObjectTracker

(

)

Creates a new instance with all counters begin at zero.

Definition at line 533 of file three-gpp-http-client-server-test.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

GetNumOfObjectsReceived()

uint16_t ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::GetNumOfObjectsReceived

(

)

const

Returns

Number of whole objects that have been received so far.

Definition at line 584 of file three-gpp-http-client-server-test.cc.

Referenced by ThreeGppHttpObjectTestCase::DoRun().

Here is the caller graph for this function:

IsEmpty()

bool ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::IsEmpty

(

)

const

Returns

True if zero object is currently tracked.

Definition at line 578 of file three-gpp-http-client-server-test.cc.

Referenced by ThreeGppHttpObjectTestCase::DoRun().

Here is the caller graph for this function:

ObjectReceived()

bool ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::ObjectReceived	(	uint32_t &	txSize,
		uint32_t &	rxSize
	)

Shall be invoked after all parts of a complete object have been received.

Parameters

[out]	txSize	Size of the whole object (in bytes) when it was transmitted.
[out]	rxSize	Size of the whole object (in bytes) received.

Returns

True if this receive operation has a matching transmission operation (ObjectSent()), otherwise false. Both arguments are guaranteed to be replaced with initialized values if the return value is true.

Definition at line 555 of file three-gpp-http-client-server-test.cc.

References NS_LOG_FUNCTION.

Referenced by ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectCallback(), and ThreeGppHttpObjectTestCase::ServerRxCallback().

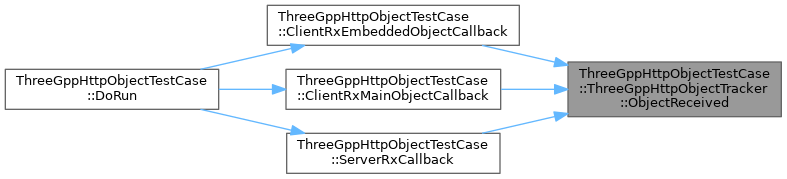

Here is the caller graph for this function:

ObjectSent()

void ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::ObjectSent

(

uint32_t

size

)

Shall be invoked when a whole object has been transmitted.

Parameters

size	Size of the whole object (in bytes).

Definition at line 541 of file three-gpp-http-client-server-test.cc.

References NS_LOG_FUNCTION.

Referenced by ThreeGppHttpObjectTestCase::ClientTxEmbeddedObjectRequestCallback(), ThreeGppHttpObjectTestCase::ClientTxMainObjectRequestCallback(), ThreeGppHttpObjectTestCase::ServerEmbeddedObjectCallback(), and ThreeGppHttpObjectTestCase::ServerMainObjectCallback().

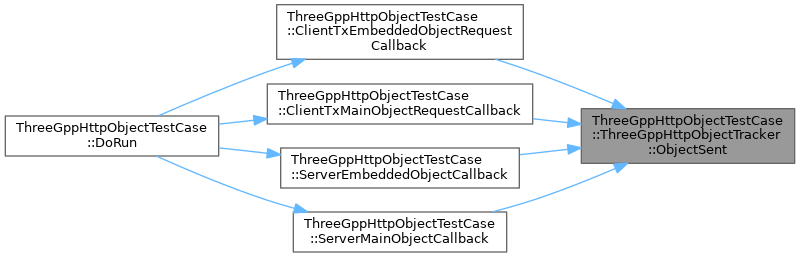

Here is the caller graph for this function:

PartReceived()

void ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::PartReceived

(

uint32_t

size

)

Shall be invoked when an object part has been received.

Parameters

size	Size of the object part (in bytes). This amount will be accumulated until ObjectReceived() is invoked.

Definition at line 548 of file three-gpp-http-client-server-test.cc.

References NS_LOG_FUNCTION.

Referenced by ThreeGppHttpObjectTestCase::ClientRxEmbeddedObjectPacketCallback(), ThreeGppHttpObjectTestCase::ClientRxMainObjectPacketCallback(), and ThreeGppHttpObjectTestCase::ServerRxCallback().

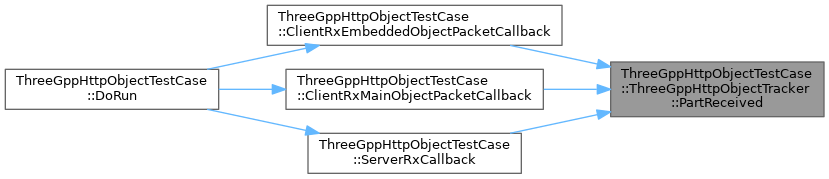

Here is the caller graph for this function:

Member Data Documentation

m_numOfObjectsReceived

uint16_t ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::m_numOfObjectsReceived

private

Number of whole objects that have been received so far.

Definition at line 162 of file three-gpp-http-client-server-test.cc.

m_objectsSize

std::list<uint32_t> ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::m_objectsSize

private

Each entry is the size (in bytes) of object transmitted.

A new entry is pushed to the back when a new object is transmitted. The frontmost entry is then removed when a whole object is received, i.e., it's logically a first-in-first-out queue data structure.

Definition at line 158 of file three-gpp-http-client-server-test.cc.

m_rxBuffer

uint32_t ThreeGppHttpObjectTestCase::ThreeGppHttpObjectTracker::m_rxBuffer

private

The accumulated size (in bytes) of parts of a whole object.

Definition at line 160 of file three-gpp-http-client-server-test.cc.

---

The documentation for this class was generated from the following file:

• src/applications/test/three-gpp-http-client-server-test.cc
