ns3::GridBuildingAllocator Class Reference

Allocate buildings on a rectangular 2d grid. More...

#include "building-allocator.h"

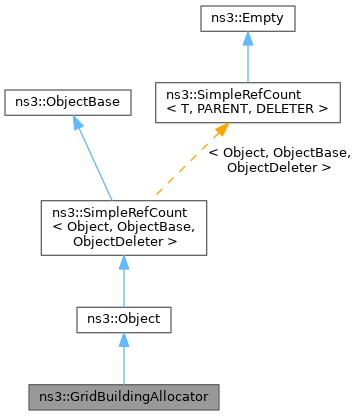

+ Inheritance diagram for ns3::GridBuildingAllocator:
+ Collaboration diagram for ns3::GridBuildingAllocator:

Public Member Functions

 GridBuildingAllocator ()

 ~GridBuildingAllocator () override

BuildingContainer Create (uint32_t n) const
 Create a set of buildings allocated on a grid.

void SetBuildingAttribute (std::string n, const AttributeValue &v)
 Set an attribute to be used for each new building to be created.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Member Functions

void PushAttributes () const
 Pushes the attributes into the relevant position allocators.


Private Attributes

ObjectFactory m_buildingFactory
 The building factory.

uint32_t m_current
 Current building number.

double m_deltaX
 The x space between buildings.

double m_deltaY
 The y space between buildings.

double m_height
 The height of the building (roof level)

GridPositionAllocator::LayoutType m_layoutType
 Layout type.

double m_lengthX
 The length of the wall of each building along the X axis.

double m_lengthY
 The length of the wall of each building along the Y axis.

Ptr< GridPositionAllocatorm_lowerLeftPositionAllocator
 The upper left position allocator.

uint32_t m_n
 The number of objects laid out on a line.

Ptr< GridPositionAllocatorm_upperRightPositionAllocator
 The upper right position allocator.

double m_xMin
 The x coordinate where the grid starts.

double m_yMin
 The y coordinate where the grid starts.


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Allocate buildings on a rectangular 2d grid.

Introspection did not find any typical Config paths.

This class allows to create a set of buildings positioned on a rectangular 2D grid. Under the hood, this class uses two instances of GridPositionAllocator.


Attributes

  • DeltaX: The x space between buildings.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • DeltaY: The y space between buildings.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • GridWidth: The number of objects laid out on a line.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 10
    • Flags: constructwriteread
  • Height: The height of the building (roof level)
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 10
    • Flags: constructwriteread
  • LayoutType: The type of layout.
    • Set with class: ns3::EnumValue
    • Underlying type: RowFirst|ColumnFirst
    • Initial value: RowFirst
    • Flags: constructwriteread
  • LengthX: The length of the wall of each building along the X axis.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • LengthY: The length of the wall of each building along the X axis.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • MinX: The x coordinate where the grid starts.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 1
    • Flags: constructwriteread
  • MinY: The y coordinate where the grid starts.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 144 bytes (on a 64-bit architecture).

Definition at line 44 of file building-allocator.h.

Constructor & Destructor Documentation

◆ GridBuildingAllocator()

ns3::GridBuildingAllocator::GridBuildingAllocator ( )

Definition at line 39 of file building-allocator.cc.

References m_buildingFactory, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, and ns3::ObjectFactory::SetTypeId().

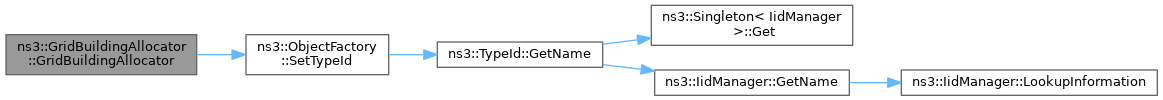

+ Here is the call graph for this function:

◆ ~GridBuildingAllocator()

ns3::GridBuildingAllocator::~GridBuildingAllocator ( )
override

Definition at line 47 of file building-allocator.cc.

Member Function Documentation

◆ Create()

BuildingContainer ns3::GridBuildingAllocator::Create ( uint32_t  n) const

Create a set of buildings allocated on a grid.

Parameters
nthe number of buildings to create
Returns
the BuildingContainer that contains the newly created buildings

Definition at line 118 of file building-allocator.cc.

References ns3::BuildingContainer::Add(), ns3::ObjectFactory::Create(), m_buildingFactory, m_current, m_height, m_lowerLeftPositionAllocator, m_upperRightPositionAllocator, NS_LOG_FUNCTION, NS_LOG_LOGIC, PushAttributes(), and ns3::ObjectFactory::Set().

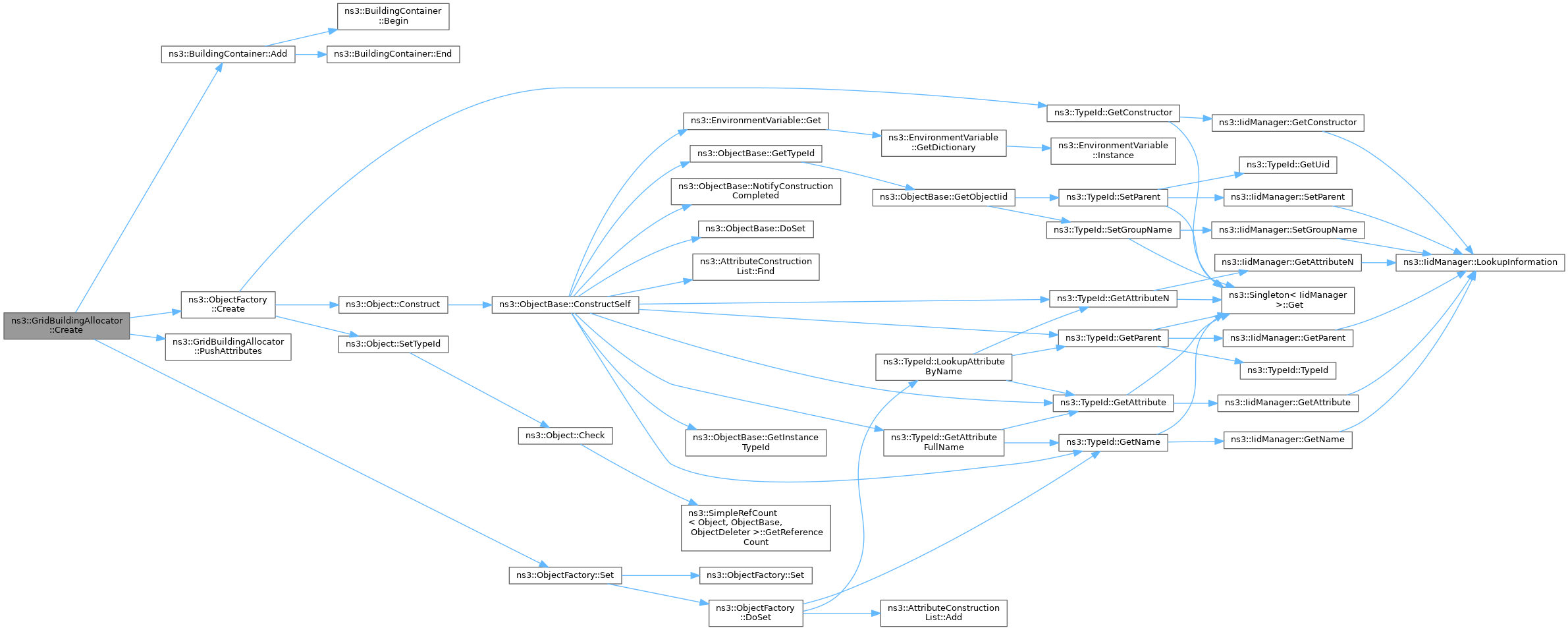

+ Here is the call graph for this function:

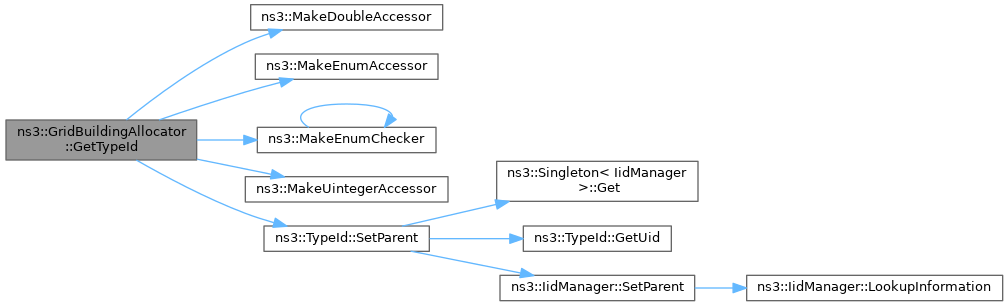

◆ GetTypeId()

TypeId ns3::GridBuildingAllocator::GetTypeId ( )
static

◆ PushAttributes()

void ns3::GridBuildingAllocator::PushAttributes ( ) const
private

Pushes the attributes into the relevant position allocators.

Definition at line 139 of file building-allocator.cc.

References m_deltaX, m_deltaY, m_layoutType, m_lengthX, m_lengthY, m_lowerLeftPositionAllocator, m_n, m_upperRightPositionAllocator, m_xMin, m_yMin, and NS_LOG_FUNCTION.

Referenced by Create().

+ Here is the caller graph for this function:

◆ SetBuildingAttribute()

void ns3::GridBuildingAllocator::SetBuildingAttribute ( std::string  n,
const AttributeValue v
)

Set an attribute to be used for each new building to be created.

Parameters
nattribute name
vattribute value

Definition at line 111 of file building-allocator.cc.

References m_buildingFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_buildingFactory

ObjectFactory ns3::GridBuildingAllocator::m_buildingFactory
mutableprivate

The building factory.

Definition at line 90 of file building-allocator.h.

Referenced by GridBuildingAllocator(), Create(), and SetBuildingAttribute().

◆ m_current

uint32_t ns3::GridBuildingAllocator::m_current
mutableprivate

Current building number.

Definition at line 79 of file building-allocator.h.

Referenced by Create().

◆ m_deltaX

double ns3::GridBuildingAllocator::m_deltaX
private

The x space between buildings.

Definition at line 86 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_deltaY

double ns3::GridBuildingAllocator::m_deltaY
private

The y space between buildings.

Definition at line 87 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_height

double ns3::GridBuildingAllocator::m_height
private

The height of the building (roof level)

Definition at line 88 of file building-allocator.h.

Referenced by Create(), and GetTypeId().

◆ m_layoutType

GridPositionAllocator::LayoutType ns3::GridBuildingAllocator::m_layoutType
private

Layout type.

Definition at line 80 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_lengthX

double ns3::GridBuildingAllocator::m_lengthX
private

The length of the wall of each building along the X axis.

Definition at line 84 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_lengthY

double ns3::GridBuildingAllocator::m_lengthY
private

The length of the wall of each building along the Y axis.

Definition at line 85 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_lowerLeftPositionAllocator

Ptr<GridPositionAllocator> ns3::GridBuildingAllocator::m_lowerLeftPositionAllocator
private

The upper left position allocator.

Definition at line 91 of file building-allocator.h.

Referenced by GridBuildingAllocator(), Create(), and PushAttributes().

◆ m_n

uint32_t ns3::GridBuildingAllocator::m_n
private

The number of objects laid out on a line.

Definition at line 83 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_upperRightPositionAllocator

Ptr<GridPositionAllocator> ns3::GridBuildingAllocator::m_upperRightPositionAllocator
private

The upper right position allocator.

Definition at line 93 of file building-allocator.h.

Referenced by GridBuildingAllocator(), Create(), and PushAttributes().

◆ m_xMin

double ns3::GridBuildingAllocator::m_xMin
private

The x coordinate where the grid starts.

Definition at line 81 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().

◆ m_yMin

double ns3::GridBuildingAllocator::m_yMin
private

The y coordinate where the grid starts.

Definition at line 82 of file building-allocator.h.

Referenced by GetTypeId(), and PushAttributes().


The documentation for this class was generated from the following files:
