ns3::ConfigStore Class Reference

Introspection did not find any typical Config paths. More...

#include "config-store.h"

+ Inheritance diagram for ns3::ConfigStore:

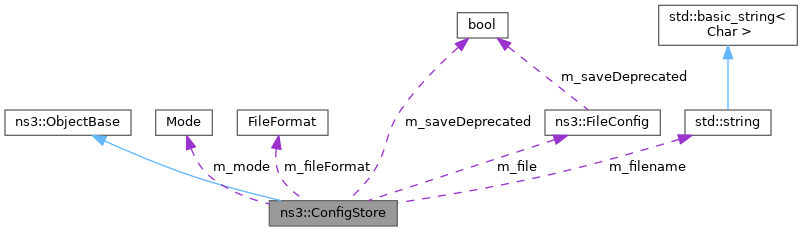

+ Collaboration diagram for ns3::ConfigStore:

Public Types

enum  FileFormat { XML , RAW_TEXT }
 store format More...

enum  Mode { LOAD , SAVE , NONE }
 for ConfigStore operation More...


Public Member Functions

 ConfigStore ()

 ~ConfigStore () override

void ConfigureAttributes ()
 Configure the attribute values.

void ConfigureDefaults ()
 Configure the default values.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

void SetFileFormat (FileFormat format)
 Set the file format.

void SetFilename (std::string filename)
 Set the filename.

void SetMode (Mode mode)
 Set the mode of operation.

void SetSaveDeprecated (bool saveDeprecated)
 Set if to save deprecated attributes.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Private Attributes

FileConfigm_file
 configuration file

FileFormat m_fileFormat
 store format

std::string m_filename
 store file name

Mode m_mode
 store mode

bool m_saveDeprecated
 save deprecated attributes


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Detailed Description

Introspection did not find any typical Config paths.


Attributes

  • FileFormat: Type of file format
    • Set with class: ns3::EnumValue
    • Underlying type: RawText|Xml
    • Initial value: RawText
    • Flags: constructwrite
  • Filename: The file where the configuration should be saved to or loaded from.
    • Set with class: ns3::StringValue
    • Underlying type: std::string
    • Initial value: ""
    • Flags: constructwrite
  • Mode: Configuration mode
    • Set with class: ns3::EnumValue
    • Underlying type: None|Load|Save
    • Initial value: None
    • Flags: constructwrite
  • SaveDeprecated: Save DEPRECATED attributes
    • Set with class: ns3::BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: constructwrite

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 60 of file config-store.h.

Member Enumeration Documentation

◆ FileFormat

store format

for ConfigStore operation

file format

Enumerator
XML
RAW_TEXT

Definition at line 79 of file config-store.h.

◆ Mode

for ConfigStore operation

store / load mode

Enumerator
LOAD
SAVE
NONE

Definition at line 67 of file config-store.h.

Constructor & Destructor Documentation

◆ ConfigStore()

ns3::ConfigStore::ConfigStore ( )

◆ ~ConfigStore()

ns3::ConfigStore::~ConfigStore ( )
override

Definition at line 149 of file config-store.cc.

References m_file, and NS_LOG_FUNCTION.

Member Function Documentation

◆ ConfigureAttributes()

void ns3::ConfigStore::ConfigureAttributes ( )

Configure the attribute values.

Definition at line 185 of file config-store.cc.

References ns3::FileConfig::Attributes(), m_file, and NS_LOG_FUNCTION.

Referenced by PrintAttributesIfEnabled().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ConfigureDefaults()

void ns3::ConfigStore::ConfigureDefaults ( )

Configure the default values.

Definition at line 192 of file config-store.cc.

References ns3::FileConfig::Default(), ns3::FileConfig::Global(), m_file, and NS_LOG_FUNCTION.

Referenced by LteIpv6RoutingTestCase::DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::ConfigStore::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 86 of file config-store.cc.

References GetTypeId().

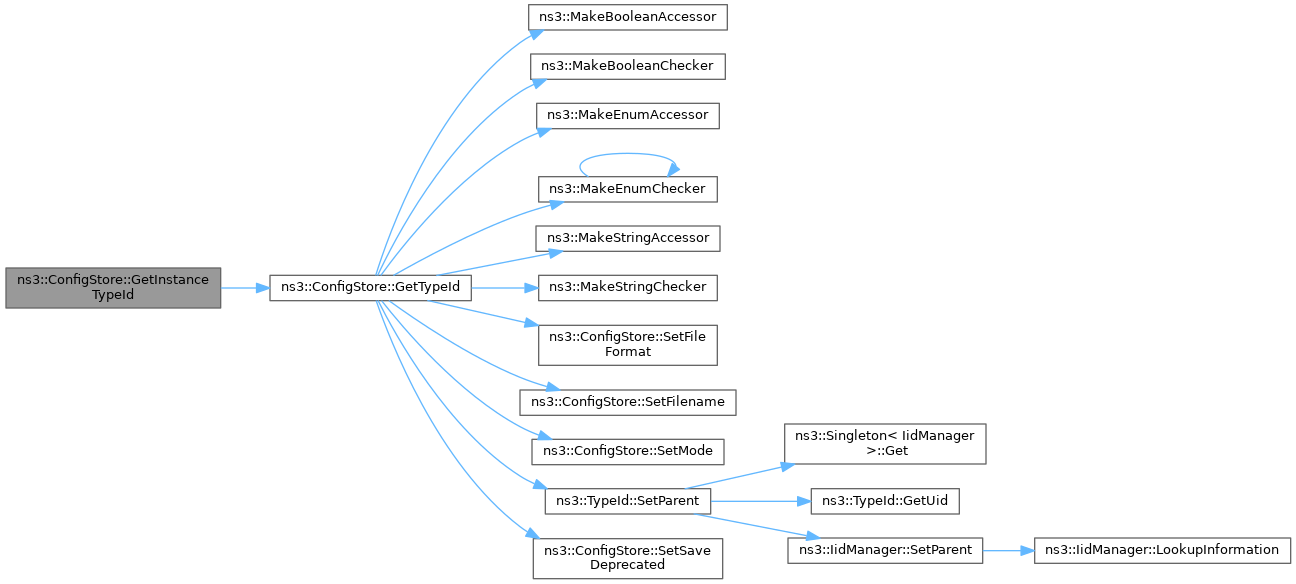

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::ConfigStore::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 50 of file config-store.cc.

References LOAD, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), NONE, RAW_TEXT, SAVE, SetFileFormat(), SetFilename(), SetMode(), ns3::TypeId::SetParent(), SetSaveDeprecated(), and XML.

Referenced by GetInstanceTypeId().

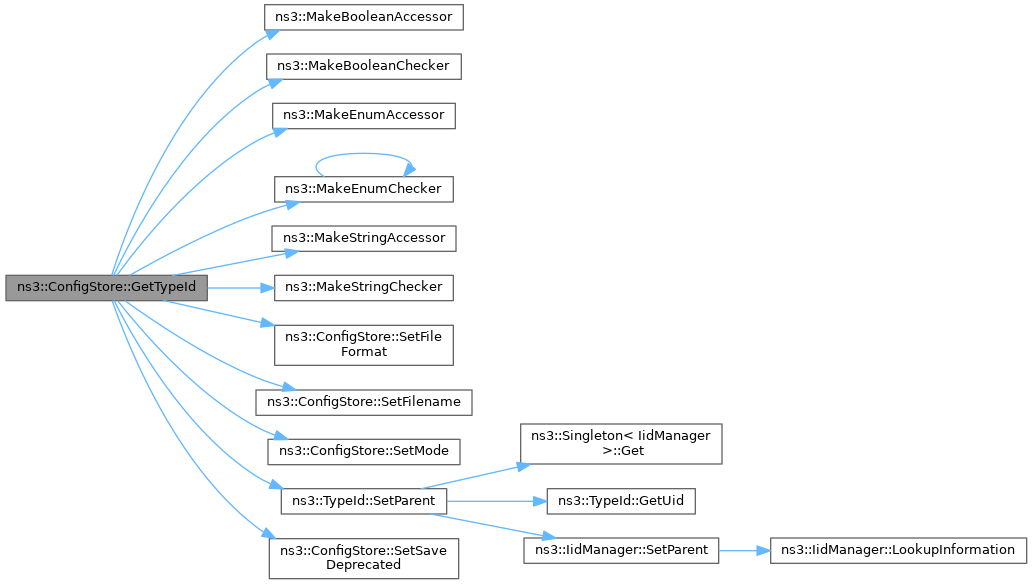

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetFileFormat()

void ns3::ConfigStore::SetFileFormat ( FileFormat  format)

Set the file format.

Parameters
formatthe file format

Definition at line 164 of file config-store.cc.

References m_fileFormat, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetFilename()

void ns3::ConfigStore::SetFilename ( std::string  filename)

Set the filename.

Parameters
filenamethe file name

Definition at line 171 of file config-store.cc.

References m_filename, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetMode()

void ns3::ConfigStore::SetMode ( Mode  mode)

Set the mode of operation.

Parameters
modemode of operation

Definition at line 157 of file config-store.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetSaveDeprecated()

void ns3::ConfigStore::SetSaveDeprecated ( bool  saveDeprecated)

Set if to save deprecated attributes.

Parameters
saveDeprecatedthe deprecated attributes save policy

Definition at line 178 of file config-store.cc.

References m_saveDeprecated, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_file

FileConfig* ns3::ConfigStore::m_file
private

configuration file

Definition at line 130 of file config-store.h.

Referenced by ConfigStore(), ~ConfigStore(), ConfigureAttributes(), and ConfigureDefaults().

◆ m_fileFormat

FileFormat ns3::ConfigStore::m_fileFormat
private

store format

Definition at line 127 of file config-store.h.

Referenced by ConfigStore(), and SetFileFormat().

◆ m_filename

std::string ns3::ConfigStore::m_filename
private

store file name

Definition at line 129 of file config-store.h.

Referenced by ConfigStore(), and SetFilename().

◆ m_mode

Mode ns3::ConfigStore::m_mode
private

store mode

Definition at line 126 of file config-store.h.

Referenced by ConfigStore(), and SetMode().

◆ m_saveDeprecated

bool ns3::ConfigStore::m_saveDeprecated
private

save deprecated attributes

Definition at line 128 of file config-store.h.

Referenced by ConfigStore(), and SetSaveDeprecated().


The documentation for this class was generated from the following files:
