A flow queue used by the FqCoDel queue disc. More...
#include "fq-codel-queue-disc.h"
Public Types | |
enum | FlowStatus { INACTIVE , NEW_FLOW , OLD_FLOW } |
Used to determine the status of this flow queue. More... | |
Public Member Functions | |
FqCoDelFlow () | |
FqCoDelFlow constructor. | |
~FqCoDelFlow () override | |
int32_t | GetDeficit () const |
Get the deficit for this flow. | |
uint32_t | GetIndex () const |
Get the index of this flow. | |
FlowStatus | GetStatus () const |
Get the status of this flow. | |
void | IncreaseDeficit (int32_t deficit) |
Increase the deficit for this flow. | |
void | SetDeficit (uint32_t deficit) |
Set the deficit for this flow. | |
void | SetIndex (uint32_t index) |
Set the index for this flow. | |
void | SetStatus (FlowStatus status) |
Set the status for this flow. | |
![]() | |
QueueDiscClass () | |
~QueueDiscClass () override | |
Ptr< QueueDisc > | GetQueueDisc () const |
Get the queue disc attached to this class. | |
void | SetQueueDisc (Ptr< QueueDisc > qd) |
Set the queue disc attached to this class. | |
![]() | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Attributes | |
int32_t | m_deficit |
the deficit for this flow | |
uint32_t | m_index |
the index for this flow | |
FlowStatus | m_status |
the status of this flow | |
Additional Inherited Members | |
![]() | |
void | DoDispose () override |
Dispose of the object. | |
![]() | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
A flow queue used by the FqCoDel queue disc.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 39 of file fq-codel-queue-disc.h.
Used to determine the status of this flow queue.
Enumerator | |
---|---|
INACTIVE | |
NEW_FLOW | |
OLD_FLOW |
Definition at line 58 of file fq-codel-queue-disc.h.
ns3::FqCoDelFlow::FqCoDelFlow | ( | ) |
FqCoDelFlow constructor.
Definition at line 47 of file fq-codel-queue-disc.cc.
References NS_LOG_FUNCTION.
|
override |
Definition at line 55 of file fq-codel-queue-disc.cc.
References NS_LOG_FUNCTION.
int32_t ns3::FqCoDelFlow::GetDeficit | ( | ) | const |
Get the deficit for this flow.
Definition at line 68 of file fq-codel-queue-disc.cc.
References m_deficit, and NS_LOG_FUNCTION.
uint32_t ns3::FqCoDelFlow::GetIndex | ( | ) | const |
Get the index of this flow.
Definition at line 103 of file fq-codel-queue-disc.cc.
References m_index.
FqCoDelFlow::FlowStatus ns3::FqCoDelFlow::GetStatus | ( | ) | const |
Get the status of this flow.
Definition at line 89 of file fq-codel-queue-disc.cc.
References m_status, and NS_LOG_FUNCTION.
|

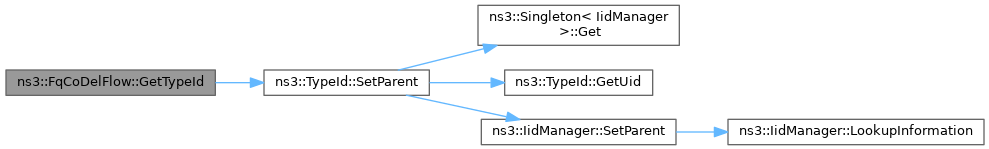

static |
Get the type ID.
Definition at line 38 of file fq-codel-queue-disc.cc.
References ns3::TypeId::SetParent().
void ns3::FqCoDelFlow::IncreaseDeficit | ( | int32_t | deficit | ) |
Increase the deficit for this flow.
deficit | the amount by which the deficit is to be increased |
Definition at line 75 of file fq-codel-queue-disc.cc.
References m_deficit, and NS_LOG_FUNCTION.
void ns3::FqCoDelFlow::SetDeficit | ( | uint32_t | deficit | ) |
Set the deficit for this flow.
deficit | the deficit for this flow |
Definition at line 61 of file fq-codel-queue-disc.cc.
References m_deficit, and NS_LOG_FUNCTION.
void ns3::FqCoDelFlow::SetIndex | ( | uint32_t | index | ) |
Set the index for this flow.
index | the index for this flow |
Definition at line 96 of file fq-codel-queue-disc.cc.
References m_index, and NS_LOG_FUNCTION.
void ns3::FqCoDelFlow::SetStatus | ( | FlowStatus | status | ) |
Set the status for this flow.
status | the status for this flow |
Definition at line 82 of file fq-codel-queue-disc.cc.
References m_status, and NS_LOG_FUNCTION.
|
private |
the deficit for this flow
Definition at line 102 of file fq-codel-queue-disc.h.
Referenced by GetDeficit(), IncreaseDeficit(), and SetDeficit().
|
private |
the index for this flow
Definition at line 104 of file fq-codel-queue-disc.h.
Referenced by GetIndex(), and SetIndex().
|
private |
the status of this flow
Definition at line 103 of file fq-codel-queue-disc.h.
Referenced by GetStatus(), and SetStatus().
