ns3::Buffer::Iterator Class Reference

iterator in a Buffer instance More...

#include "buffer.h"

+ Collaboration diagram for ns3::Buffer::Iterator:

Public Member Functions

 Iterator ()

uint16_t CalculateIpChecksum (uint16_t size)
 Calculate the checksum.

uint16_t CalculateIpChecksum (uint16_t size, uint32_t initialChecksum)
 Calculate the checksum.

uint32_t GetDistanceFrom (const Iterator &o) const

uint32_t GetRemainingSize () const

uint32_t GetSize () const

bool IsEnd () const

bool IsStart () const

void Next ()
 go forward by one byte

void Next (uint32_t delta)

uint8_t PeekU8 ()

void Prev ()
 go backward by one byte

void Prev (uint32_t delta)

void Read (Iterator start, uint32_t size)

void Read (uint8_t *buffer, uint32_t size)

uint16_t ReadLsbtohU16 ()

uint32_t ReadLsbtohU32 ()

uint64_t ReadLsbtohU64 ()

uint16_t ReadNtohU16 ()

uint32_t ReadNtohU32 ()

uint64_t ReadNtohU64 ()

uint16_t ReadU16 ()

uint32_t ReadU32 ()

uint64_t ReadU64 ()

uint8_t ReadU8 ()

void Write (const uint8_t *buffer, uint32_t size)

void Write (Iterator start, Iterator end)

void WriteHtolsbU16 (uint16_t data)

void WriteHtolsbU32 (uint32_t data)

void WriteHtolsbU64 (uint64_t data)

void WriteHtonU16 (uint16_t data)

void WriteHtonU32 (uint32_t data)

void WriteHtonU64 (uint64_t data)

void WriteU16 (uint16_t data)

void WriteU32 (uint32_t data)

void WriteU64 (uint64_t data)

void WriteU8 (uint8_t data)

void WriteU8 (uint8_t data, uint32_t len)


Private Member Functions

 Iterator (const Buffer *buffer)
 Constructor - initializes the iterator to point to the buffer start.

 Iterator (const Buffer *buffer, bool dummy)
 Constructor - initializes the iterator to point to the buffer end.

bool Check (uint32_t i) const
 Checks that the buffer position is not in the "virtual zero area".

bool CheckNoZero (uint32_t start, uint32_t end) const
 Checks that the [start, end) is not in the "virtual zero area".

void Construct (const Buffer *buffer)
 Initializes the iterator values.

std::string GetReadErrorMessage () const
 Returns an appropriate message indicating a read error.

std::string GetWriteErrorMessage () const
 Returns an appropriate message indicating a write error.

uint16_t SlowReadNtohU16 ()

uint32_t SlowReadNtohU32 ()


Private Attributes

uint32_t m_current
 offset in virtual bytes from the start of the data buffer to the current position represented by this iterator.

uint8_t * m_data
 a pointer to the underlying byte buffer.

uint32_t m_dataEnd
 offset in virtual bytes from the start of the data buffer to the end of the data which can be read by this iterator

uint32_t m_dataStart
 offset in virtual bytes from the start of the data buffer to the start of the data which can be read by this iterator

uint32_t m_zeroEnd
 offset in virtual bytes from the start of the data buffer to the end of the "virtual zero area".

uint32_t m_zeroStart
 offset in virtual bytes from the start of the data buffer to the start of the "virtual zero area".


Friends

class Buffer
 Friend class.


Detailed Description

iterator in a Buffer instance

Definition at line 99 of file buffer.h.

Constructor & Destructor Documentation

◆ Iterator() [1/3]

ns3::Buffer::Iterator::Iterator ( )
inline

Definition at line 820 of file buffer.h.

◆ Iterator() [2/3]

ns3::Buffer::Iterator::Iterator ( const Buffer buffer)
inlineprivate

Constructor - initializes the iterator to point to the buffer start.

Parameters
bufferthe buffer this iterator refers to

Definition at line 830 of file buffer.h.

◆ Iterator() [3/3]

ns3::Buffer::Iterator::Iterator ( const Buffer buffer,
bool  dummy
)
inlineprivate

Constructor - initializes the iterator to point to the buffer end.

Parameters
bufferthe buffer this iterator refers to
dummynot used param

Definition at line 836 of file buffer.h.

Member Function Documentation

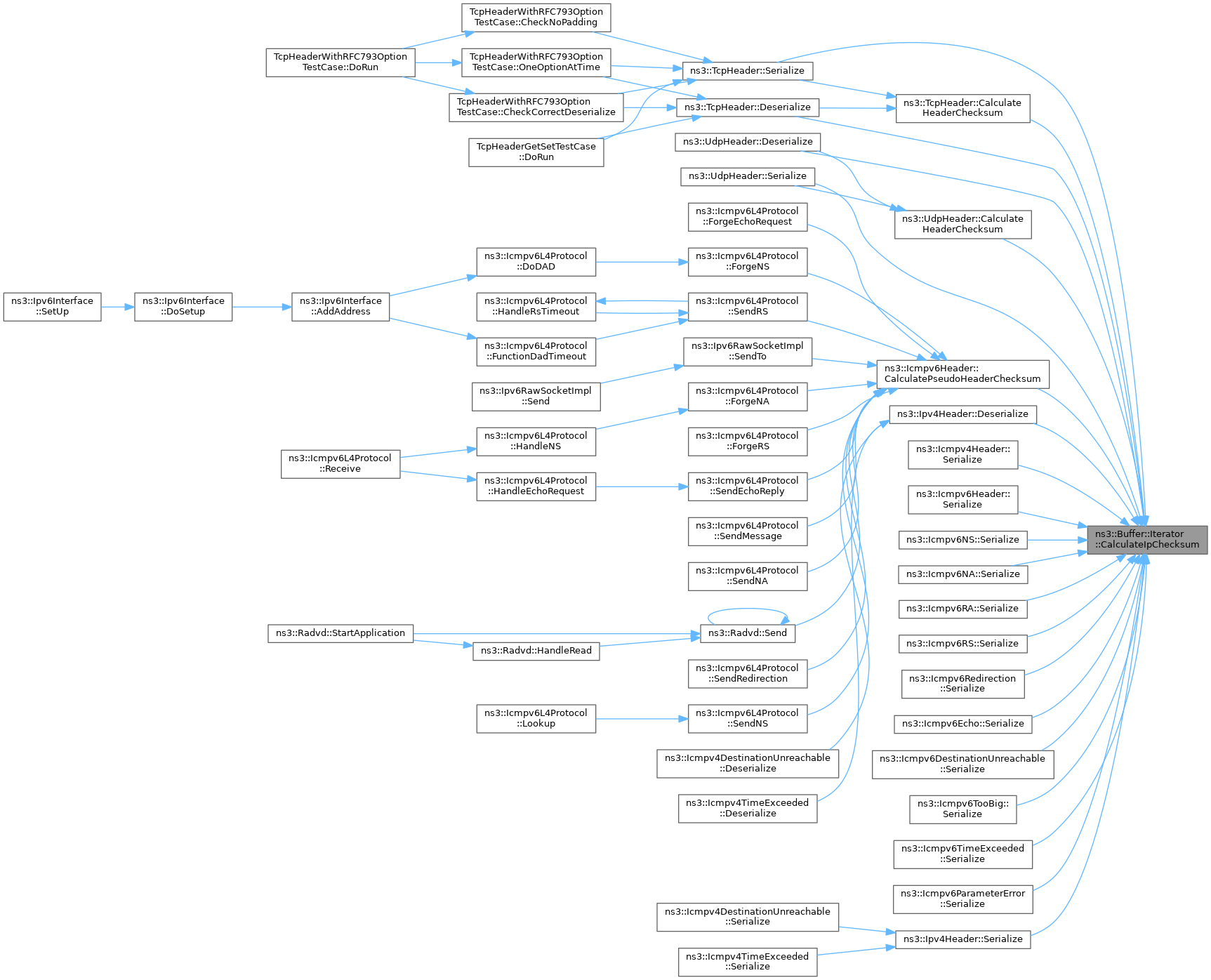

◆ CalculateIpChecksum() [1/2]

◆ CalculateIpChecksum() [2/2]

uint16_t ns3::Buffer::Iterator::CalculateIpChecksum ( uint16_t  size,
uint32_t  initialChecksum
)

Calculate the checksum.

Parameters
sizesize of the buffer.
initialChecksuminitial value
Returns
checksum

Definition at line 1148 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ Check()

bool ns3::Buffer::Iterator::Check ( uint32_t  i) const
private

Checks that the buffer position is not in the "virtual zero area".

Parameters
ibuffer position
Returns
true if not in the "virtual zero area".

Definition at line 824 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ CheckNoZero()

bool ns3::Buffer::Iterator::CheckNoZero ( uint32_t  start,
uint32_t  end
) const
private

Checks that the [start, end) is not in the "virtual zero area".

Parameters
startstart buffer position
endend buffer position
Returns
true if [start, end) is not in the "virtual zero area".

Definition at line 816 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ Construct()

void ns3::Buffer::Iterator::Construct ( const Buffer buffer)
inlineprivate

Initializes the iterator values.

Parameters
bufferthe buffer this iterator refers to

Definition at line 843 of file buffer.h.

References ns3::Buffer::Data::m_data, ns3::Buffer::m_data, ns3::Buffer::m_end, ns3::Buffer::m_start, ns3::Buffer::m_zeroAreaEnd, and ns3::Buffer::m_zeroAreaStart.

◆ GetDistanceFrom()

uint32_t ns3::Buffer::Iterator::GetDistanceFrom ( const Iterator o) const
Parameters
othe second iterator
Returns
number of bytes included between the two iterators

This method works only if the two iterators point to the same underlying buffer. Debug builds ensure this with an assert.

Definition at line 786 of file buffer.cc.

References m_current, m_data, ns3::Buffer::m_data, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::WifiInformationElement::Deserialize(), ns3::aodv::TypeHeader::Deserialize(), ns3::aodv::RreqHeader::Deserialize(), ns3::aodv::RrepHeader::Deserialize(), ns3::aodv::RrepAckHeader::Deserialize(), ns3::aodv::RerrHeader::Deserialize(), ns3::dsdv::DsdvHeader::Deserialize(), ns3::Icmpv4DestinationUnreachable::Deserialize(), ns3::Icmpv4TimeExceeded::Deserialize(), ns3::LrWpanMacHeader::Deserialize(), ns3::BeaconPayloadHeader::Deserialize(), ns3::CommandPayloadHeader::Deserialize(), ns3::dot11s::MeshHeader::Deserialize(), ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkCloseStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::flame::FlameHeader::Deserialize(), ns3::UanHeaderCommon::Deserialize(), ns3::UanHeaderRcData::Deserialize(), ns3::UanHeaderRcRts::Deserialize(), ns3::UanHeaderRcCtsGlobal::Deserialize(), ns3::UanHeaderRcCts::Deserialize(), ns3::UanHeaderRcAck::Deserialize(), ns3::AmpduSubframeHeader::Deserialize(), ns3::AmsduSubframeHeader::Deserialize(), ns3::CtrlBAckRequestHeader::Deserialize(), ns3::CtrlBAckResponseHeader::Deserialize(), ns3::CtrlTriggerHeader::Deserialize(), ns3::WifiActionHeader::Deserialize(), ns3::MgtAddBaRequestHeader::Deserialize(), ns3::MgtAddBaResponseHeader::Deserialize(), ns3::MgtDelBaHeader::Deserialize(), ns3::MgtEmlOperatingModeNotification::Deserialize(), ns3::WifiMacHeader::Deserialize(), ns3::Dcd::Deserialize(), ns3::DlMap::Deserialize(), ns3::ManagementMessageType::Deserialize(), ns3::RngRsp::Deserialize(), ns3::DsaAck::Deserialize(), ns3::RngReq::Deserialize(), ns3::Ucd::Deserialize(), ns3::UlMap::Deserialize(), ns3::GenericMacHeader::Deserialize(), ns3::BandwidthRequestHeader::Deserialize(), ns3::GrantManagementSubheader::Deserialize(), ns3::FragmentationSubheader::Deserialize(), ns3::MgtAssocRequestHeader::DeserializeFromPerStaProfileImpl(), ns3::MgtAssocResponseHeader::DeserializeFromPerStaProfileImpl(), ns3::MgtReassocRequestHeader::DeserializeFromPerStaProfileImpl(), ns3::MgtAssocRequestHeader::DeserializeImpl(), ns3::MgtReassocRequestHeader::DeserializeImpl(), ns3::MgtAssocResponseHeader::DeserializeImpl(), ns3::MgtProbeResponseHeader::DeserializeImpl(), ns3::dot11s::IeBeaconTiming::DeserializeInformationField(), ns3::dot11s::IeConfiguration::DeserializeInformationField(), ns3::dot11s::IePeerManagement::DeserializeInformationField(), ns3::dot11s::IePeeringProtocol::DeserializeInformationField(), ns3::dot11s::IePreq::DeserializeInformationField(), ns3::dot11s::IeMeshId::DeserializeInformationField(), ns3::dot11s::IeLinkMetricReport::DeserializeInformationField(), ns3::dot11s::IePerr::DeserializeInformationField(), ns3::dot11s::IePrep::DeserializeInformationField(), ns3::dot11s::IeRann::DeserializeInformationField(), ns3::MultiLinkElement::DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), TestWifiInformationElement::DeserializeInformationField(), ns3::MeshInformationElementVector::DeserializeSingleIe(), and ns3::PbbMessage::Serialize().

+ Here is the caller graph for this function:

◆ GetReadErrorMessage()

std::string ns3::Buffer::Iterator::GetReadErrorMessage ( ) const
private

Returns an appropriate message indicating a read error.

Returns
the error message

Definition at line 1186 of file buffer.cc.

References NS_LOG_FUNCTION.

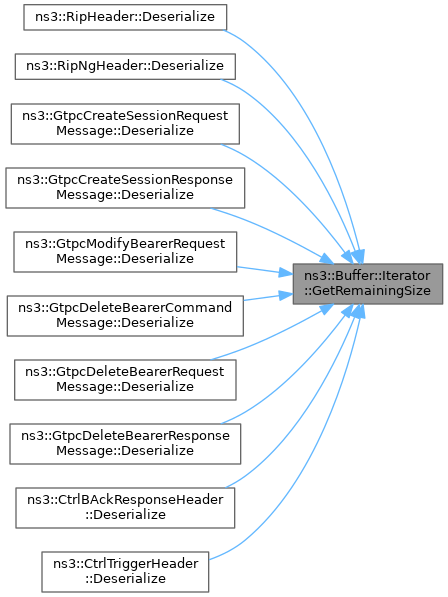

◆ GetRemainingSize()

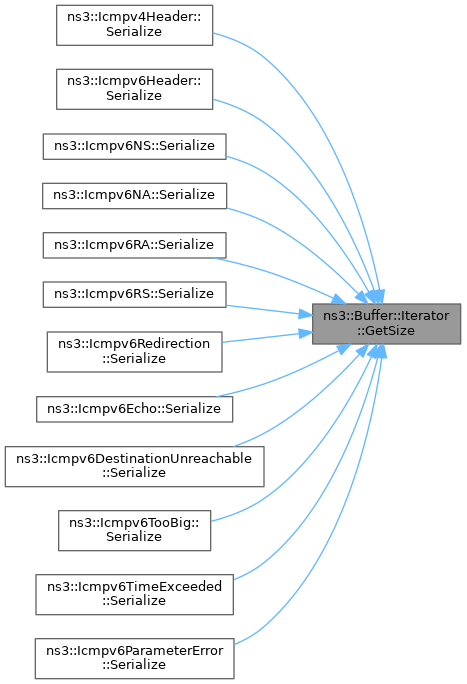

◆ GetSize()

◆ GetWriteErrorMessage()

std::string ns3::Buffer::Iterator::GetWriteErrorMessage ( ) const
private

Returns an appropriate message indicating a write error.

The message depends on the actual Buffer::Iterator status.

Returns
the error message

Definition at line 1200 of file buffer.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

◆ IsEnd()

bool ns3::Buffer::Iterator::IsEnd ( ) const
Returns
true if this iterator points to the end of the byte array. false otherwise.

Definition at line 802 of file buffer.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::WifiInformationElement::DeserializeIfPresent(), and ns3::WifiInformationElement::DoDeserialize().

+ Here is the caller graph for this function:

◆ IsStart()

bool ns3::Buffer::Iterator::IsStart ( ) const
Returns
true if this iterator points to the start of the byte array. false otherwise.

Definition at line 809 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ Next() [1/2]

void ns3::Buffer::Iterator::Next ( )
inline

go forward by one byte

Definition at line 853 of file buffer.h.

References NS_ASSERT.

Referenced by TcpHeaderWithRFC793OptionTestCase::CheckNoPadding(), WifiEhtCapabilitiesIeTest::CheckSerializedByte(), WifiIeFragmentationTest::CheckSerializedByte(), ns3::CtrlTriggerUserInfoField::Deserialize(), ns3::dsr::DsrOptionHeader::Deserialize(), ns3::dsr::DsrOptionRerrHeader::Deserialize(), ns3::ArpHeader::Deserialize(), ns3::Icmpv4DestinationUnreachable::Deserialize(), ns3::Icmpv4TimeExceeded::Deserialize(), ns3::Ipv6OptionHeader::Deserialize(), ns3::RipHeader::Deserialize(), ns3::RipNgHeader::Deserialize(), ns3::TcpHeader::Deserialize(), ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkCloseStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::flame::FlameHeader::Deserialize(), ns3::LlcSnapHeader::Deserialize(), ns3::SfVectorTlvValue::Deserialize(), ns3::CsParamVectorTlvValue::Deserialize(), ns3::ClassificationRuleVectorTlvValue::Deserialize(), ns3::dot11s::IePerr::DeserializeInformationField(), ns3::EhtCapabilities::DeserializeInformationField(), ns3::MultiLinkElement::DeserializeInformationField(), ns3::GtpcIes::DeserializeUliEcgi(), ns3::WifiInformationElement::DoDeserialize(), BufferTest::DoRun(), ns3::PacketMetadata::ItemIterator::Next(), TcpHeaderWithRFC793OptionTestCase::OneOptionAtTime(), ns3::Packet::PeekHeader(), ns3::Packet::Print(), Read(), ns3::Packet::RemoveHeader(), ns3::WifiInformationElement::Serialize(), ns3::CtrlTriggerUserInfoField::Serialize(), ns3::Icmpv4Header::Serialize(), ns3::Icmpv6Header::Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Ipv4Header::Serialize(), ns3::RipHeader::Serialize(), ns3::RipNgHeader::Serialize(), ns3::TcpHeader::Serialize(), ns3::UdpHeader::Serialize(), and ns3::VectorTlvValue::Serialize().

+ Here is the caller graph for this function:

◆ Next() [2/2]

void ns3::Buffer::Iterator::Next ( uint32_t  delta)
inline
Parameters
deltanumber of bytes to go forward

Definition at line 867 of file buffer.h.

References NS_ASSERT.

◆ PeekU8()

uint8_t ns3::Buffer::Iterator::PeekU8 ( )
inline
Returns
the byte read in the buffer.

Read data, but do not advance the Iterator read.

Definition at line 1006 of file buffer.h.

References data, ns3::Buffer::m_data, and NS_ASSERT_MSG.

Referenced by ns3::TcpHeader::Deserialize(), ns3::MultiLinkElement::DeserializeInformationField(), and ns3::WifiInformationElement::DoDeserialize().

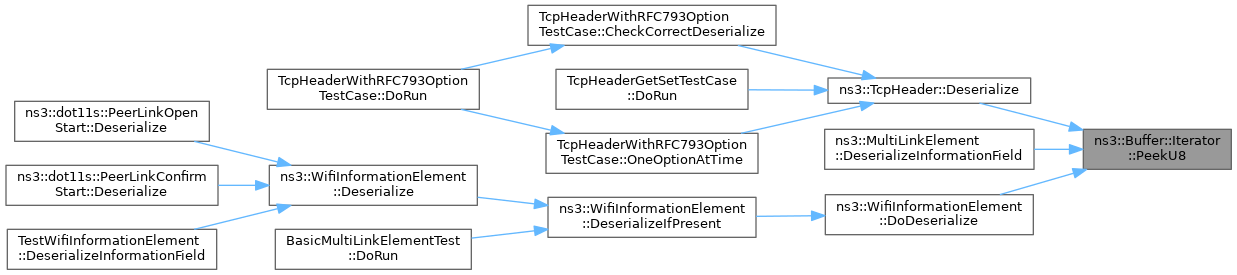

+ Here is the caller graph for this function:

◆ Prev() [1/2]

◆ Prev() [2/2]

void ns3::Buffer::Iterator::Prev ( uint32_t  delta)
inline
Parameters
deltanumber of bytes to go backward

Definition at line 874 of file buffer.h.

References NS_ASSERT.

◆ Read() [1/2]

void ns3::Buffer::Iterator::Read ( Buffer::Iterator  start,
uint32_t  size
)
inline
Parameters
startstart iterator of the buffer to copy data into
sizenumber of bytes to copy

Copy size bytes of data from the internal buffer to the input buffer via the provided iterator and advance the Iterator by the number of bytes read.

Definition at line 1047 of file buffer.h.

References Next().

+ Here is the call graph for this function:

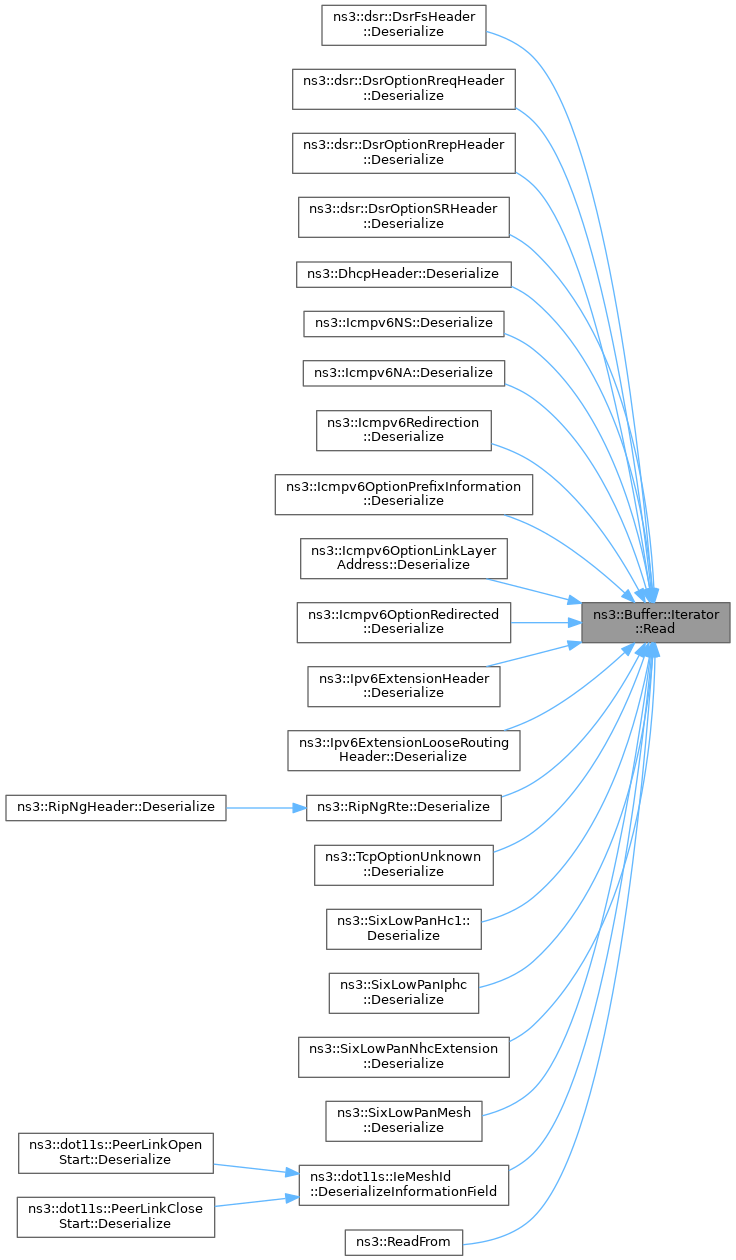

◆ Read() [2/2]

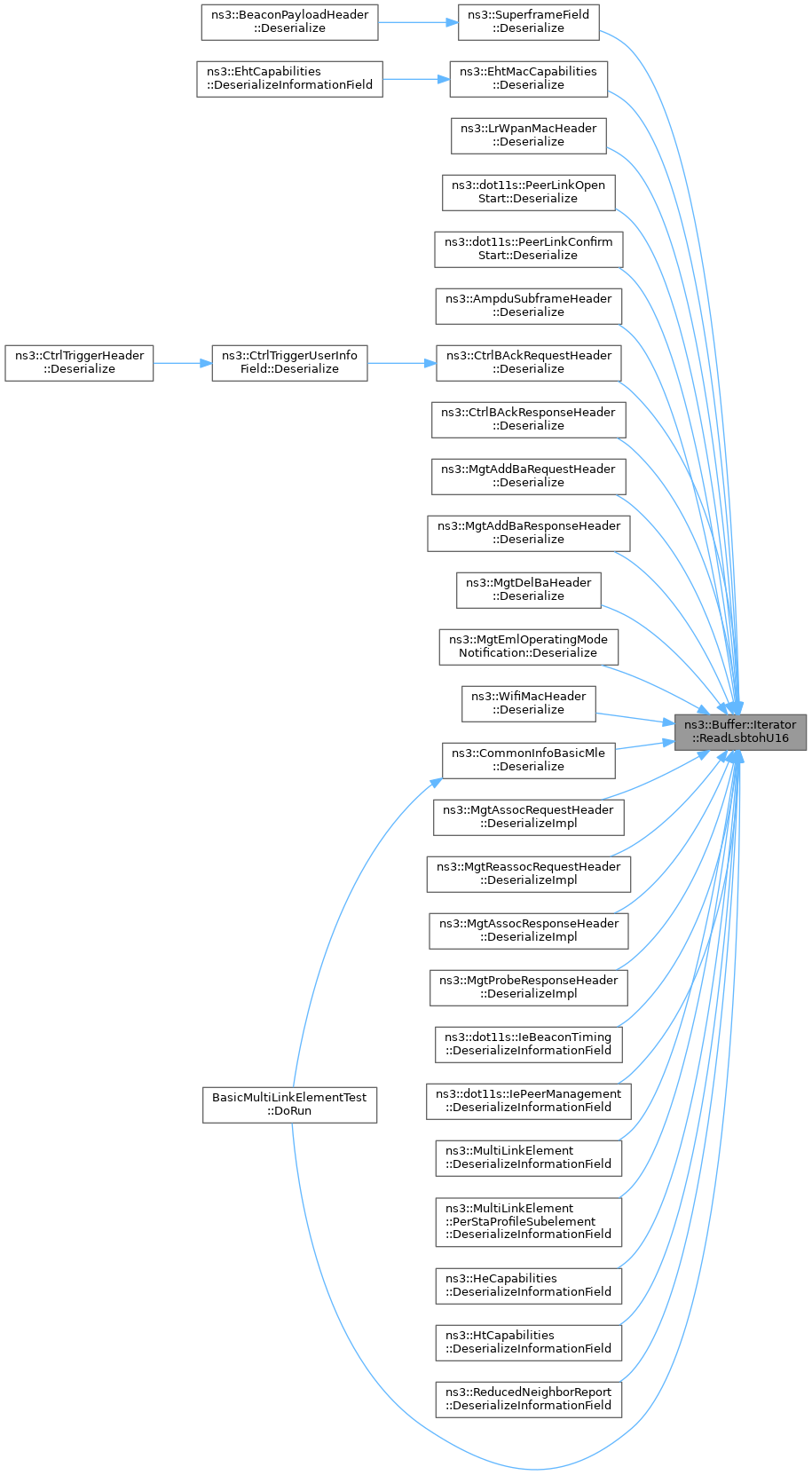

◆ ReadLsbtohU16()

uint16_t ns3::Buffer::Iterator::ReadLsbtohU16 ( )
Returns
the two bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in least significant byte format and returned in host format.

Definition at line 1070 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::SuperframeField::Deserialize(), ns3::EhtMacCapabilities::Deserialize(), ns3::LrWpanMacHeader::Deserialize(), ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::AmpduSubframeHeader::Deserialize(), ns3::CtrlBAckRequestHeader::Deserialize(), ns3::CtrlBAckResponseHeader::Deserialize(), ns3::MgtAddBaRequestHeader::Deserialize(), ns3::MgtAddBaResponseHeader::Deserialize(), ns3::MgtDelBaHeader::Deserialize(), ns3::MgtEmlOperatingModeNotification::Deserialize(), ns3::WifiMacHeader::Deserialize(), ns3::CommonInfoBasicMle::Deserialize(), ns3::MgtAssocRequestHeader::DeserializeImpl(), ns3::MgtReassocRequestHeader::DeserializeImpl(), ns3::MgtAssocResponseHeader::DeserializeImpl(), ns3::MgtProbeResponseHeader::DeserializeImpl(), ns3::dot11s::IeBeaconTiming::DeserializeInformationField(), ns3::dot11s::IePeerManagement::DeserializeInformationField(), ns3::MultiLinkElement::DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), ns3::HeCapabilities::DeserializeInformationField(), ns3::HtCapabilities::DeserializeInformationField(), ns3::ReducedNeighborReport::DeserializeInformationField(), and BasicMultiLinkElementTest::DoRun().

+ Here is the caller graph for this function:

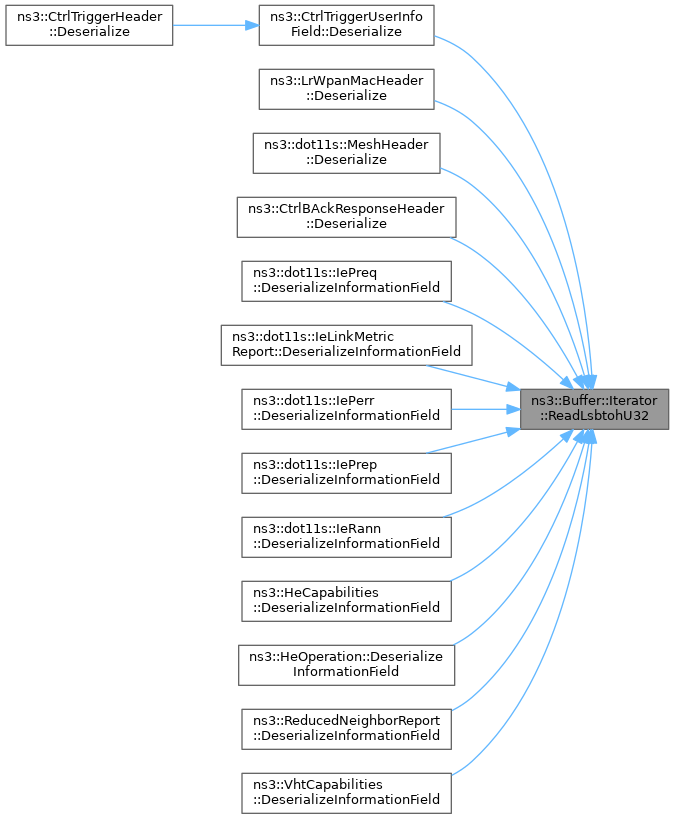

◆ ReadLsbtohU32()

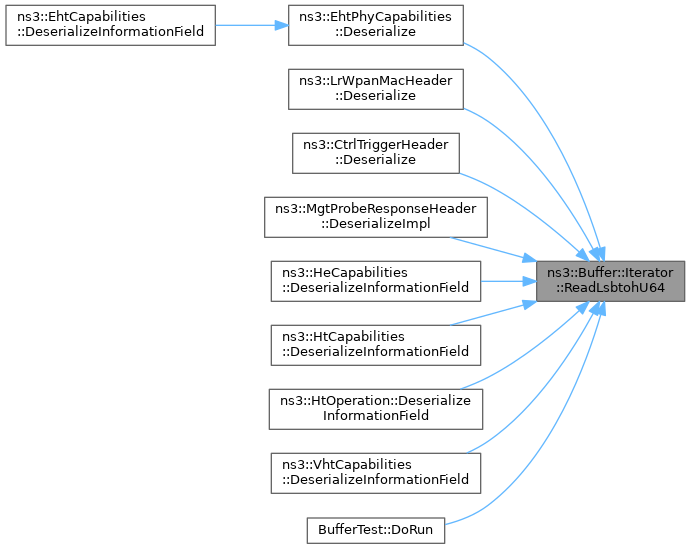

◆ ReadLsbtohU64()

uint64_t ns3::Buffer::Iterator::ReadLsbtohU64 ( )
Returns
the eight bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in least significant byte format and returned in host format.

Definition at line 1100 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::EhtPhyCapabilities::Deserialize(), ns3::LrWpanMacHeader::Deserialize(), ns3::CtrlTriggerHeader::Deserialize(), ns3::MgtProbeResponseHeader::DeserializeImpl(), ns3::HeCapabilities::DeserializeInformationField(), ns3::HtCapabilities::DeserializeInformationField(), ns3::HtOperation::DeserializeInformationField(), ns3::VhtCapabilities::DeserializeInformationField(), and BufferTest::DoRun().

+ Here is the caller graph for this function:

◆ ReadNtohU16()

uint16_t ns3::Buffer::Iterator::ReadNtohU16 ( )
inline
Returns
the two bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in network format and returned in host format.

Definition at line 954 of file buffer.h.

References ns3::Buffer::m_data.

Referenced by ns3::U16TlvValue::Deserialize(), ns3::dsr::DsrOptionRreqHeader::Deserialize(), ns3::DhcpHeader::Deserialize(), ns3::ArpHeader::Deserialize(), ns3::Icmpv4DestinationUnreachable::Deserialize(), ns3::Icmpv6Header::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6OptionMtu::Deserialize(), ns3::Ipv4Header::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6Header::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), ns3::Ipv6OptionRouterAlertHeader::Deserialize(), ns3::RipRte::Deserialize(), ns3::RipNgRte::Deserialize(), ns3::TcpHeader::Deserialize(), ns3::TcpOptionMSS::Deserialize(), ns3::UdpHeader::Deserialize(), ns3::GtpuHeader::Deserialize(), ns3::EpcX2Header::Deserialize(), ns3::EpcX2HandoverRequestHeader::Deserialize(), ns3::EpcX2HandoverRequestAckHeader::Deserialize(), ns3::EpcX2HandoverPreparationFailureHeader::Deserialize(), ns3::EpcX2SnStatusTransferHeader::Deserialize(), ns3::EpcX2UeContextReleaseHeader::Deserialize(), ns3::EpcX2LoadInformationHeader::Deserialize(), ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), ns3::EpcX2HandoverCancelHeader::Deserialize(), ns3::flame::FlameHeader::Deserialize(), ns3::EthernetHeader::Deserialize(), ns3::LlcSnapHeader::Deserialize(), ns3::SllHeader::Deserialize(), ns3::olsr::PacketHeader::Deserialize(), ns3::olsr::MessageHeader::Deserialize(), ns3::SixLowPanIphc::Deserialize(), ns3::SixLowPanUdpNhcExtension::Deserialize(), ns3::AmsduSubframeHeader::Deserialize(), ns3::olsr::MessageHeader::Hello::Deserialize(), ns3::olsr::MessageHeader::Tc::Deserialize(), ns3::PortRangeTlvValue::Deserialize(), ns3::GtpcIes::DeserializeBearerContextHeader(), ns3::GtpcIes::DeserializeBearerQos(), ns3::GtpcIes::DeserializeBearerTft(), ns3::GtpcIes::DeserializeCause(), ns3::GtpcIes::DeserializeEbi(), ns3::GtpcIes::DeserializeFteid(), ns3::GtpcIes::DeserializeImsi(), ns3::GtpcIes::DeserializeUliEcgi(), BufferTest::DoRun(), and ns3::GtpcHeader::PreDeserialize().

+ Here is the caller graph for this function:

◆ ReadNtohU32()

uint32_t ns3::Buffer::Iterator::ReadNtohU32 ( )
inline
Returns
the four bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in network format and returned in host format.

Definition at line 978 of file buffer.h.

References ns3::Buffer::m_data.

Referenced by ns3::U32TlvValue::Deserialize(), ns3::aodv::RreqHeader::Deserialize(), ns3::aodv::RrepHeader::Deserialize(), ns3::aodv::RerrHeader::Deserialize(), ns3::SeqTsEchoHeader::Deserialize(), ns3::SeqTsHeader::Deserialize(), ns3::dsdv::DsdvHeader::Deserialize(), ns3::DhcpHeader::Deserialize(), ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Ipv4Header::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6Header::Deserialize(), ns3::RipRte::Deserialize(), ns3::TcpHeader::Deserialize(), ns3::TcpOptionSack::Deserialize(), ns3::TcpOptionTS::Deserialize(), ns3::GtpuHeader::Deserialize(), ns3::EpcX2HandoverRequestHeader::Deserialize(), ns3::EpcX2HandoverRequestAckHeader::Deserialize(), ns3::EpcX2SnStatusTransferHeader::Deserialize(), ns3::olsr::MessageHeader::Deserialize(), ns3::olsr::MessageHeader::Mid::Deserialize(), ns3::olsr::MessageHeader::Hello::Deserialize(), ns3::olsr::MessageHeader::Tc::Deserialize(), ns3::olsr::MessageHeader::Hna::Deserialize(), ns3::Ipv4AddressTlvValue::Deserialize(), ns3::GtpcIes::DeserializeBearerTft(), ns3::GtpcIes::DeserializeFteid(), ns3::GtpcIes::DeserializeUliEcgi(), ns3::GtpcHeader::PreDeserialize(), and ns3::ReadFrom().

+ Here is the caller graph for this function:

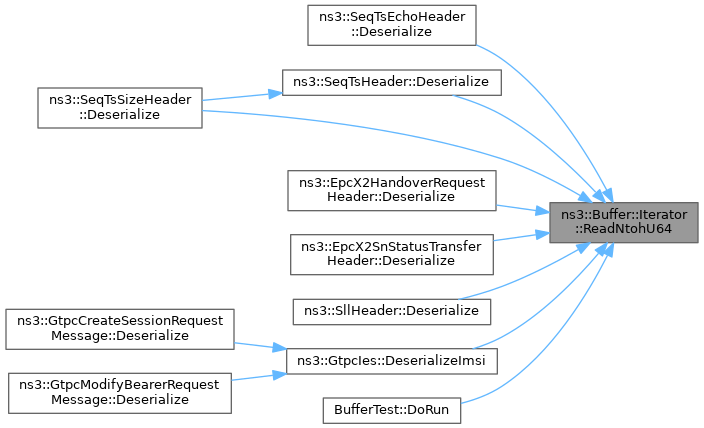

◆ ReadNtohU64()

uint64_t ns3::Buffer::Iterator::ReadNtohU64 ( )
Returns
the eight bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in network format and returned in host format.

Definition at line 1047 of file buffer.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::SeqTsEchoHeader::Deserialize(), ns3::SeqTsHeader::Deserialize(), ns3::SeqTsSizeHeader::Deserialize(), ns3::EpcX2HandoverRequestHeader::Deserialize(), ns3::EpcX2SnStatusTransferHeader::Deserialize(), ns3::SllHeader::Deserialize(), ns3::GtpcIes::DeserializeImsi(), and BufferTest::DoRun().

+ Here is the caller graph for this function:

◆ ReadU16()

uint16_t ns3::Buffer::Iterator::ReadU16 ( )
inline
Returns
the two bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in the format written by writeU16.

Definition at line 1035 of file buffer.h.

References data.

Referenced by ns3::dsr::DsrFsHeader::Deserialize(), ns3::dsr::DsrRoutingHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnsupportedHeader::Deserialize(), ns3::dsr::DsrOptionAckReqHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::Deserialize(), ns3::DhcpHeader::Deserialize(), ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6Redirection::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6DestinationUnreachable::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6TimeExceeded::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), ns3::Ipv4Header::Deserialize(), ns3::RipHeader::Deserialize(), ns3::RipNgHeader::Deserialize(), ns3::UdpHeader::Deserialize(), ns3::CommandPayloadHeader::Deserialize(), ns3::SixLowPanFrag1::Deserialize(), ns3::SixLowPanFragN::Deserialize(), ns3::SixLowPanUdpNhcExtension::Deserialize(), ns3::UanHeaderRcRts::Deserialize(), ns3::UanHeaderRcCtsGlobal::Deserialize(), ns3::CtrlTriggerHeader::Deserialize(), ns3::RngRsp::Deserialize(), ns3::DsaReq::Deserialize(), ns3::DsaRsp::Deserialize(), ns3::DsaAck::Deserialize(), ns3::GrantManagementSubheader::Deserialize(), ns3::HeOperation::DeserializeInformationField(), ns3::HtCapabilities::DeserializeInformationField(), ns3::HtOperation::DeserializeInformationField(), ns3::VhtOperation::DeserializeInformationField(), BufferTest::DoRun(), ns3::DcdChannelEncodings::Read(), ns3::OfdmDlMapIe::Read(), ns3::DlFramePrefixIe::Read(), ns3::UcdChannelEncodings::Read(), and ns3::OfdmUlMapIe::Read().

+ Here is the caller graph for this function:

◆ ReadU32()

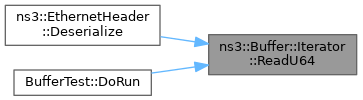

◆ ReadU64()

uint64_t ns3::Buffer::Iterator::ReadU64 ( )
Returns
the eight bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in the format written by writeU64.

Definition at line 990 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::EthernetHeader::Deserialize(), and BufferTest::DoRun().

+ Here is the caller graph for this function:

◆ ReadU8()

uint8_t ns3::Buffer::Iterator::ReadU8 ( )
inline
Returns
the byte read in the buffer.

Read data and advance the Iterator by the number of bytes read.

Definition at line 1027 of file buffer.h.

Referenced by TcpHeaderWithRFC793OptionTestCase::CheckCorrectDeserialize(), TcpHeaderWithRFC793OptionTestCase::CheckNoPadding(), WifiEhtCapabilitiesIeTest::CheckSerializedByte(), WifiIeFragmentationTest::CheckSerializedByte(), ns3::GtsFields::Deserialize(), ns3::PendingAddrFields::Deserialize(), ns3::CapabilityField::Deserialize(), ns3::dot11s::Dot11sMeshCapability::Deserialize(), anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::Deserialize(), anonymous_namespace{packet-test-suite.cc}::ATestTrailer< N >::Deserialize(), ns3::CtrlTriggerUserInfoField::Deserialize(), ns3::EhtPhyCapabilities::Deserialize(), ns3::EhtPpeThresholds::Deserialize(), ns3::U8TlvValue::Deserialize(), ns3::aodv::TypeHeader::Deserialize(), ns3::aodv::RreqHeader::Deserialize(), ns3::aodv::RrepHeader::Deserialize(), ns3::aodv::RrepAckHeader::Deserialize(), ns3::aodv::RerrHeader::Deserialize(), ns3::dsr::DsrFsHeader::Deserialize(), ns3::dsr::DsrRoutingHeader::Deserialize(), ns3::dsr::DsrOptionHeader::Deserialize(), ns3::dsr::DsrOptionPad1Header::Deserialize(), ns3::dsr::DsrOptionPadnHeader::Deserialize(), ns3::dsr::DsrOptionRreqHeader::Deserialize(), ns3::dsr::DsrOptionRrepHeader::Deserialize(), ns3::dsr::DsrOptionSRHeader::Deserialize(), ns3::dsr::DsrOptionRerrHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnsupportedHeader::Deserialize(), ns3::dsr::DsrOptionAckReqHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::Deserialize(), ns3::DhcpHeader::Deserialize(), ns3::ArpHeader::Deserialize(), ns3::Icmpv4DestinationUnreachable::Deserialize(), ns3::Icmpv4TimeExceeded::Deserialize(), ns3::Icmpv6Header::Deserialize(), ns3::Icmpv6NS::Deserialize(), ns3::Icmpv6NA::Deserialize(), ns3::Icmpv6RA::Deserialize(), ns3::Icmpv6RS::Deserialize(), ns3::Icmpv6Redirection::Deserialize(), ns3::Icmpv6Echo::Deserialize(), ns3::Icmpv6DestinationUnreachable::Deserialize(), ns3::Icmpv6TooBig::Deserialize(), ns3::Icmpv6TimeExceeded::Deserialize(), ns3::Icmpv6ParameterError::Deserialize(), ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), ns3::Ipv4Header::Deserialize(), ns3::Ipv6ExtensionHeader::Deserialize(), ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6ExtensionRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6Header::Deserialize(), ns3::Ipv6OptionHeader::Deserialize(), ns3::Ipv6OptionPad1Header::Deserialize(), ns3::Ipv6OptionPadnHeader::Deserialize(), ns3::Ipv6OptionJumbogramHeader::Deserialize(), ns3::Ipv6OptionRouterAlertHeader::Deserialize(), ns3::RipHeader::Deserialize(), ns3::RipNgRte::Deserialize(), ns3::RipNgHeader::Deserialize(), ns3::TcpOptionEnd::Deserialize(), ns3::TcpOptionNOP::Deserialize(), ns3::TcpOptionMSS::Deserialize(), ns3::TcpOptionSackPermitted::Deserialize(), ns3::TcpOptionSack::Deserialize(), ns3::TcpOptionTS::Deserialize(), ns3::TcpOptionWinScale::Deserialize(), ns3::TcpOptionUnknown::Deserialize(), ns3::LrWpanMacHeader::Deserialize(), ns3::CommandPayloadHeader::Deserialize(), ns3::GtpuHeader::Deserialize(), ns3::EpcX2Header::Deserialize(), ns3::EpcX2HandoverRequestHeader::Deserialize(), ns3::EpcX2LoadInformationHeader::Deserialize(), ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), ns3::LtePdcpHeader::Deserialize(), ns3::LteRlcAmHeader::Deserialize(), ns3::LteRlcHeader::Deserialize(), ns3::dot11s::MeshHeader::Deserialize(), ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkCloseStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::flame::FlameHeader::Deserialize(), ns3::olsr::MessageHeader::Deserialize(), ns3::SixLowPanHc1::Deserialize(), ns3::SixLowPanFrag1::Deserialize(), ns3::SixLowPanFragN::Deserialize(), ns3::SixLowPanIpv6::Deserialize(), ns3::SixLowPanIphc::Deserialize(), ns3::SixLowPanNhcExtension::Deserialize(), ns3::SixLowPanUdpNhcExtension::Deserialize(), ns3::SixLowPanBc0::Deserialize(), ns3::SixLowPanMesh::Deserialize(), ns3::UanHeaderCommon::Deserialize(), ns3::UanHeaderRcRts::Deserialize(), ns3::UanHeaderRcCts::Deserialize(), ns3::UanHeaderRcAck::Deserialize(), ns3::AmpduSubframeHeader::Deserialize(), ns3::WifiActionHeader::Deserialize(), ns3::MgtAddBaRequestHeader::Deserialize(), ns3::MgtAddBaResponseHeader::Deserialize(), ns3::MgtEmlOperatingModeNotification::Deserialize(), ns3::Dcd::Deserialize(), ns3::DlMap::Deserialize(), ns3::ManagementMessageType::Deserialize(), ns3::RngRsp::Deserialize(), ns3::DsaRsp::Deserialize(), ns3::DsaAck::Deserialize(), ns3::RngReq::Deserialize(), ns3::OfdmDownlinkFramePrefix::Deserialize(), ns3::Ucd::Deserialize(), ns3::UlMap::Deserialize(), ns3::GenericMacHeader::Deserialize(), ns3::BandwidthRequestHeader::Deserialize(), ns3::GrantManagementSubheader::Deserialize(), ns3::FragmentationSubheader::Deserialize(), ns3::Tlv::Deserialize(), ns3::EhtMcsAndNssSet::Deserialize(), ns3::CommonInfoBasicMle::Deserialize(), ns3::olsr::MessageHeader::Hello::Deserialize(), ns3::SfVectorTlvValue::Deserialize(), ns3::CsParamVectorTlvValue::Deserialize(), ns3::ClassificationRuleVectorTlvValue::Deserialize(), ns3::TosTlvValue::Deserialize(), ns3::ProtocolTlvValue::Deserialize(), ns3::GtpcIes::DeserializeBearerContextHeader(), ns3::GtpcIes::DeserializeBearerQos(), ns3::GtpcIes::DeserializeBearerTft(), ns3::CtrlBAckResponseHeader::DeserializeBitmap(), ns3::Asn1Header::DeserializeBitset(), ns3::GtpcIes::DeserializeCause(), ns3::GtpcIes::DeserializeEbi(), ns3::GtpcIes::DeserializeFteid(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::GtpcIes::DeserializeImsi(), ns3::dot11s::IeBeaconTiming::DeserializeInformationField(), ns3::dot11s::IeConfiguration::DeserializeInformationField(), ns3::dot11s::IePeerManagement::DeserializeInformationField(), ns3::dot11s::IePeeringProtocol::DeserializeInformationField(), ns3::dot11s::IePreq::DeserializeInformationField(), ns3::dot11s::IePerr::DeserializeInformationField(), ns3::dot11s::IePrep::DeserializeInformationField(), ns3::dot11s::IeRann::DeserializeInformationField(), ns3::EdcaParameterSet::DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), ns3::ExtendedCapabilities::DeserializeInformationField(), ns3::HeCapabilities::DeserializeInformationField(), ns3::MuEdcaParameterSet::DeserializeInformationField(), ns3::HtCapabilities::DeserializeInformationField(), ns3::HtOperation::DeserializeInformationField(), ns3::DsssParameterSet::DeserializeInformationField(), ns3::ErpInformation::DeserializeInformationField(), ns3::ReducedNeighborReport::DeserializeInformationField(), ns3::VhtOperation::DeserializeInformationField(), ns3::MeshInformationElementVector::DeserializeSingleIe(), ns3::GtpcIes::DeserializeUliEcgi(), ns3::WifiInformationElement::DoDeserialize(), ns3::OfdmDcdChannelEncodings::DoRead(), ns3::OfdmUcdChannelEncodings::DoRead(), BufferTest::DoRun(), TcpHeaderWithRFC793OptionTestCase::OneOptionAtTime(), ns3::GtpcHeader::PreDeserialize(), ns3::OfdmDlBurstProfile::Read(), ns3::OfdmDlMapIe::Read(), ns3::DlFramePrefixIe::Read(), ns3::OfdmUlBurstProfile::Read(), ns3::OfdmUlMapIe::Read(), ns3::GtpcIes::ReadNtohU40(), ns3::WifiInformationElement::SerializeFragments(), and ns3::HeaderSerializationTestCase::TestHeaderSerialization().

◆ SlowReadNtohU16()

uint16_t ns3::Buffer::Iterator::SlowReadNtohU16 ( )
private
Returns
the two bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in network format and returned in host format.

Warning
this is the slow version, please use ReadNtohU16 ()

Definition at line 1021 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ SlowReadNtohU32()

uint32_t ns3::Buffer::Iterator::SlowReadNtohU32 ( )
private
Returns
the four bytes read in the buffer.

Read data and advance the Iterator by the number of bytes read. The data is read in network format and returned in host format.

Warning
this is the slow version, please use ReadNtohU32 ()

Definition at line 1032 of file buffer.cc.

References NS_LOG_FUNCTION.

◆ Write() [1/2]

void ns3::Buffer::Iterator::Write ( const uint8_t *  buffer,
uint32_t  size
)
Parameters
buffera byte buffer to copy in the internal buffer.
sizenumber of bytes to copy.

Write the data in buffer and advance the iterator position by size bytes.

Definition at line 954 of file buffer.cc.

References ns3::Buffer::m_data, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::Packet(), PbbTestCase::PbbTestCase(), ns3::Buffer::AddAtEnd(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), ns3::Buffer::CreateFullCopy(), ns3::SixLowPanNetDevice::DecompressLowPanNhc(), ns3::PbbTlv::Deserialize(), ns3::dsr::DsrFsHeader::Deserialize(), ns3::dsr::DsrOptionHeader::Deserialize(), ns3::dsr::DsrOptionRerrHeader::Deserialize(), ns3::Ipv6ExtensionHeader::Deserialize(), ns3::Ipv6OptionHeader::Deserialize(), ns3::dsr::DsrOptionField::Deserialize(), ns3::OptionField::Deserialize(), ns3::Buffer::Deserialize(), BufferTest::DoRun(), ns3::Asn1Header::Serialize(), ns3::dsr::DsrFsHeader::Serialize(), ns3::dsr::DsrOptionHeader::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::dsr::DsrOptionRrepHeader::Serialize(), ns3::dsr::DsrOptionSRHeader::Serialize(), ns3::dsr::DsrOptionRerrHeader::Serialize(), ns3::DhcpHeader::Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), ns3::Icmpv6ParameterError::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), ns3::Icmpv6OptionRedirected::Serialize(), ns3::Ipv6ExtensionHeader::Serialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Serialize(), ns3::Ipv6OptionHeader::Serialize(), ns3::RipNgRte::Serialize(), ns3::TcpOptionUnknown::Serialize(), ns3::LlcSnapHeader::Serialize(), ns3::SixLowPanHc1::Serialize(), ns3::SixLowPanIphc::Serialize(), ns3::SixLowPanNhcExtension::Serialize(), ns3::SixLowPanMesh::Serialize(), ns3::Dcd::Serialize(), ns3::DlMap::Serialize(), ns3::OfdmDownlinkFramePrefix::Serialize(), ns3::Ucd::Serialize(), ns3::UlMap::Serialize(), ns3::PbbTlv::SetValue(), and ns3::WriteTo().

+ Here is the caller graph for this function:

◆ Write() [2/2]

void ns3::Buffer::Iterator::Write ( Iterator  start,
Iterator  end
)
Parameters
startthe start of the data to copy
endthe end of the data to copy

Write the data delimited by start and end in internal buffer and advance the iterator position by the number of bytes copied. The input iterators must not point to the same Buffer as we do to avoid overlapping copies. This is enforced in debug builds by asserts.

Definition at line 831 of file buffer.cc.

References m_current, m_data, ns3::Buffer::m_data, m_zeroEnd, m_zeroStart, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ WriteHtolsbU16()

◆ WriteHtolsbU32()

void ns3::Buffer::Iterator::WriteHtolsbU32 ( uint32_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by four bytes. The data is written in least significant byte order and the input data is expected to be in host order.

Definition at line 916 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::CtrlTriggerUserInfoField::Serialize(), ns3::LrWpanMacHeader::Serialize(), ns3::dot11s::MeshHeader::Serialize(), ns3::CtrlBAckResponseHeader::Serialize(), ns3::dot11s::IeLinkMetricReport::SerializeInformationField(), ns3::dot11s::IePerr::SerializeInformationField(), ns3::dot11s::IePrep::SerializeInformationField(), ns3::dot11s::IePreq::SerializeInformationField(), and ns3::dot11s::IeRann::SerializeInformationField().

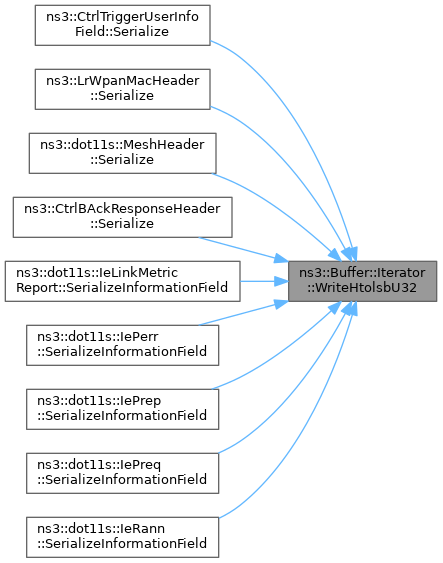

+ Here is the caller graph for this function:

◆ WriteHtolsbU64()

void ns3::Buffer::Iterator::WriteHtolsbU64 ( uint64_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by eight bytes. The data is written in least significant byte order and the input data is expected to be in host order.

Definition at line 926 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by BufferTest::DoRun(), ns3::LrWpanMacHeader::Serialize(), ns3::CtrlTriggerHeader::Serialize(), and ns3::MgtProbeResponseHeader::SerializeImpl().

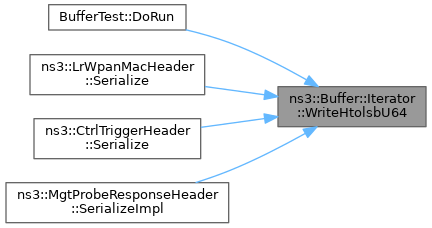

+ Here is the caller graph for this function:

◆ WriteHtonU16()

void ns3::Buffer::Iterator::WriteHtonU16 ( uint16_t  data)
inline
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by two bytes. The data is written in network order and the input data is expected to be in host order.

Definition at line 915 of file buffer.h.

References data, ns3::Buffer::m_data, and NS_ASSERT_MSG.

Referenced by BufferTest::DoRun(), ns3::GtpcHeader::PreSerialize(), ns3::PbbTlvBlock::Serialize(), ns3::PbbAddressTlvBlock::Serialize(), ns3::PbbMessage::Serialize(), ns3::olsr::MessageHeader::Hello::Serialize(), ns3::olsr::MessageHeader::Tc::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::DhcpHeader::Serialize(), ns3::ArpHeader::Serialize(), ns3::Icmpv4Header::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Ipv4Header::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6Header::Serialize(), ns3::Ipv6OptionRouterAlertHeader::Serialize(), ns3::RipRte::Serialize(), ns3::RipNgRte::Serialize(), ns3::TcpHeader::Serialize(), ns3::TcpOptionMSS::Serialize(), ns3::UdpHeader::Serialize(), ns3::GtpuHeader::Serialize(), ns3::EpcX2Header::Serialize(), ns3::EpcX2HandoverRequestHeader::Serialize(), ns3::EpcX2HandoverRequestAckHeader::Serialize(), ns3::EpcX2HandoverPreparationFailureHeader::Serialize(), ns3::EpcX2SnStatusTransferHeader::Serialize(), ns3::EpcX2UeContextReleaseHeader::Serialize(), ns3::EpcX2LoadInformationHeader::Serialize(), ns3::EpcX2ResourceStatusUpdateHeader::Serialize(), ns3::EpcX2HandoverCancelHeader::Serialize(), ns3::flame::FlameHeader::Serialize(), ns3::EthernetHeader::Serialize(), ns3::LlcSnapHeader::Serialize(), ns3::SllHeader::Serialize(), ns3::olsr::PacketHeader::Serialize(), ns3::olsr::MessageHeader::Serialize(), ns3::SixLowPanIphc::Serialize(), ns3::SixLowPanUdpNhcExtension::Serialize(), ns3::AmsduSubframeHeader::Serialize(), ns3::U16TlvValue::Serialize(), ns3::PortRangeTlvValue::Serialize(), ns3::GtpcIes::SerializeBearerQos(), ns3::GtpcIes::SerializeBearerTft(), ns3::GtpcIes::SerializeCause(), ns3::GtpcIes::SerializeEbi(), ns3::GtpcIes::SerializeFteid(), ns3::GtpcIes::SerializeImsi(), and ns3::GtpcIes::SerializeUliEcgi().

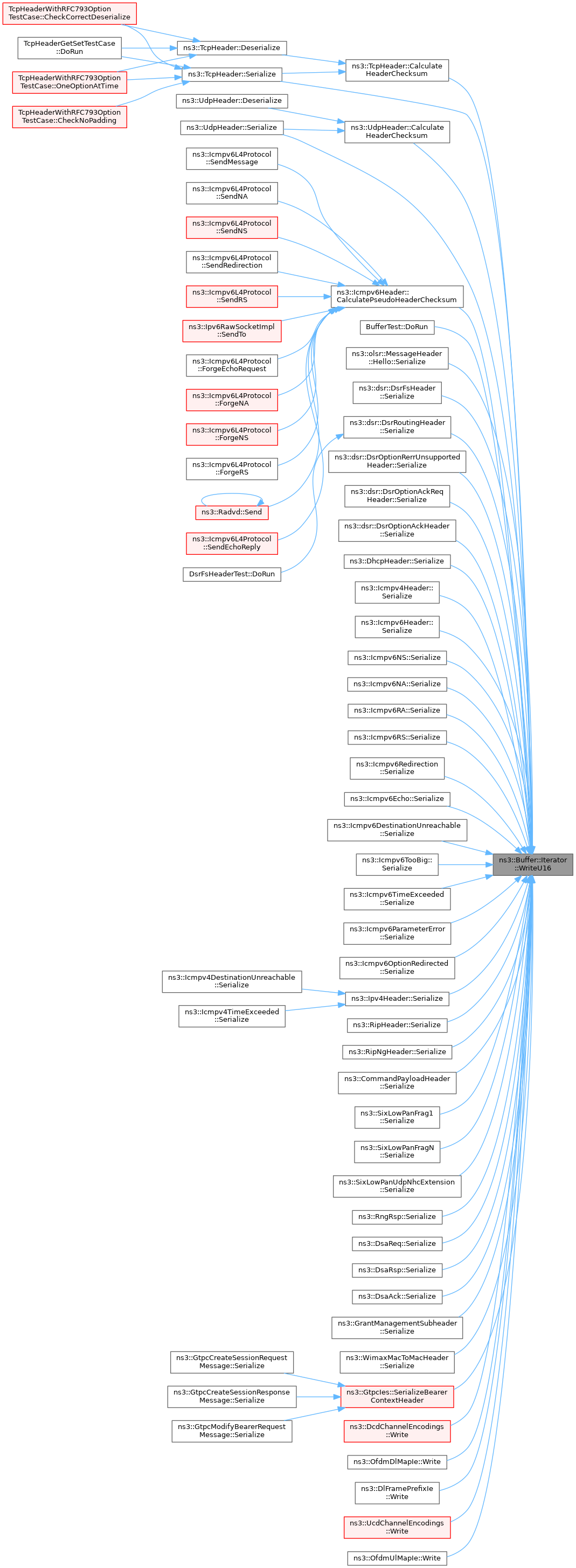

+ Here is the caller graph for this function:

◆ WriteHtonU32()

void ns3::Buffer::Iterator::WriteHtonU32 ( uint32_t  data)
inline
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by four bytes. The data is written in network order and the input data is expected to be in host order.

Definition at line 933 of file buffer.h.

References data, ns3::Buffer::m_data, and NS_ASSERT_MSG.

Referenced by BufferTest::DoRun(), ns3::GtpcHeader::PreSerialize(), ns3::aodv::RerrHeader::Serialize(), ns3::olsr::MessageHeader::Mid::Serialize(), ns3::olsr::MessageHeader::Hello::Serialize(), ns3::olsr::MessageHeader::Tc::Serialize(), ns3::olsr::MessageHeader::Hna::Serialize(), ns3::aodv::RreqHeader::Serialize(), ns3::aodv::RrepHeader::Serialize(), ns3::SeqTsEchoHeader::Serialize(), ns3::SeqTsHeader::Serialize(), ns3::dsdv::DsdvHeader::Serialize(), ns3::DhcpHeader::Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6ParameterError::Serialize(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Ipv4Header::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6Header::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), ns3::RipRte::Serialize(), ns3::TcpHeader::Serialize(), ns3::TcpOptionSack::Serialize(), ns3::TcpOptionTS::Serialize(), ns3::GtpuHeader::Serialize(), ns3::EpcX2HandoverRequestHeader::Serialize(), ns3::EpcX2HandoverRequestAckHeader::Serialize(), ns3::EpcX2SnStatusTransferHeader::Serialize(), ns3::olsr::MessageHeader::Serialize(), ns3::U32TlvValue::Serialize(), ns3::Ipv4AddressTlvValue::Serialize(), ns3::GtpcIes::SerializeBearerTft(), ns3::GtpcIes::SerializeFteid(), ns3::GtpcIes::SerializeUliEcgi(), and ns3::WriteTo().

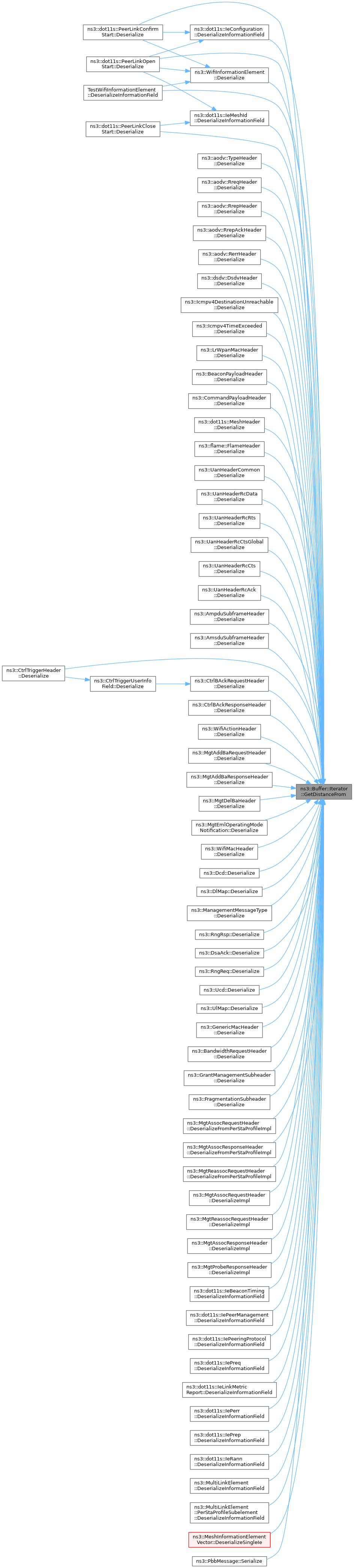

+ Here is the caller graph for this function:

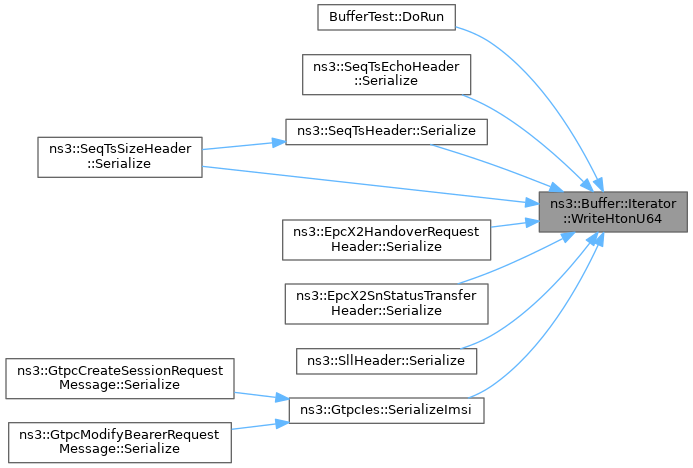

◆ WriteHtonU64()

void ns3::Buffer::Iterator::WriteHtonU64 ( uint64_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by eight bytes. The data is written in network order and the input data is expected to be in host order.

Definition at line 940 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by BufferTest::DoRun(), ns3::SeqTsEchoHeader::Serialize(), ns3::SeqTsHeader::Serialize(), ns3::SeqTsSizeHeader::Serialize(), ns3::EpcX2HandoverRequestHeader::Serialize(), ns3::EpcX2SnStatusTransferHeader::Serialize(), ns3::SllHeader::Serialize(), and ns3::GtpcIes::SerializeImsi().

+ Here is the caller graph for this function:

◆ WriteU16()

void ns3::Buffer::Iterator::WriteU16 ( uint16_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by two bytes. The format of the data written in the byte buffer is non-portable. We only ensure that readU16 will return exactly what we wrote with writeU16 if the program is run on the same machine.

Definition at line 865 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::TcpHeader::CalculateHeaderChecksum(), ns3::UdpHeader::CalculateHeaderChecksum(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), BufferTest::DoRun(), ns3::olsr::MessageHeader::Hello::Serialize(), ns3::dsr::DsrFsHeader::Serialize(), ns3::dsr::DsrRoutingHeader::Serialize(), ns3::dsr::DsrOptionRerrUnsupportedHeader::Serialize(), ns3::dsr::DsrOptionAckReqHeader::Serialize(), ns3::dsr::DsrOptionAckHeader::Serialize(), ns3::DhcpHeader::Serialize(), ns3::Icmpv4Header::Serialize(), ns3::Icmpv6Header::Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), ns3::Icmpv6ParameterError::Serialize(), ns3::Icmpv6OptionRedirected::Serialize(), ns3::Ipv4Header::Serialize(), ns3::RipHeader::Serialize(), ns3::RipNgHeader::Serialize(), ns3::TcpHeader::Serialize(), ns3::UdpHeader::Serialize(), ns3::CommandPayloadHeader::Serialize(), ns3::SixLowPanFrag1::Serialize(), ns3::SixLowPanFragN::Serialize(), ns3::SixLowPanUdpNhcExtension::Serialize(), ns3::RngRsp::Serialize(), ns3::DsaReq::Serialize(), ns3::DsaRsp::Serialize(), ns3::DsaAck::Serialize(), ns3::GrantManagementSubheader::Serialize(), ns3::WimaxMacToMacHeader::Serialize(), ns3::GtpcIes::SerializeBearerContextHeader(), ns3::DcdChannelEncodings::Write(), ns3::OfdmDlMapIe::Write(), ns3::DlFramePrefixIe::Write(), ns3::UcdChannelEncodings::Write(), and ns3::OfdmUlMapIe::Write().

+ Here is the caller graph for this function:

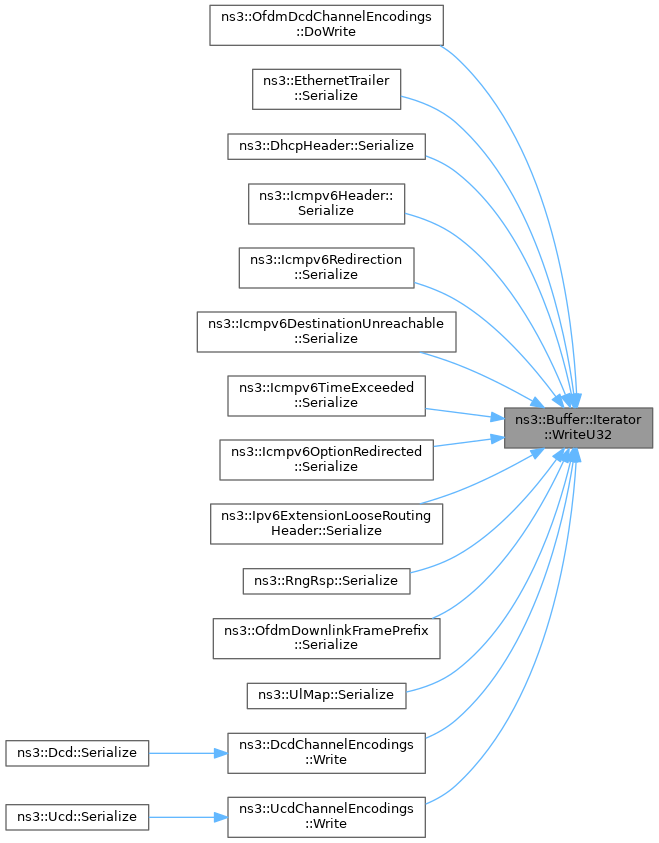

◆ WriteU32()

void ns3::Buffer::Iterator::WriteU32 ( uint32_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by four bytes. The format of the data written in the byte buffer is non-portable. We only ensure that readU32 will return exactly what we wrote with writeU32 if the program is run on the same machine.

Definition at line 874 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::OfdmDcdChannelEncodings::DoWrite(), ns3::EthernetTrailer::Serialize(), ns3::DhcpHeader::Serialize(), ns3::Icmpv6Header::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), ns3::Icmpv6OptionRedirected::Serialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Serialize(), ns3::RngRsp::Serialize(), ns3::OfdmDownlinkFramePrefix::Serialize(), ns3::UlMap::Serialize(), ns3::DcdChannelEncodings::Write(), and ns3::UcdChannelEncodings::Write().

+ Here is the caller graph for this function:

◆ WriteU64()

void ns3::Buffer::Iterator::WriteU64 ( uint64_t  data)
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by eight bytes. The format of the data written in the byte buffer is non-portable. We only ensure that readU64 will return exactly what we wrote with writeU64 if the program is run on the same machine.

Definition at line 887 of file buffer.cc.

References data, and NS_LOG_FUNCTION.

Referenced by BufferTest::DoRun(), and ns3::EthernetHeader::Serialize().

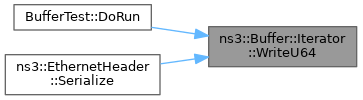

+ Here is the caller graph for this function:

◆ WriteU8() [1/2]

void ns3::Buffer::Iterator::WriteU8 ( uint8_t  data)
inline
Parameters
datadata to write in buffer

Write the data in buffer and advance the iterator position by one byte.

Definition at line 881 of file buffer.h.

References data, ns3::Buffer::m_data, and NS_ASSERT_MSG.

Referenced by ns3::TcpHeader::CalculateHeaderChecksum(), ns3::UdpHeader::CalculateHeaderChecksum(), ns3::Icmpv6Header::CalculatePseudoHeaderChecksum(), TcpHeaderWithRFC793OptionTestCase::CheckCorrectDeserialize(), ns3::Buffer::CreateFullCopy(), ns3::WifiInformationElement::DoDeserialize(), BufferTest::DoRun(), ns3::OfdmDcdChannelEncodings::DoWrite(), ns3::OfdmUcdChannelEncodings::DoWrite(), ns3::GtpcHeader::PreSerialize(), ns3::PbbMessage::Serialize(), ns3::PbbAddressBlock::Serialize(), ns3::PbbTlv::Serialize(), ns3::GtsFields::Serialize(), ns3::PendingAddrFields::Serialize(), ns3::CapabilityField::Serialize(), ns3::dot11s::Dot11sMeshCapability::Serialize(), ns3::WifiInformationElement::Serialize(), ns3::aodv::RerrHeader::Serialize(), anonymous_namespace{packet-test-suite.cc}::ATestHeader< N >::Serialize(), anonymous_namespace{packet-test-suite.cc}::ATestTrailer< N >::Serialize(), ns3::olsr::MessageHeader::Hello::Serialize(), ns3::CtrlTriggerUserInfoField::Serialize(), ns3::aodv::TypeHeader::Serialize(), ns3::aodv::RreqHeader::Serialize(), ns3::aodv::RrepHeader::Serialize(), ns3::aodv::RrepAckHeader::Serialize(), ns3::dsr::DsrFsHeader::Serialize(), ns3::dsr::DsrRoutingHeader::Serialize(), ns3::dsr::DsrOptionHeader::Serialize(), ns3::dsr::DsrOptionPad1Header::Serialize(), ns3::dsr::DsrOptionPadnHeader::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::dsr::DsrOptionRrepHeader::Serialize(), ns3::dsr::DsrOptionSRHeader::Serialize(), ns3::dsr::DsrOptionRerrHeader::Serialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Serialize(), ns3::dsr::DsrOptionRerrUnsupportedHeader::Serialize(), ns3::dsr::DsrOptionAckReqHeader::Serialize(), ns3::dsr::DsrOptionAckHeader::Serialize(), ns3::DhcpHeader::Serialize(), ns3::ArpHeader::Serialize(), ns3::Icmpv4Header::Serialize(), ns3::Icmpv6Header::Serialize(), ns3::Icmpv6NS::Serialize(), ns3::Icmpv6NA::Serialize(), ns3::Icmpv6RA::Serialize(), ns3::Icmpv6RS::Serialize(), ns3::Icmpv6Redirection::Serialize(), ns3::Icmpv6Echo::Serialize(), ns3::Icmpv6DestinationUnreachable::Serialize(), ns3::Icmpv6TooBig::Serialize(), ns3::Icmpv6TimeExceeded::Serialize(), ns3::Icmpv6ParameterError::Serialize(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), ns3::Icmpv6OptionRedirected::Serialize(), ns3::Ipv4Header::Serialize(), ns3::Ipv6ExtensionHeader::Serialize(), ns3::Ipv6ExtensionHopByHopHeader::Serialize(), ns3::Ipv6ExtensionDestinationHeader::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6ExtensionRoutingHeader::Serialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Serialize(), ns3::Ipv6Header::Serialize(), ns3::Ipv6OptionHeader::Serialize(), ns3::Ipv6OptionPad1Header::Serialize(), ns3::Ipv6OptionPadnHeader::Serialize(), ns3::Ipv6OptionJumbogramHeader::Serialize(), ns3::Ipv6OptionRouterAlertHeader::Serialize(), ns3::RipHeader::Serialize(), ns3::RipNgRte::Serialize(), ns3::RipNgHeader::Serialize(), ns3::TcpHeader::Serialize(), ns3::TcpOptionEnd::Serialize(), ns3::TcpOptionNOP::Serialize(), ns3::TcpOptionMSS::Serialize(), ns3::TcpOptionSackPermitted::Serialize(), ns3::TcpOptionSack::Serialize(), ns3::TcpOptionTS::Serialize(), ns3::TcpOptionWinScale::Serialize(), ns3::TcpOptionUnknown::Serialize(), ns3::LrWpanMacHeader::Serialize(), ns3::CommandPayloadHeader::Serialize(), ns3::GtpuHeader::Serialize(), ns3::EpcX2Header::Serialize(), ns3::EpcX2HandoverRequestHeader::Serialize(), ns3::EpcX2LoadInformationHeader::Serialize(), ns3::EpcX2ResourceStatusUpdateHeader::Serialize(), ns3::LtePdcpHeader::Serialize(), ns3::LteRlcAmHeader::Serialize(), ns3::LteRlcHeader::Serialize(), ns3::dot11s::MeshHeader::Serialize(), ns3::flame::FlameHeader::Serialize(), ns3::PbbPacket::Serialize(), ns3::olsr::MessageHeader::Serialize(), ns3::SixLowPanHc1::Serialize(), ns3::SixLowPanFrag1::Serialize(), ns3::SixLowPanFragN::Serialize(), ns3::SixLowPanIpv6::Serialize(), ns3::SixLowPanIphc::Serialize(), ns3::SixLowPanNhcExtension::Serialize(), ns3::SixLowPanUdpNhcExtension::Serialize(), ns3::SixLowPanBc0::Serialize(), ns3::SixLowPanMesh::Serialize(), ns3::AmpduSubframeHeader::Serialize(), ns3::CtrlTriggerHeader::Serialize(), ns3::MgtAddBaRequestHeader::Serialize(), ns3::MgtAddBaResponseHeader::Serialize(), ns3::Dcd::Serialize(), ns3::DlMap::Serialize(), ns3::ManagementMessageType::Serialize(), ns3::RngRsp::Serialize(), ns3::DsaRsp::Serialize(), ns3::DsaAck::Serialize(), ns3::RngReq::Serialize(), ns3::OfdmDownlinkFramePrefix::Serialize(), ns3::Ucd::Serialize(), ns3::UlMap::Serialize(), ns3::GenericMacHeader::Serialize(), ns3::BandwidthRequestHeader::Serialize(), ns3::GrantManagementSubheader::Serialize(), ns3::FragmentationSubheader::Serialize(), ns3::WimaxMacToMacHeader::Serialize(), ns3::Tlv::Serialize(), ns3::U8TlvValue::Serialize(), ns3::TosTlvValue::Serialize(), ns3::ProtocolTlvValue::Serialize(), ns3::GtpcIes::SerializeBearerContextHeader(), ns3::GtpcIes::SerializeBearerQos(), ns3::GtpcIes::SerializeBearerTft(), ns3::CtrlBAckResponseHeader::SerializeBitmap(), ns3::GtpcIes::SerializeCause(), ns3::GtpcIes::SerializeEbi(), ns3::WifiInformationElement::SerializeFragments(), ns3::GtpcIes::SerializeFteid(), ns3::GtpcIes::SerializeImsi(), ns3::dot11s::IeBeaconTiming::SerializeInformationField(), ns3::dot11s::IeConfiguration::SerializeInformationField(), ns3::dot11s::IeMeshId::SerializeInformationField(), ns3::dot11s::IePeerManagement::SerializeInformationField(), ns3::dot11s::IePeeringProtocol::SerializeInformationField(), ns3::dot11s::IePerr::SerializeInformationField(), ns3::dot11s::IePrep::SerializeInformationField(), ns3::dot11s::IePreq::SerializeInformationField(), ns3::dot11s::IeRann::SerializeInformationField(), ns3::GtpcIes::SerializeUliEcgi(), ns3::OfdmDlBurstProfile::Write(), ns3::OfdmDlMapIe::Write(), ns3::DlFramePrefixIe::Write(), ns3::OfdmUlBurstProfile::Write(), ns3::OfdmUlMapIe::Write(), ns3::GtpcIes::WriteHtonU40(), and ns3::Asn1Header::WriteOctet().

◆ WriteU8() [2/2]

void ns3::Buffer::Iterator::WriteU8 ( uint8_t  data,
uint32_t  len
)
inline
Parameters
datadata to write in buffer
lennumber of times data must be written in buffer

Write the data in buffer len times and advance the iterator position by len byte.

Definition at line 898 of file buffer.h.

References data, ns3::Buffer::m_data, and NS_ASSERT_MSG.

Friends And Related Function Documentation

◆ Buffer

friend class Buffer
friend

Friend class.

Definition at line 387 of file buffer.h.

Member Data Documentation

◆ m_current

uint32_t ns3::Buffer::Iterator::m_current
private

offset in virtual bytes from the start of the data buffer to the current position represented by this iterator.

Definition at line 480 of file buffer.h.

Referenced by GetDistanceFrom(), and Write().

◆ m_data

uint8_t* ns3::Buffer::Iterator::m_data
private

a pointer to the underlying byte buffer.

All offsets are relative to this pointer.

Definition at line 485 of file buffer.h.

Referenced by GetDistanceFrom(), and Write().

◆ m_dataEnd

uint32_t ns3::Buffer::Iterator::m_dataEnd
private

offset in virtual bytes from the start of the data buffer to the end of the data which can be read by this iterator

Definition at line 475 of file buffer.h.

◆ m_dataStart

uint32_t ns3::Buffer::Iterator::m_dataStart
private

offset in virtual bytes from the start of the data buffer to the start of the data which can be read by this iterator

Definition at line 470 of file buffer.h.

◆ m_zeroEnd

uint32_t ns3::Buffer::Iterator::m_zeroEnd
private

offset in virtual bytes from the start of the data buffer to the end of the "virtual zero area".

Definition at line 465 of file buffer.h.

Referenced by Write().

◆ m_zeroStart

uint32_t ns3::Buffer::Iterator::m_zeroStart
private

offset in virtual bytes from the start of the data buffer to the start of the "virtual zero area".

Definition at line 460 of file buffer.h.

Referenced by Write().


The documentation for this class was generated from the following files:
