Generic "sequence number" class. More...
#include "sequence-number.h"
Public Member Functions | |
SequenceNumber () | |
SequenceNumber (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &value) | |
Constructs a SequenceNumber from a copy. | |
SequenceNumber (NUMERIC_TYPE value) | |
Constructs a SequenceNumber with the given value. | |
NUMERIC_TYPE | GetValue () const |
Extracts the numeric value of the sequence number. | |
bool | operator! () const =delete |
bool | operator!= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Inequality operator for comparing sequence numbers. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator% (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator& (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
bool | operator&& (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
int | operator* ()=delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator* (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator+ (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Operator defining addition of two sequence numbers. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator+ (SIGNED_TYPE delta) const |
Addition operator for adding numeric value to sequence number. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator++ () |
Prefix increment operator. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator++ (int) |
Postfix increment operator. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator+= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &)=delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator+= (SIGNED_TYPE value) |
Plus equals operator. | |
SIGNED_TYPE | operator- (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Subtraction operator for subtracting sequence number from sequence number. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator- (SIGNED_TYPE delta) const |
Subtraction operator for subtracting numeric value from sequence number. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator-- () |
Prefix decrement operator. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator-- (int) |
Postfix decrement operator. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator-= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &)=delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator-= (SIGNED_TYPE value) |
Minus equals operator. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator/ (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
bool | operator< (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Less than operator for comparing sequence numbers. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator<< (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
bool | operator<= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Less than or equal operator for comparing sequence numbers. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &value) |
Constructs a SequenceNumber from an assignment of another sequence number. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > & | operator= (NUMERIC_TYPE value) |
Constructs a SequenceNumber from an assignment of given value. | |
bool | operator== (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Equality operator for comparing sequence number. | |
bool | operator> (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Here is the critical part, how the comparison is made taking into account wrap-around. | |
bool | operator>= (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &other) const |
Greater than or equal operator for comparing sequence numbers. | |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator>> (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator^ (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator| (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
bool | operator|| (const SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > &) const =delete |
SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE > | operator~ () const =delete |
Private Attributes | |
NUMERIC_TYPE | m_value |
Sequence number value. | |
Friends | |
template<typename NUMERIC_TYPE2 , typename SIGNED_TYPE2 > | |
std::ostream & | operator<< (std::ostream &os, const SequenceNumber< NUMERIC_TYPE2, SIGNED_TYPE2 > &val) |
For printing sequence number. | |
template<typename NUMERIC_TYPE2 , typename SIGNED_TYPE2 > | |
std::istream & | operator>> (std::istream &is, const SequenceNumber< NUMERIC_TYPE2, SIGNED_TYPE2 > &val) |
For loading sequence number from input streams. | |
Generic "sequence number" class.
This class can be used to handle sequence numbers. In networking protocols, sequence numbers are fixed precision integer numbers that are used to order events relative to each other. A sequence number is expected to increase over time but, since it has a limited number of bits, the number will "wrap around" from the maximum value that can represented with the given number of bits back to zero. For this reason, comparison of two sequence numbers, and subtraction, is non-trivial. The SequenceNumber class behaves like a number, with the usual arithmetic operators implemented, but knows how to correctly compare and subtract sequence numbers.
This is a templated class. To use it you need to supply two fundamental types as template parameters: NUMERIC_TYPE and SIGNED_TYPE. For instance, SequenceNumber<uint32_t, int32_t> gives you a 32-bit sequence number, while SequenceNumber<uint16_t, int16_t> is a 16-bit one. For your convenience, these are typedef'ed as SequenceNumber32 and SequenceNumber16, respectively.
Definition at line 61 of file sequence-number.h.
|
inline |
Definition at line 64 of file sequence-number.h.
|
inlineexplicit |
Constructs a SequenceNumber with the given value.
value | the sequence number value |
Definition at line 73 of file sequence-number.h.
|
inline |
Constructs a SequenceNumber from a copy.
value | sequence number to copy |
Definition at line 82 of file sequence-number.h.
|
inline |
Extracts the numeric value of the sequence number.
Definition at line 122 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.

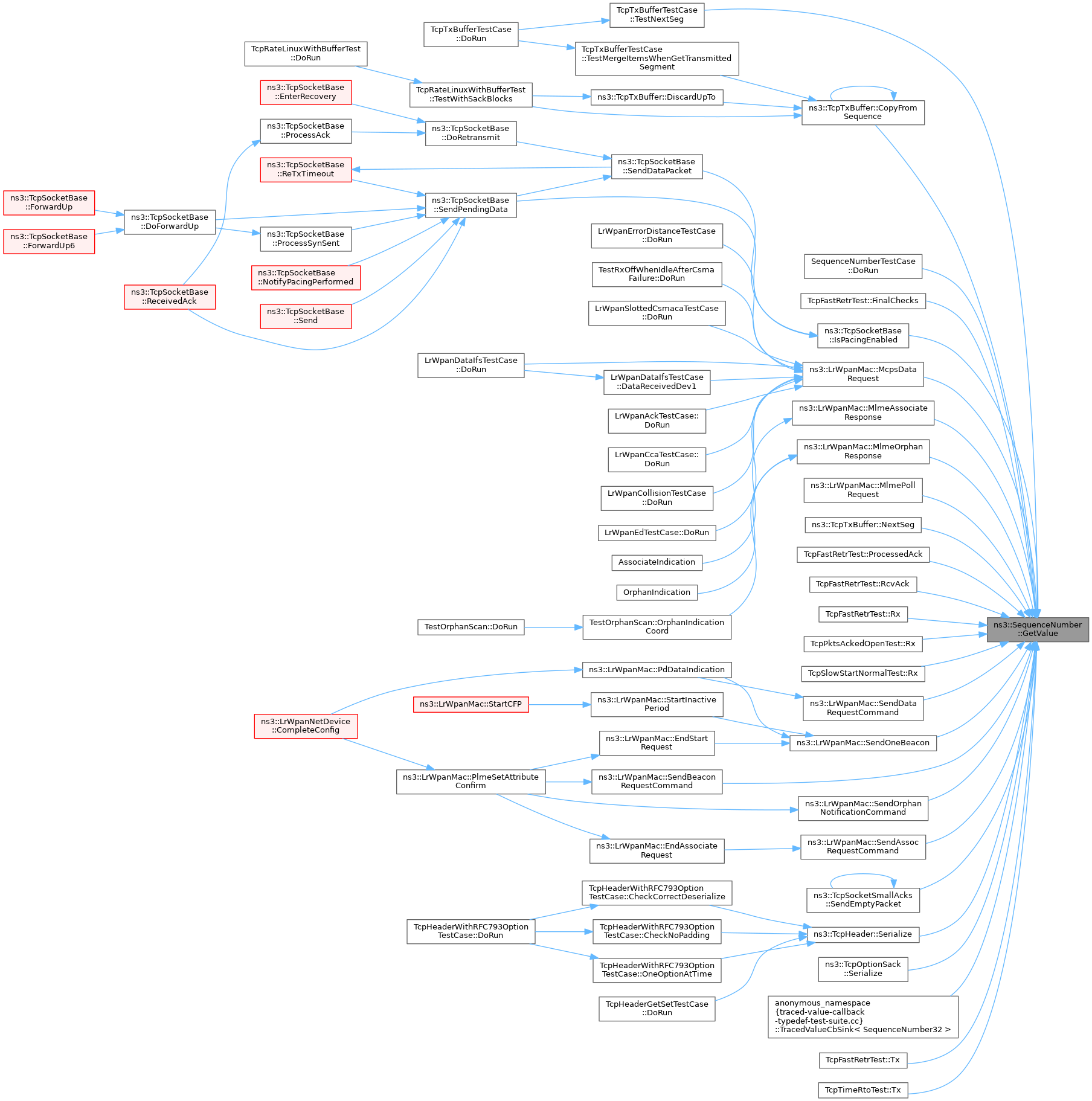

Referenced by ns3::TcpTxBuffer::CopyFromSequence(), SequenceNumberTestCase::DoRun(), TcpFastRetrTest::FinalChecks(), ns3::TcpSocketBase::IsPacingEnabled(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::MlmeAssociateResponse(), ns3::LrWpanMac::MlmeOrphanResponse(), ns3::LrWpanMac::MlmePollRequest(), ns3::TcpTxBuffer::NextSeg(), TcpFastRetrTest::ProcessedAck(), TcpFastRetrTest::RcvAck(), TcpFastRetrTest::Rx(), TcpPktsAckedOpenTest::Rx(), TcpSlowStartNormalTest::Rx(), ns3::LrWpanMac::SendAssocRequestCommand(), ns3::LrWpanMac::SendBeaconRequestCommand(), ns3::LrWpanMac::SendDataRequestCommand(), ns3::TcpSocketSmallAcks::SendEmptyPacket(), ns3::LrWpanMac::SendOneBeacon(), ns3::LrWpanMac::SendOrphanNotificationCommand(), ns3::TcpHeader::Serialize(), ns3::TcpOptionSack::Serialize(), TcpTxBufferTestCase::TestNextSeg(), anonymous_namespace{traced-value-callback-typedef-test-suite.cc}::TracedValueCbSink< SequenceNumber32 >(), TcpFastRetrTest::Tx(), and TcpTimeRtoTest::Tx().
|
delete |
|
inline |
Inequality operator for comparing sequence numbers.
other | sequence number to compare to this sequence number |
Definition at line 304 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
delete |
|
delete |
|
delete |
|
delete |
|
delete |
|
inline |
Operator defining addition of two sequence numbers.
other | sequence number added to this |
Definition at line 196 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Addition operator for adding numeric value to sequence number.
delta | value to add to sequence number |
Definition at line 207 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Prefix increment operator.
Definition at line 131 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Postfix increment operator.
Definition at line 141 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
delete |
|
inline |
Plus equals operator.
value | value to add to sequence number |
Definition at line 174 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Subtraction operator for subtracting sequence number from sequence number.
other | sequence number to subtract from this sequence number |
Definition at line 227 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Subtraction operator for subtracting numeric value from sequence number.
delta | value to subtract from sequence number |
Definition at line 217 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Prefix decrement operator.
Definition at line 152 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Postfix decrement operator.
Definition at line 162 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
delete |
|
inline |
Minus equals operator.
value | value to subtract from sequence number |
Definition at line 185 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
delete |
|
inline |
Less than operator for comparing sequence numbers.
other | sequence number to compare to this sequence number |
Definition at line 334 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value, and ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator>().
|
delete |
|
inline |
Less than or equal operator for comparing sequence numbers.
other | sequence number to compare to this sequence number |
Definition at line 314 of file sequence-number.h.
|
inline |
Constructs a SequenceNumber from an assignment of another sequence number.
value | sequence number to copy |
Definition at line 103 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Constructs a SequenceNumber from an assignment of given value.
value | sequence number to copy |
Definition at line 92 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Equality operator for comparing sequence number.
other | sequence number to compare to this sequence number |
Definition at line 294 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
|
inline |
Here is the critical part, how the comparison is made taking into account wrap-around.
From RFC 3626:
The sequence number S1 is said to be "greater than" the sequence number S2 if: S1 > S2 AND S1 - S2 <= MAXVALUE/2 OR S2 > S1 AND S2 - S1 > MAXVALUE/2
other | sequence number to compare to this one |
Definition at line 281 of file sequence-number.h.
References ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::m_value.
Referenced by ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator<().
|
inline |
Greater than or equal operator for comparing sequence numbers.
other | sequence number to compare to this sequence number |
Definition at line 324 of file sequence-number.h.
|
delete |
|
delete |
|
delete |
|
delete |
|
delete |
|
friend |
For printing sequence number.
os | output stream |
val | sequence number to display |
|
friend |
For loading sequence number from input streams.
is | input stream |
val | sequence number to load |
|
private |
Sequence number value.
Definition at line 389 of file sequence-number.h.
Referenced by ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator!=(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator+(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator++(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator+=(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator-(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator--(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator-=(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator<(), ns3::operator<<(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator=(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator==(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::operator>(), and ns3::operator>>().
