A Udp Echo server. More...

#include "udp-echo-server.h"

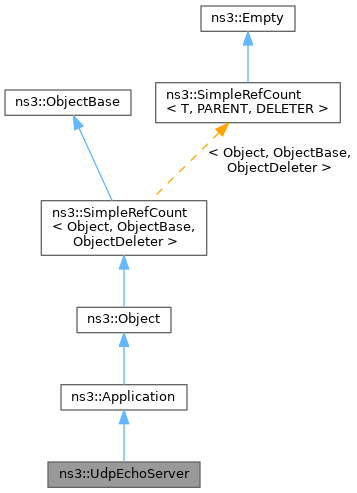

Inheritance diagram for ns3::UdpEchoServer:

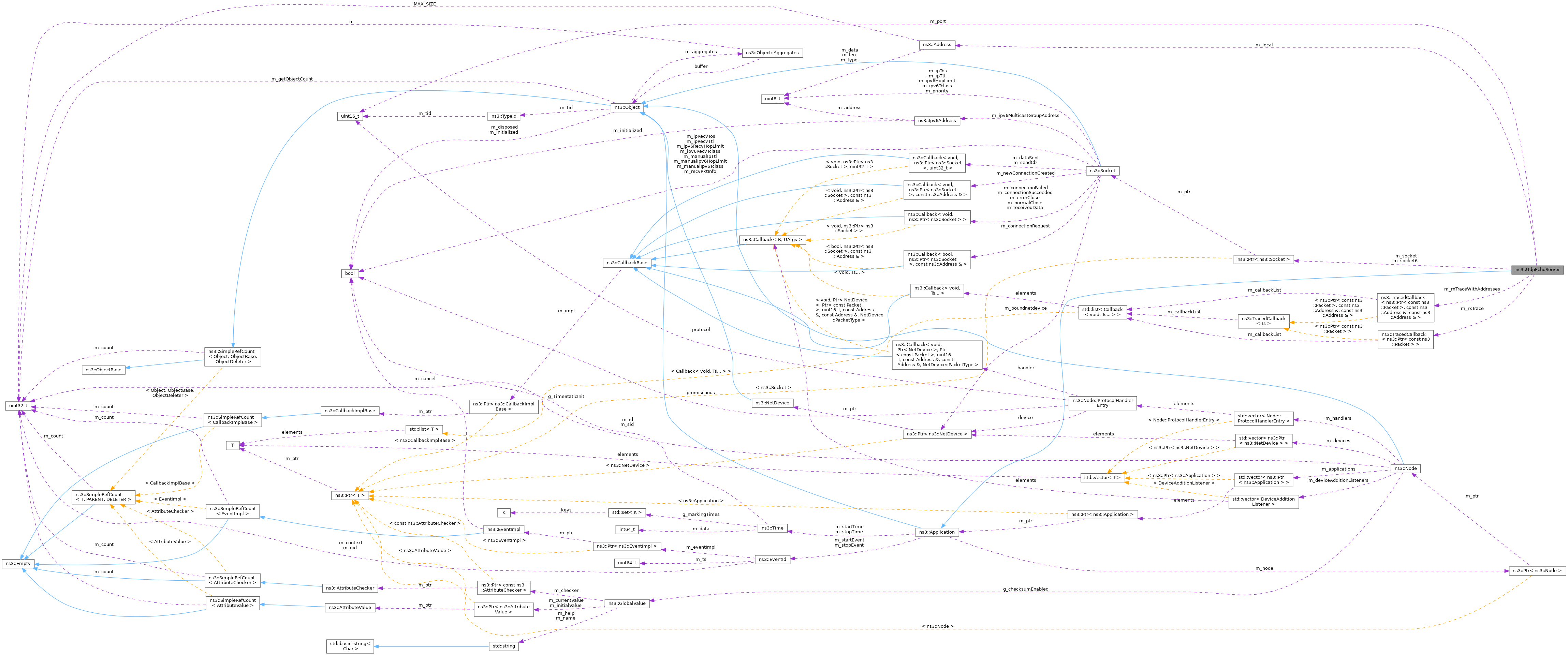

Collaboration diagram for ns3::UdpEchoServer:

Public Member Functions
	UdpEchoServer ()

	~UdpEchoServer () override

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time.

void	SetStopTime (Time stop)
	Specify application stop time.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

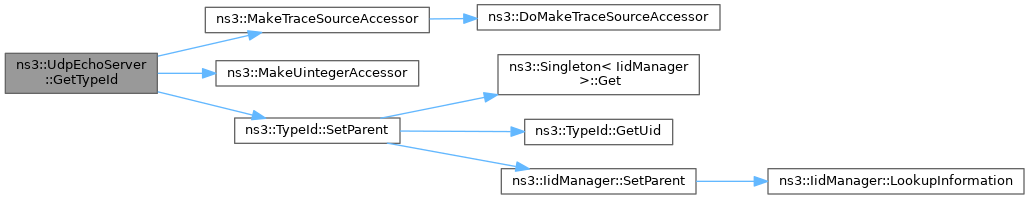

static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions
void	DoDispose () override
	Destructor implementation.

Protected Member Functions inherited from ns3::Application
void	DoDispose () override
	Destructor implementation.

void	DoInitialize () override
	Initialize() implementation.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Private Member Functions

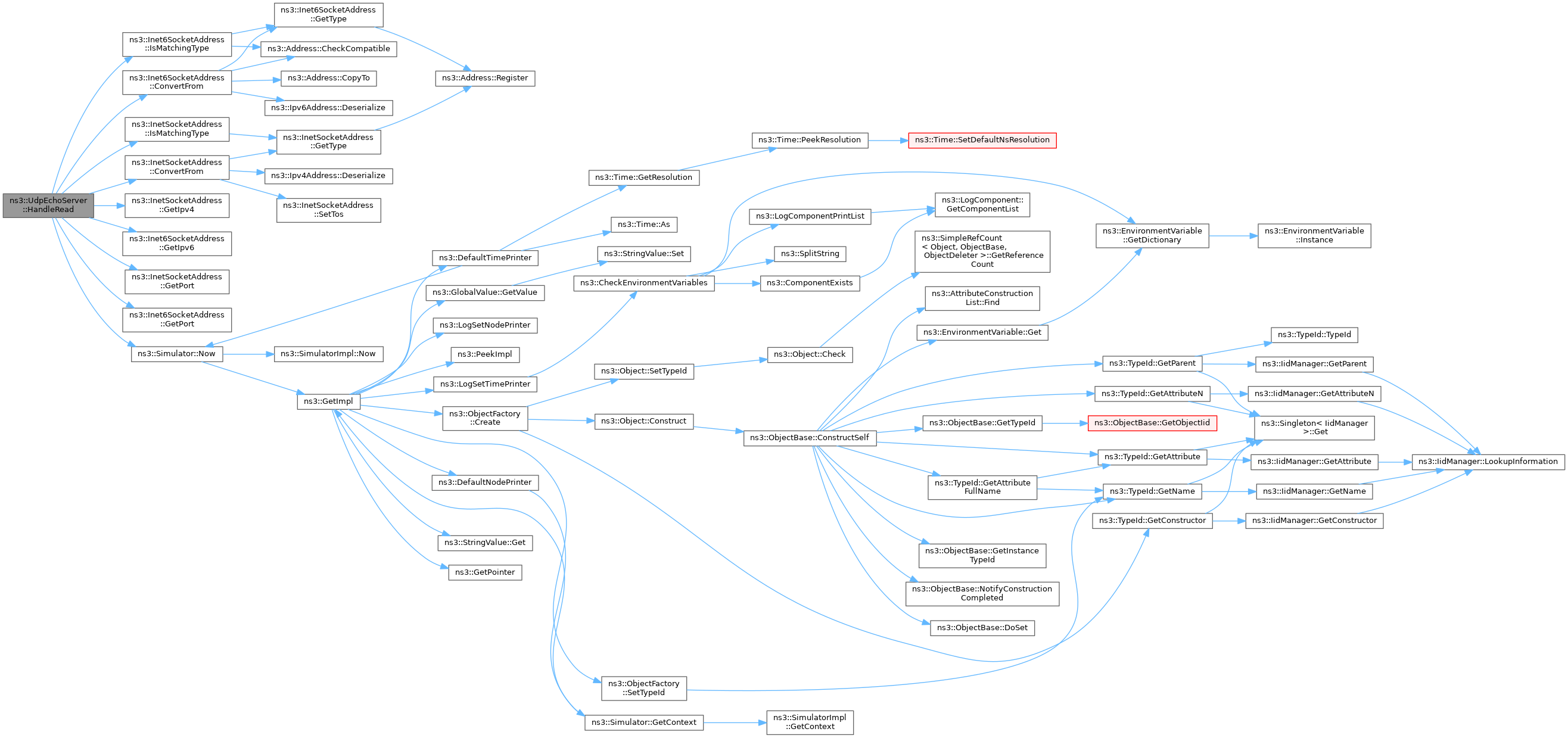

void	HandleRead (Ptr< Socket > socket)
	Handle a packet reception.

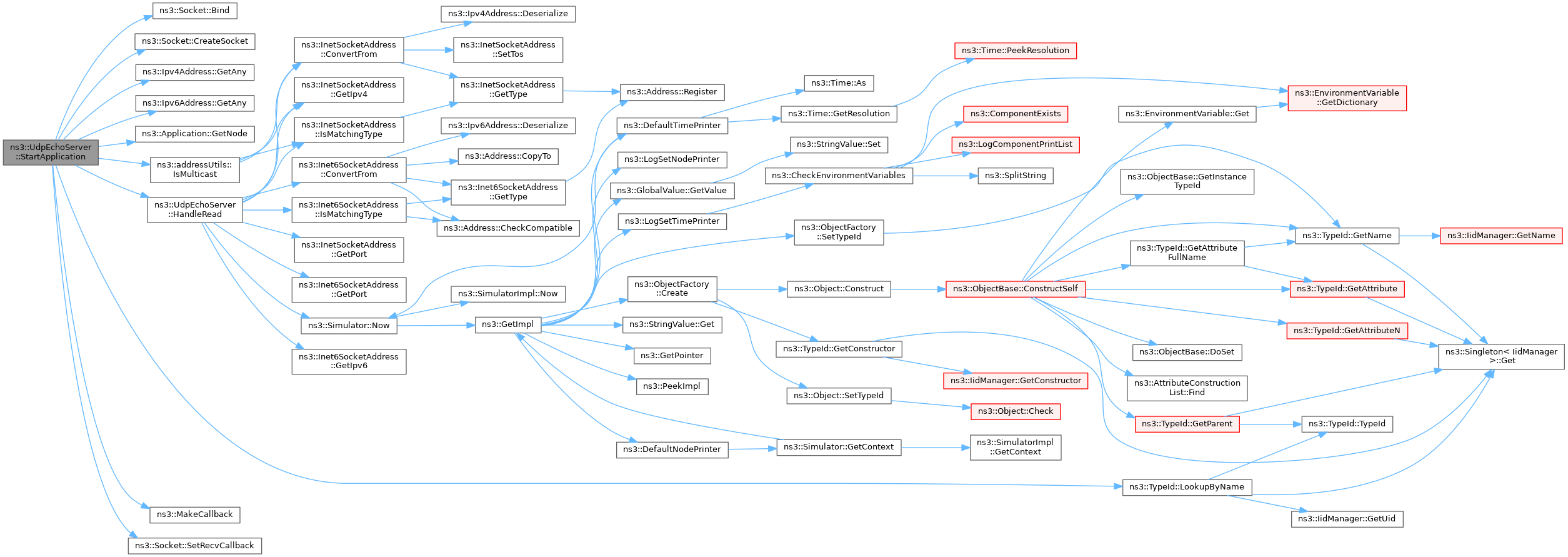

void	StartApplication () override
	Application specific startup code.

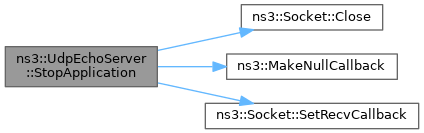

void	StopApplication () override
	Application specific shutdown code.

Private Attributes
Address	m_local
	local multicast address

uint16_t	m_port
	Port on which we listen for incoming packets.

TracedCallback< Ptr< const Packet > >	m_rxTrace
	Callbacks for tracing the packet Rx events.

TracedCallback< Ptr< const Packet >, const Address &, const Address & >	m_rxTraceWithAddresses
	Callbacks for tracing the packet Rx events, includes source and destination addresses.

Ptr< Socket >	m_socket
	IPv4 Socket.

Ptr< Socket >	m_socket6
	IPv6 Socket.

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address.

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source.

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on.

EventId	m_startEvent
	The event that will fire at m_startTime to start the application.

Time	m_startTime
	The simulation time that the application will start.

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application.

Time	m_stopTime
	The simulation time that the application will end.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

A Udp Echo server.

Every packet received is sent back.

Config Paths

ns3::UdpEchoServer is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::UdpEchoServer"

Attributes

Port: Port on which we listen for incoming packets.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 9
- Flags: constructwriteread

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread

TraceSources

Rx: A packet has been received
Callback signature: ns3::Packet::TracedCallback
RxWithAddresses: A packet has been received
Callback signature: ns3::Packet::TwoAddressTracedCallback

Size of this type is 184 bytes (on a 64-bit architecture).

Definition at line 44 of file udp-echo-server.h.

Constructor & Destructor Documentation

◆ UdpEchoServer()

ns3::UdpEchoServer::UdpEchoServer ( )

Definition at line 65 of file udp-echo-server.cc.

References NS_LOG_FUNCTION.

◆ ~UdpEchoServer()

ns3::UdpEchoServer::~UdpEchoServer ( )

override

Definition at line 70 of file udp-echo-server.cc.

References m_socket, m_socket6, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::UdpEchoServer::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 78 of file udp-echo-server.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:
