ns3::MinMaxAvgTotalCalculator< T > Class Template Reference

Template class MinMaxAvgTotalCalculator. More...

#include "basic-data-calculators.h"

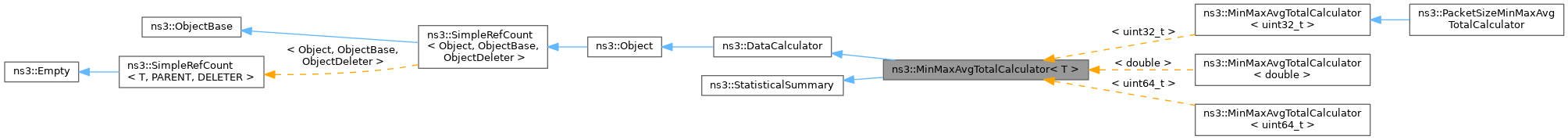

+ Inheritance diagram for ns3::MinMaxAvgTotalCalculator< T >:

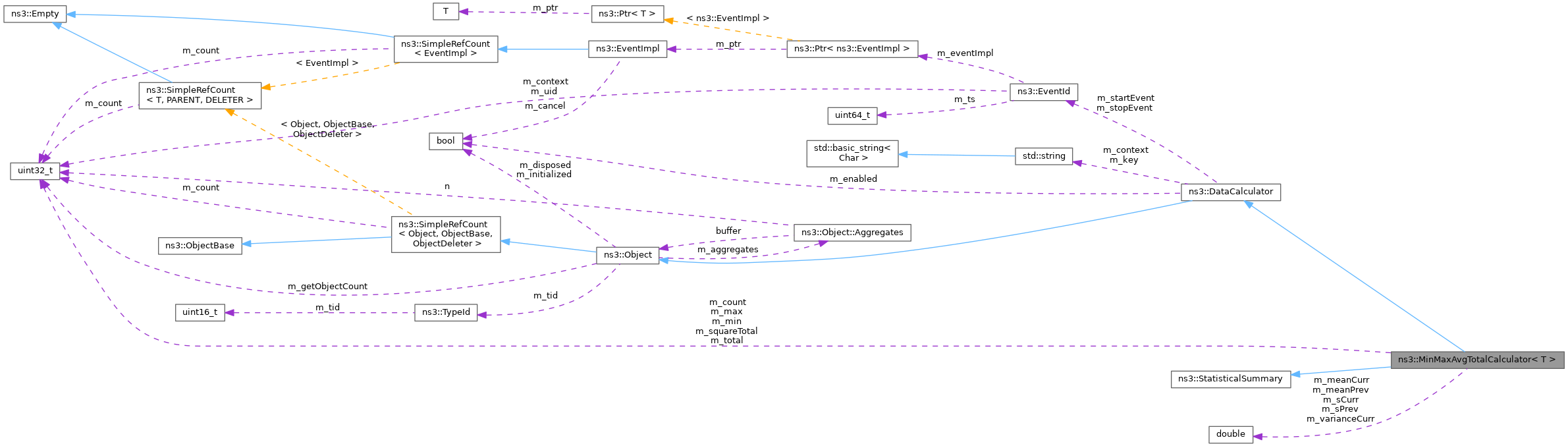

+ Collaboration diagram for ns3::MinMaxAvgTotalCalculator< T >:

Public Member Functions

 MinMaxAvgTotalCalculator ()

 ~MinMaxAvgTotalCalculator () override

long getCount () const override
 Returns the count.

double getMax () const override
 Returns the maximum value.

double getMean () const override
 Returns the mean value.

double getMin () const override
 Returns the minimum value.

double getSqrSum () const override
 Returns the sum of squares.

double getStddev () const override
 Returns the standard deviation.

double getSum () const override
 Returns the sum.

double getVariance () const override
 Returns the current variance.

void Output (DataOutputCallback &callback) const override
 Outputs the data based on the provided callback.

void Reset ()
 Reinitializes all variables of MinMaxAvgTotalCalculator.

void Update (const T i)
 Updates all variables of MinMaxAvgTotalCalculator.

- Public Member Functions inherited from ns3::DataCalculator
 DataCalculator ()

 ~DataCalculator () override

void Disable ()
 Disables DataCalculator when simulation stops.

void Enable ()
 Enables DataCalculator when simulation starts.

std::string GetContext () const
 Gets the DataCalculator context.

bool GetEnabled () const
 Returns whether the DataCalculator is enabled.

std::string GetKey () const
 Gets the DataCalculator key.

virtual void Output (DataOutputCallback &callback) const =0
 Outputs data based on the provided callback.

void SetContext (const std::string context)
 Sets the DataCalculator context to the provided context.

void SetKey (const std::string key)
 Sets the DataCalculator key to the provided key.

virtual void Start (const Time &startTime)
 Starts DataCalculator at a given time in the simulation.

virtual void Stop (const Time &stopTime)
 Stops DataCalculator at a given time in the simulation.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.

- Public Member Functions inherited from ns3::StatisticalSummary
virtual ~StatisticalSummary ()
 Destructor.

virtual long getCount () const =0
 Returns the number of observations.

virtual double getMax () const =0
 Returns the maximum of the values.

virtual double getMean () const =0
 Returns the mean of the (weighted) observations.

virtual double getMin () const =0
 Returns the minimum of the values.

virtual double getSqrSum () const =0

virtual double getStddev () const =0
 Returns the standard deviation of the (weighted) observations.

virtual double getSum () const =0

virtual double getVariance () const =0
 Returns the variance of the (weighted) observations.


Static Public Member Functions

static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::DataCalculator
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Member Functions

void DoDispose () override
 Dispose of this Object.

- Protected Member Functions inherited from ns3::DataCalculator
void DoDispose () override
 Destructor implementation.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Protected Attributes

uint32_t m_count
 Count value of MinMaxAvgTotalCalculator.

m_max
 Maximum value of MinMaxAvgTotalCalculator.

double m_meanCurr
 Current mean of MinMaxAvgTotalCalculator.

double m_meanPrev
 Previous mean of MinMaxAvgTotalCalculator.

m_min
 Minimum value of MinMaxAvgTotalCalculator.

double m_sCurr
 Current s of MinMaxAvgTotalCalculator.

double m_sPrev
 Previous s of MinMaxAvgTotalCalculator.

m_squareTotal
 Sum of squares value of MinMaxAvgTotalCalculator.

m_total
 Total value of MinMaxAvgTotalCalculator.

double m_varianceCurr
 Current variance of MinMaxAvgTotalCalculator.

- Protected Attributes inherited from ns3::DataCalculator
std::string m_context
 Context value.

bool m_enabled
 Descendant classes must check & respect m_enabled!

std::string m_key
 Key value.


Additional Inherited Members

Detailed Description

template<typename T = uint32_t>
class ns3::MinMaxAvgTotalCalculator< T >

Template class MinMaxAvgTotalCalculator.

Definition at line 40 of file basic-data-calculators.h.

Constructor & Destructor Documentation

◆ MinMaxAvgTotalCalculator()

template<typename T >
ns3::MinMaxAvgTotalCalculator< T >::MinMaxAvgTotalCalculator

Definition at line 165 of file basic-data-calculators.h.

References ns3::NaN.

◆ ~MinMaxAvgTotalCalculator()

template<typename T >
ns3::MinMaxAvgTotalCalculator< T >::~MinMaxAvgTotalCalculator
override

Definition at line 181 of file basic-data-calculators.h.

Member Function Documentation

◆ DoDispose()

template<typename T >
void ns3::MinMaxAvgTotalCalculator< T >::DoDispose
overrideprotectedvirtual

Dispose of this Object.

Reimplemented from ns3::Object.

Definition at line 187 of file basic-data-calculators.h.

References ns3::DataCalculator::DoDispose().

Referenced by ns3::PacketSizeMinMaxAvgTotalCalculator::DoDispose().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ getCount()

template<typename T = uint32_t>
long ns3::MinMaxAvgTotalCalculator< T >::getCount ( ) const
inlineoverridevirtual

Returns the count.

Returns
Count

Implements ns3::StatisticalSummary.

Definition at line 72 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_count.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

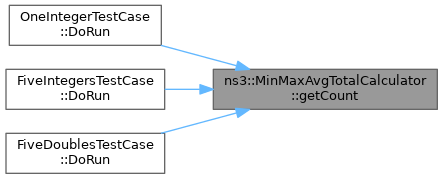

+ Here is the caller graph for this function:

◆ getMax()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getMax ( ) const
inlineoverridevirtual

Returns the maximum value.

Returns
Max

Implements ns3::StatisticalSummary.

Definition at line 99 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_max.

Referenced by ThreeGppHttpObjectTestCase::DoRun(), OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

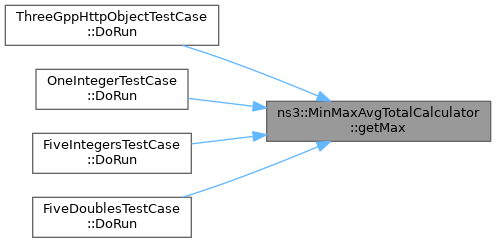

+ Here is the caller graph for this function:

◆ getMean()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getMean ( ) const
inlineoverridevirtual

Returns the mean value.

Returns
Mean

Implements ns3::StatisticalSummary.

Definition at line 108 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_meanCurr.

Referenced by ns3::Average< T >::Avg(), ThreeGppHttpObjectTestCase::DoRun(), OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

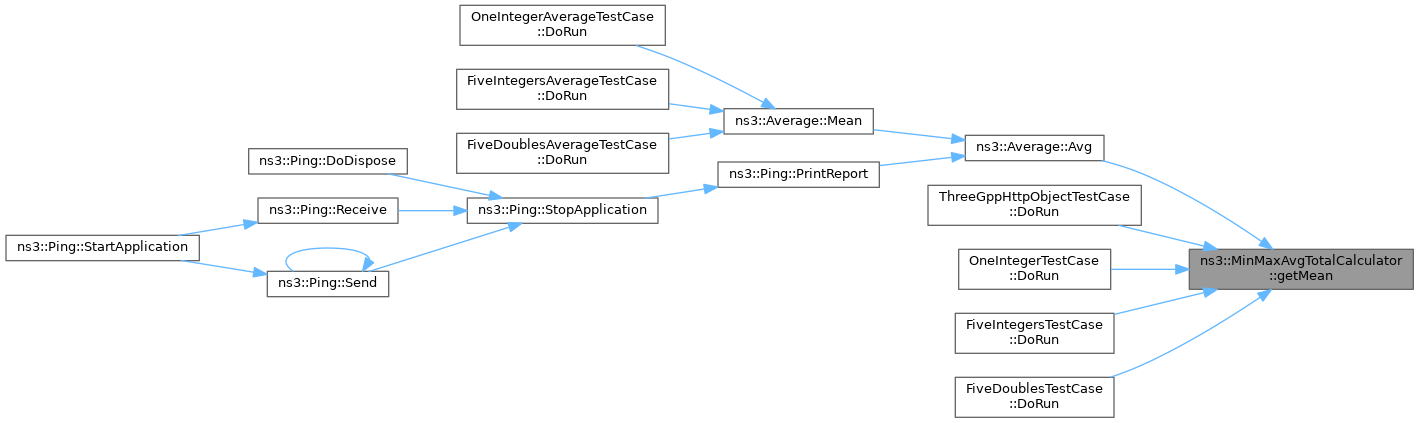

+ Here is the caller graph for this function:

◆ getMin()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getMin ( ) const
inlineoverridevirtual

Returns the minimum value.

Returns
Min

Implements ns3::StatisticalSummary.

Definition at line 90 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_min.

Referenced by ThreeGppHttpObjectTestCase::DoRun(), OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

+ Here is the caller graph for this function:

◆ getSqrSum()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getSqrSum ( ) const
inlineoverridevirtual

Returns the sum of squares.

Returns
Sum of squares

Implements ns3::StatisticalSummary.

Definition at line 135 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_squareTotal.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

+ Here is the caller graph for this function:

◆ getStddev()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getStddev ( ) const
inlineoverridevirtual

Returns the standard deviation.

Returns
Standard deviation

Implements ns3::StatisticalSummary.

Definition at line 117 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_varianceCurr.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

+ Here is the caller graph for this function:

◆ getSum()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getSum ( ) const
inlineoverridevirtual

Returns the sum.

Returns
Total

Implements ns3::StatisticalSummary.

Definition at line 81 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_total.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

+ Here is the caller graph for this function:

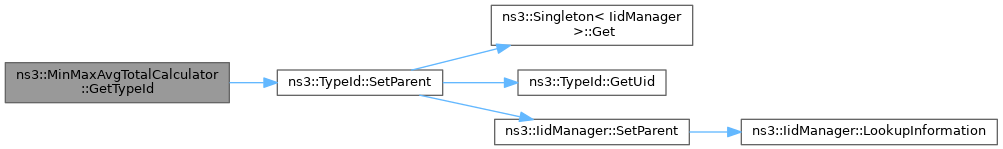

◆ GetTypeId()

template<typename T >
TypeId ns3::MinMaxAvgTotalCalculator< T >::GetTypeId
static

Register this type.

Returns
The TypeId.

Definition at line 196 of file basic-data-calculators.h.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ getVariance()

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::getVariance ( ) const
inlineoverridevirtual

Returns the current variance.

Returns
Variance

Implements ns3::StatisticalSummary.

Definition at line 126 of file basic-data-calculators.h.

References ns3::MinMaxAvgTotalCalculator< T >::m_varianceCurr.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), FiveDoublesTestCase::DoRun(), and ns3::Average< T >::Var().

+ Here is the caller graph for this function:

◆ Output()

template<typename T >
void ns3::MinMaxAvgTotalCalculator< T >::Output ( DataOutputCallback callback) const
overridevirtual

Outputs the data based on the provided callback.

Parameters
callback

Implements ns3::DataCalculator.

Definition at line 286 of file basic-data-calculators.h.

References ns3::DataOutputCallback::OutputStatistic().

+ Here is the call graph for this function:

◆ Reset()

template<typename T >
void ns3::MinMaxAvgTotalCalculator< T >::Reset

Reinitializes all variables of MinMaxAvgTotalCalculator.

Definition at line 268 of file basic-data-calculators.h.

References ns3::NaN.

Referenced by ns3::Average< T >::Reset().

+ Here is the caller graph for this function:

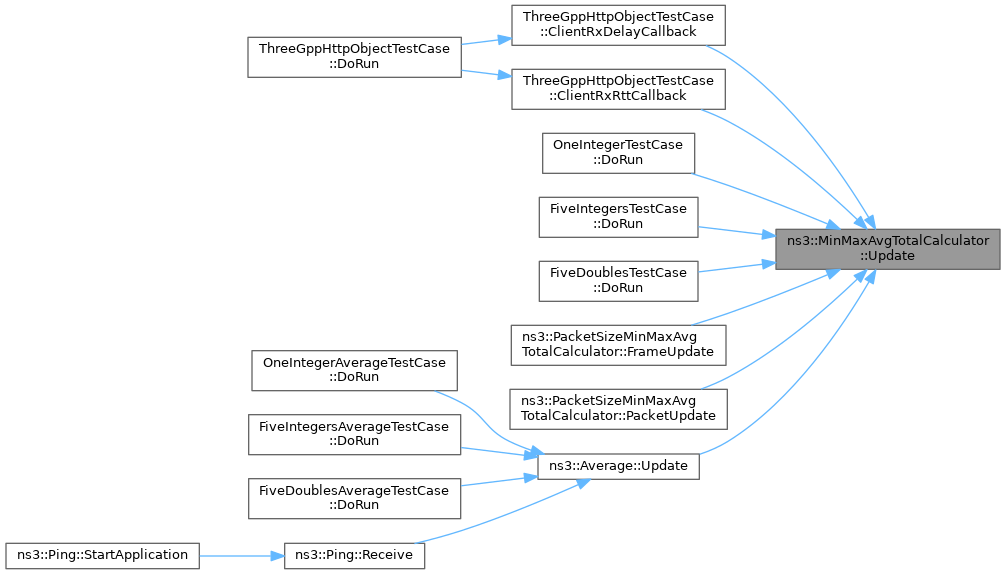

◆ Update()

Member Data Documentation

◆ m_count

template<typename T = uint32_t>
uint32_t ns3::MinMaxAvgTotalCalculator< T >::m_count
protected

◆ m_max

template<typename T = uint32_t>
T ns3::MinMaxAvgTotalCalculator< T >::m_max
protected

Maximum value of MinMaxAvgTotalCalculator.

Definition at line 151 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::getMax().

◆ m_meanCurr

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::m_meanCurr
protected

Current mean of MinMaxAvgTotalCalculator.

Definition at line 153 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::getMean().

◆ m_meanPrev

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::m_meanPrev
protected

Previous mean of MinMaxAvgTotalCalculator.

Definition at line 157 of file basic-data-calculators.h.

◆ m_min

template<typename T = uint32_t>
T ns3::MinMaxAvgTotalCalculator< T >::m_min
protected

Minimum value of MinMaxAvgTotalCalculator.

Definition at line 150 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::getMin().

◆ m_sCurr

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::m_sCurr
protected

Current s of MinMaxAvgTotalCalculator.

Definition at line 154 of file basic-data-calculators.h.

◆ m_sPrev

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::m_sPrev
protected

Previous s of MinMaxAvgTotalCalculator.

Definition at line 158 of file basic-data-calculators.h.

◆ m_squareTotal

template<typename T = uint32_t>
T ns3::MinMaxAvgTotalCalculator< T >::m_squareTotal
protected

Sum of squares value of MinMaxAvgTotalCalculator.

Definition at line 149 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::getSqrSum().

◆ m_total

template<typename T = uint32_t>
T ns3::MinMaxAvgTotalCalculator< T >::m_total
protected

Total value of MinMaxAvgTotalCalculator.

Definition at line 148 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::getSum().

◆ m_varianceCurr

template<typename T = uint32_t>
double ns3::MinMaxAvgTotalCalculator< T >::m_varianceCurr
protected

The documentation for this class was generated from the following file:
