wifi-simple-interference.cc File Reference

#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/mobility-model.h"
#include "ns3/ssid.h"
#include "ns3/string.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

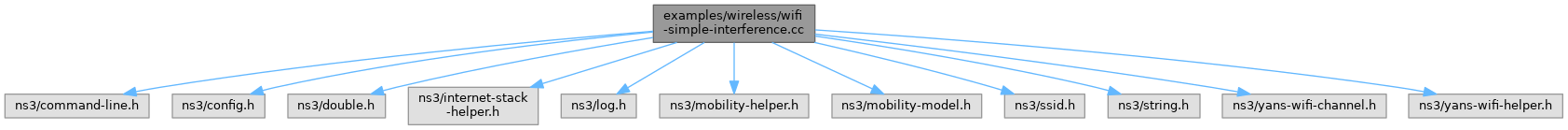

Include dependency graph for wifi-simple-interference.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Generate traffic.
static std::string	PrintReceivedPacket (Ptr< Socket > socket)
	Print a packer that has been received.
static void	ReceivePacket (Ptr< Socket > socket)
	Function called when a packet is received.

Detailed Description

Usage

$ ./ns3 run "wifi-simple-interference [Program Options]"

Program Options

--phyMode

Wifi Phy mode [DsssRate1Mbps]

--Prss

Intended primary received signal strength (dBm) [-80]

--Irss

Intended interfering received signal strength (dBm) [-95]

--delta

time offset (microseconds) for interfering signal [0]

--PpacketSize

size of application packet sent [1000]

--IpacketSize

size of interfering packet sent [1000]

--verbose

turn on all WifiNetDevice log components [false]

Definition in file wifi-simple-interference.cc.

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, uint32_t  pktCount, Time  pktInterval  )

static

Generate traffic.

Parameters

socket	The seding socket.
pktSize	The packet size.
pktCount	The packet counter.
pktInterval	The interval between two packets.

Definition at line 142 of file wifi-simple-interference.cc.

References GenerateTraffic(), pktSize, and ns3::Simulator::Schedule().

Referenced by GenerateTraffic().

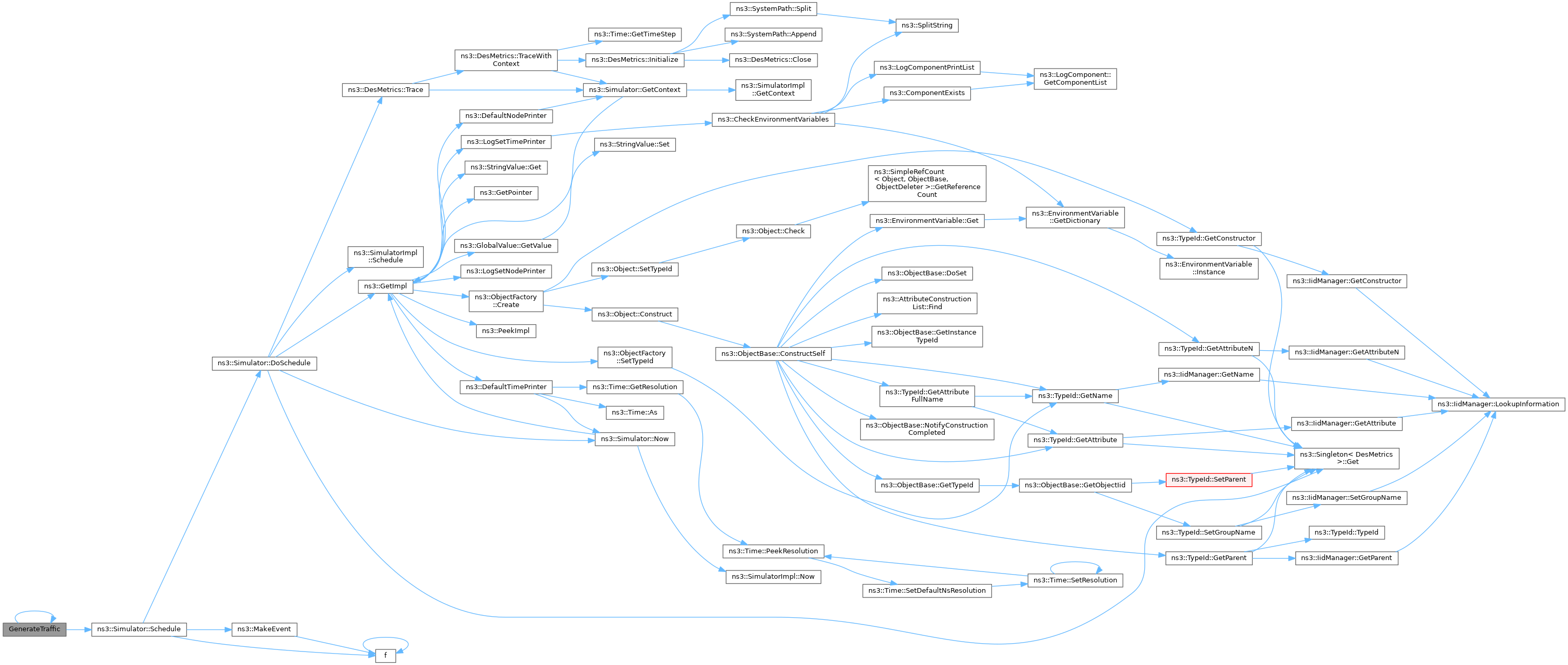

Here is the call graph for this function:

Here is the caller graph for this function:

PrintReceivedPacket()

static std::string PrintReceivedPacket ( Ptr< Socket >  socket )

inlinestatic

Print a packer that has been received.

Parameters

socket

The receiving socket.

Returns

a string with the packet details.

Definition at line 105 of file wifi-simple-interference.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), and ns3::InetSocketAddress::GetPort().

Referenced by ReceivePacket().

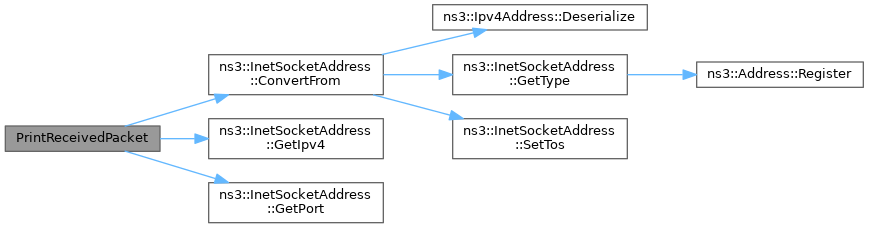

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

static void ReceivePacket ( Ptr< Socket >  socket )

static

Function called when a packet is received.

Parameters

socket

The receiving socket.

Definition at line 128 of file wifi-simple-interference.cc.

References NS_LOG_UNCOND, and PrintReceivedPacket().

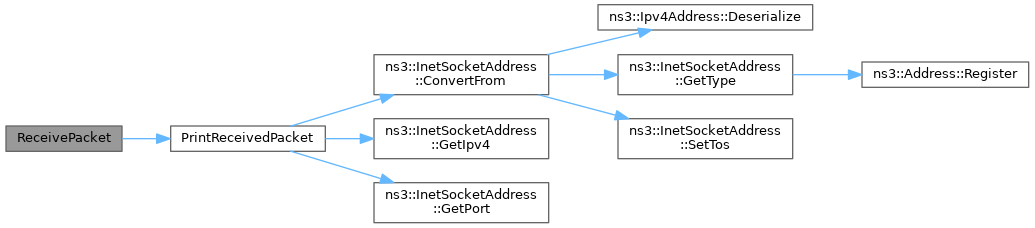

Here is the call graph for this function:
