ns3::UdpEchoClient Class Reference

A Udp Echo client. More...

#include "udp-echo-client.h"

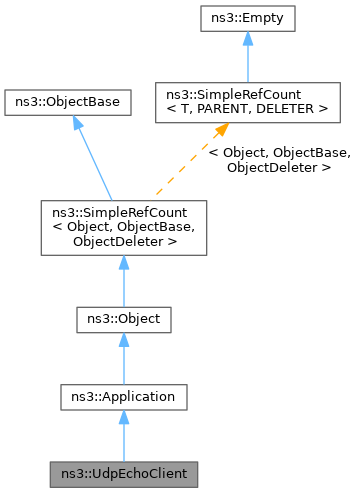

+ Inheritance diagram for ns3::UdpEchoClient:
+ Collaboration diagram for ns3::UdpEchoClient:

Public Member Functions

 UdpEchoClient ()

 ~UdpEchoClient () override

uint32_t GetDataSize () const
 Get the number of data bytes that will be sent to the server.

void SetDataSize (uint32_t dataSize)
 Set the data size of the packet (the number of bytes that are sent as data to the server).

void SetFill (std::string fill)
 Set the data fill of the packet (what is sent as data to the server) to the zero-terminated contents of the fill string string.

void SetFill (uint8_t *fill, uint32_t fillSize, uint32_t dataSize)
 Set the data fill of the packet (what is sent as data to the server) to the contents of the fill buffer, repeated as many times as is required.

void SetFill (uint8_t fill, uint32_t dataSize)
 Set the data fill of the packet (what is sent as data to the server) to the repeated contents of the fill byte.

void SetRemote (Address addr)
 set the remote address

void SetRemote (Address ip, uint16_t port)
 set the remote address and port

- Public Member Functions inherited from ns3::Application
 Application ()

 ~Application () override

Ptr< NodeGetNode () const

void SetNode (Ptr< Node > node)

void SetStartTime (Time start)
 Specify application start time.

void SetStopTime (Time stop)
 Specify application stop time.

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Application
static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Member Functions

void DoDispose () override
 Destructor implementation.

- Protected Member Functions inherited from ns3::Application
void DoDispose () override
 Destructor implementation.

void DoInitialize () override
 Initialize() implementation.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Private Member Functions

void HandleRead (Ptr< Socket > socket)
 Handle a packet reception.

void ScheduleTransmit (Time dt)
 Schedule the next packet transmission.

void Send ()
 Send a packet.

void StartApplication () override
 Application specific startup code.

void StopApplication () override
 Application specific shutdown code.


Private Attributes

uint32_t m_count
 Maximum number of packets the application will send.

uint8_t * m_data
 packet payload data

uint32_t m_dataSize
 packet payload size (must be equal to m_size)

Time m_interval
 Packet inter-send time.

Address m_peerAddress
 Remote peer address.

uint16_t m_peerPort
 Remote peer port.

TracedCallback< Ptr< const Packet > > m_rxTrace
 Callbacks for tracing the packet Rx events.

TracedCallback< Ptr< const Packet >, const Address &, const Address & > m_rxTraceWithAddresses
 Callbacks for tracing the packet Rx events, includes source and destination addresses.

EventId m_sendEvent
 Event to send the next packet.

uint32_t m_sent
 Counter for sent packets.

uint32_t m_size
 Size of the sent packet.

Ptr< Socketm_socket
 Socket.

TracedCallback< Ptr< const Packet > > m_txTrace
 Callbacks for tracing the packet Tx events.

TracedCallback< Ptr< const Packet >, const Address &, const Address & > m_txTraceWithAddresses
 Callbacks for tracing the packet Tx events, includes source and destination addresses.


Additional Inherited Members

- Public Types inherited from ns3::Application
typedef void(* DelayAddressCallback) (const Time &delay, const Address &from)
 Common callback signature for packet delay and address.

typedef void(* StateTransitionCallback) (const std::string &oldState, const std::string &newState)
 Common signature used by callbacks to application's state transition trace source.

- Protected Attributes inherited from ns3::Application
Ptr< Nodem_node
 The node that this application is installed on.

EventId m_startEvent
 The event that will fire at m_startTime to start the application.

Time m_startTime
 The simulation time that the application will start.

EventId m_stopEvent
 The event that will fire at m_stopTime to end the application.

Time m_stopTime
 The simulation time that the application will end.


Detailed Description

A Udp Echo client.

Every packet sent should be returned by the server and received here.

Config Paths

ns3::UdpEchoClient is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/ApplicationList/[i]/$ns3::UdpEchoClient"

Attributes

  • Interval: The time to wait between packets
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1e+09ns
    • Flags: constructwriteread
  • MaxPackets: The maximum number of packets the application will send (zero means infinite)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 100
    • Flags: constructwriteread
  • PacketSize: Size of echo data in outbound packets
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 100
    • Flags: constructwriteread
  • RemoteAddress: The destination Address of the outbound packets
  • RemotePort: The destination port of the outbound packets
    • Set with class: ns3::UintegerValue
    • Underlying type: uint16_t 0:65535
    • Initial value: 0
    • Flags: constructwriteread

Attributes defined in parent class ns3::Application

  • StartTime: Time at which the application will start
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread
  • StopTime: Time at which the application will stop
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwriteread

TraceSources

Size of this type is 264 bytes (on a 64-bit architecture).

Definition at line 39 of file udp-echo-client.h.

Constructor & Destructor Documentation

◆ UdpEchoClient()

ns3::UdpEchoClient::UdpEchoClient ( )

Definition at line 93 of file udp-echo-client.cc.

References m_data, m_dataSize, m_sendEvent, m_sent, m_socket, and NS_LOG_FUNCTION.

◆ ~UdpEchoClient()

ns3::UdpEchoClient::~UdpEchoClient ( )
override

Definition at line 103 of file udp-echo-client.cc.

References m_data, m_dataSize, m_socket, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::UdpEchoClient::DoDispose ( )
overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 129 of file udp-echo-client.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetDataSize()

uint32_t ns3::UdpEchoClient::GetDataSize ( ) const

Get the number of data bytes that will be sent to the server.

Warning
The number of bytes may be modified by calling any one of the SetFill methods. If you have called SetFill, then the number of data bytes will correspond to the size of an initialized data buffer. If you have not called a SetFill method, the number of data bytes will correspond to the number of don't care bytes that will be sent.
Returns
The number of data bytes.

Definition at line 221 of file udp-echo-client.cc.

References m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::UdpEchoClient::GetTypeId ( )
static

◆ HandleRead()

void ns3::UdpEchoClient::HandleRead ( Ptr< Socket socket)
private

Handle a packet reception.

This function is called by lower layers.

Parameters
socketthe socket the packet was received to.

Definition at line 402 of file udp-echo-client.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_rxTrace, m_rxTraceWithAddresses, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::Time::S.

Referenced by StartApplication().

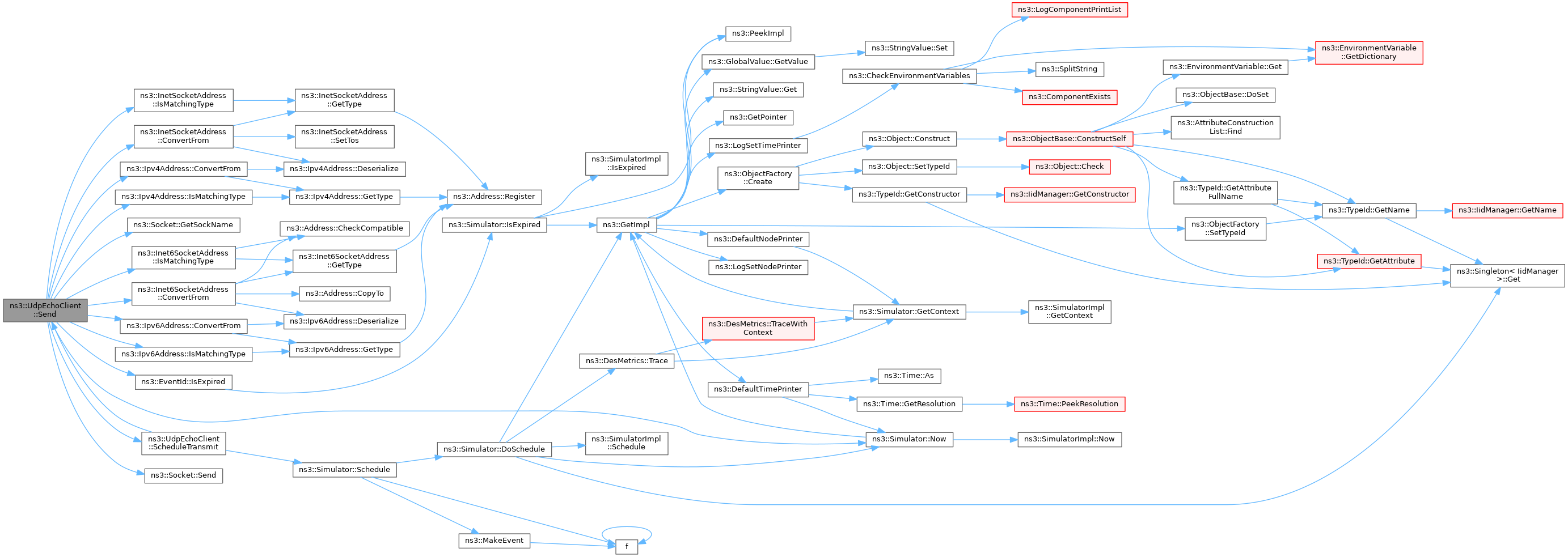

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ScheduleTransmit()

void ns3::UdpEchoClient::ScheduleTransmit ( Time  dt)
private

Schedule the next packet transmission.

Parameters
dttime interval between packets.

Definition at line 308 of file udp-echo-client.cc.

References m_sendEvent, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and Send().

Referenced by Send(), and StartApplication().

+ Here is the call graph for this function:

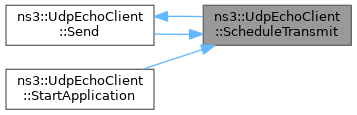

+ Here is the caller graph for this function:

◆ Send()

◆ SetDataSize()

void ns3::UdpEchoClient::SetDataSize ( uint32_t  dataSize)

Set the data size of the packet (the number of bytes that are sent as data to the server).

The contents of the data are set to unspecified (don't care) by this call.

Warning
If you have set the fill data for the echo client using one of the SetFill calls, this will undo those effects.
Parameters
dataSizeThe size of the echo data you want to sent.

Definition at line 205 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetFill() [1/3]

void ns3::UdpEchoClient::SetFill ( std::string  fill)

Set the data fill of the packet (what is sent as data to the server) to the zero-terminated contents of the fill string string.

Warning
The size of resulting echo packets will be automatically adjusted to reflect the size of the fill string – this means that the PacketSize attribute may be changed as a result of this call.
Parameters
fillThe string to use as the actual echo data bytes.

Definition at line 228 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

◆ SetFill() [2/3]

void ns3::UdpEchoClient::SetFill ( uint8_t *  fill,
uint32_t  fillSize,
uint32_t  dataSize
)

Set the data fill of the packet (what is sent as data to the server) to the contents of the fill buffer, repeated as many times as is required.

Initializing the packet to the contents of a provided single buffer is accomplished by setting the fillSize set to your desired dataSize (and providing an appropriate buffer).

Warning
The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute of the Application may be changed as a result of this call.
Parameters
fillThe fill pattern to use when constructing packets.
fillSizeThe number of bytes in the provided fill pattern.
dataSizeThe desired size of the final echo data.

Definition at line 269 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

◆ SetFill() [3/3]

void ns3::UdpEchoClient::SetFill ( uint8_t  fill,
uint32_t  dataSize
)

Set the data fill of the packet (what is sent as data to the server) to the repeated contents of the fill byte.

i.e., the fill byte will be used to initialize the contents of the data packet.

Warning
The size of resulting echo packets will be automatically adjusted to reflect the dataSize parameter – this means that the PacketSize attribute may be changed as a result of this call.
Parameters
fillThe byte to be repeated in constructing the packet data..
dataSizeThe desired size of the resulting echo packet data.

Definition at line 250 of file udp-echo-client.cc.

References m_data, m_dataSize, m_size, and NS_LOG_FUNCTION.

◆ SetRemote() [1/2]

void ns3::UdpEchoClient::SetRemote ( Address  addr)

set the remote address

Parameters
addrremote address

Definition at line 122 of file udp-echo-client.cc.

References m_peerAddress, and NS_LOG_FUNCTION.

◆ SetRemote() [2/2]

void ns3::UdpEchoClient::SetRemote ( Address  ip,
uint16_t  port
)

set the remote address and port

Parameters
ipremote IP address
portremote port

Definition at line 114 of file udp-echo-client.cc.

References m_peerAddress, m_peerPort, NS_LOG_FUNCTION, and port.

◆ StartApplication()

◆ StopApplication()

void ns3::UdpEchoClient::StopApplication ( )
overrideprivatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 190 of file udp-echo-client.cc.

References ns3::Simulator::Cancel(), ns3::Socket::Close(), m_sendEvent, m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

+ Here is the call graph for this function:

Member Data Documentation

◆ m_count

uint32_t ns3::UdpEchoClient::m_count
private

Maximum number of packets the application will send.

Definition at line 159 of file udp-echo-client.h.

Referenced by GetTypeId(), and Send().

◆ m_data

uint8_t* ns3::UdpEchoClient::m_data
private

packet payload data

Definition at line 164 of file udp-echo-client.h.

Referenced by UdpEchoClient(), ~UdpEchoClient(), Send(), SetDataSize(), and SetFill().

◆ m_dataSize

uint32_t ns3::UdpEchoClient::m_dataSize
private

packet payload size (must be equal to m_size)

Definition at line 163 of file udp-echo-client.h.

Referenced by UdpEchoClient(), ~UdpEchoClient(), Send(), SetDataSize(), and SetFill().

◆ m_interval

Time ns3::UdpEchoClient::m_interval
private

Packet inter-send time.

Definition at line 160 of file udp-echo-client.h.

Referenced by GetTypeId(), and Send().

◆ m_peerAddress

Address ns3::UdpEchoClient::m_peerAddress
private

Remote peer address.

Definition at line 168 of file udp-echo-client.h.

Referenced by GetTypeId(), Send(), SetRemote(), and StartApplication().

◆ m_peerPort

uint16_t ns3::UdpEchoClient::m_peerPort
private

Remote peer port.

Definition at line 169 of file udp-echo-client.h.

Referenced by GetTypeId(), Send(), SetRemote(), and StartApplication().

◆ m_rxTrace

TracedCallback<Ptr<const Packet> > ns3::UdpEchoClient::m_rxTrace
private

Callbacks for tracing the packet Rx events.

Definition at line 176 of file udp-echo-client.h.

Referenced by GetTypeId(), and HandleRead().

◆ m_rxTraceWithAddresses

TracedCallback<Ptr<const Packet>, const Address&, const Address&> ns3::UdpEchoClient::m_rxTraceWithAddresses
private

Callbacks for tracing the packet Rx events, includes source and destination addresses.

Definition at line 182 of file udp-echo-client.h.

Referenced by GetTypeId(), and HandleRead().

◆ m_sendEvent

EventId ns3::UdpEchoClient::m_sendEvent
private

Event to send the next packet.

Definition at line 170 of file udp-echo-client.h.

Referenced by UdpEchoClient(), ScheduleTransmit(), Send(), and StopApplication().

◆ m_sent

uint32_t ns3::UdpEchoClient::m_sent
private

Counter for sent packets.

Definition at line 166 of file udp-echo-client.h.

Referenced by UdpEchoClient(), and Send().

◆ m_size

uint32_t ns3::UdpEchoClient::m_size
private

Size of the sent packet.

Definition at line 161 of file udp-echo-client.h.

Referenced by GetDataSize(), Send(), SetDataSize(), and SetFill().

◆ m_socket

Ptr<Socket> ns3::UdpEchoClient::m_socket
private

◆ m_txTrace

TracedCallback<Ptr<const Packet> > ns3::UdpEchoClient::m_txTrace
private

Callbacks for tracing the packet Tx events.

Definition at line 173 of file udp-echo-client.h.

Referenced by GetTypeId(), and Send().

◆ m_txTraceWithAddresses

TracedCallback<Ptr<const Packet>, const Address&, const Address&> ns3::UdpEchoClient::m_txTraceWithAddresses
private

Callbacks for tracing the packet Tx events, includes source and destination addresses.

Definition at line 179 of file udp-echo-client.h.

Referenced by GetTypeId(), and Send().


The documentation for this class was generated from the following files:
