Implements the SCHED SAP and CSCHED SAP for a Frequency Domain Maximize Throughput scheduler. More...
#include "fdmt-ff-mac-scheduler.h"
Public Member Functions | |
FdMtFfMacScheduler () | |
Constructor. | |
~FdMtFfMacScheduler () override | |
Destructor. | |
void | DoDispose () override |
Destructor implementation. | |
FfMacCschedSapProvider * | GetFfMacCschedSapProvider () override |
FfMacSchedSapProvider * | GetFfMacSchedSapProvider () override |
LteFfrSapUser * | GetLteFfrSapUser () override |
void | SetFfMacCschedSapUser (FfMacCschedSapUser *s) override |
set the user part of the FfMacCschedSap that this Scheduler will interact with. | |
void | SetFfMacSchedSapUser (FfMacSchedSapUser *s) override |
set the user part of the FfMacSchedSap that this Scheduler will interact with. | |
void | SetLteFfrSapProvider (LteFfrSapProvider *s) override |
Set the Provider part of the LteFfrSap that this Scheduler will interact with. | |
void | TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode) |
Transmission mode configuration update. | |

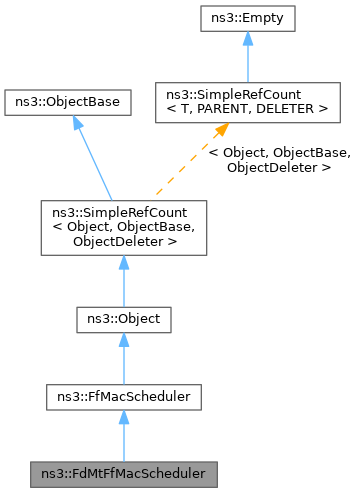

Public Member Functions inherited from ns3::FfMacScheduler | |
FfMacScheduler () | |
constructor | |
~FfMacScheduler () override | |
destructor | |
void | DoDispose () override |
Destructor implementation. | |
virtual FfMacCschedSapProvider * | GetFfMacCschedSapProvider ()=0 |
virtual FfMacSchedSapProvider * | GetFfMacSchedSapProvider ()=0 |
virtual LteFfrSapUser * | GetLteFfrSapUser ()=0 |
virtual void | SetFfMacCschedSapUser (FfMacCschedSapUser *s)=0 |
set the user part of the FfMacCschedSap that this Scheduler will interact with. | |
virtual void | SetFfMacSchedSapUser (FfMacSchedSapUser *s)=0 |
set the user part of the FfMacSchedSap that this Scheduler will interact with. | |
virtual void | SetLteFfrSapProvider (LteFfrSapProvider *s)=0 |
Set the Provider part of the LteFfrSap that this Scheduler will interact with. | |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |

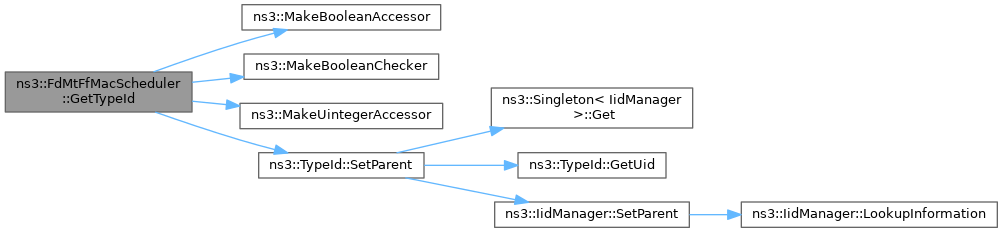

static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::FfMacScheduler | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Member Functions | |
void | DoCschedCellConfigReq (const FfMacCschedSapProvider::CschedCellConfigReqParameters ¶ms) |
Csched cell config request function. | |
void | DoCschedLcConfigReq (const FfMacCschedSapProvider::CschedLcConfigReqParameters ¶ms) |
CSched LC config request function. | |
void | DoCschedLcReleaseReq (const FfMacCschedSapProvider::CschedLcReleaseReqParameters ¶ms) |
CSched LC release request function. | |
void | DoCschedUeConfigReq (const FfMacCschedSapProvider::CschedUeConfigReqParameters ¶ms) |
CSched UE config request function. | |
void | DoCschedUeReleaseReq (const FfMacCschedSapProvider::CschedUeReleaseReqParameters ¶ms) |
CSched UE release request function. | |
void | DoSchedDlCqiInfoReq (const FfMacSchedSapProvider::SchedDlCqiInfoReqParameters ¶ms) |
Sched DL CQI info request function. | |
void | DoSchedDlMacBufferReq (const FfMacSchedSapProvider::SchedDlMacBufferReqParameters ¶ms) |
Sched DL MAC buffer request function. | |
void | DoSchedDlPagingBufferReq (const FfMacSchedSapProvider::SchedDlPagingBufferReqParameters ¶ms) |
Sched DL paging buffer request function. | |
void | DoSchedDlRachInfoReq (const FfMacSchedSapProvider::SchedDlRachInfoReqParameters ¶ms) |
Sched DL RACH info request function. | |
void | DoSchedDlRlcBufferReq (const FfMacSchedSapProvider::SchedDlRlcBufferReqParameters ¶ms) |
Sched DL RLC buffer request function. | |
void | DoSchedDlTriggerReq (const FfMacSchedSapProvider::SchedDlTriggerReqParameters ¶ms) |
Sched DL trigger request function. | |
void | DoSchedUlCqiInfoReq (const FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ¶ms) |
Sched UL CQI info request function. | |
void | DoSchedUlMacCtrlInfoReq (const FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters ¶ms) |
Sched UL MAC control info request function. | |
void | DoSchedUlNoiseInterferenceReq (const FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters ¶ms) |
Sched UL noise interference request function. | |
void | DoSchedUlSrInfoReq (const FfMacSchedSapProvider::SchedUlSrInfoReqParameters ¶ms) |
Sched UL SR info request function. | |

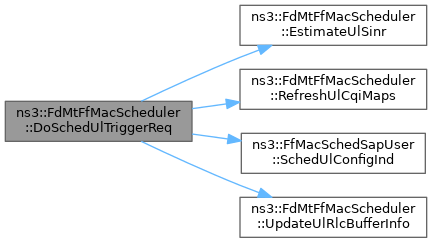

void | DoSchedUlTriggerReq (const FfMacSchedSapProvider::SchedUlTriggerReqParameters ¶ms) |
Sched UL trigger request function. | |
double | EstimateUlSinr (uint16_t rnti, uint16_t rb) |
Estimate UL SNR function. | |
int | GetRbgSize (int dlbandwidth) |
Get RBG size function. | |
bool | HarqProcessAvailability (uint16_t rnti) |
Return the availability of free process for the RNTI specified. | |
unsigned int | LcActivePerFlow (uint16_t rnti) |
LC Active per flow function. | |
void | RefreshDlCqiMaps () |
Refresh DL CGI maps function. | |
void | RefreshHarqProcesses () |
Refresh HARQ processes according to the timers. | |
void | RefreshUlCqiMaps () |
Refresh UL CGI maps function. | |
void | UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size) |
Update DL RLC buffer info function. | |
uint8_t | UpdateHarqProcessId (uint16_t rnti) |
Update and return a new process Id for the RNTI specified. | |
void | UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size) |
Update UL RLC buffer info function. | |
Private Attributes | |
std::map< uint16_t, SbMeasResult_s > | m_a30CqiRxed |
Map of UE's DL CQI A30 received. | |
std::map< uint16_t, uint32_t > | m_a30CqiTimers |
Map of UE's timers on DL CQI A30 received. | |
std::map< uint16_t, std::vector< uint16_t > > | m_allocationMaps |
Map of previous allocated UE per RBG (used to retrieve info from UL-CQI) | |
Ptr< LteAmc > | m_amc |
amc | |
std::map< uint16_t, uint32_t > | m_ceBsrRxed |
Map of UE's buffer status reports received. | |
uint32_t | m_cqiTimersThreshold |
FfMacCschedSapProvider::CschedCellConfigReqParameters | m_cschedCellConfig |
sched cell config | |
FfMacCschedSapProvider * | m_cschedSapProvider |
csched SAP provider | |
FfMacCschedSapUser * | m_cschedSapUser |
csched SAP user | |
std::map< uint16_t, uint8_t > | m_dlHarqCurrentProcessId |
DL HARQ current process ID. | |
std::map< uint16_t, DlHarqProcessesDciBuffer_t > | m_dlHarqProcessesDciBuffer |
DL HARQ process DCI buffer. | |
std::map< uint16_t, DlHarqRlcPduListBuffer_t > | m_dlHarqProcessesRlcPduListBuffer |
DL HARQ process RLC PDU list buffer. | |
std::map< uint16_t, DlHarqProcessesStatus_t > | m_dlHarqProcessesStatus |
DL HARQ process status. | |
std::map< uint16_t, DlHarqProcessesTimer_t > | m_dlHarqProcessesTimer |
DL HARDQ process timer. | |
std::vector< DlInfoListElement_s > | m_dlInfoListBuffered |
HARQ retx buffered. | |
LteFfrSapProvider * | m_ffrSapProvider |
FFR SAP provider. | |
LteFfrSapUser * | m_ffrSapUser |
FFR SAP user. | |
std::set< uint16_t > | m_flowStatsDl |
Set of UE statistics (per RNTI basis) in downlink. | |
std::set< uint16_t > | m_flowStatsUl |
Set of UE statistics (per RNTI basis) | |
bool | m_harqOn |
m_harqOn when false inhibit tte HARQ mechanisms (by default active) | |
uint16_t | m_nextRntiUl |
RNTI of the next user to be served next scheduling in UL. | |
std::map< uint16_t, uint8_t > | m_p10CqiRxed |
Map of UE's DL CQI P01 received. | |
std::map< uint16_t, uint32_t > | m_p10CqiTimers |
Map of UE's timers on DL CQI P01 received. | |
std::vector< uint16_t > | m_rachAllocationMap |
RACH allocation map. | |
std::vector< RachListElement_s > | m_rachList |
RACH list. | |
std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters > | m_rlcBufferReq |
Vectors of UE's LC info. | |
FfMacSchedSapProvider * | m_schedSapProvider |
sched SAP provider | |
FfMacSchedSapUser * | m_schedSapUser |
sched SAP user | |
std::map< uint16_t, std::vector< double > > | m_ueCqi |
Map of UEs' UL-CQI per RBG. | |
std::map< uint16_t, uint32_t > | m_ueCqiTimers |
Map of UEs' timers on UL-CQI per RBG. | |
std::map< uint16_t, uint8_t > | m_uesTxMode |
txMode of the UEs | |
uint8_t | m_ulGrantMcs |
MCS for UL grant (default 0) | |
std::map< uint16_t, uint8_t > | m_ulHarqCurrentProcessId |
UL HARQ current process ID. | |
std::map< uint16_t, UlHarqProcessesDciBuffer_t > | m_ulHarqProcessesDciBuffer |
UL HARQ process DCI buffer. | |
std::map< uint16_t, UlHarqProcessesStatus_t > | m_ulHarqProcessesStatus |
UL HARQ process status. | |
Friends | |
class | MemberCschedSapProvider< FdMtFfMacScheduler > |
allow MemberCschedSapProvider<FdMtFfMacScheduler> class friend access | |
class | MemberSchedSapProvider< FdMtFfMacScheduler > |
allow MemberSchedSapProvider<FdMtFfMacScheduler> clss friend access | |
Additional Inherited Members | |
Public Types inherited from ns3::FfMacScheduler | |
enum | UlCqiFilter_t { SRS_UL_CQI , PUSCH_UL_CQI } |
The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More... | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Protected Attributes inherited from ns3::FfMacScheduler | |
UlCqiFilter_t | m_ulCqiFilter |
UL CQI filter. | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Implements the SCHED SAP and CSCHED SAP for a Frequency Domain Maximize Throughput scheduler.
This class implements the interface defined by the FfMacScheduler abstract class
ns3::FdMtFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:
SRS_UL_CQI|PUSCH_UL_CQI
No TraceSources are defined for this type.
Size of this type is 1344 bytes (on a 64-bit architecture).
Definition at line 48 of file fdmt-ff-mac-scheduler.h.
ns3::FdMtFfMacScheduler::FdMtFfMacScheduler | ( | ) |
Constructor.
Creates the MAC Scheduler interface implementation
Definition at line 50 of file fdmt-ff-mac-scheduler.cc.
References m_amc, m_cschedSapProvider, m_schedSapProvider, MemberCschedSapProvider< FdMtFfMacScheduler >, and MemberSchedSapProvider< FdMtFfMacScheduler >.
|
override |
|
private |
Csched cell config request function.
params | the CSched cell config request parameters |
Definition at line 143 of file fdmt-ff-mac-scheduler.cc.
References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.
|
private |
CSched LC config request function.
params | the CSChed LC config request parameters |
Definition at line 202 of file fdmt-ff-mac-scheduler.cc.
References m_flowStatsDl, m_flowStatsUl, and NS_LOG_FUNCTION.
|
private |
CSched LC release request function.
params | the CSched LC release request parameters |
Definition at line 221 of file fdmt-ff-mac-scheduler.cc.
References m_rlcBufferReq, and NS_LOG_FUNCTION.
|
private |
CSched UE config request function.
params | the CSChed UE config request parameters |
Definition at line 156 of file fdmt-ff-mac-scheduler.cc.
References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
private |
CSched UE release request function.
params | th CSched UE release request parameters |
Definition at line 248 of file fdmt-ff-mac-scheduler.cc.
References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
overridevirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 66 of file fdmt-ff-mac-scheduler.cc.
References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
private |
Sched DL CQI info request function.
params | the Sched DL CQI info request parameters |
Definition at line 1200 of file fdmt-ff-mac-scheduler.cc.
References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::CqiListElement_s::P10.
|
private |
Sched DL MAC buffer request function.
params | the Sched DL MAC buffer request parameters |
Definition at line 321 of file fdmt-ff-mac-scheduler.cc.
References NS_FATAL_ERROR, and NS_LOG_FUNCTION.
|
private |
Sched DL paging buffer request function.
params | the Sched DL paging buffer request parameters |
Definition at line 313 of file fdmt-ff-mac-scheduler.cc.
References NS_FATAL_ERROR, and NS_LOG_FUNCTION.
|
private |
Sched DL RACH info request function.
params | the Sched DL RACH info request parameters |
Definition at line 1191 of file fdmt-ff-mac-scheduler.cc.
References m_rachList, and NS_LOG_FUNCTION.
|
private |
Sched DL RLC buffer request function.
params | the Sched DL RLC buffer request parameters |
Definition at line 288 of file fdmt-ff-mac-scheduler.cc.
References m_rlcBufferReq, and NS_LOG_FUNCTION.
|
private |
Sched DL trigger request function.
params | FfMacSchedSapProvider::SchedDlTriggerReqParameters& |
Definition at line 463 of file fdmt-ff-mac-scheduler.cc.
References GetRbgSize(), ns3::HARQ_PROC_NUM, HarqProcessAvailability(), LcActivePerFlow(), m_a30CqiRxed, ns3::UlDciListElement_s::m_aggrLevel, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, ns3::UlDciListElement_s::m_cceIndex, ns3::UlDciListElement_s::m_cqiRequest, ns3::UlGrant_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_flowStatsDl, ns3::UlDciListElement_s::m_freqHopping, ns3::BuildRarListElement_s::m_grant, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::UlDciListElement_s::m_hopping, ns3::UlGrant_s::m_hopping, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlGrant_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::DlDciListElement_s::m_ndi, ns3::UlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::UlDciListElement_s::m_rbLen, ns3::UlGrant_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlGrant_s::m_rbStart, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::UlGrant_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::RlcPduListElement_s::m_size, ns3::UlDciListElement_s::m_tbSize, ns3::UlGrant_s::m_tbSize, ns3::DlDciListElement_s::m_tbsSize, ns3::DlDciListElement_s::m_tpc, ns3::UlDciListElement_s::m_tpc, ns3::UlGrant_s::m_tpc, m_uesTxMode, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::UlGrant_s::m_ulDelay, m_ulGrantMcs, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, ns3::UlDciListElement_s::m_ulIndex, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().
|
private |
Sched UL CQI info request function.
params | the Sched UL CQI info request parameters |
Definition at line 1725 of file fdmt-ff-mac-scheduler.cc.
References ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacScheduler::m_ulCqiFilter, ns3::NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.
|
private |
Sched UL MAC control info request function.
params | the Sched UL MAC control info request parameters |
Definition at line 1682 of file fdmt-ff-mac-scheduler.cc.
References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, NS_LOG_FUNCTION, and NS_LOG_LOGIC.
|
private |
Sched UL noise interference request function.
params | the Sched UL noise interference request parameters |
Definition at line 1668 of file fdmt-ff-mac-scheduler.cc.
References NS_LOG_FUNCTION.
|
private |
Sched UL SR info request function.
params | the Sched UL SR info request parameters |
Definition at line 1675 of file fdmt-ff-mac-scheduler.cc.
References NS_LOG_FUNCTION.
|
private |
Sched UL trigger request function.
params | the Sched UL trigger request parameters |
Definition at line 1294 of file fdmt-ff-mac-scheduler.cc.
References EstimateUlSinr(), HARQ_PERIOD, ns3::HARQ_PROC_NUM, ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::UlDciListElement_s::m_tbSize, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, ns3::UlDciListElement_s::m_ulIndex, ns3::NO_SINR, ns3::UlInfoListElement_s::NotOk, NS_ABORT_MSG_IF, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshUlCqiMaps(), ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().
|
private |
Estimate UL SNR function.
rnti | the RNTI |
rb | the RB |
Definition at line 1264 of file fdmt-ff-mac-scheduler.cc.
References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and ns3::NO_SINR.
Referenced by DoSchedUlTriggerReq().
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 119 of file fdmt-ff-mac-scheduler.cc.
References m_cschedSapProvider.
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 125 of file fdmt-ff-mac-scheduler.cc.
References m_schedSapProvider.
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 137 of file fdmt-ff-mac-scheduler.cc.
References m_ffrSapUser.
|
private |
Get RBG size function.
dlbandwidth | the DL bandwidth |
Definition at line 329 of file fdmt-ff-mac-scheduler.cc.
References ns3::FdMtType0AllocationRbg.
Referenced by DoSchedDlTriggerReq().
|
static |
Get the type ID.
Definition at line 81 of file fdmt-ff-mac-scheduler.cc.
References m_cqiTimersThreshold, m_harqOn, m_ulGrantMcs, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().
|
private |
Return the availability of free process for the RNTI specified.
rnti | the RNTI of the UE to be updated |
Definition at line 364 of file fdmt-ff-mac-scheduler.cc.
References ns3::HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
LC Active per flow function.
rnti | the RNTI |
Definition at line 343 of file fdmt-ff-mac-scheduler.cc.
References m_rlcBufferReq.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh DL CGI maps function.
Definition at line 1866 of file fdmt-ff-mac-scheduler.cc.
References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh HARQ processes according to the timers.
Definition at line 429 of file fdmt-ff-mac-scheduler.cc.
References ns3::HARQ_DL_TIMEOUT, ns3::HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh UL CGI maps function.
Definition at line 1920 of file fdmt-ff-mac-scheduler.cc.
References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.
Referenced by DoSchedUlTriggerReq().
|
overridevirtual |
set the user part of the FfMacCschedSap that this Scheduler will interact with.
Normally this part of the SAP is exported by the MAC.
s |
Implements ns3::FfMacScheduler.
Definition at line 107 of file fdmt-ff-mac-scheduler.cc.
References m_cschedSapUser.
|
overridevirtual |
set the user part of the FfMacSchedSap that this Scheduler will interact with.
Normally this part of the SAP is exported by the MAC.
s |
Implements ns3::FfMacScheduler.
Definition at line 113 of file fdmt-ff-mac-scheduler.cc.
References m_schedSapUser.
|
overridevirtual |
Set the Provider part of the LteFfrSap that this Scheduler will interact with.
s |
Implements ns3::FfMacScheduler.
Definition at line 131 of file fdmt-ff-mac-scheduler.cc.
References m_ffrSapProvider.
void ns3::FdMtFfMacScheduler::TransmissionModeConfigurationUpdate | ( | uint16_t | rnti, |
uint8_t | txMode | ||
) |
Transmission mode configuration update.
rnti | the RNTI |
txMode | the transmit mode |
Definition at line 2029 of file fdmt-ff-mac-scheduler.cc.
References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, and NS_LOG_FUNCTION.
|
private |
Update DL RLC buffer info function.
rnti | the RNTI |
lcid | the LCID |
size | the size |
Definition at line 1950 of file fdmt-ff-mac-scheduler.cc.
References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.
Referenced by DoSchedDlTriggerReq().
|
private |
Update and return a new process Id for the RNTI specified.
rnti | the RNTI of the UE to be updated |
Definition at line 389 of file fdmt-ff-mac-scheduler.cc.
References ns3::HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
Update UL RLC buffer info function.
rnti | the RNTI |
size | the size |
Definition at line 2006 of file fdmt-ff-mac-scheduler.cc.
References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.
Referenced by DoSchedUlTriggerReq().
|
friend |
allow MemberCschedSapProvider<FdMtFfMacScheduler> class friend access
Definition at line 79 of file fdmt-ff-mac-scheduler.h.
Referenced by FdMtFfMacScheduler().
|
friend |
allow MemberSchedSapProvider<FdMtFfMacScheduler> clss friend access
Definition at line 79 of file fdmt-ff-mac-scheduler.h.
Referenced by FdMtFfMacScheduler().
|
private |
Map of UE's DL CQI A30 received.
Definition at line 297 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().
|
private |
Map of UE's timers on DL CQI A30 received.
Definition at line 302 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
Map of previous allocated UE per RBG (used to retrieve info from UL-CQI)
Definition at line 308 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().
amc
Definition at line 267 of file fdmt-ff-mac-scheduler.h.
Referenced by FdMtFfMacScheduler(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
Map of UE's buffer status reports received.
Definition at line 323 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().
|
private |
Definition at line 340 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().
|
private |
sched cell config
Definition at line 336 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().
|
private |
csched SAP provider
Definition at line 328 of file fdmt-ff-mac-scheduler.h.
Referenced by FdMtFfMacScheduler(), DoDispose(), and GetFfMacCschedSapProvider().
|
private |
csched SAP user
Definition at line 326 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().
|
private |
DL HARQ current process ID.
Definition at line 346 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().
|
private |
DL HARQ process DCI buffer.
Definition at line 353 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().
|
private |
DL HARQ process RLC PDU list buffer.
Definition at line 355 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().
|
private |
DL HARQ process status.
Definition at line 350 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().
|
private |
DL HARDQ process timer.
Definition at line 351 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().
|
private |
HARQ retx buffered.
Definition at line 356 of file fdmt-ff-mac-scheduler.h.
Referenced by DoDispose(), and DoSchedDlTriggerReq().
|
private |
FFR SAP provider.
Definition at line 333 of file fdmt-ff-mac-scheduler.h.
Referenced by SetLteFfrSapProvider().
|
private |
FFR SAP user.
Definition at line 332 of file fdmt-ff-mac-scheduler.h.
Referenced by GetLteFfrSapUser().
|
private |
Set of UE statistics (per RNTI basis) in downlink.
Definition at line 277 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().
|
private |
Set of UE statistics (per RNTI basis)
Definition at line 282 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().
|
private |
m_harqOn when false inhibit tte HARQ mechanisms (by default active)
Definition at line 345 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().
|
private |
RNTI of the next user to be served next scheduling in UL.
Definition at line 338 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().
|
private |
Map of UE's DL CQI P01 received.
Definition at line 287 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
Map of UE's timers on DL CQI P01 received.
Definition at line 292 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
RACH allocation map.
Definition at line 368 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
RACH list.
Definition at line 367 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().
|
private |
Vectors of UE's LC info.
Definition at line 272 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().
|
private |
sched SAP provider
Definition at line 329 of file fdmt-ff-mac-scheduler.h.
Referenced by FdMtFfMacScheduler(), DoDispose(), and GetFfMacSchedSapProvider().
|
private |
sched SAP user
Definition at line 327 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().
|
private |
Map of UEs' UL-CQI per RBG.
Definition at line 313 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().
|
private |
Map of UEs' timers on UL-CQI per RBG.
Definition at line 318 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().
|
private |
txMode of the UEs
Definition at line 342 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().
|
private |
MCS for UL grant (default 0)
Definition at line 369 of file fdmt-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), and GetTypeId().
|
private |
UL HARQ current process ID.
Definition at line 358 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
UL HARQ process DCI buffer.
Definition at line 364 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
UL HARQ process status.
Definition at line 362 of file fdmt-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().
