ns3::MatrixArray< T > Class Template Reference

MatrixArray class inherits ValArray class and provides additional interfaces to ValArray which enable page-wise linear algebra operations for arrays of matrices. More...

#include "matrix-array.h"

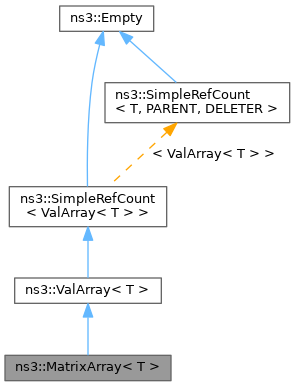

+ Inheritance diagram for ns3::MatrixArray< T >:

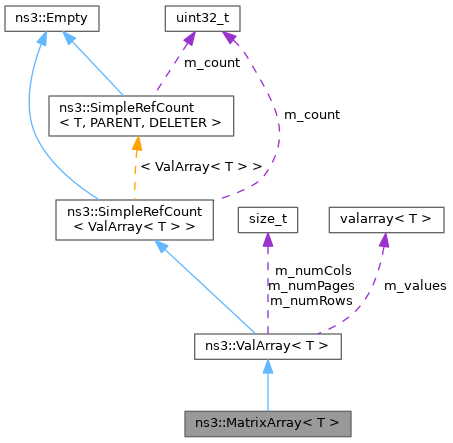

+ Collaboration diagram for ns3::MatrixArray< T >:

Public Member Functions

 MatrixArray ()=default

 MatrixArray (const MatrixArray< T > &)=default
 instruct the compiler to generate the implicitly declared copy constructor

 MatrixArray (const std::valarray< T > &values)
 Constructor creates a single array of values.size () elements and 1 column, and uses std::valarray<T> values to initialize the elements.

 MatrixArray (const std::vector< T > &values)
 Constructor creates a single array of values.size () elements and 1 column, and uses std::vector<T> values to initialize the elements.

 MatrixArray (MatrixArray< T > &&)=default
 instruct the compiler to generate the implicitly declared move constructor

 MatrixArray (size_t numRows, size_t numCols, const std::valarray< T > &values)
 Constructor creates a single matrix of numRows and numCols, and uses std::valarray<T> values to initialize the elements.

 MatrixArray (size_t numRows, size_t numCols, size_t numPages, const std::valarray< T > &values)
 Constructor creates the array of numPages matrices of numRows x numCols dimensions, and uses std::valarray<T> values to initialize all the elements.

 MatrixArray (size_t numRows, size_t numCols, size_t numPages, std::valarray< T > &&values)
 Constructor creates the array of numPages matrices of numRows x numCols dimensions, and moves std::valarray<T> values to initialize all the elements.

 MatrixArray (size_t numRows, size_t numCols, std::valarray< T > &&values)
 Constructor creates a single matrix of numRows and numCols, and moves std::valarray<T> values to initialize the elements.

 MatrixArray (size_t numRows, size_t numCols=1, size_t numPages=1)
 Constructor "pages" number of matrices that are of size "numRows"x"numCols", and are initialized with all-zero elements.

 MatrixArray (std::valarray< T > &&values)
 Constructor creates a single array of values.size () elements and 1 column, and moves std::valarray<T> values to initialize the elements.

 ~MatrixArray () override=default
 instruct the compiler to generate the implicitly declared destructor

template<bool EnableBool = true, typename = typename std::enable_if<(std::is_same<T, std::complex<double>>::value && EnableBool)>::type>

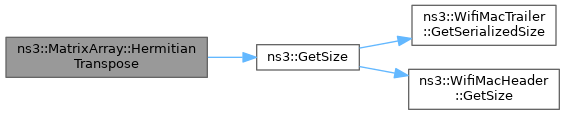

MatrixArray< T > HermitianTranspose () const
 Function that performs the Hermitian transpose of this MatrixArray and returns a new matrix that is the result of the operation.

MatrixArray< T > MultiplyByLeftAndRightMatrix (const MatrixArray< T > &lMatrix, const MatrixArray< T > &rMatrix) const
 Multiply each matrix in the array by the left and the right matrix.

MatrixArray< T > operator* (const MatrixArray< T > &rhs) const
 Page-wise matrix multiplication.

MatrixArray< T > operator* (const T &rhs) const
 Element-wise multiplication with a scalar value.

MatrixArray< T > operator+ (const MatrixArray< T > &rhs) const
 operator+ definition for MatrixArray<T>.

MatrixArray< T > operator- () const
 unary operator- definition for MatrixArray<T>.

MatrixArray< T > operator- (const MatrixArray< T > &rhs) const
 binary operator- definition for MatrixArray<T>.

MatrixArray< T > & operator= (const MatrixArray< T > &)=default
 Copy assignment operator.

MatrixArray< T > & operator= (MatrixArray< T > &&)=default
 Move assignment operator.

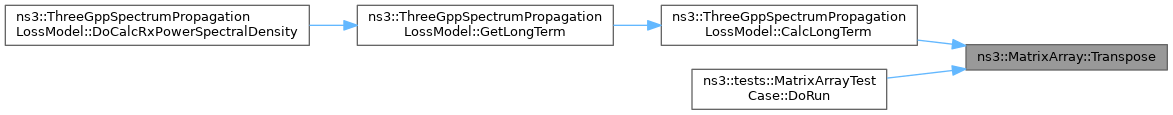

MatrixArray< T > Transpose () const
 This operator interprets the 3D array as an array of matrices, and performs a linear algebra operation on each of the matrices (pages), i.e., transposes the matrix or array of matrices definition for MatrixArray<T>.

- Public Member Functions inherited from ns3::ValArray< T >
 ValArray ()=default

 ValArray (const std::valarray< T > &values)
 Constructor creates a single 1D array of values.size () elements and 1 column, and uses std::valarray<T> values to initialize the elements.

 ValArray (const std::vector< T > &values)
 Constructor creates a single 1D array of values.size () elements and 1 column, and uses values std::vector<T> to initialize the elements.

 ValArray (const ValArray< T > &)=default
 instruct the compiler to generate the implicitly declared copy constructor

 ValArray (size_t numRows, size_t numCols, const std::valarray< T > &values)
 Constructor creates a single 2D array of numRows and numCols, and uses std::valarray<T> values to initialize the elements.

 ValArray (size_t numRows, size_t numCols, size_t numPages, const std::valarray< T > &values)
 Constructor creates the 3D array of numRows x numCols x numPages dimensions, and uses std::valarray<T> values to initialize all the 2D arrays, where first numRows*numCols elements will belong to the first 2D array.

 ValArray (size_t numRows, size_t numCols, size_t numPages, std::valarray< T > &&values)
 Constructor creates the 3D array of numRows x numCols x numPages dimensions, and moves std::valarray<T> values to initialize all the 2D arrays, where first numRows*numCols elements will belong to the first 2D array.

 ValArray (size_t numRows, size_t numCols, std::valarray< T > &&values)
 Constructor creates a single 2D array of numRows and numCols, and moves std::valarray<T> values to initialize the elements.

 ValArray (size_t numRows, size_t numCols=1, size_t numPages=1)
 Constructor that creates "numPages" number of 2D arrays that are of dimensions "numRows"x"numCols", and are initialized with all-zero elements.

 ValArray (std::valarray< T > &&values)
 Constructor creates a single 1D array of values.size () elements and 1 column, and moves std::valarray<T> values to initialize the elements.

 ValArray (ValArray< T > &&)=default
 instruct the compiler to generate the implicitly declared move constructor

virtual ~ValArray ()=default
 instruct the compiler to generate the implicitly declared destructor

void AssertEqualDims (const ValArray< T > &rhs) const
 Function that asserts if the dimensions of lhs and rhs ValArray are not equal and prints a message with the matrices dimensions.

T & Elem (size_t row, size_t col, size_t page)
 Alternative access operator to access a specific element.

const T & Elem (size_t row, size_t col, size_t page) const
 Alternative const access operator to access a specific element.

bool EqualDims (const ValArray< T > &rhs) const
 Checks whether rhs and lhs ValArray objects have the same dimensions.

size_t GetNumCols () const

size_t GetNumPages () const

size_t GetNumRows () const

T * GetPagePtr (size_t pageIndex)
 Get a data pointer to a specific 2D array for use in linear algebra libraries.

const T * GetPagePtr (size_t pageIndex) const
 Get a data pointer to a specific 2D array for use in linear algebra libraries.

size_t GetSize () const

const std::valarray< T > & GetValues () const
 Returns underlying values.

bool IsAlmostEqual (const ValArray< T > &rhs, T tol) const
 Compare Valarray up to a given absolute tolerance.

bool operator!= (const ValArray< T > &rhs) const
 operator!= definition for ValArray<T>.

T & operator() (size_t index)
 Single-element access operator() for 1D ValArrays.

const T & operator() (size_t index) const
 Single-element access operator() for 1D ValArrays.

T & operator() (size_t rowIndex, size_t colIndex)
 Access operator for 2D ValArrays.

const T & operator() (size_t rowIndex, size_t colIndex) const
 Const access operator for 2D ValArrays.

T & operator() (size_t rowIndex, size_t colIndex, size_t pageIndex)
 Access operator, with bound-checking in debug profile.

const T & operator() (size_t rowIndex, size_t colIndex, size_t pageIndex) const
 Const access operator, with bound-checking in debug profile.

ValArray< T > operator* (const T &rhs) const
 Element-wise multiplication with a scalar value.

ValArray< T > operator+ (const ValArray< T > &rhs) const
 operator+ definition for ValArray<T>.

ValArray< T > & operator+= (const ValArray< T > &rhs)
 operator+= definition for ValArray<T>.

ValArray< T > operator- () const
 unary operator- definition for ValArray<T>.

ValArray< T > operator- (const ValArray< T > &rhs) const
 binary operator- definition for ValArray<T>.

ValArray< T > & operator-= (const ValArray< T > &rhs)
 operator-= definition for ValArray<T>.

ValArray< T > & operator= (const ValArray< T > &)=default
 Copy assignment operator.

ValArray< T > & operator= (ValArray< T > &&)=default
 Move assignment operator.

bool operator== (const ValArray< T > &rhs) const
 operator== definition for ValArray<T>.

T & operator[] (size_t index)
 Single-element access operator[] that can be used to access a specific element of 1D ValArray.

const T & operator[] (size_t index) const
 Const access operator that can be used to access a specific element of 1D ValArray.

- Public Member Functions inherited from ns3::SimpleRefCount< ValArray< T > >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.


Additional Inherited Members

- Protected Attributes inherited from ns3::ValArray< T >
size_t m_numCols
 The size of the second dimension, i.e., the number of columns of each 2D array.

size_t m_numPages = 0
 The size of the third dimension, i.e., the number of 2D arrays.

size_t m_numRows
 The size of the first dimension, i.e., the number of rows of each 2D array.

std::valarray< T > m_values
 The data values.


Detailed Description

template<class T>
class ns3::MatrixArray< T >

MatrixArray class inherits ValArray class and provides additional interfaces to ValArray which enable page-wise linear algebra operations for arrays of matrices.

While ValArray class is focused on efficient storage, access and basic algebra element-wise operations on 3D numerical arrays, MatrixArray is focused on the efficient algebra operations on arrays of matrices.

Each page (2-dimensional array) within a 3D array is considered to be a matrix, and operations are performed separately for each page/matrix. For example, a multiplication of two MatrixArrays means that a matrix multiplication is performed between each page in the first MatrixArray with the corresponding page in the second MatrixArray. Some of the operations can use the Eigen3 matrix library for speedup. In addition, this class can be extended to provide interfaces to the Eigen3 matrix library and enable additional linear algebra operations. The objective of this class is to two-fold:

  • First, it provides simple interfaces to perform matrix operations in parallel on all pages without the need to write an outer loop over all the pages.
  • Second, it can improve the performance of such parallel matrix operations, as this class uses a single memory allocation and one common set of size variables (rows, cols) for all pages, which can be an advantage compared to having separate memory allocations and size variables for each page/matrix, especially when those matrices are very small.

Important characteristics:

  • Matrices are in column-major order.
  • Matrices can be 1-dimensional, in the sense that either the number of rows or columns is equal to 1.
  • The array of matrices can contain just one matrix or more matrices.
  • For binary operators, both MatrixArrays must have an equal number of pages, as well compatible row and column dimensions between the matrices.
  • Binary operators are performed among matrices with the same index from lhs and rhs matrix.
  • MatrixArray improves computationally complex matrix operations by using Eigen library when it is available at compile time. MatrixArray class makes use of Eigen Map class, which allows re-using already existing portion of memory as an Eigen type, e.g. ValArray can return a pointer to a memory where are placed elements of a specific matrix, and this can be passed to Eigen Map class which does not do a copy of the elements, but is using these elements directly in linear algebra operations.

Definition at line 82 of file matrix-array.h.

Constructor & Destructor Documentation

◆ MatrixArray() [1/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( )
default

◆ MatrixArray() [2/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( size_t  numRows,
size_t  numCols = 1,
size_t  numPages = 1
)

Constructor "pages" number of matrices that are of size "numRows"x"numCols", and are initialized with all-zero elements.

If only 1 parameter, numRows, is provided then a single 1D array is being created.

Parameters
numRowsthe number of rows
numColsthe number of columns
numPagesthe number of pages

Definition at line 37 of file matrix-array.cc.

◆ MatrixArray() [3/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( const std::valarray< T > &  values)
explicit

Constructor creates a single array of values.size () elements and 1 column, and uses std::valarray<T> values to initialize the elements.

Parameters
valuesstd::valarray<T> that will be used to initialize elements of 1D array

Definition at line 43 of file matrix-array.cc.

◆ MatrixArray() [4/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( std::valarray< T > &&  values)

Constructor creates a single array of values.size () elements and 1 column, and moves std::valarray<T> values to initialize the elements.

Parameters
valuesstd::valarray<T> that will be moved to initialize elements of 1D array

Definition at line 49 of file matrix-array.cc.

◆ MatrixArray() [5/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( const std::vector< T > &  values)
explicit

Constructor creates a single array of values.size () elements and 1 column, and uses std::vector<T> values to initialize the elements.

Parameters
valuesstd::vector<T> that will be used to initialize elements of 1D array

Definition at line 55 of file matrix-array.cc.

◆ MatrixArray() [6/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( size_t  numRows,
size_t  numCols,
const std::valarray< T > &  values
)

Constructor creates a single matrix of numRows and numCols, and uses std::valarray<T> values to initialize the elements.

Parameters
numRowsthe number of rows
numColsthe number of columns
valuesstd::valarray<T> that will be used to initialize elements of 3D array

Definition at line 61 of file matrix-array.cc.

◆ MatrixArray() [7/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( size_t  numRows,
size_t  numCols,
std::valarray< T > &&  values
)

Constructor creates a single matrix of numRows and numCols, and moves std::valarray<T> values to initialize the elements.

Parameters
numRowsthe number of rows
numColsthe number of columns
valuesstd::valarray<T> that will be moved to initialize elements of 3D array

Definition at line 67 of file matrix-array.cc.

◆ MatrixArray() [8/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( size_t  numRows,
size_t  numCols,
size_t  numPages,
const std::valarray< T > &  values
)

Constructor creates the array of numPages matrices of numRows x numCols dimensions, and uses std::valarray<T> values to initialize all the elements.

Parameters
numRowsthe number of rows
numColsthe number of columns
numPagesthe number of pages
valuesstd::valarray<T> that will be used to initialize elements of 3D array

Definition at line 73 of file matrix-array.cc.

◆ MatrixArray() [9/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( size_t  numRows,
size_t  numCols,
size_t  numPages,
std::valarray< T > &&  values
)

Constructor creates the array of numPages matrices of numRows x numCols dimensions, and moves std::valarray<T> values to initialize all the elements.

Parameters
numRowsthe number of rows
numColsthe number of columns
numPagesthe number of pages
valuesstd::valarray<T> that will be used to initialize elements of 3D array

Definition at line 82 of file matrix-array.cc.

◆ ~MatrixArray()

template<class T >
ns3::MatrixArray< T >::~MatrixArray ( )
overridedefault

instruct the compiler to generate the implicitly declared destructor

◆ MatrixArray() [10/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( const MatrixArray< T > &  )
default

instruct the compiler to generate the implicitly declared copy constructor

◆ MatrixArray() [11/11]

template<class T >
ns3::MatrixArray< T >::MatrixArray ( MatrixArray< T > &&  )
default

instruct the compiler to generate the implicitly declared move constructor

Member Function Documentation

◆ HermitianTranspose()

template<class T >
template<bool EnableBool, typename >
template MatrixArray< std::complex< double > > ns3::MatrixArray< T >::HermitianTranspose ( ) const

Function that performs the Hermitian transpose of this MatrixArray and returns a new matrix that is the result of the operation.

This function assumes that the matrix contains complex numbers, because of that it is only available for the <std::complex<double>> specialization of MatrixArray.

Returns
Returns a new matrix that is the result of the Hermitian transpose

Definition at line 221 of file matrix-array.cc.

References ns3::GetSize(), and ns3::ValArray< T >::m_values.

+ Here is the call graph for this function:

◆ MultiplyByLeftAndRightMatrix()

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::MultiplyByLeftAndRightMatrix ( const MatrixArray< T > &  lMatrix,
const MatrixArray< T > &  rMatrix
) const

Multiply each matrix in the array by the left and the right matrix.

For each page of this MatrixArray the operation performed is lMatrix * matrix(pageIndex) * rMatrix, and the resulting MatrixArray<T> contains the array of the results per page. If "this" has dimensions M x N x P, lMatrix must have dimensions M number of columns, and a single page, and rMatrix must have N number of rows, and also a single page.

The result of this function will have the dimensions J x K x P. Where J is the number of rows of the lMatrix, and K is the number of columns of rMatrix. Dimensions are:

lMatrix(JxMx1) * this (MxNxP) * rMatrix(NxKx1) -> result(JxKxP)

This operation is not possible when using the multiplication operator because the number of pages does not match.

Parameters
lMatrixthe left matrix in the multiplication
rMatrixthe right matrix in the multiplication
Returns
Returns the result of the multiplication which is a 3D MatrixArray with dimensions J x K x P as explained previously.

Definition at line 161 of file matrix-array.cc.

References ns3::ValArray< T >::GetPagePtr(), ns3::ValArray< T >::m_numCols, ns3::ValArray< T >::m_numPages, ns3::ValArray< T >::m_numRows, ns3::ValArray< T >::m_values, and NS_ASSERT_MSG.

Referenced by ns3::tests::MatrixArrayTestCase< T >::DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ operator*() [1/2]

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::operator* ( const MatrixArray< T > &  rhs) const

Page-wise matrix multiplication.

This operator interprets the 3D array as an array of matrices, and performs a linear algebra operation on each of the matrices (pages), i.e., matrices from this MatrixArray and rhs with the same page indices are multiplied. The number of columns of this MatrixArray must be equal to the number of rows in rhs, and rhs must have the same number of pages as this MatrixArray.

Parameters
rhsis another MatrixArray instance
Returns
The array of results of matrix multiplications.

Definition at line 92 of file matrix-array.cc.

References ns3::ValArray< T >::GetPagePtr(), ns3::ValArray< T >::m_numCols, ns3::ValArray< T >::m_numPages, ns3::ValArray< T >::m_numRows, ns3::ValArray< T >::m_values, and NS_ASSERT_MSG.

+ Here is the call graph for this function:

◆ operator*() [2/2]

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::operator* ( const T &  rhs) const
inline

Element-wise multiplication with a scalar value.

Parameters
rhsis a scalar value of type T
Returns
The matrix in which each element has been multiplied by the given scalar value.

Definition at line 272 of file matrix-array.h.

◆ operator+()

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::operator+ ( const MatrixArray< T > &  rhs) const
inline

operator+ definition for MatrixArray<T>.

Parameters
rhsThe rhs MatrixArray object
Returns
The result of operator+ of this MatrixArray and rhs MatrixArray

Definition at line 282 of file matrix-array.h.

References ns3::ValArray< T >::m_values.

◆ operator-() [1/2]

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::operator-
inline

unary operator- definition for MatrixArray<T>.

Returns
the result of the operator-

Definition at line 298 of file matrix-array.h.

◆ operator-() [2/2]

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::operator- ( const MatrixArray< T > &  rhs) const
inline

binary operator- definition for MatrixArray<T>.

Parameters
rhsThe rhs MatrixArray object
Returns
The result of operator- of this MatrixArray and rhs MatrixArray

Definition at line 290 of file matrix-array.h.

References ns3::ValArray< T >::m_values.

◆ operator=() [1/2]

template<class T >
MatrixArray< T > & ns3::MatrixArray< T >::operator= ( const MatrixArray< T > &  )
default

Copy assignment operator.

Instruct the compiler to generate the implicitly declared copy assignment operator.

Returns
a reference to the result of the assignment

◆ operator=() [2/2]

template<class T >
MatrixArray< T > & ns3::MatrixArray< T >::operator= ( MatrixArray< T > &&  )
default

Move assignment operator.

Instruct the compiler to generate the implicitly declared move assignment operator.

Returns
a reference to the result of the assignment

◆ Transpose()

template<class T >
MatrixArray< T > ns3::MatrixArray< T >::Transpose

This operator interprets the 3D array as an array of matrices, and performs a linear algebra operation on each of the matrices (pages), i.e., transposes the matrix or array of matrices definition for MatrixArray<T>.

Returns
The resulting MatrixArray composed of the array of transposed matrices.

Definition at line 131 of file matrix-array.cc.

Referenced by ns3::ThreeGppSpectrumPropagationLossModel::CalcLongTerm(), and ns3::tests::MatrixArrayTestCase< T >::DoRun().

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
