ns3::ThreeGppHttpServerHelper Class Reference

Helper to make it easier to instantiate an ThreeGppHttpServer on a set of nodes. More...

#include "three-gpp-http-helper.h"

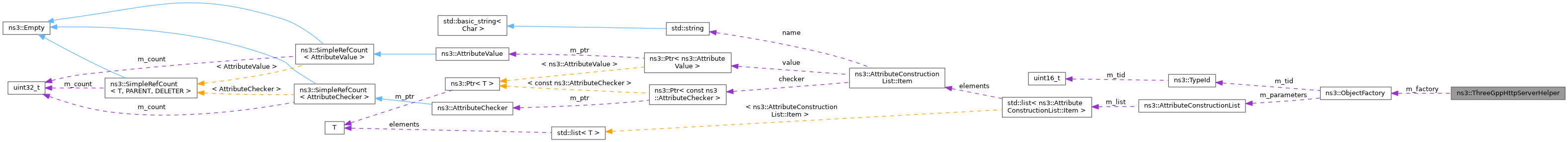

+ Collaboration diagram for ns3::ThreeGppHttpServerHelper:

Public Member Functions

 ThreeGppHttpServerHelper (const Address &address)
 Create a ThreeGppHttpServerHelper to make it easier to work with ThreeGppHttpServer applications.

ApplicationContainer Install (const std::string &nodeName) const
 Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

ApplicationContainer Install (NodeContainer c) const
 Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

ApplicationContainer Install (Ptr< Node > node) const
 Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

void SetAttribute (const std::string &name, const AttributeValue &value)
 Helper function used to set the underlying application attributes, but not the socket attributes.


Private Member Functions

Ptr< ApplicationInstallPriv (Ptr< Node > node) const


Private Attributes

ObjectFactory m_factory
 Used to instantiate a ThreeGppHttpServer instance.


Detailed Description

Helper to make it easier to instantiate an ThreeGppHttpServer on a set of nodes.

Definition at line 103 of file three-gpp-http-helper.h.

Constructor & Destructor Documentation

◆ ThreeGppHttpServerHelper()

ns3::ThreeGppHttpServerHelper::ThreeGppHttpServerHelper ( const Address address)

Create a ThreeGppHttpServerHelper to make it easier to work with ThreeGppHttpServer applications.

Parameters
addressThe address of the server.

Definition at line 83 of file three-gpp-http-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

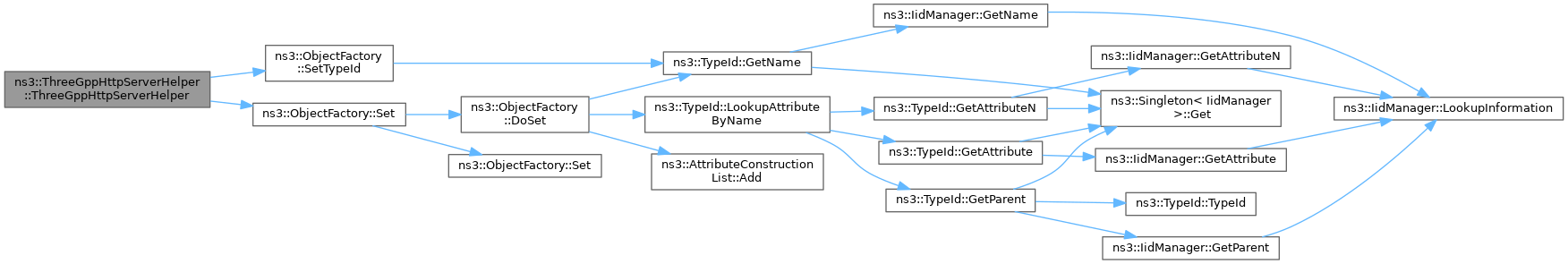

+ Here is the call graph for this function:

Member Function Documentation

◆ Install() [1/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install ( const std::string &  nodeName) const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters
nodeNameThe name of the node on which an ThreeGppHttpServer will be installed.
Returns
Container of Ptr to the applications installed.

Definition at line 102 of file three-gpp-http-helper.cc.

References InstallPriv().

+ Here is the call graph for this function:

◆ Install() [2/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install ( NodeContainer  c) const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters
cNodeContainer of the set of nodes on which an ThreeGppHttpServer will be installed.
Returns
Container of Ptr to the applications installed.

Definition at line 109 of file three-gpp-http-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by ThreeGppHttpObjectTestCase::DoRun().

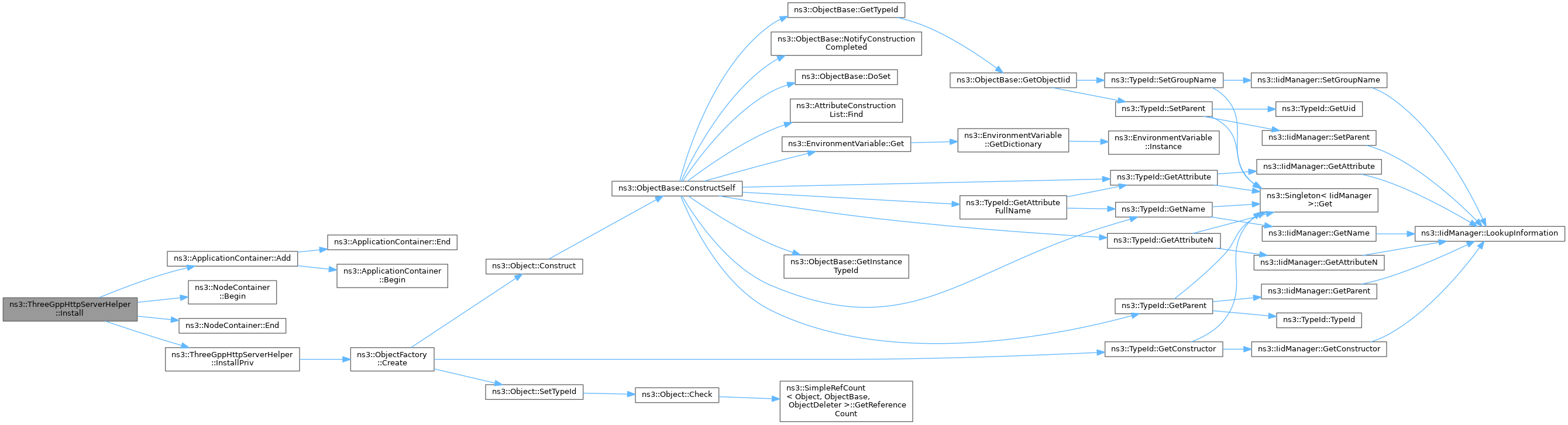

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Install() [3/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install ( Ptr< Node node) const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters
nodeThe node on which an ThreeGppHttpServer will be installed.
Returns
Container of Ptr to the applications installed.

Definition at line 96 of file three-gpp-http-helper.cc.

References InstallPriv().

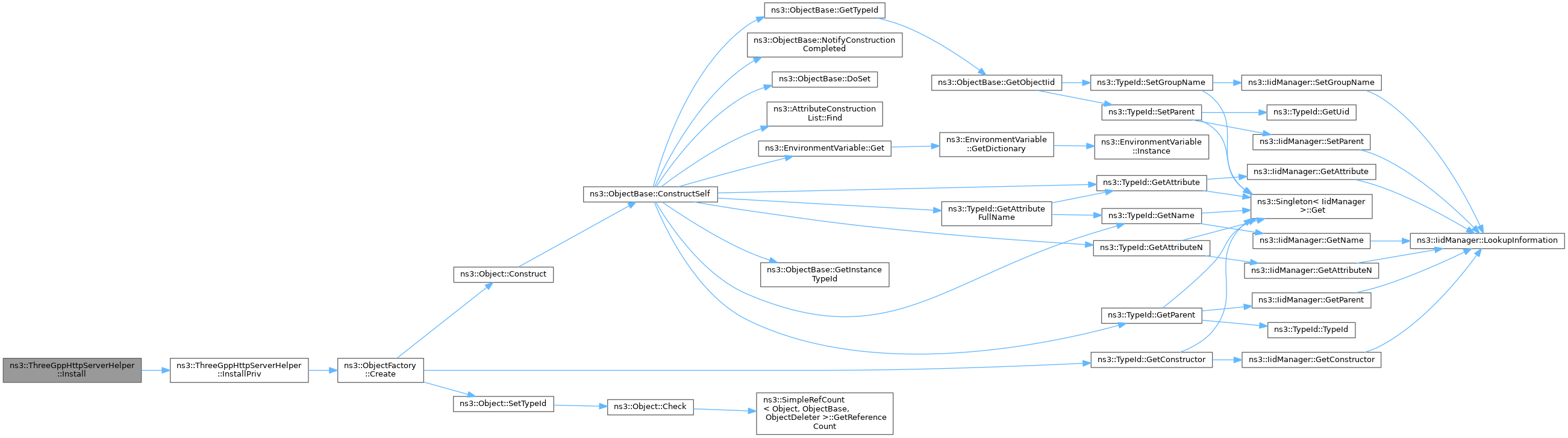

+ Here is the call graph for this function:

◆ InstallPriv()

Ptr< Application > ns3::ThreeGppHttpServerHelper::InstallPriv ( Ptr< Node node) const
private
Internal:
Install an ThreeGppHttpServer on the node configured with all the attributes set with SetAttribute().
Parameters
nodeThe node on which an ThreeGppHttpServer will be installed.
Returns
Ptr to the application installed.

Definition at line 121 of file three-gpp-http-helper.cc.

References ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

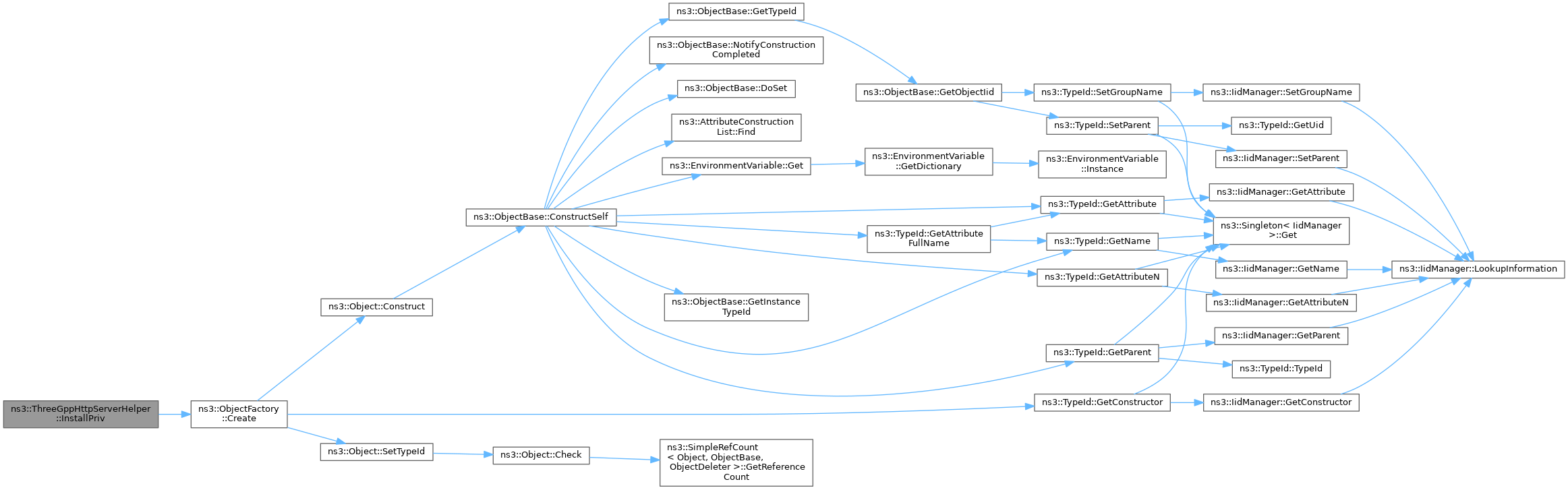

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetAttribute()

void ns3::ThreeGppHttpServerHelper::SetAttribute ( const std::string &  name,
const AttributeValue value
)

Helper function used to set the underlying application attributes, but not the socket attributes.

Parameters
nameThe name of the application attribute to set.
valueThe value of the application attribute to set.

Definition at line 90 of file three-gpp-http-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

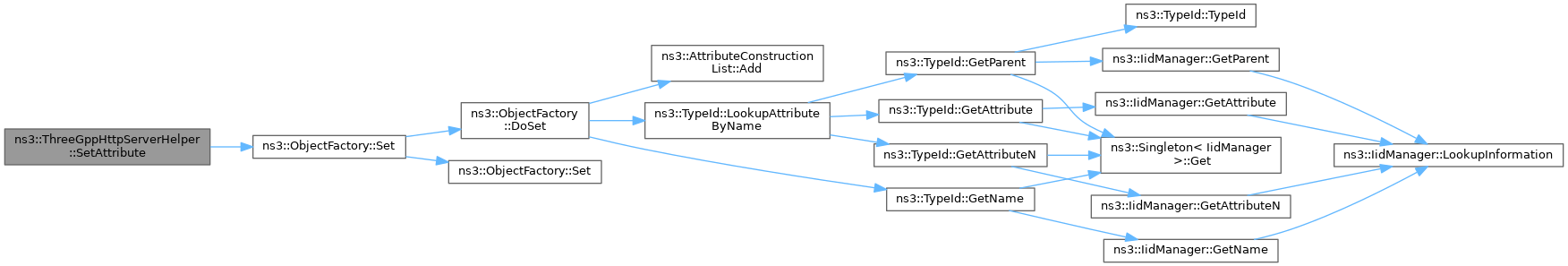

+ Here is the call graph for this function:

Member Data Documentation

◆ m_factory

ObjectFactory ns3::ThreeGppHttpServerHelper::m_factory
private

Used to instantiate a ThreeGppHttpServer instance.

Definition at line 158 of file three-gpp-http-helper.h.

Referenced by ThreeGppHttpServerHelper(), InstallPriv(), and SetAttribute().


The documentation for this class was generated from the following files:
