HeSigBDurationTest Class Reference

HE-SIG-B duration test. More...

Inheritance diagram for HeSigBDurationTest:

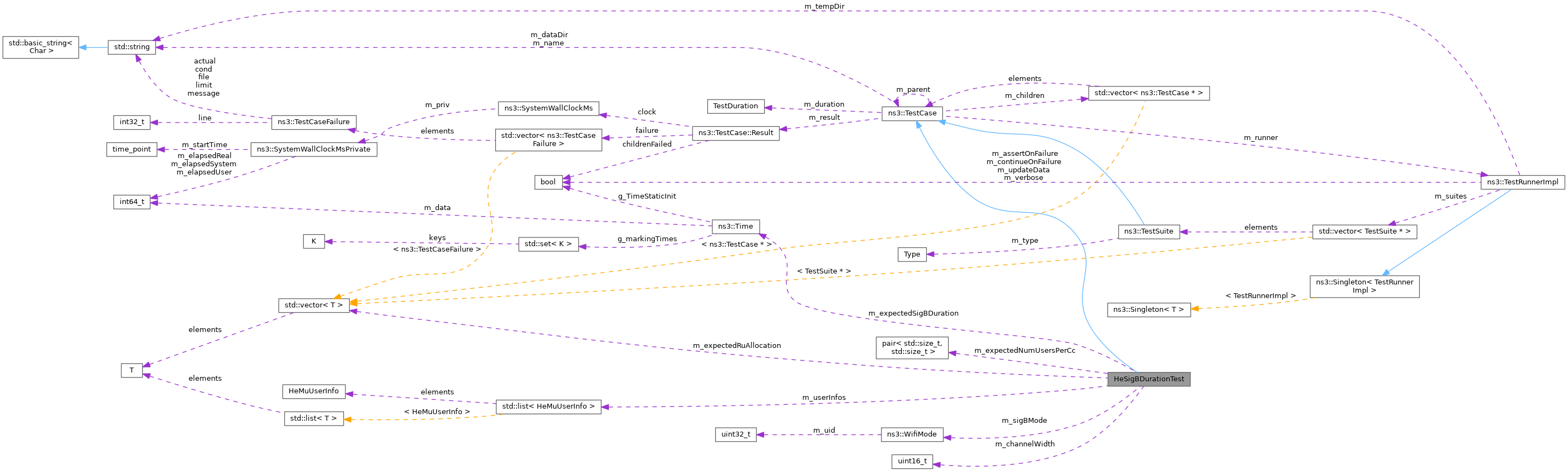

Collaboration diagram for HeSigBDurationTest:

Public Member Functions
	HeSigBDurationTest (const std::list< HeMuUserInfo > &userInfos, const WifiMode &sigBMode, uint16_t channelWidth, const RuAllocation &expectedRuAllocation, const std::pair< std::size_t, std::size_t > &expectedNumUsersPerCc, Time expectedSigBDuration)
	Constructor.
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
WifiTxVector	BuildTxVector () const
	Build a TXVECTOR for HE MU.
void	DoRun () override
	Implementation to actually run this TestCase.

Private Attributes
uint16_t	m_channelWidth
	Channel width in MHz.
std::pair< std::size_t, std::size_t >	m_expectedNumUsersPerCc
	Expected number of users per content channel.
RuAllocation	m_expectedRuAllocation
	Expected RU_ALLOCATION.
Time	m_expectedSigBDuration
	Expected duration of the HE-SIG-B header.
WifiMode	m_sigBMode
	Mode used to transmit HE-SIG-B.
std::list< HeMuUserInfo >	m_userInfos
	HE MU specific per-user information.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

HE-SIG-B duration test.

Definition at line 1303 of file tx-duration-test.cc.

Constructor & Destructor Documentation

HeSigBDurationTest()

HeSigBDurationTest::HeSigBDurationTest	(	const std::list< HeMuUserInfo > &	userInfos,
		const WifiMode &	sigBMode,
		uint16_t	channelWidth,
		const RuAllocation &	expectedRuAllocation,
		const std::pair< std::size_t, std::size_t > &	expectedNumUsersPerCc,
		Time	expectedSigBDuration
	)

Constructor.

Parameters

userInfos	the HE MU specific per-user information to use for the test
sigBMode	the mode to transmit HE-SIG-B for the test
channelWidth	the channel width in MHz to select for the test
expectedRuAllocation	the expected RU_ALLOCATION
expectedNumUsersPerCc	the expected number of users per content channel
expectedSigBDuration	the expected duration of the HE-SIG-B header

Definition at line 1342 of file tx-duration-test.cc.

Member Function Documentation

BuildTxVector()

WifiTxVector HeSigBDurationTest::BuildTxVector ( ) const

private

Build a TXVECTOR for HE MU.

Returns

the configured HE MU TXVECTOR

Definition at line 1360 of file tx-duration-test.cc.

References m_channelWidth, m_sigBMode, m_userInfos, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetSigBMode(), ns3::WifiTxVector::SetStbc(), and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by DoRun().

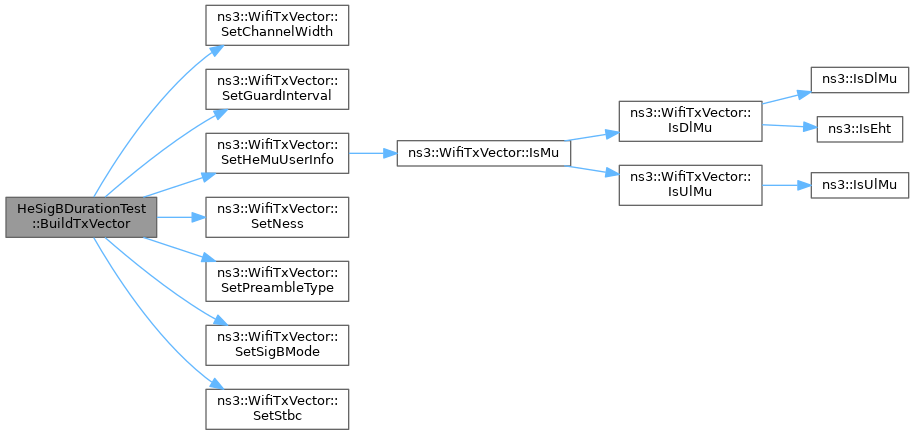

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void HeSigBDurationTest::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1380 of file tx-duration-test.cc.

References BuildTxVector(), ns3::HePpdu::GetHeSigBContentChannels(), ns3::HePpdu::GetNumRusPerHeSigBContentChannel(), ns3::WifiPhy::GetStaticPhyEntity(), m_expectedNumUsersPerCc, m_expectedRuAllocation, m_expectedSigBDuration, m_sigBMode, NS_TEST_EXPECT_MSG_EQ, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_SIG_B.

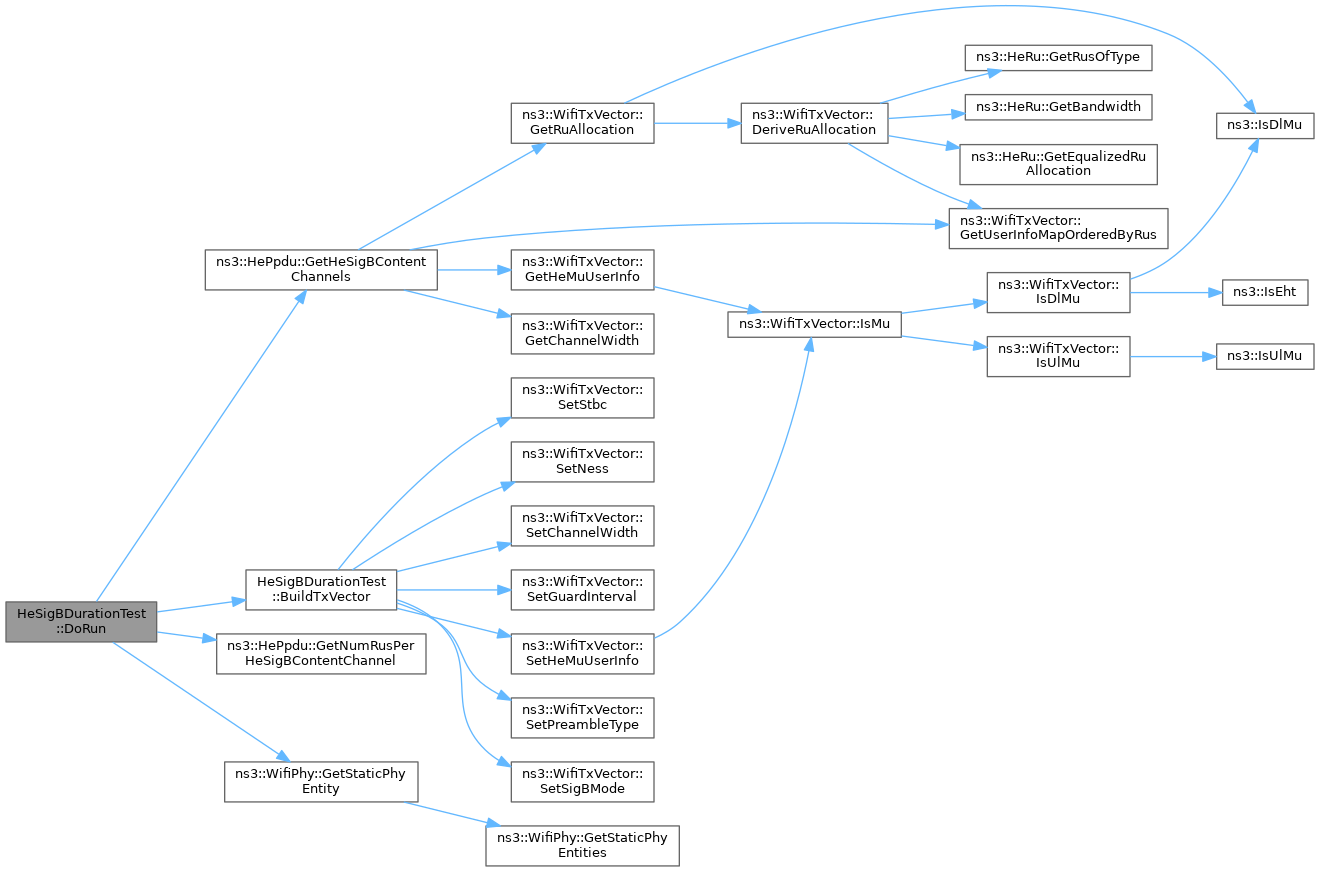

Here is the call graph for this function:

Member Data Documentation

m_channelWidth

uint16_t HeSigBDurationTest::m_channelWidth

private

Channel width in MHz.

Definition at line 1335 of file tx-duration-test.cc.

Referenced by BuildTxVector().

m_expectedNumUsersPerCc

std::pair<std::size_t, std::size_t> HeSigBDurationTest::m_expectedNumUsersPerCc

private

Expected number of users per content channel.

Definition at line 1338 of file tx-duration-test.cc.

Referenced by DoRun().

m_expectedRuAllocation

RuAllocation HeSigBDurationTest::m_expectedRuAllocation

private

Expected RU_ALLOCATION.

Definition at line 1336 of file tx-duration-test.cc.

Referenced by DoRun().

m_expectedSigBDuration

Time HeSigBDurationTest::m_expectedSigBDuration

private

Expected duration of the HE-SIG-B header.

Definition at line 1339 of file tx-duration-test.cc.

Referenced by DoRun().

m_sigBMode

WifiMode HeSigBDurationTest::m_sigBMode

private

Mode used to transmit HE-SIG-B.

Definition at line 1334 of file tx-duration-test.cc.

Referenced by BuildTxVector(), and DoRun().

m_userInfos

std::list<HeMuUserInfo> HeSigBDurationTest::m_userInfos

private

HE MU specific per-user information.

Definition at line 1333 of file tx-duration-test.cc.

Referenced by BuildTxVector().

---

The documentation for this class was generated from the following file:

• src/wifi/test/tx-duration-test.cc
