Attribute implementation. More...

#include "type-id.h"

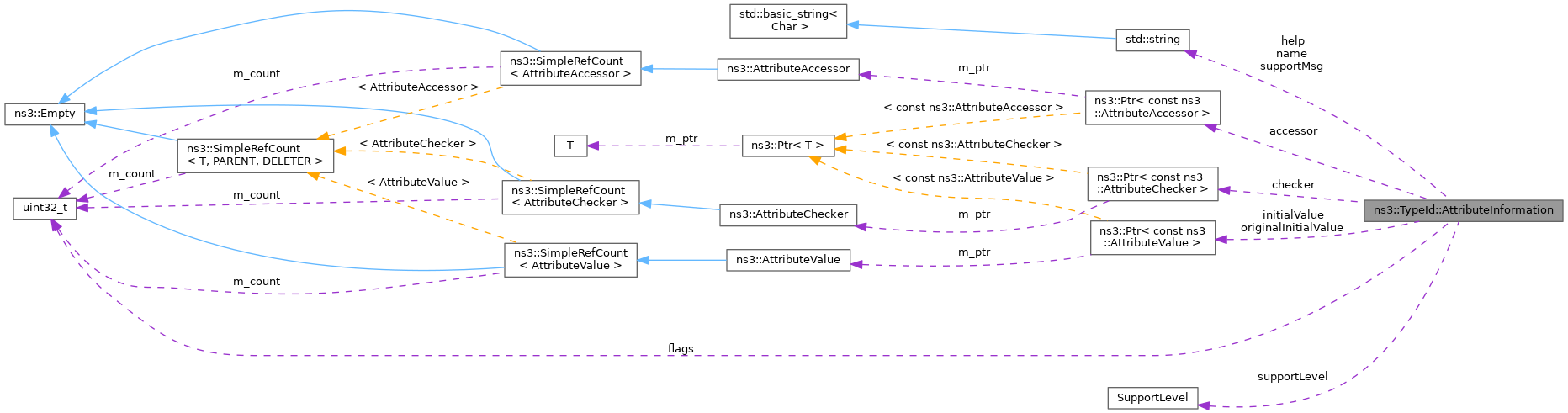

Collaboration diagram for ns3::TypeId::AttributeInformation:

Public Attributes
Ptr< const AttributeAccessor >	accessor
	Accessor object.

Ptr< const AttributeChecker >	checker
	Checker object.

uint32_t	flags
	AttributeFlags value.

std::string	help
	Attribute help string.

Ptr< const AttributeValue >	initialValue
	Configured initial value.

std::string	name
	Attribute name.

Ptr< const AttributeValue >	originalInitialValue
	Default initial value.

TypeId::SupportLevel	supportLevel
	Support level/deprecation.

std::string	supportMsg
	Support message.

Detailed Description

Attribute implementation.

Definition at line 80 of file type-id.h.

Member Data Documentation

◆ accessor

Ptr<const AttributeAccessor> ns3::TypeId::AttributeInformation::accessor

Accessor object.

Definition at line 93 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::ObjectBase::ConstructSelf(), ns3::AttributeIterator::DoIterate(), ns3::ObjectBase::GetAttribute(), ns3::ObjectBase::GetAttributeFailSafe(), ns3::AttributeDefaultIterator::Iterate(), ns3::ObjectBase::SetAttribute(), and ns3::ObjectBase::SetAttributeFailSafe().

◆ checker

Ptr<const AttributeChecker> ns3::TypeId::AttributeInformation::checker

Checker object.

Definition at line 95 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::CommandLine::AddValue(), ns3::cell_tooltip_callback(), ns3::cell_tooltip_callback_config_default(), ns3::ObjectBase::ConstructSelf(), StaticInformation::DoGather(), ns3::AttributeIterator::DoIterate(), ns3::Config::Resolver::DoResolve(), ns3::ObjectFactory::DoSet(), ns3::ObjectBase::GetAttribute(), ns3::ObjectBase::GetAttributeFailSafe(), ns3::AttributeDefaultIterator::Iterate(), ns3::CommandLine::PrintAttributeList(), ns3::ObjectBase::SetAttribute(), ns3::ObjectBase::SetAttributeFailSafe(), and ns3::Config::SetDefaultFailSafe().

◆ flags

uint32_t ns3::TypeId::AttributeInformation::flags

AttributeFlags value.

Definition at line 87 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::ObjectBase::ConstructSelf(), ns3::AttributeIterator::DoIterate(), ns3::ObjectBase::GetAttribute(), ns3::ObjectBase::GetAttributeFailSafe(), ns3::AttributeDefaultIterator::Iterate(), ns3::ObjectBase::SetAttribute(), and ns3::ObjectBase::SetAttributeFailSafe().

◆ help

std::string ns3::TypeId::AttributeInformation::help

Attribute help string.

Definition at line 85 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::CommandLine::AddValue(), ns3::cell_tooltip_callback(), ns3::cell_tooltip_callback_config_default(), and ns3::CommandLine::PrintAttributeList().

◆ initialValue

Ptr<const AttributeValue> ns3::TypeId::AttributeInformation::initialValue

Configured initial value.

Definition at line 91 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::CommandLine::AddValue(), ns3::ObjectBase::ConstructSelf(), ns3::AttributeDefaultIterator::Iterate(), ns3::CommandLine::PrintAttributeList(), and ns3::ThreeGppHttpServer::StartApplication().

◆ name

std::string ns3::TypeId::AttributeInformation::name

Attribute name.

Definition at line 83 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::RawTextConfigSave::Attributes(), ns3::XmlConfigSave::Attributes(), ns3::cell_tooltip_callback(), ns3::ObjectBase::ConstructSelf(), ns3::RawTextConfigSave::Default(), ns3::XmlConfigSave::Default(), StaticInformation::DoGather(), ns3::AttributeIterator::DoIterate(), ns3::Config::Resolver::DoResolve(), ns3::TypeId::GetAttributeFullName(), GetNameMap(), ns3::AttributeDefaultIterator::Iterate(), ns3::TypeId::LookupAttributeByName(), PrintAllAttributes(), PrintAllTraceSources(), PrintAttributesTid(), PrintAttributeValueSection(), PrintAttributeValueWithName(), PrintMakeAccessors(), PrintMakeChecker(), PrintTraceSourcesTid(), PrintTypeIdBlocks(), ns3::Config::SetDefaultFailSafe(), anonymous_namespace{print-introspected-doxygen.cc}::SortedAttributeInfo(), and ns3::ThreeGppHttpServer::StartApplication().

◆ originalInitialValue

Ptr<const AttributeValue> ns3::TypeId::AttributeInformation::originalInitialValue

Default initial value.

Definition at line 89 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), and ns3::Config::Reset().

◆ supportLevel

TypeId::SupportLevel ns3::TypeId::AttributeInformation::supportLevel

Support level/deprecation.

Definition at line 97 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), ns3::RawTextConfigSave::Attributes(), ns3::XmlConfigSave::Attributes(), ns3::RawTextConfigSave::Default(), ns3::XmlConfigSave::Default(), DeprecatedAttributeTestCase::DoRun(), and ns3::TypeId::LookupAttributeByName().

◆ supportMsg

std::string ns3::TypeId::AttributeInformation::supportMsg

Support message.

Definition at line 99 of file type-id.h.

Referenced by ns3::IidManager::AddAttribute(), and ns3::TypeId::LookupAttributeByName().

The documentation for this struct was generated from the following file:

src/core/model/type-id.h
