ns3::AsciiTraceHelperForIpv6 Class Referenceabstract

Base class providing common user-level ascii trace operations for helpers representing IPv6 protocols . More...

#include "internet-trace-helper.h"

+ Inheritance diagram for ns3::AsciiTraceHelperForIpv6:

Public Member Functions

 AsciiTraceHelperForIpv6 ()
 Construct an AsciiTraceHelperForIpv6.

virtual ~AsciiTraceHelperForIpv6 ()
 Destroy an AsciiTraceHelperForIpv6.

void EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, Ipv6InterfaceContainer c)
 Enable ascii trace output on each device in the container which is of the appropriate type.

void EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, NodeContainer n)
 Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

void EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, Ptr< Ipv6 > ipv6, uint32_t interface)
 Enable ascii trace output on the indicated Ipv6 and interface pair.

void EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, std::string ipv6Name, uint32_t interface)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

void EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t interface)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6 (std::string prefix, Ipv6InterfaceContainer c)
 Enable ascii trace output on each Ipv6 and interface pair in the container.

void EnableAsciiIpv6 (std::string prefix, NodeContainer n)
 Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

void EnableAsciiIpv6 (std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename=false)
 Enable ascii trace output on the indicated Ipv6 and interface pair.

void EnableAsciiIpv6 (std::string prefix, std::string ipv6Name, uint32_t interface, bool explicitFilename=false)
 Enable ascii trace output the indicated Ipv6 and interface pair using an Ipv6 previously named using the ns-3 object name service.

void EnableAsciiIpv6 (std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6All (Ptr< OutputStreamWrapper > stream)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

void EnableAsciiIpv6All (std::string prefix)
 Enable ascii trace output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation.

virtual void EnableAsciiIpv6Internal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename)=0
 Enable ascii trace output on the indicated Ipv6 and interface pair.


Private Member Functions

void EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, Ipv6InterfaceContainer c)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, NodeContainer n)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, std::string ipv6Name, uint32_t interface, bool explicitFilename)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

void EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
 Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.


Detailed Description

Base class providing common user-level ascii trace operations for helpers representing IPv6 protocols .

Definition at line 532 of file internet-trace-helper.h.

Constructor & Destructor Documentation

◆ AsciiTraceHelperForIpv6()

ns3::AsciiTraceHelperForIpv6::AsciiTraceHelperForIpv6 ( )
inline

Construct an AsciiTraceHelperForIpv6.

Definition at line 538 of file internet-trace-helper.h.

◆ ~AsciiTraceHelperForIpv6()

virtual ns3::AsciiTraceHelperForIpv6::~AsciiTraceHelperForIpv6 ( )
inlinevirtual

Destroy an AsciiTraceHelperForIpv6.

Definition at line 545 of file internet-trace-helper.h.

Member Function Documentation

◆ EnableAsciiIpv6() [1/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( Ptr< OutputStreamWrapper stream,
Ipv6InterfaceContainer  c
)

Enable ascii trace output on each device in the container which is of the appropriate type.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
cIpv6InterfaceContainer of Ipv6 and interface pairs on which to enable tracing.

Definition at line 470 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [2/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( Ptr< OutputStreamWrapper stream,
NodeContainer  n
)

Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
ncontainer of nodes.

Definition at line 503 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [3/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( Ptr< OutputStreamWrapper stream,
Ptr< Ipv6 ipv6,
uint32_t  interface
)

Enable ascii trace output on the indicated Ipv6 and interface pair.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
ipv6Ptr<Ipv6> on which you want to enable tracing.
interfaceThe interface on which you want to enable tracing.

Definition at line 413 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [4/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( Ptr< OutputStreamWrapper stream,
std::string  ipv6Name,
uint32_t  interface
)

Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
ipv6NameThe name of the Ipv6 on which you want to enable tracing.
interfaceThe interface on which you want to enable tracing.

Definition at line 436 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [5/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( Ptr< OutputStreamWrapper stream,
uint32_t  nodeid,
uint32_t  interface
)

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
nodeidThe node identifier/number of the node on which to enable ascii tracing
interfaceThe interface on which you want to enable tracing.

Definition at line 552 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [6/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( std::string  prefix,
Ipv6InterfaceContainer  c
)

Enable ascii trace output on each Ipv6 and interface pair in the container.

Parameters
prefixFilename prefix to use for ascii files.
cIpv6InterfaceContainer of Ipv6 and interface pairs on which to enable tracing.

Definition at line 461 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [7/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( std::string  prefix,
NodeContainer  n
)

Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

Parameters
prefixFilename prefix to use for ascii files.
ncontainer of nodes.

Definition at line 494 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [8/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( std::string  prefix,
Ptr< Ipv6 ipv6,
uint32_t  interface,
bool  explicitFilename = false
)

Enable ascii trace output on the indicated Ipv6 and interface pair.

Parameters
prefixFilename prefix to use for ascii files.
ipv6Ptr<Ipv6> on which you want to enable tracing.
interfaceThe interface on which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true.

Definition at line 401 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [9/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( std::string  prefix,
std::string  ipv6Name,
uint32_t  interface,
bool  explicitFilename = false
)

Enable ascii trace output the indicated Ipv6 and interface pair using an Ipv6 previously named using the ns-3 object name service.

Parameters
prefixfilename prefix to use for ascii files.
ipv6NameThe name of the Ipv6 on which you want to enable tracing.
interfaceThe interface on which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true.

Definition at line 424 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6() [10/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6 ( std::string  prefix,
uint32_t  nodeid,
uint32_t  interface,
bool  explicitFilename
)

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
prefixFilename prefix to use when creating ascii trace files
nodeidThe node identifier/number of the node on which to enable ascii tracing
interfaceThe device identifier/index of the device on which to enable ascii tracing
explicitFilenameTreat the prefix as an explicit filename if true.

Definition at line 563 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6All() [1/2]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6All ( Ptr< OutputStreamWrapper stream)

Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.

Definition at line 543 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl(), and ns3::NodeContainer::GetGlobal().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6All() [2/2]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6All ( std::string  prefix)

Enable ascii trace output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation.

Parameters
prefixFilename prefix to use for ascii files.

Definition at line 534 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl(), and ns3::NodeContainer::GetGlobal().

+ Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [1/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ipv6InterfaceContainer  c
)
private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use when creating ascii trace files
cIpv6InterfaceContainer of Ipv6 and interface pairs

Definition at line 479 of file internet-trace-helper.cc.

References ns3::Ipv6InterfaceContainer::Begin(), EnableAsciiIpv6Internal(), and ns3::Ipv6InterfaceContainer::End().

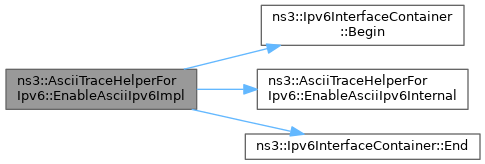

+ Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [2/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
NodeContainer  n
)
private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use when creating ascii trace files
ncontainer of nodes.

Definition at line 512 of file internet-trace-helper.cc.

References ns3::NodeContainer::Begin(), EnableAsciiIpv6Internal(), and ns3::NodeContainer::End().

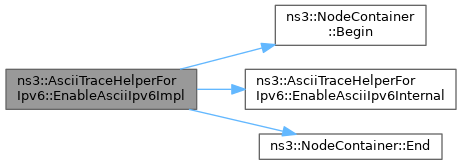

+ Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [3/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ptr< Ipv6 ipv6,
uint32_t  interface,
bool  explicitFilename
)
private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use when creating ascii trace files
ipv6Ptr<Ipv6> on which you want to enable tracing.
interfaceThe device identifier/index of the device on which to enable ascii tracing
explicitFilenameTreat the prefix as an explicit filename if true.

◆ EnableAsciiIpv6Impl() [4/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
std::string  ipv6Name,
uint32_t  interface,
bool  explicitFilename
)
private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use when creating ascii trace files
ipv6NameName of the Ptr<Ipv6> on which you want to enable tracing.
interfaceThe device identifier/index of the device on which to enable ascii tracing
explicitFilenameTreat the prefix as an explicit filename if true.

Definition at line 447 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

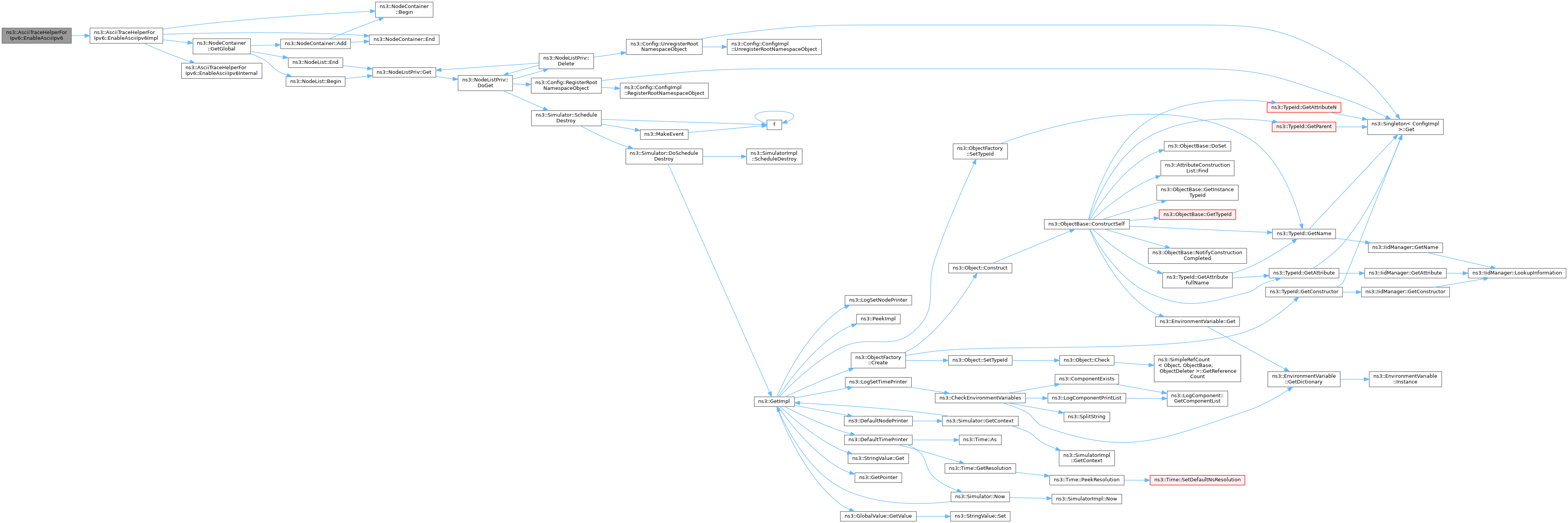

+ Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [5/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
uint32_t  nodeid,
uint32_t  interface,
bool  explicitFilename
)
private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use when creating ascii trace files
nodeidThe node identifier/number of the node on which to enable ascii tracing
interfaceThe device identifier/index of the device on which to enable ascii tracing
explicitFilenameTreat the prefix as an explicit filename if true.

Definition at line 575 of file internet-trace-helper.cc.

References ns3::NodeContainer::Begin(), EnableAsciiIpv6Internal(), ns3::NodeContainer::End(), and ns3::NodeContainer::GetGlobal().

Referenced by EnableAsciiIpv6(), and EnableAsciiIpv6All().

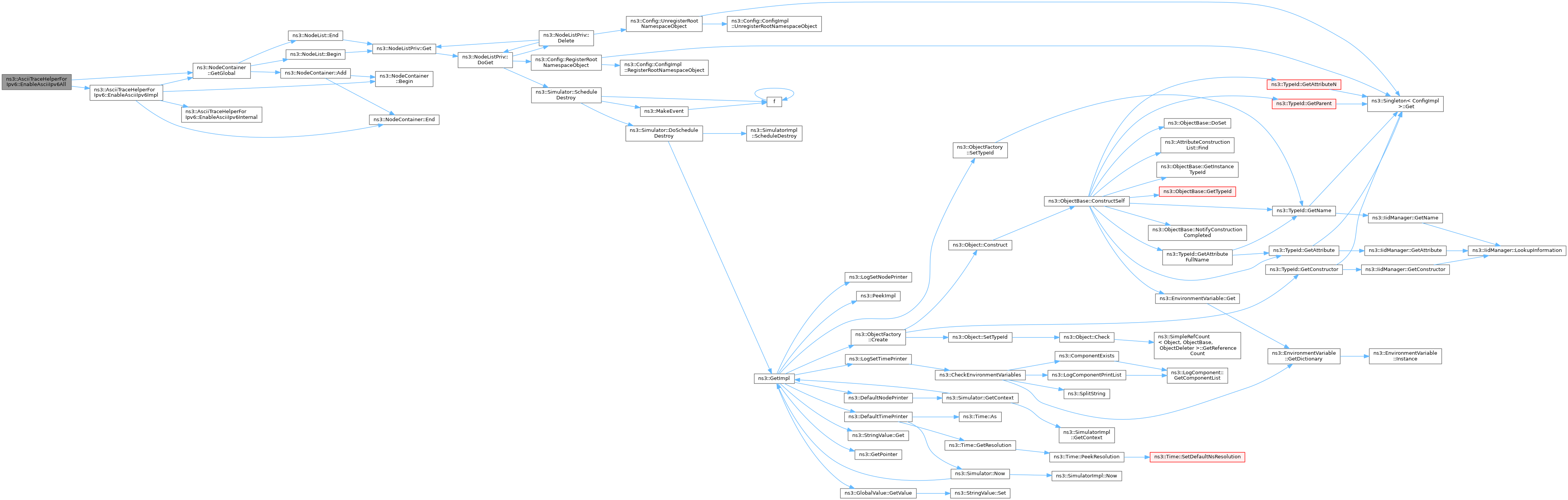

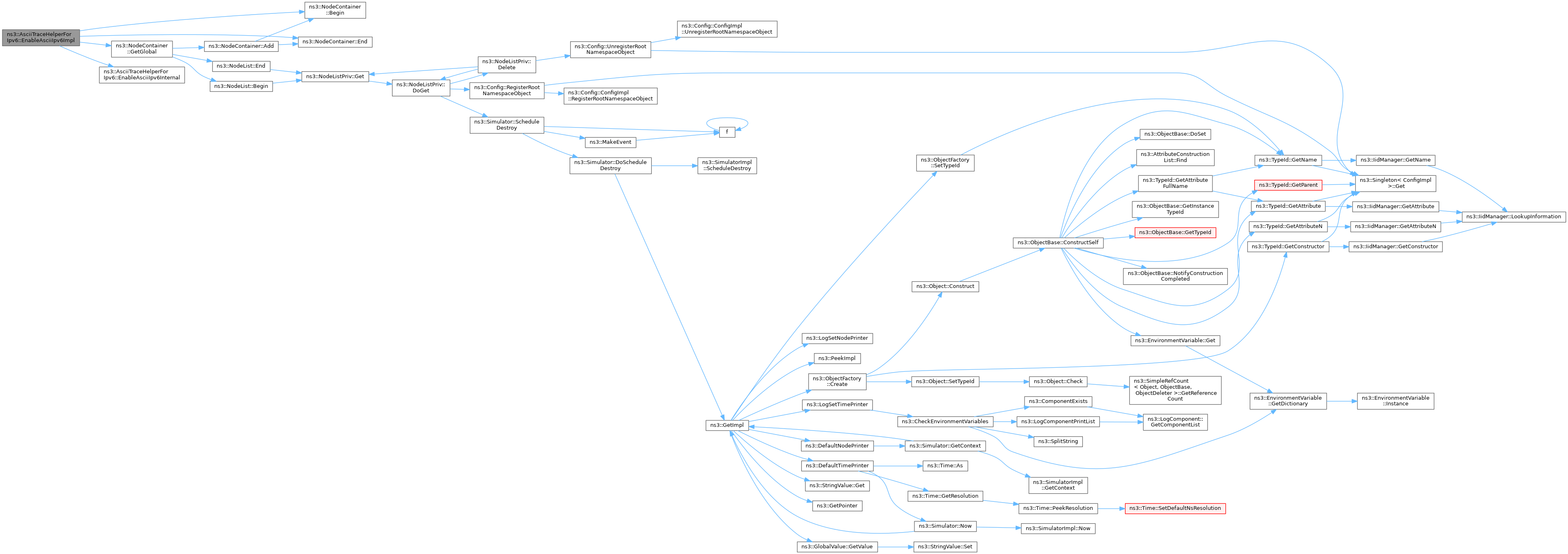

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ EnableAsciiIpv6Internal()

virtual void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Internal ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ptr< Ipv6 ipv6,
uint32_t  interface,
bool  explicitFilename
)
pure virtual

Enable ascii trace output on the indicated Ipv6 and interface pair.

The implementation is expected to use a provided Ptr<OutputStreamWrapper> if it is non-null. If the OutputStreamWrapper is null, the implementation is expected to use a provided prefix to construct a new file name for each net device using the rules described in the class overview.

If the prefix is provided, there will be one file per Ipv6 and interface pair created. In this case, adding a trace context to the file would be pointless, so the helper implementation is expected to TraceConnectWithoutContext.

If the output stream object is provided, there may be many different Ipv6 and interface pairs writing to a single file. In this case, the trace context could be important, so the helper implementation is expected to TraceConnect.

Parameters
streamAn OutputStreamWrapper representing an existing file to use when writing trace data.
prefixFilename prefix to use for ascii trace files.
ipv6Ptr<Ipv6> on which you want to enable tracing.
interfaceThe interface on which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true.

Implemented in ns3::InternetStackHelper.

Referenced by EnableAsciiIpv6(), and EnableAsciiIpv6Impl().

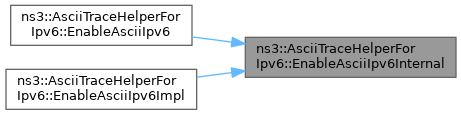

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
