Ipv4PacketFilter is the abstract base class for filters defined for IPv4 packets. More...
#include "ipv4-packet-filter.h"
Public Member Functions | |
Ipv4PacketFilter () | |
~Ipv4PacketFilter () override | |
![]() | |
PacketFilter () | |
~PacketFilter () override | |
int32_t | Classify (Ptr< QueueDiscItem > item) const |
Classify a packet. | |
![]() | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Member Functions | |
bool | CheckProtocol (Ptr< QueueDiscItem > item) const override |
Checks if the filter is able to classify a kind of items. | |
int32_t | DoClassify (Ptr< QueueDiscItem > item) const override=0 |
Classify a packet. | |
Additional Inherited Members | |
![]() | |
static const int | PF_NO_MATCH = -1 |
Standard value used by packet filters to indicate that no match was possible. | |
![]() | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Ipv4PacketFilter is the abstract base class for filters defined for IPv4 packets.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 38 of file ipv4-packet-filter.h.
ns3::Ipv4PacketFilter::Ipv4PacketFilter | ( | ) |
Definition at line 46 of file ipv4-packet-filter.cc.
References NS_LOG_FUNCTION.
|
override |
Definition at line 51 of file ipv4-packet-filter.cc.
References NS_LOG_FUNCTION.
|
overrideprivatevirtual |
Checks if the filter is able to classify a kind of items.
item | an example item to check. |
Implements ns3::PacketFilter.
Reimplemented in Ipv4FqCobaltTestPacketFilter, Ipv4TestPacketFilter, and Ipv4FqPieTestPacketFilter.
Definition at line 57 of file ipv4-packet-filter.cc.
References NS_LOG_FUNCTION.
|
overrideprivatepure virtual |
Classify a packet.
item | the packet to classify. |
Implements ns3::PacketFilter.
Implemented in Ipv4FqCobaltTestPacketFilter, Ipv4TestPacketFilter, and Ipv4FqPieTestPacketFilter.
|

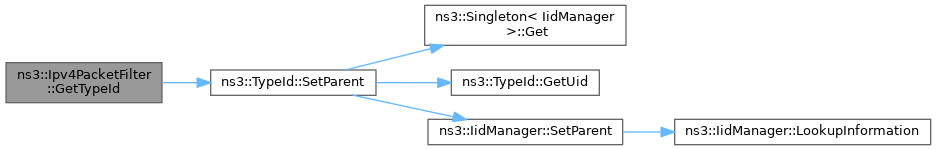

static |
Get the type ID.
Definition at line 39 of file ipv4-packet-filter.cc.
References ns3::TypeId::SetParent().
