Functions
bool	check_formatting (List[str] filenames, bool fix, bool verbose, int n_jobs)
	CHECK FORMATTING.

Tuple[str, bool, List[str]]	check_formatting_file (str filename, str clang_format_path, bool fix, bool verbose)

None	check_style (str path, bool enable_check_formatting, bool enable_check_whitespace, bool enable_check_tabs, bool fix, bool verbose, int n_jobs=1)
	CHECK STYLE.

bool	check_tabs (List[str] filenames, bool fix, bool verbose, int n_jobs)
	CHECK TABS.

Tuple[str, bool, List[str]]	check_tabs_file (str filename, bool fix, bool verbose)

bool	check_trailing_whitespace (List[str] filenames, bool fix, bool verbose, int n_jobs)
	CHECK TRAILING WHITESPACE.

Tuple[str, bool, List[str]]	check_trailing_whitespace_file (str filename, bool fix, bool verbose)

str	find_clang_format_path ()

Tuple[List[str], List[str], List[str]]	find_files_to_check_style (str path)

bool	skip_directory (str dirpath)
	AUXILIARY FUNCTIONS.

bool	skip_file_formatting (str path)

bool	skip_file_tabs (str path)

bool	skip_file_whitespace (str path)

Variables
	action

argparse	args = parser.parse_args()

str	CLANG_FORMAT_GUARD_OFF = '// clang-format off'

str	CLANG_FORMAT_GUARD_ON = '// clang-format on'

list	CLANG_FORMAT_VERSIONS
	PARAMETERS.

	default

list	DIRECTORIES_TO_SKIP

	enable_check_formatting

	enable_check_tabs

	enable_check_whitespace

list	FILE_EXTENSIONS_TO_CHECK_FORMATTING

list	FILE_EXTENSIONS_TO_CHECK_TABS

list	FILE_EXTENSIONS_TO_CHECK_WHITESPACE

list	FILES_TO_CHECK_WHITESPACE

list	FILES_TO_SKIP

	fix

	help

	int

	n_jobs

argparse	parser
	MAIN.

	path

int	TAB_SIZE = 4

	try :

	type

	verbose

Function Documentation

◆ check_formatting()

bool check-style-clang-format.check_formatting	(	List[str]	filenames,
		bool	fix,
		bool	verbose,
		int	n_jobs
	)

CHECK FORMATTING.

Check / fix the coding style of a list of files with clang-format.

@param filenames List of filenames to be checked.
@param fix Whether to fix the formatting of the file (True) or
           just check if the file is well-formatted (False).
@param verbose Show the lines that are not well-formatted.
@param n_jobs Number of parallel jobs.
@return True if all files are well formatted after the check process.
        False if there are non-formatted files after the check process.

Definition at line 371 of file check-style-clang-format.py.

References find_clang_format_path().

Referenced by check_style().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_formatting_file()

Tuple[str, bool, List[str]] check-style-clang-format.check_formatting_file	(	str	filename,
		str	clang_format_path,
		bool	fix,
		bool	verbose
	)

Check / fix the coding style of a file with clang-format.

@param filename Name of the file to be checked.
@param clang_format_path Path to clang-format.
@param fix Whether to fix the style of the file (True) or
           just check if the file is well-formatted (False).
@param verbose Show the lines that are not well-formatted.
@return Tuple [Filename, Whether the file is well-formatted, Verbose information].

Definition at line 432 of file check-style-clang-format.py.

◆ check_style()

None check-style-clang-format.check_style	(	str	path,
		bool	enable_check_formatting,
		bool	enable_check_whitespace,
		bool	enable_check_tabs,
		bool	fix,
		bool	verbose,
		int	n_jobs = `1`
	)

CHECK STYLE.

Check / fix the coding style of a list of files, including formatting and
trailing whitespace.

@param path Path to the files.
@param fix Whether to fix the style of the file (True) or
           just check if the file is well-formatted (False).
@param enable_check_formatting Whether to enable code formatting checking.
@param enable_check_whitespace Whether to enable trailing whitespace checking.
@param enable_check_tabs Whether to enable tabs checking.
@param verbose Show the lines that are not well-formatted.
@param n_jobs Number of parallel jobs.

Definition at line 300 of file check-style-clang-format.py.

References check_formatting(), check_tabs(), check_trailing_whitespace(), and find_files_to_check_style().

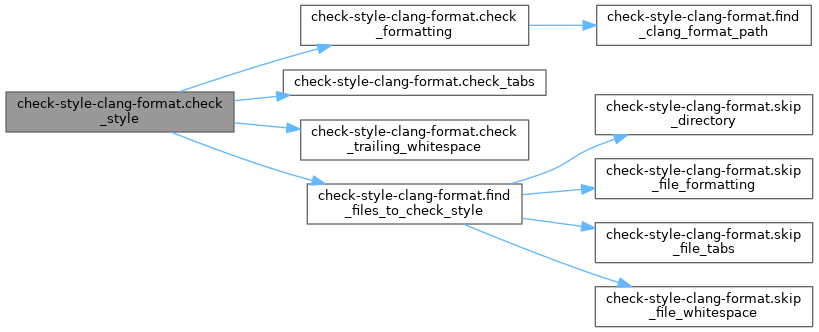

Here is the call graph for this function:

◆ check_tabs()

bool check-style-clang-format.check_tabs	(	List[str]	filenames,
		bool	fix,
		bool	verbose,
		int	n_jobs
	)

CHECK TABS.

Check / fix tabs in a list of files.

@param filename Name of the file to be checked.
@param fix Whether to fix the file (True) or just check if it has tabs (False).
@param verbose Show the lines that are not well-formatted.
@param n_jobs Number of parallel jobs.
@return True if no files have tabs after the check process.
        False if there are tabs after the check process.

Definition at line 602 of file check-style-clang-format.py.

Referenced by check_style().

Here is the caller graph for this function:

◆ check_tabs_file()

Tuple[str, bool, List[str]] check-style-clang-format.check_tabs_file	(	str	filename,
		bool	fix,
		bool	verbose
	)

Check / fix tabs in a file.

@param filename Name of the file to be checked.
@param fix Whether to fix the file (True) or just check if it has tabs (False).
@param verbose Show the lines that are not well-formatted.
@return Tuple [Filename, Whether the file has tabs, Verbose information].

Definition at line 662 of file check-style-clang-format.py.

◆ check_trailing_whitespace()

bool check-style-clang-format.check_trailing_whitespace	(	List[str]	filenames,
		bool	fix,
		bool	verbose,
		int	n_jobs
	)

CHECK TRAILING WHITESPACE.

Check / fix trailing whitespace in a list of files.

@param filename Name of the file to be checked.
@param fix Whether to fix the file (True) or
           just check if it has trailing whitespace (False).
@param verbose Show the lines that are not well-formatted.
@param n_jobs Number of parallel jobs.
@return True if no files have trailing whitespace after the check process.
        False if there are trailing whitespace after the check process.

Definition at line 491 of file check-style-clang-format.py.

Referenced by check_style().

Here is the caller graph for this function:

◆ check_trailing_whitespace_file()

Tuple[str, bool, List[str]] check-style-clang-format.check_trailing_whitespace_file	(	str	filename,
		bool	fix,
		bool	verbose
	)

Check / fix trailing whitespace in a file.

@param filename Name of the file to be checked.
@param fix Whether to fix the file (True) or
           just check if it has trailing whitespace (False).
@param verbose Show the lines that are not well-formatted.
@return Tuple [Filename, Whether the file has trailing whitespace, Verbose information].

Definition at line 552 of file check-style-clang-format.py.

◆ find_clang_format_path()

str check-style-clang-format.find_clang_format_path ( )

Find the path to one of the supported versions of clang-format.
If no supported version of clang-format is found, raise an exception.

@return Path to clang-format.

Definition at line 258 of file check-style-clang-format.py.

References int.

Referenced by check_formatting().

Here is the caller graph for this function:

◆ find_files_to_check_style()

Tuple[List[str], List[str], List[str]] check-style-clang-format.find_files_to_check_style ( str path )

Find all files to be checked in a given path.

@param path Path to check.
@return Tuple [List of files to check formatting,
               List of files to check trailing whitespace,
               List of files to check tabs].

Definition at line 203 of file check-style-clang-format.py.

References skip_directory(), skip_file_formatting(), skip_file_tabs(), and skip_file_whitespace().

Referenced by check_style().

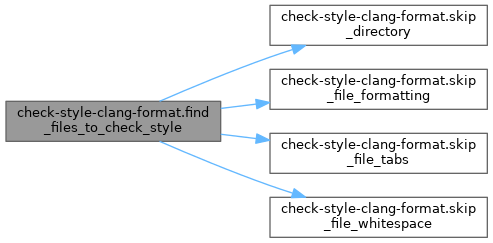

Here is the call graph for this function:

Here is the caller graph for this function:

◆ skip_directory()

bool check-style-clang-format.skip_directory ( str dirpath )

AUXILIARY FUNCTIONS.

Check if a directory should be skipped.

@param dirpath Directory path.
@return Whether the directory should be skipped or not.

Definition at line 134 of file check-style-clang-format.py.

Referenced by find_files_to_check_style().

Here is the caller graph for this function:

◆ skip_file_formatting()

bool check-style-clang-format.skip_file_formatting ( str path )

Check if a file should be skipped from formatting analysis.

@param path Path to the file.
@return Whether the file should be skipped or not.

Definition at line 148 of file check-style-clang-format.py.

Referenced by find_files_to_check_style().

Here is the caller graph for this function:

◆ skip_file_tabs()

bool check-style-clang-format.skip_file_tabs ( str path )

Check if a file should be skipped from tabs analysis.

@param path Path to the file.
@return Whether the file should be skipped or not.

Definition at line 185 of file check-style-clang-format.py.

Referenced by find_files_to_check_style().

Here is the caller graph for this function:

◆ skip_file_whitespace()

bool check-style-clang-format.skip_file_whitespace ( str path )

Check if a file should be skipped from trailing whitespace analysis.

@param path Path to the file.
@return Whether the file should be skipped or not.

Definition at line 166 of file check-style-clang-format.py.

Referenced by find_files_to_check_style().

Here is the caller graph for this function:

Variable Documentation

◆ action

check-style-clang-format.action

Definition at line 738 of file check-style-clang-format.py.

◆ args

argparse check-style-clang-format.args = parser.parse_args()

Definition at line 759 of file check-style-clang-format.py.

◆ CLANG_FORMAT_GUARD_OFF

str check-style-clang-format.CLANG_FORMAT_GUARD_OFF = '// clang-format off'

Definition at line 60 of file check-style-clang-format.py.

◆ CLANG_FORMAT_GUARD_ON

str check-style-clang-format.CLANG_FORMAT_GUARD_ON = '// clang-format on'

Definition at line 59 of file check-style-clang-format.py.

◆ CLANG_FORMAT_VERSIONS

list check-style-clang-format.CLANG_FORMAT_VERSIONS

Initial value:

PARAMETERS.

Definition at line 53 of file check-style-clang-format.py.

◆ default

check-style-clang-format.default

Definition at line 756 of file check-style-clang-format.py.

◆ DIRECTORIES_TO_SKIP

list check-style-clang-format.DIRECTORIES_TO_SKIP

Initial value:

=  [
    '__pycache__',
    '.vscode',
    'bindings',
    'build',
    'cmake-cache',
    'testpy-output',
]

Definition at line 62 of file check-style-clang-format.py.

◆ enable_check_formatting

check-style-clang-format.enable_check_formatting

Definition at line 764 of file check-style-clang-format.py.

◆ enable_check_tabs

check-style-clang-format.enable_check_tabs

Definition at line 766 of file check-style-clang-format.py.

◆ enable_check_whitespace

check-style-clang-format.enable_check_whitespace

Definition at line 765 of file check-style-clang-format.py.

◆ FILE_EXTENSIONS_TO_CHECK_FORMATTING

list check-style-clang-format.FILE_EXTENSIONS_TO_CHECK_FORMATTING

Initial value:

=  [
    '.c',
    '.cc',
    '.h',
]

Definition at line 77 of file check-style-clang-format.py.

◆ FILE_EXTENSIONS_TO_CHECK_TABS

list check-style-clang-format.FILE_EXTENSIONS_TO_CHECK_TABS

Initial value:

=  [
    '.c',
    '.cc',
    '.h',
    '.md',
    '.py',
    '.rst',
    '.sh',
    '.yml',
]

Definition at line 118 of file check-style-clang-format.py.

◆ FILE_EXTENSIONS_TO_CHECK_WHITESPACE

list check-style-clang-format.FILE_EXTENSIONS_TO_CHECK_WHITESPACE

Initial value:

=  [
    '.c',
    '.cc',
    '.click',
    '.cmake',
    '.conf',
    '.css',
    '.dot',
    '.gnuplot',
    '.gp',
    '.h',
    '.html',
    '.js',
    '.json',
    '.m',
    '.md',
    '.mob',
    '.ns_params',
    '.ns_movements',
    '.params',
    '.pl',
    '.plt',
    '.py',
    '.rst',
    '.seqdiag',
    '.sh',
    '.txt',
    '.yml',
]

Definition at line 83 of file check-style-clang-format.py.

◆ FILES_TO_CHECK_WHITESPACE

list check-style-clang-format.FILES_TO_CHECK_WHITESPACE

Initial value:

=  [
    'Makefile',
    'ns3',
]

Definition at line 113 of file check-style-clang-format.py.

◆ FILES_TO_SKIP

list check-style-clang-format.FILES_TO_SKIP

Initial value:

=  [
    'valgrind.h',
]

Definition at line 73 of file check-style-clang-format.py.

◆ fix

check-style-clang-format.fix

Definition at line 767 of file check-style-clang-format.py.

◆ help

check-style-clang-format.help

Definition at line 739 of file check-style-clang-format.py.

◆ int

check-style-clang-format.int

Definition at line 756 of file check-style-clang-format.py.

Referenced by find_clang_format_path().

◆ n_jobs

check-style-clang-format.n_jobs

Definition at line 769 of file check-style-clang-format.py.

◆ parser

argparse check-style-clang-format.parser

Initial value:

=  argparse.ArgumentParser(
        description='Check and apply the ns-3 coding style to all files in a given PATH. '
        'The script checks the formatting of the file with clang-format. '
        'Additionally, it checks the presence of trailing whitespace and tabs. '
        'Formatting and tabs checks respect clang-format guards. '
        'When used in "check mode" (default), the script checks if all files are well '
        'formatted and do not have trailing whitespace nor tabs. '
        'If it detects non-formatted files, they will be printed and this process exits with a '
        'non-zero code. When used in "fix mode", this script automatically fixes the files.')

MAIN.

Definition at line 728 of file check-style-clang-format.py.

◆ path

check-style-clang-format.path

Definition at line 763 of file check-style-clang-format.py.

◆ TAB_SIZE

int check-style-clang-format.TAB_SIZE = 4

Definition at line 128 of file check-style-clang-format.py.

◆ try

check-style-clang-format.try :

Definition at line 761 of file check-style-clang-format.py.

◆ type

check-style-clang-format.type

Definition at line 738 of file check-style-clang-format.py.

◆ verbose

check-style-clang-format.verbose

Definition at line 768 of file check-style-clang-format.py.

Functions

Variables

Function Documentation

◆ check_formatting()

◆ check_formatting_file()

◆ check_style()

◆ check_tabs()

◆ check_tabs_file()

◆ check_trailing_whitespace()

◆ check_trailing_whitespace_file()

◆ find_clang_format_path()

◆ find_files_to_check_style()

◆ skip_directory()

◆ skip_file_formatting()

◆ skip_file_tabs()

◆ skip_file_whitespace()

Variable Documentation

◆ action

◆ args

◆ CLANG_FORMAT_GUARD_OFF

◆ CLANG_FORMAT_GUARD_ON

◆ CLANG_FORMAT_VERSIONS

◆ default

◆ DIRECTORIES_TO_SKIP

◆ enable_check_formatting

◆ enable_check_tabs

◆ enable_check_whitespace

◆ FILE_EXTENSIONS_TO_CHECK_FORMATTING

◆ FILE_EXTENSIONS_TO_CHECK_TABS

◆ FILE_EXTENSIONS_TO_CHECK_WHITESPACE

◆ FILES_TO_CHECK_WHITESPACE

◆ FILES_TO_SKIP

◆ fix

◆ help

◆ int

◆ n_jobs

◆ parser

◆ path

◆ TAB_SIZE

◆ try

◆ type

◆ verbose
