ns3::LteMacSapUser Class Referenceabstract

Service Access Point (SAP) offered by the MAC to the RLC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1. More...

#include "lte-mac-sap.h"

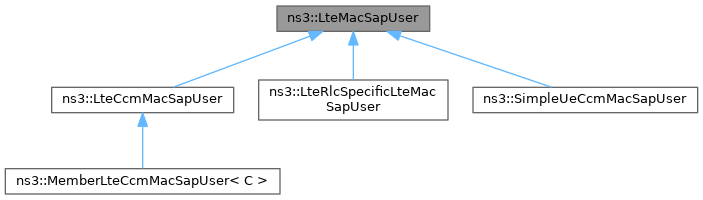

+ Inheritance diagram for ns3::LteMacSapUser:

Classes

struct  ReceivePduParameters
 Parameters for LteMacSapUser::ReceivePdu. More...

struct  TxOpportunityParameters
 Parameters for LteMacSapUser::NotifyTxOpportunity. More...


Public Member Functions

virtual ~LteMacSapUser ()

virtual void NotifyHarqDeliveryFailure ()=0
 Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed.

virtual void NotifyTxOpportunity (TxOpportunityParameters params)=0
 Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance.

virtual void ReceivePdu (ReceivePduParameters params)=0
 Called by the MAC to notify the RLC of the reception of a new PDU.


Detailed Description

Service Access Point (SAP) offered by the MAC to the RLC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1.

This is the MAC SAP User, i.e., the part of the SAP that contains the RLC methods called by the MAC

Definition at line 95 of file lte-mac-sap.h.

Constructor & Destructor Documentation

◆ ~LteMacSapUser()

ns3::LteMacSapUser::~LteMacSapUser ( )
virtual

Definition at line 29 of file lte-mac-sap.cc.

Member Function Documentation

◆ NotifyHarqDeliveryFailure()

virtual void ns3::LteMacSapUser::NotifyHarqDeliveryFailure ( )
pure virtual

Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed.

Todo:
eventual parameters to be defined

Implemented in ns3::MemberLteCcmMacSapUser< C >, ns3::LteRlcSpecificLteMacSapUser, and ns3::SimpleUeCcmMacSapUser.

◆ NotifyTxOpportunity()

virtual void ns3::LteMacSapUser::NotifyTxOpportunity ( TxOpportunityParameters  params)
pure virtual

Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance.

Parameters
paramsthe TxOpportunityParameters

Implemented in ns3::LteRlcSpecificLteMacSapUser, ns3::MemberLteCcmMacSapUser< C >, and ns3::SimpleUeCcmMacSapUser.

Referenced by ns3::LteTestMac::DoReportBufferStatus(), and ns3::LteTestMac::SendTxOpportunity().

+ Here is the caller graph for this function:

◆ ReceivePdu()

virtual void ns3::LteMacSapUser::ReceivePdu ( ReceivePduParameters  params)
pure virtual

Called by the MAC to notify the RLC of the reception of a new PDU.

Parameters
paramsthe ReceivePduParameters

Implemented in ns3::LteRlcSpecificLteMacSapUser, ns3::MemberLteCcmMacSapUser< C >, and ns3::SimpleUeCcmMacSapUser.

Referenced by ns3::LteTestMac::DoTransmitPdu(), and ns3::LteTestMac::Receive().

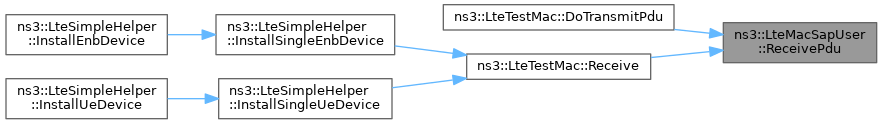

+ Here is the caller graph for this function:

The documentation for this class was generated from the following files:
