Implements the SCHED SAP and CSCHED SAP for a Time Domain Token Bank Fair Queue scheduler. More...
#include "tdtbfq-ff-mac-scheduler.h"
Public Member Functions | |
TdTbfqFfMacScheduler () | |
Constructor. | |
~TdTbfqFfMacScheduler () override | |
Destructor. | |
void | DoDispose () override |
Destructor implementation. | |
FfMacCschedSapProvider * | GetFfMacCschedSapProvider () override |
FfMacSchedSapProvider * | GetFfMacSchedSapProvider () override |
LteFfrSapUser * | GetLteFfrSapUser () override |
void | SetFfMacCschedSapUser (FfMacCschedSapUser *s) override |
set the user part of the FfMacCschedSap that this Scheduler will interact with. | |
void | SetFfMacSchedSapUser (FfMacSchedSapUser *s) override |
set the user part of the FfMacSchedSap that this Scheduler will interact with. | |
void | SetLteFfrSapProvider (LteFfrSapProvider *s) override |
Set the Provider part of the LteFfrSap that this Scheduler will interact with. | |
void | TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode) |
Transmission mde configuration update function. | |
Public Member Functions inherited from ns3::FfMacScheduler | |
FfMacScheduler () | |
constructor | |
~FfMacScheduler () override | |
destructor | |
void | DoDispose () override |
Destructor implementation. | |
virtual FfMacCschedSapProvider * | GetFfMacCschedSapProvider ()=0 |
virtual FfMacSchedSapProvider * | GetFfMacSchedSapProvider ()=0 |
virtual LteFfrSapUser * | GetLteFfrSapUser ()=0 |
virtual void | SetFfMacCschedSapUser (FfMacCschedSapUser *s)=0 |
set the user part of the FfMacCschedSap that this Scheduler will interact with. | |
virtual void | SetFfMacSchedSapUser (FfMacSchedSapUser *s)=0 |
set the user part of the FfMacSchedSap that this Scheduler will interact with. | |
virtual void | SetLteFfrSapProvider (LteFfrSapProvider *s)=0 |
Set the Provider part of the LteFfrSap that this Scheduler will interact with. | |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::FfMacScheduler | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Private Member Functions | |
void | DoCschedCellConfigReq (const FfMacCschedSapProvider::CschedCellConfigReqParameters ¶ms) |
CSched cell config request. | |
void | DoCschedLcConfigReq (const FfMacCschedSapProvider::CschedLcConfigReqParameters ¶ms) |
CSched LC config request. | |
void | DoCschedLcReleaseReq (const FfMacCschedSapProvider::CschedLcReleaseReqParameters ¶ms) |
CSched LC release request. | |
void | DoCschedUeConfigReq (const FfMacCschedSapProvider::CschedUeConfigReqParameters ¶ms) |
CSched UE config request. | |
void | DoCschedUeReleaseReq (const FfMacCschedSapProvider::CschedUeReleaseReqParameters ¶ms) |
CSched UE release request. | |
void | DoSchedDlCqiInfoReq (const FfMacSchedSapProvider::SchedDlCqiInfoReqParameters ¶ms) |
Sched DL CQI info request. | |
void | DoSchedDlMacBufferReq (const FfMacSchedSapProvider::SchedDlMacBufferReqParameters ¶ms) |
Sched DL MAC buffer request. | |
void | DoSchedDlPagingBufferReq (const FfMacSchedSapProvider::SchedDlPagingBufferReqParameters ¶ms) |
Sched DL paging buffer request. | |
void | DoSchedDlRachInfoReq (const FfMacSchedSapProvider::SchedDlRachInfoReqParameters ¶ms) |
Sched DL RACH info request. | |
void | DoSchedDlRlcBufferReq (const FfMacSchedSapProvider::SchedDlRlcBufferReqParameters ¶ms) |
Sched DL RLC buffer request. | |
void | DoSchedDlTriggerReq (const FfMacSchedSapProvider::SchedDlTriggerReqParameters ¶ms) |
Sched DL trigger request. | |
void | DoSchedUlCqiInfoReq (const FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ¶ms) |
Sched UL CQI info request. | |
void | DoSchedUlMacCtrlInfoReq (const FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters ¶ms) |
Sched UL MAC control info request. | |
void | DoSchedUlNoiseInterferenceReq (const FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters ¶ms) |
Sched UL noise interference request. | |
void | DoSchedUlSrInfoReq (const FfMacSchedSapProvider::SchedUlSrInfoReqParameters ¶ms) |
Sched UL SR info request. | |
void | DoSchedUlTriggerReq (const FfMacSchedSapProvider::SchedUlTriggerReqParameters ¶ms) |
Sched UL trigger request. | |
double | EstimateUlSinr (uint16_t rnti, uint16_t rb) |
Estimate UL SINR function. | |
int | GetRbgSize (int dlbandwidth) |
Get RBG size. | |
bool | HarqProcessAvailability (uint16_t rnti) |
Return the availability of free process for the RNTI specified. | |
unsigned int | LcActivePerFlow (uint16_t rnti) |
LC active flow size. | |
void | RefreshDlCqiMaps () |
Refresh DL CQI maps function. | |
void | RefreshHarqProcesses () |
Refresh HARQ processes according to the timers. | |
void | RefreshUlCqiMaps () |
Refresh UL CQI maps function. | |
void | UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size) |
Update DL RLC buffer info function. | |
uint8_t | UpdateHarqProcessId (uint16_t rnti) |
Update and return a new process Id for the RNTI specified. | |
void | UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size) |
Update UL RLC buffer info function. | |
Private Attributes | |
uint64_t | bankSize |
the number of bytes in token bank | |
std::map< uint16_t, SbMeasResult_s > | m_a30CqiRxed |
Map of UE's DL CQI A30 received. | |
std::map< uint16_t, uint32_t > | m_a30CqiTimers |
Map of UE's timers on DL CQI A30 received. | |
std::map< uint16_t, std::vector< uint16_t > > | m_allocationMaps |
Map of previous allocated UE per RBG (used to retrieve info from UL-CQI) | |
Ptr< LteAmc > | m_amc |
AMC. | |
std::map< uint16_t, uint32_t > | m_ceBsrRxed |
Map of UE's buffer status reports received. | |
uint32_t | m_cqiTimersThreshold |
uint32_t | m_creditableThreshold |
threshold of flow credit | |
uint32_t | m_creditLimit |
flow credit limit (byte) | |
FfMacCschedSapProvider::CschedCellConfigReqParameters | m_cschedCellConfig |
CSched cell config. | |
FfMacCschedSapProvider * | m_cschedSapProvider |
CSched SAP provider. | |
FfMacCschedSapUser * | m_cschedSapUser |
CSched SAP user. | |
int | m_debtLimit |
flow debt limit (byte) | |
std::map< uint16_t, uint8_t > | m_dlHarqCurrentProcessId |
DL HARQ current process ID. | |
std::map< uint16_t, DlHarqProcessesDciBuffer_t > | m_dlHarqProcessesDciBuffer |
DL HARQ process DCI buffer. | |
std::map< uint16_t, DlHarqRlcPduListBuffer_t > | m_dlHarqProcessesRlcPduListBuffer |
DL HARQ process RLC PDU list buffer. | |
std::map< uint16_t, DlHarqProcessesStatus_t > | m_dlHarqProcessesStatus |
DL HARQ process status. | |
std::map< uint16_t, DlHarqProcessesTimer_t > | m_dlHarqProcessesTimer |
DL HARQ process timer. | |
std::vector< DlInfoListElement_s > | m_dlInfoListBuffered |
HARQ retx buffered. | |
LteFfrSapProvider * | m_ffrSapProvider |
FFR SAP provider. | |
LteFfrSapUser * | m_ffrSapUser |
FFR SAP user. | |
std::map< uint16_t, tdtbfqsFlowPerf_t > | m_flowStatsDl |
Map of UE statistics (per RNTI basis) in downlink. | |
std::map< uint16_t, tdtbfqsFlowPerf_t > | m_flowStatsUl |
Map of UE statistics (per RNTI basis) | |
bool | m_harqOn |
m_harqOn when false inhibit the HARQ mechanisms (by default active) | |
uint16_t | m_nextRntiUl |
RNTI of the next user to be served next scheduling in UL. | |
std::map< uint16_t, uint8_t > | m_p10CqiRxed |
Map of UE's DL CQI P01 received. | |
std::map< uint16_t, uint32_t > | m_p10CqiTimers |
Map of UE's timers on DL CQI P01 received. | |
std::vector< uint16_t > | m_rachAllocationMap |
RACH allocation map. | |
std::vector< RachListElement_s > | m_rachList |
RACH list. | |
std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters > | m_rlcBufferReq |
Vectors of UE's LC info. | |
FfMacSchedSapProvider * | m_schedSapProvider |
Sched SAP provider. | |
FfMacSchedSapUser * | m_schedSapUser |
A=Sched SAP user. | |
uint32_t | m_tokenPoolSize |
maximum size of token pool (byte) | |
std::map< uint16_t, std::vector< double > > | m_ueCqi |
Map of UEs' UL-CQI per RBG. | |
std::map< uint16_t, uint32_t > | m_ueCqiTimers |
Map of UEs' timers on UL-CQI per RBG. | |
std::map< uint16_t, uint8_t > | m_uesTxMode |
txMode of the UEs | |
uint8_t | m_ulGrantMcs |
MCS for UL grant (default 0) | |
std::map< uint16_t, uint8_t > | m_ulHarqCurrentProcessId |
UL HARQ current process ID. | |
std::map< uint16_t, UlHarqProcessesDciBuffer_t > | m_ulHarqProcessesDciBuffer |
UL HARQ process DCI buffer. | |
std::map< uint16_t, UlHarqProcessesStatus_t > | m_ulHarqProcessesStatus |
UL HARQ process status. | |
Friends | |
class | MemberCschedSapProvider< TdTbfqFfMacScheduler > |
allow MemberCschedSapProvider<TdTbfqFfMacScheduler> class friend access | |
class | MemberSchedSapProvider< TdTbfqFfMacScheduler > |
allow MemberSchedSapProvider<TdTbfqFfMacScheduler> class friend access | |
Additional Inherited Members | |
Public Types inherited from ns3::FfMacScheduler | |
enum | UlCqiFilter_t { SRS_UL_CQI , PUSCH_UL_CQI } |
The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More... | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Protected Attributes inherited from ns3::FfMacScheduler | |
UlCqiFilter_t | m_ulCqiFilter |
UL CQI filter. | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |

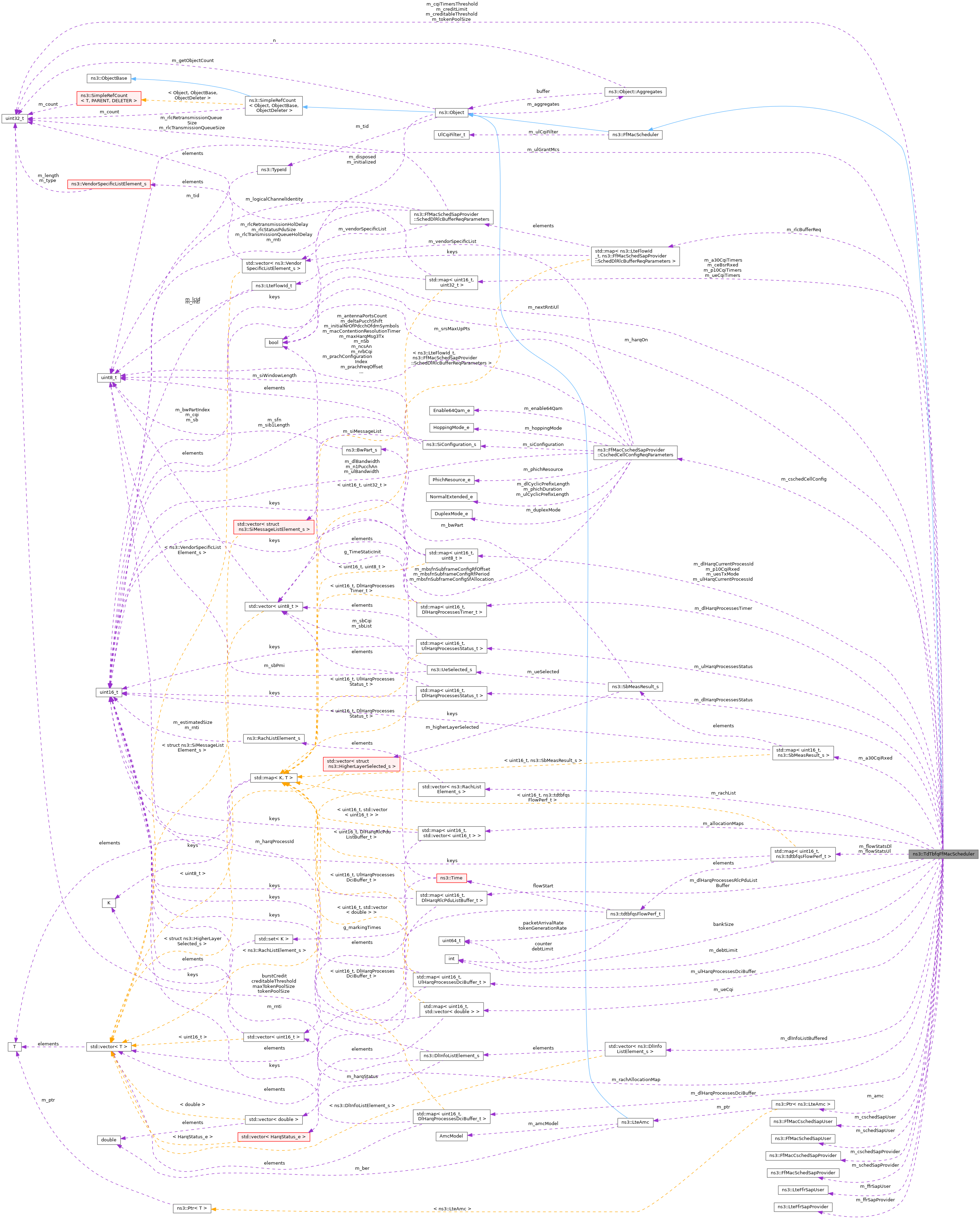

Implements the SCHED SAP and CSCHED SAP for a Time Domain Token Bank Fair Queue scheduler.
This class implements the interface defined by the FfMacScheduler abstract class
ns3::TdTbfqFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:
SRS_UL_CQI|PUSCH_UL_CQI
No TraceSources are defined for this type.
Size of this type is 1368 bytes (on a 64-bit architecture).
Definition at line 64 of file tdtbfq-ff-mac-scheduler.h.
ns3::TdTbfqFfMacScheduler::TdTbfqFfMacScheduler | ( | ) |
Constructor.
Creates the MAC Scheduler interface implementation
Definition at line 51 of file tdtbfq-ff-mac-scheduler.cc.
References m_amc, m_cschedSapProvider, m_ffrSapProvider, m_ffrSapUser, m_schedSapProvider, MemberCschedSapProvider< TdTbfqFfMacScheduler >, and MemberSchedSapProvider< TdTbfqFfMacScheduler >.
|
override |
|
private |
CSched cell config request.
params | FfMacCschedSapProvider::CschedCellConfigReqParameters |
Definition at line 169 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.
|
private |
CSched LC config request.
params | FfMacCschedSapProvider::CschedLcConfigReqParameters |
Definition at line 228 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::tdtbfqsFlowPerf_t::burstCredit, ns3::tdtbfqsFlowPerf_t::counter, ns3::tdtbfqsFlowPerf_t::creditableThreshold, ns3::tdtbfqsFlowPerf_t::debtLimit, ns3::tdtbfqsFlowPerf_t::flowStart, m_creditableThreshold, m_creditLimit, m_debtLimit, m_flowStatsDl, m_flowStatsUl, m_tokenPoolSize, ns3::tdtbfqsFlowPerf_t::maxTokenPoolSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::tdtbfqsFlowPerf_t::packetArrivalRate, ns3::tdtbfqsFlowPerf_t::tokenGenerationRate, and ns3::tdtbfqsFlowPerf_t::tokenPoolSize.
|
private |
CSched LC release request.
params | FfMacCschedSapProvider::CschedLcReleaseReqParameters |
Definition at line 284 of file tdtbfq-ff-mac-scheduler.cc.
References m_rlcBufferReq, and NS_LOG_FUNCTION.
|
private |
CSched UE config request.
params | FfMacCschedSapProvider::CschedUeConfigReqParameters |
Definition at line 182 of file tdtbfq-ff-mac-scheduler.cc.
References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
private |
CSched UE release request.
params | FfMacCschedSapProvider::CschedUeReleaseReqParameters |
Definition at line 311 of file tdtbfq-ff-mac-scheduler.cc.
References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
overridevirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::FfMacScheduler.
Definition at line 70 of file tdtbfq-ff-mac-scheduler.cc.
References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_ffrSapUser, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.
|
private |
Sched DL CQI info request.
params | FfMacSchedSapProvider::SchedDlCqiInfoReqParameters |
Definition at line 1335 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_ffrSapProvider, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::CqiListElement_s::P10, and ns3::LteFfrSapProvider::ReportDlCqiInfo().
|
private |
Sched DL MAC buffer request.
params | FfMacSchedSapProvider::SchedDlMacBufferReqParameters |
Definition at line 384 of file tdtbfq-ff-mac-scheduler.cc.
References NS_FATAL_ERROR, and NS_LOG_FUNCTION.
|
private |
Sched DL paging buffer request.
params | FfMacSchedSapProvider::SchedDlPagingBufferReqParameters |
Definition at line 376 of file tdtbfq-ff-mac-scheduler.cc.
References NS_FATAL_ERROR, and NS_LOG_FUNCTION.
|
private |
Sched DL RACH info request.
params | FfMacSchedSapProvider::SchedDlRachInfoReqParameters |
Definition at line 1326 of file tdtbfq-ff-mac-scheduler.cc.
References m_rachList, and NS_LOG_FUNCTION.
|
private |
Sched DL RLC buffer request.
params | FfMacSchedSapProvider::SchedDlRlcBufferReqParameters |
Definition at line 351 of file tdtbfq-ff-mac-scheduler.cc.
References m_rlcBufferReq, and NS_LOG_FUNCTION.
|
private |
Sched DL trigger request.
params | FfMacSchedSapProvider::SchedDlTriggerReqParameters |

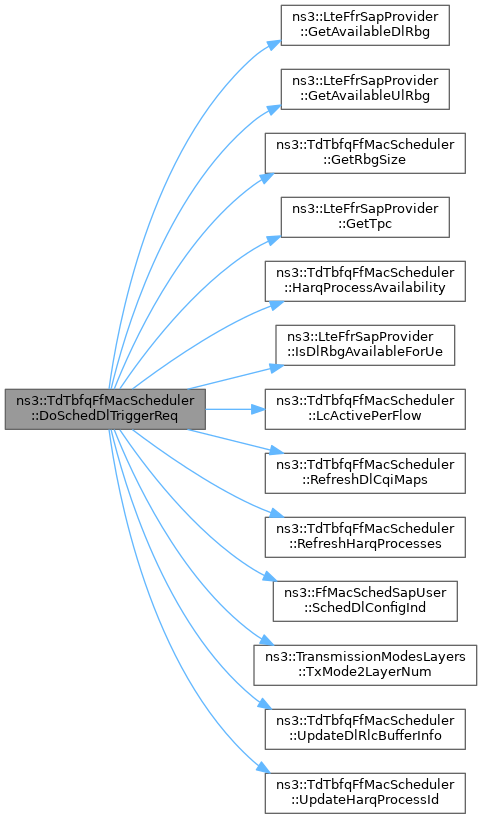

Definition at line 526 of file tdtbfq-ff-mac-scheduler.cc.
References bankSize, ns3::LteFfrSapProvider::GetAvailableDlRbg(), ns3::LteFfrSapProvider::GetAvailableUlRbg(), GetRbgSize(), ns3::LteFfrSapProvider::GetTpc(), ns3::HARQ_PROC_NUM, HarqProcessAvailability(), ns3::LteFfrSapProvider::IsDlRbgAvailableForUe(), LcActivePerFlow(), m_a30CqiRxed, ns3::UlDciListElement_s::m_aggrLevel, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, ns3::UlDciListElement_s::m_cceIndex, ns3::UlDciListElement_s::m_cqiRequest, ns3::UlGrant_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_ffrSapProvider, m_flowStatsDl, ns3::UlDciListElement_s::m_freqHopping, ns3::BuildRarListElement_s::m_grant, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::UlDciListElement_s::m_hopping, ns3::UlGrant_s::m_hopping, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlGrant_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::DlDciListElement_s::m_ndi, ns3::UlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::UlDciListElement_s::m_rbLen, ns3::UlGrant_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlGrant_s::m_rbStart, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::UlGrant_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::RlcPduListElement_s::m_size, ns3::UlDciListElement_s::m_tbSize, ns3::UlGrant_s::m_tbSize, ns3::DlDciListElement_s::m_tbsSize, ns3::DlDciListElement_s::m_tpc, ns3::UlDciListElement_s::m_tpc, ns3::UlGrant_s::m_tpc, m_uesTxMode, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::UlGrant_s::m_ulDelay, m_ulGrantMcs, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, ns3::UlDciListElement_s::m_ulIndex, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().
|
private |
Sched UL CQI info request.
params | FfMacSchedSapProvider::SchedUlCqiInfoReqParameters |
Definition at line 1890 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacScheduler::m_ulCqiFilter, ns3::NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.
|
private |
Sched UL MAC control info request.
params | FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters |
Definition at line 1847 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, NS_LOG_FUNCTION, and NS_LOG_LOGIC.
|
private |
Sched UL noise interference request.
params | FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters |
Definition at line 1833 of file tdtbfq-ff-mac-scheduler.cc.
References NS_LOG_FUNCTION.
|
private |
Sched UL SR info request.
params | FfMacSchedSapProvider::SchedUlSrInfoReqParameters |
Definition at line 1840 of file tdtbfq-ff-mac-scheduler.cc.
References NS_LOG_FUNCTION.
|
private |
Sched UL trigger request.
params | FfMacSchedSapProvider::SchedUlTriggerReqParameters |

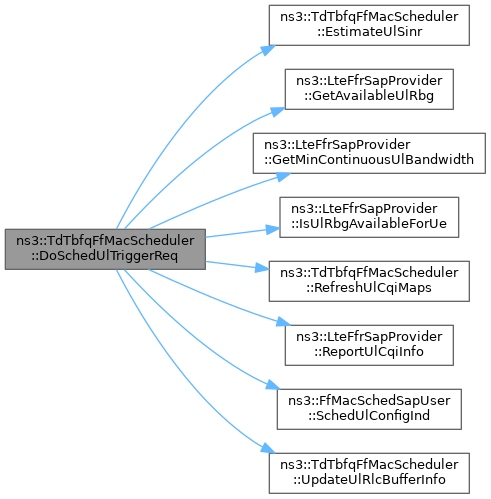

Definition at line 1430 of file tdtbfq-ff-mac-scheduler.cc.
References EstimateUlSinr(), ns3::LteFfrSapProvider::GetAvailableUlRbg(), ns3::LteFfrSapProvider::GetMinContinuousUlBandwidth(), HARQ_PERIOD, ns3::HARQ_PROC_NUM, ns3::LteFfrSapProvider::IsUlRbgAvailableForUe(), ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, m_ffrSapProvider, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::UlDciListElement_s::m_tbSize, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, ns3::UlDciListElement_s::m_ulIndex, ns3::NO_SINR, ns3::UlInfoListElement_s::NotOk, NS_ABORT_MSG_IF, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshUlCqiMaps(), ns3::LteFfrSapProvider::ReportUlCqiInfo(), ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().
|
private |
Estimate UL SINR function.
rnti | the RNTI |
rb | the RB |
Definition at line 1400 of file tdtbfq-ff-mac-scheduler.cc.
References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and ns3::NO_SINR.
Referenced by DoSchedUlTriggerReq().
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 145 of file tdtbfq-ff-mac-scheduler.cc.
References m_cschedSapProvider.
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 151 of file tdtbfq-ff-mac-scheduler.cc.
References m_schedSapProvider.
|
overridevirtual |
Implements ns3::FfMacScheduler.
Definition at line 163 of file tdtbfq-ff-mac-scheduler.cc.
References m_ffrSapUser.
|
private |
Get RBG size.
dlbandwidth | he DL bandwidth |
Definition at line 392 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::TdTbfqType0AllocationRbg.
Referenced by DoSchedDlTriggerReq().
|
static |

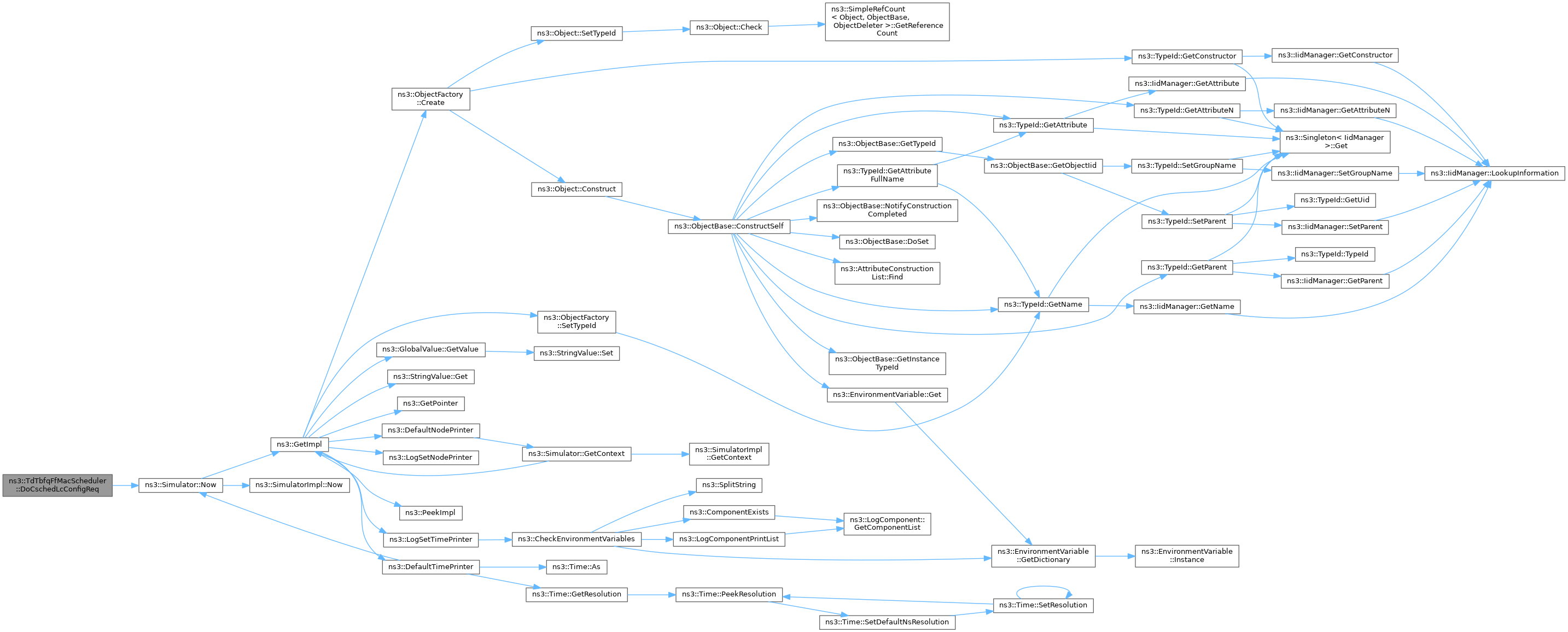

Get the type ID.

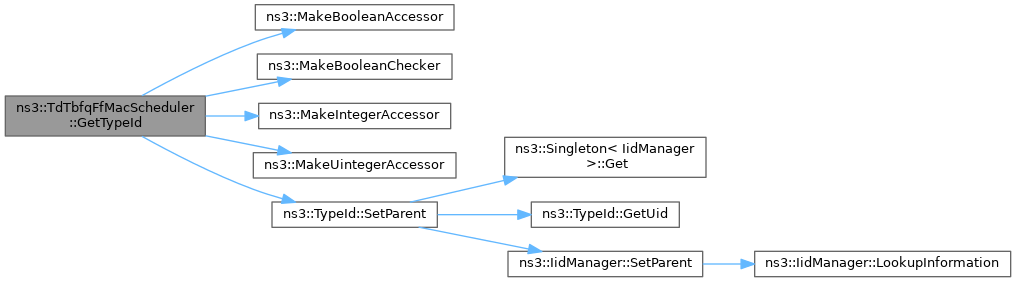

Definition at line 86 of file tdtbfq-ff-mac-scheduler.cc.
References m_cqiTimersThreshold, m_creditableThreshold, m_creditLimit, m_debtLimit, m_harqOn, m_tokenPoolSize, m_ulGrantMcs, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeIntegerAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().
|
private |
Return the availability of free process for the RNTI specified.
rnti | the RNTI of the UE to be updated |
Definition at line 427 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
LC active flow size.
rnti | the RNTI |
Definition at line 406 of file tdtbfq-ff-mac-scheduler.cc.
References m_rlcBufferReq.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh DL CQI maps function.
Definition at line 2031 of file tdtbfq-ff-mac-scheduler.cc.
References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh HARQ processes according to the timers.
Definition at line 492 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::HARQ_DL_TIMEOUT, ns3::HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
Refresh UL CQI maps function.
Definition at line 2085 of file tdtbfq-ff-mac-scheduler.cc.
References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.
Referenced by DoSchedUlTriggerReq().
|
overridevirtual |
set the user part of the FfMacCschedSap that this Scheduler will interact with.
Normally this part of the SAP is exported by the MAC.
s |
Implements ns3::FfMacScheduler.
Definition at line 133 of file tdtbfq-ff-mac-scheduler.cc.
References m_cschedSapUser.
|
overridevirtual |
set the user part of the FfMacSchedSap that this Scheduler will interact with.
Normally this part of the SAP is exported by the MAC.
s |
Implements ns3::FfMacScheduler.
Definition at line 139 of file tdtbfq-ff-mac-scheduler.cc.
References m_schedSapUser.
|
overridevirtual |
Set the Provider part of the LteFfrSap that this Scheduler will interact with.
s |
Implements ns3::FfMacScheduler.
Definition at line 157 of file tdtbfq-ff-mac-scheduler.cc.
References m_ffrSapProvider.
void ns3::TdTbfqFfMacScheduler::TransmissionModeConfigurationUpdate | ( | uint16_t | rnti, |
uint8_t | txMode | ||
) |
Transmission mde configuration update function.
rnti | the RNTI |
txMode | the transmission mode |
Definition at line 2194 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, and NS_LOG_FUNCTION.
|
private |
Update DL RLC buffer info function.
rnti | the RNTI |
lcid | the LCID |
size | the size |
Definition at line 2115 of file tdtbfq-ff-mac-scheduler.cc.
References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.
Referenced by DoSchedDlTriggerReq().
|
private |
Update and return a new process Id for the RNTI specified.
rnti | the RNTI of the UE to be updated |
Definition at line 452 of file tdtbfq-ff-mac-scheduler.cc.
References ns3::HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by DoSchedDlTriggerReq().
|
private |
Update UL RLC buffer info function.
rnti | the RNTI |
size | the size |
Definition at line 2171 of file tdtbfq-ff-mac-scheduler.cc.
References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.
Referenced by DoSchedUlTriggerReq().
|
friend |
allow MemberCschedSapProvider<TdTbfqFfMacScheduler> class friend access
Definition at line 95 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler().
|
friend |
allow MemberSchedSapProvider<TdTbfqFfMacScheduler> class friend access
Definition at line 95 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler().
|
private |
the number of bytes in token bank
Definition at line 357 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq().
|
private |
Map of UE's DL CQI A30 received.
Definition at line 311 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().
|
private |
Map of UE's timers on DL CQI A30 received.
Definition at line 315 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
Map of previous allocated UE per RBG (used to retrieve info from UL-CQI)
Definition at line 321 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().
AMC.
Definition at line 282 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
Map of UE's buffer status reports received.
Definition at line 335 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().
|
private |
Definition at line 353 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().
|
private |
threshold of flow credit
Definition at line 365 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and GetTypeId().
|
private |
flow credit limit (byte)
Definition at line 361 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and GetTypeId().
|
private |
CSched cell config.
Definition at line 349 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().
|
private |
CSched SAP provider.
Definition at line 340 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetFfMacCschedSapProvider().
|
private |
CSched SAP user.
Definition at line 338 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().
|
private |
flow debt limit (byte)
Definition at line 359 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and GetTypeId().
|
private |
DL HARQ current process ID.
Definition at line 372 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().
|
private |
DL HARQ process DCI buffer.
Definition at line 379 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().
|
private |
DL HARQ process RLC PDU list buffer.
Definition at line 381 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().
|
private |
DL HARQ process status.
Definition at line 376 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().
|
private |
DL HARQ process timer.
Definition at line 377 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().
|
private |
HARQ retx buffered.
Definition at line 382 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoDispose(), and DoSchedDlTriggerReq().
|
private |
FFR SAP provider.
Definition at line 345 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler(), DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetLteFfrSapProvider().
|
private |
FFR SAP user.
Definition at line 344 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetLteFfrSapUser().
|
private |
Map of UE statistics (per RNTI basis) in downlink.
Definition at line 292 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().
|
private |
Map of UE statistics (per RNTI basis)
Definition at line 297 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().
|
private |
m_harqOn when false inhibit the HARQ mechanisms (by default active)
Definition at line 371 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().
|
private |
RNTI of the next user to be served next scheduling in UL.
Definition at line 351 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().
|
private |
Map of UE's DL CQI P01 received.
Definition at line 302 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
Map of UE's timers on DL CQI P01 received.
Definition at line 306 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().
|
private |
RACH allocation map.
Definition at line 394 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
RACH list.
Definition at line 393 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().
|
private |
Vectors of UE's LC info.
Definition at line 287 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().
|
private |
Sched SAP provider.
Definition at line 341 of file tdtbfq-ff-mac-scheduler.h.
Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetFfMacSchedSapProvider().
|
private |
A=Sched SAP user.
Definition at line 339 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().
|
private |
maximum size of token pool (byte)
Definition at line 363 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedLcConfigReq(), and GetTypeId().
|
private |
Map of UEs' UL-CQI per RBG.
Definition at line 326 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().
|
private |
Map of UEs' timers on UL-CQI per RBG.
Definition at line 330 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().
|
private |
txMode of the UEs
Definition at line 355 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().
|
private |
MCS for UL grant (default 0)
Definition at line 395 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoSchedDlTriggerReq(), and GetTypeId().
|
private |
UL HARQ current process ID.
Definition at line 384 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
UL HARQ process DCI buffer.
Definition at line 390 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().
|
private |
UL HARQ process status.
Definition at line 388 of file tdtbfq-ff-mac-scheduler.h.
Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().
