ns3::EpcX2Sap::SnStatusTransferParams Struct Reference

Parameters of the SN STATUS TRANSFER message. More...

#include "epc-x2-sap.h"

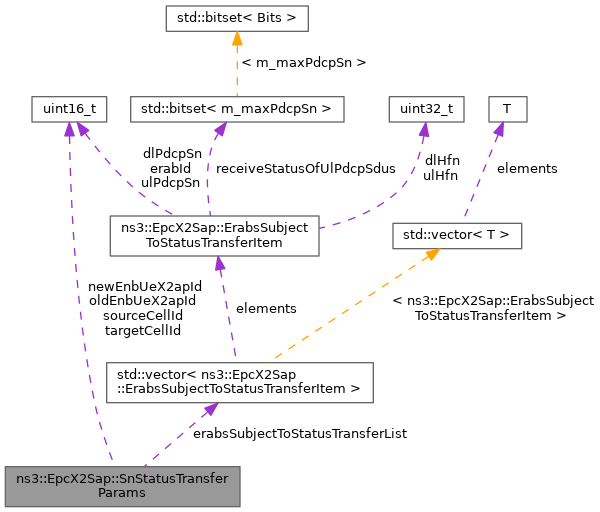

Collaboration diagram for ns3::EpcX2Sap::SnStatusTransferParams:

Public Attributes
std::vector< ErabsSubjectToStatusTransferItem >	erabsSubjectToStatusTransferList
	ERABs subject to status transfer list.
uint16_t	newEnbUeX2apId
	new ENB UE X2 AP ID
uint16_t	oldEnbUeX2apId
	old ENB UE X2 AP ID
uint16_t	sourceCellId
	source cell ID
uint16_t	targetCellId
	target cell ID

Detailed Description

Parameters of the SN STATUS TRANSFER message.

See section 9.1.1.4 for further info about the parameters

Definition at line 277 of file epc-x2-sap.h.

Member Data Documentation

erabsSubjectToStatusTransferList

std::vector<ErabsSubjectToStatusTransferItem> ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList

ERABs subject to status transfer list.

Definition at line 284 of file epc-x2-sap.h.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

newEnbUeX2apId

uint16_t ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId

new ENB UE X2 AP ID

Definition at line 280 of file epc-x2-sap.h.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

oldEnbUeX2apId

uint16_t ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId

old ENB UE X2 AP ID

Definition at line 279 of file epc-x2-sap.h.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

sourceCellId

uint16_t ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId

source cell ID

Definition at line 281 of file epc-x2-sap.h.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

targetCellId

uint16_t ns3::EpcX2Sap::SnStatusTransferParams::targetCellId

target cell ID

Definition at line 282 of file epc-x2-sap.h.

Referenced by ns3::UeManager::RecvHandoverRequestAck().

---

The documentation for this struct was generated from the following file:

• src/lte/model/epc-x2-sap.h
