ns3::LteUeRrcSapProvider Class Referenceabstract

Part of the RRC protocol. More...

#include "lte-rrc-sap.h"

+ Inheritance diagram for ns3::LteUeRrcSapProvider:
+ Collaboration diagram for ns3::LteUeRrcSapProvider:

Classes

struct  CompleteSetupParameters
 CompleteSetupParameters structure. More...


Public Member Functions

virtual void CompleteSetup (CompleteSetupParameters params)=0
 Complete setup function.

virtual void RecvRrcConnectionReconfiguration (RrcConnectionReconfiguration msg)=0
 Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

virtual void RecvRrcConnectionReestablishment (RrcConnectionReestablishment msg)=0
 Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

virtual void RecvRrcConnectionReestablishmentReject (RrcConnectionReestablishmentReject msg)=0
 Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

virtual void RecvRrcConnectionReject (RrcConnectionReject msg)=0
 Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

virtual void RecvRrcConnectionRelease (RrcConnectionRelease msg)=0
 Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

virtual void RecvRrcConnectionSetup (RrcConnectionSetup msg)=0
 Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

virtual void RecvSystemInformation (SystemInformation msg)=0
 Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

- Public Member Functions inherited from ns3::LteRrcSap
virtual ~LteRrcSap ()


Additional Inherited Members

- Public Types inherited from ns3::LteRrcSap
enum  ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
 ReestablishmentCause enumeration. More...

- Static Public Member Functions inherited from ns3::LteRrcSap
static double ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
 Convert PDSCH config dedicated function.

- Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t MaxReportCells = 8
 Constraint values.


Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used to let the UE RRC receive a message from the eNB RRC. Each method defined in this class corresponds to the reception of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 1044 of file lte-rrc-sap.h.

Member Function Documentation

◆ CompleteSetup()

virtual void ns3::LteUeRrcSapProvider::CompleteSetup ( CompleteSetupParameters  params)
pure virtual

Complete setup function.

Parameters
paramsthe complete setup parameters

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoSetup().

+ Here is the caller graph for this function:

◆ RecvRrcConnectionReconfiguration()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReconfiguration ( RrcConnectionReconfiguration  msg)
pure virtual

Receive an RRCConnectionReconfiguration message from the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReconfiguration().

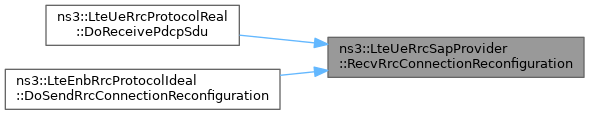

+ Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishment()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishment ( RrcConnectionReestablishment  msg)
pure virtual

Receive an RRCConnectionReestablishment message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishment().

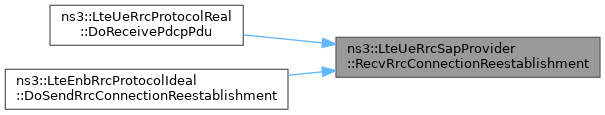

+ Here is the caller graph for this function:

◆ RecvRrcConnectionReestablishmentReject()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReestablishmentReject ( RrcConnectionReestablishmentReject  msg)
pure virtual

Receive an RRCConnectionReestablishmentReject message from the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReestablishmentReject().

+ Here is the caller graph for this function:

◆ RecvRrcConnectionReject()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionReject ( RrcConnectionReject  msg)
pure virtual

Receive an RRCConnectionReject message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionReject().

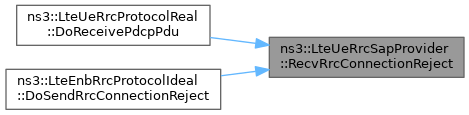

+ Here is the caller graph for this function:

◆ RecvRrcConnectionRelease()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionRelease ( RrcConnectionRelease  msg)
pure virtual

Receive an RRCConnectionRelease message from the serving eNodeB during an RRC connection release procedure (Section 5.3.8 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionRelease(), and ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionRelease().

+ Here is the caller graph for this function:

◆ RecvRrcConnectionSetup()

virtual void ns3::LteUeRrcSapProvider::RecvRrcConnectionSetup ( RrcConnectionSetup  msg)
pure virtual

Receive an RRCConnectionSetup message from the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteUeRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteEnbRrcProtocolIdeal::DoSendRrcConnectionSetup().

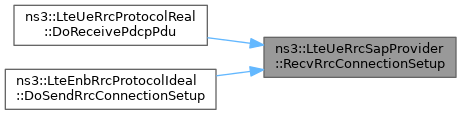

+ Here is the caller graph for this function:

◆ RecvSystemInformation()

virtual void ns3::LteUeRrcSapProvider::RecvSystemInformation ( SystemInformation  msg)
pure virtual

Receive a SystemInformation message from the serving eNodeB during a system information acquisition procedure (Section 5.2.2 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), and ns3::LteEnbRrcProtocolReal::DoSendSystemInformation().

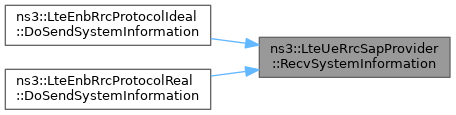

+ Here is the caller graph for this function:

The documentation for this class was generated from the following file:
