ns3::FlowMonitor Class Reference

An object that monitors and reports back packet flows observed during a simulation. More...

#include "flow-monitor.h"

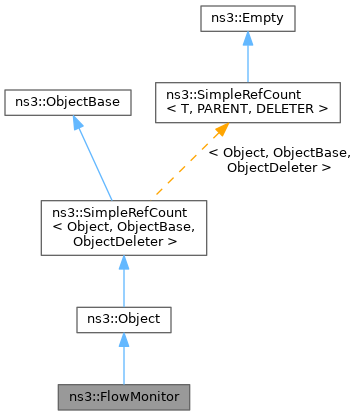

+ Inheritance diagram for ns3::FlowMonitor:
+ Collaboration diagram for ns3::FlowMonitor:

Classes

struct  FlowStats
 Structure that represents the measured metrics of an individual packet flow. More...

struct  TrackedPacket
 Structure to represent a single tracked packet data. More...


Public Types

typedef std::vector< Ptr< FlowProbe > > FlowProbeContainer
 Container: FlowProbe.

typedef std::vector< Ptr< FlowProbe > >::const_iterator FlowProbeContainerCI
 Container Const Iterator: FlowProbe.

typedef std::vector< Ptr< FlowProbe > >::iterator FlowProbeContainerI
 Container Iterator: FlowProbe.

typedef std::map< FlowId, FlowStatsFlowStatsContainer
 Container: FlowId, FlowStats.

typedef std::map< FlowId, FlowStats >::const_iterator FlowStatsContainerCI
 Container Const Iterator: FlowId, FlowStats.

typedef std::map< FlowId, FlowStats >::iterator FlowStatsContainerI
 Container Iterator: FlowId, FlowStats.


Public Member Functions

 FlowMonitor ()

void AddFlowClassifier (Ptr< FlowClassifier > classifier)
 Add a FlowClassifier to be used by the flow monitor.

void AddProbe (Ptr< FlowProbe > probe)
 Register a new FlowProbe that will begin monitoring and report events to this monitor.

void CheckForLostPackets ()
 Check right now for packets that appear to be lost.

void CheckForLostPackets (Time maxDelay)
 Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay.

const FlowProbeContainerGetAllProbes () const
 Get a list of all FlowProbe's associated with this FlowMonitor.

const FlowStatsContainerGetFlowStats () const
 Retrieve all collected the flow statistics.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

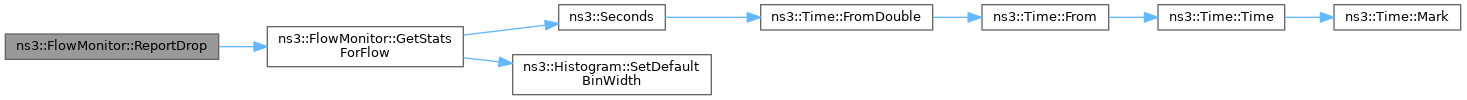

void ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)
 FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

void ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
 FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

void ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
 FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

void ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)
 FlowProbe implementations are supposed to call this method to report that a known packet is being received.

void ResetAllStats ()
 Reset all the statistics.

void SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)
 Same as SerializeToXmlStream, but writes to a file instead.

void SerializeToXmlStream (std::ostream &os, uint16_t indent, bool enableHistograms, bool enableProbes)
 Serializes the results to an std::ostream in XML format.

std::string SerializeToXmlString (uint16_t indent, bool enableHistograms, bool enableProbes)
 Same as SerializeToXmlStream, but returns the output as a std::string.

void Start (const Time &time)
 Set the time, counting from the current time, from which to start monitoring flows.

void StartRightNow ()
 Begin monitoring flows right now

void Stop (const Time &time)
 Set the time, counting from the current time, from which to stop monitoring flows.

void StopRightNow ()
 End monitoring flows right now

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor.

 ~Object () override
 Destructor.

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together.

void Dispose ()
 Dispose of this Object.

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one.

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object.

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object.

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object.

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one.

bool IsInitialized () const
 Check if the object has been initialized.

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor.

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor.

uint32_t GetReferenceCount () const
 Get the reference count of the object.

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator.

void Ref () const
 Increment the reference count.

void Unref () const
 Decrement the reference count.

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor.

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful.

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors.

virtual TypeId GetInstanceTypeId () const =0
 Get the most derived TypeId for this Object.

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful.

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors.

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context.

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context.

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context.

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context.


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID.

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type.

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID.


Protected Member Functions

void DoDispose () override
 Destructor implementation.

void NotifyConstructionCompleted () override
 Notifier called once the ObjectBase is fully constructed.

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object.

virtual void DoDispose ()
 Destructor implementation.

virtual void DoInitialize ()
 Initialize() implementation.

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated.

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes.

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed.


Private Types

typedef std::map< std::pair< FlowId, FlowPacketId >, TrackedPacketTrackedPacketMap
 (FlowId,PacketId) --> TrackedPacket


Private Member Functions

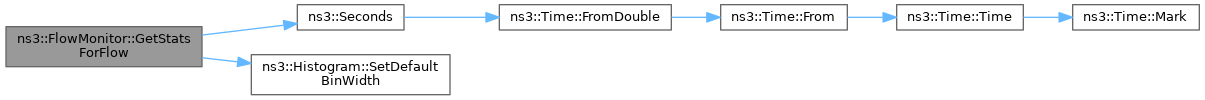

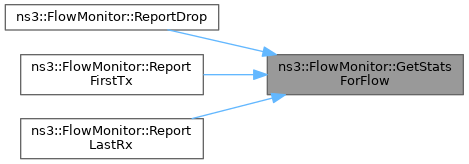

FlowStatsGetStatsForFlow (FlowId flowId)
 Get the stats for a given flow.

void PeriodicCheckForLostPackets ()
 Periodic function to check for lost packets and prune statistics.


Private Attributes

std::list< Ptr< FlowClassifier > > m_classifiers
 the FlowClassifiers

double m_delayBinWidth
 Delay bin width (for histograms)

bool m_enabled
 FlowMon is enabled.

double m_flowInterruptionsBinWidth
 Flow interruptions bin width (for histograms)

Time m_flowInterruptionsMinTime
 Flow interruptions minimum time.

FlowProbeContainer m_flowProbes
 all the FlowProbes

FlowStatsContainer m_flowStats
 FlowId --> FlowStats.

double m_jitterBinWidth
 Jitter bin width (for histograms)

Time m_maxPerHopDelay
 Minimum per-hop delay.

double m_packetSizeBinWidth
 packet size bin width (for histograms)

EventId m_startEvent
 Start event.

EventId m_stopEvent
 Stop event.

TrackedPacketMap m_trackedPackets
 Tracked packets.


Additional Inherited Members

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

Introspection did not find any typical Config paths.

The FlowMonitor class is responsible for coordinating efforts regarding probes, and collects end-to-end flow statistics.


Attributes

  • DelayBinWidth: The width used in the delay histogram.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.001
    • Flags: constructwriteread
  • FlowInterruptionsBinWidth: The width used in the flowInterruptions histogram.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.25
    • Flags: constructwriteread
  • FlowInterruptionsMinTime: The minimum inter-arrival time that is considered a flow interruption.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +5e+08ns
    • Flags: constructwriteread
  • JitterBinWidth: The width used in the jitter histogram.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0.001
    • Flags: constructwriteread
  • MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1e+10ns
    • Flags: constructwriteread
  • PacketSizeBinWidth: The width used in the packetSize histogram.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 20
    • Flags: constructwriteread
  • StartTime: The time when the monitoring starts.
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +0ns
    • Flags: constructwrite

No TraceSources are defined for this type.
Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 50 of file flow-monitor.h.

Member Typedef Documentation

◆ FlowProbeContainer

Container: FlowProbe.

Definition at line 236 of file flow-monitor.h.

◆ FlowProbeContainerCI

typedef std::vector<Ptr<FlowProbe>>::const_iterator ns3::FlowMonitor::FlowProbeContainerCI

Container Const Iterator: FlowProbe.

Definition at line 240 of file flow-monitor.h.

◆ FlowProbeContainerI

typedef std::vector<Ptr<FlowProbe>>::iterator ns3::FlowMonitor::FlowProbeContainerI

Container Iterator: FlowProbe.

Definition at line 238 of file flow-monitor.h.

◆ FlowStatsContainer

Container: FlowId, FlowStats.

Definition at line 230 of file flow-monitor.h.

◆ FlowStatsContainerCI

typedef std::map<FlowId,FlowStats>::const_iterator ns3::FlowMonitor::FlowStatsContainerCI

Container Const Iterator: FlowId, FlowStats.

Definition at line 234 of file flow-monitor.h.

◆ FlowStatsContainerI

Container Iterator: FlowId, FlowStats.

Definition at line 232 of file flow-monitor.h.

◆ TrackedPacketMap

typedef std::map<std::pair<FlowId, FlowPacketId>, TrackedPacket> ns3::FlowMonitor::TrackedPacketMap
private

(FlowId,PacketId) --> TrackedPacket

Definition at line 296 of file flow-monitor.h.

Constructor & Destructor Documentation

◆ FlowMonitor()

ns3::FlowMonitor::FlowMonitor ( )

Definition at line 93 of file flow-monitor.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddFlowClassifier()

void ns3::FlowMonitor::AddFlowClassifier ( Ptr< FlowClassifier classifier)

Add a FlowClassifier to be used by the flow monitor.

Parameters
classifierthe FlowClassifier

Definition at line 429 of file flow-monitor.cc.

References m_classifiers.

◆ AddProbe()

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe probe)

Register a new FlowProbe that will begin monitoring and report events to this monitor.

This method is normally only used by FlowProbe implementations.

Parameters
probethe probe to add

Definition at line 369 of file flow-monitor.cc.

References m_flowProbes.

◆ CheckForLostPackets() [1/2]

void ns3::FlowMonitor::CheckForLostPackets ( )

Check right now for packets that appear to be lost.

Definition at line 349 of file flow-monitor.cc.

References CheckForLostPackets(), and m_maxPerHopDelay.

Referenced by CheckForLostPackets(), PeriodicCheckForLostPackets(), SerializeToXmlStream(), and StopRightNow().

+ Here is the call graph for this function:

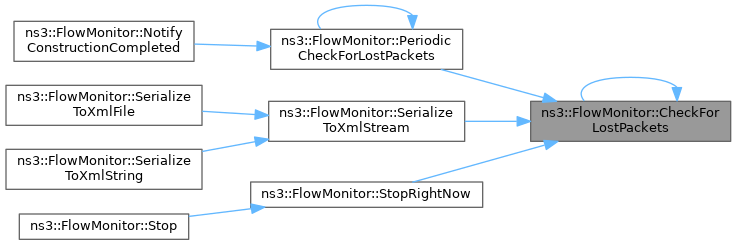

+ Here is the caller graph for this function:

◆ CheckForLostPackets() [2/2]

void ns3::FlowMonitor::CheckForLostPackets ( Time  maxDelay)

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay.

Parameters
maxDelaythe max delay for a packet

Definition at line 323 of file flow-monitor.cc.

References ns3::Time::As(), m_flowStats, m_trackedPackets, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Time::S.

+ Here is the call graph for this function:

◆ DoDispose()

void ns3::FlowMonitor::DoDispose ( )
overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 100 of file flow-monitor.cc.

References ns3::Simulator::Cancel(), ns3::Object::DoDispose(), m_classifiers, m_flowProbes, m_startEvent, m_stopEvent, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetAllProbes()

const FlowMonitor::FlowProbeContainer & ns3::FlowMonitor::GetAllProbes ( ) const

Get a list of all FlowProbe's associated with this FlowMonitor.

Returns
a list of all the probes

Definition at line 375 of file flow-monitor.cc.

References m_flowProbes.

◆ GetFlowStats()

const FlowMonitor::FlowStatsContainer & ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics.

Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

Returns
the flows statistics

Definition at line 317 of file flow-monitor.cc.

References m_flowStats.

◆ GetInstanceTypeId()

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::Object.

Definition at line 88 of file flow-monitor.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetStatsForFlow()

◆ GetTypeId()

TypeId ns3::FlowMonitor::GetTypeId ( )
static

Get the type ID.

Returns
the object TypeId

Definition at line 39 of file flow-monitor.cc.

References m_delayBinWidth, m_flowInterruptionsBinWidth, m_flowInterruptionsMinTime, m_jitterBinWidth, m_maxPerHopDelay, m_packetSizeBinWidth, ns3::MakeDoubleAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), ns3::TypeId::SetParent(), and Start().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ NotifyConstructionCompleted()

void ns3::FlowMonitor::NotifyConstructionCompleted ( )
overrideprotectedvirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 362 of file flow-monitor.cc.

References ns3::ObjectBase::NotifyConstructionCompleted(), PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

+ Here is the call graph for this function:

◆ PeriodicCheckForLostPackets()

void ns3::FlowMonitor::PeriodicCheckForLostPackets ( )
private

Periodic function to check for lost packets and prune statistics.

Definition at line 355 of file flow-monitor.cc.

References CheckForLostPackets(), PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

Referenced by NotifyConstructionCompleted(), and PeriodicCheckForLostPackets().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ ReportDrop()

void ns3::FlowMonitor::ReportDrop ( Ptr< FlowProbe probe,
FlowId  flowId,
FlowPacketId  packetId,
uint32_t  packetSize,
uint32_t  reasonCode
)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

Parameters
probethe reporting probe
flowIdflow identification
packetIdPacket ID
packetSizepacket size
reasonCodedrop reason code

Definition at line 278 of file flow-monitor.cc.

References ns3::FlowMonitor::FlowStats::bytesDropped, GetStatsForFlow(), ns3::FlowMonitor::FlowStats::lostPackets, m_enabled, m_trackedPackets, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::FlowMonitor::FlowStats::packetsDropped, and packetSize.

+ Here is the call graph for this function:

◆ ReportFirstTx()

void ns3::FlowMonitor::ReportFirstTx ( Ptr< FlowProbe probe,
FlowId  flowId,
FlowPacketId  packetId,
uint32_t  packetSize
)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

Parameters
probethe reporting probe
flowIdflow identification
packetIdPacket ID
packetSizepacket size

Definition at line 150 of file flow-monitor.cc.

References ns3::FlowMonitor::TrackedPacket::firstSeenTime, GetStatsForFlow(), ns3::FlowMonitor::TrackedPacket::lastSeenTime, m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, packetSize, ns3::Seconds(), ns3::FlowMonitor::FlowStats::timeFirstTxPacket, ns3::FlowMonitor::FlowStats::timeLastTxPacket, ns3::FlowMonitor::TrackedPacket::timesForwarded, ns3::FlowMonitor::FlowStats::txBytes, and ns3::FlowMonitor::FlowStats::txPackets.

+ Here is the call graph for this function:

◆ ReportForwarding()

void ns3::FlowMonitor::ReportForwarding ( Ptr< FlowProbe probe,
FlowId  flowId,
FlowPacketId  packetId,
uint32_t  packetSize
)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

Parameters
probethe reporting probe
flowIdflow identification
packetIdPacket ID
packetSizepacket size

Definition at line 182 of file flow-monitor.cc.

References m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and packetSize.

+ Here is the call graph for this function:

◆ ReportLastRx()

◆ ResetAllStats()

void ns3::FlowMonitor::ResetAllStats ( )

Reset all the statistics.

Definition at line 538 of file flow-monitor.cc.

References m_flowStats, NS_LOG_FUNCTION, and ns3::Seconds().

+ Here is the call graph for this function:

◆ SerializeToXmlFile()

void ns3::FlowMonitor::SerializeToXmlFile ( std::string  fileName,
bool  enableHistograms,
bool  enableProbes
)

Same as SerializeToXmlStream, but writes to a file instead.

Parameters
fileNamename or path of the output file that will be created
enableHistogramsif true, include also the histograms in the output
enableProbesif true, include also the per-probe/flow pair statistics in the output

Definition at line 528 of file flow-monitor.cc.

References NS_LOG_FUNCTION, and SerializeToXmlStream().

+ Here is the call graph for this function:

◆ SerializeToXmlStream()

void ns3::FlowMonitor::SerializeToXmlStream ( std::ostream &  os,
uint16_t  indent,
bool  enableHistograms,
bool  enableProbes
)

Serializes the results to an std::ostream in XML format.

Parameters
osthe output stream
indentnumber of spaces to use as base indentation level
enableHistogramsif true, include also the histograms in the output
enableProbesif true, include also the per-probe/flow pair statistics in the output

Definition at line 435 of file flow-monitor.cc.

References ATTRIB, ATTRIB_TIME, CheckForLostPackets(), m_classifiers, m_flowProbes, m_flowStats, and NS_LOG_FUNCTION.

Referenced by SerializeToXmlFile(), and SerializeToXmlString().

+ Here is the call graph for this function:

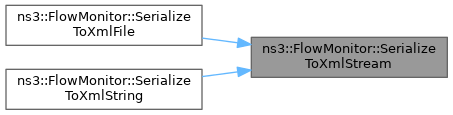

+ Here is the caller graph for this function:

◆ SerializeToXmlString()

std::string ns3::FlowMonitor::SerializeToXmlString ( uint16_t  indent,
bool  enableHistograms,
bool  enableProbes
)

Same as SerializeToXmlStream, but returns the output as a std::string.

Parameters
indentnumber of spaces to use as base indentation level
enableHistogramsif true, include also the histograms in the output
enableProbesif true, include also the per-probe/flow pair statistics in the output
Returns
the XML output as string

Definition at line 519 of file flow-monitor.cc.

References NS_LOG_FUNCTION, and SerializeToXmlStream().

+ Here is the call graph for this function:

◆ Start()

void ns3::FlowMonitor::Start ( const Time time)

Set the time, counting from the current time, from which to start monitoring flows.

This method overwrites any previous calls to Start()

Parameters
timedelta time to start

Definition at line 381 of file flow-monitor.cc.

References ns3::Time::As(), ns3::Simulator::Cancel(), m_enabled, m_startEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, ns3::Simulator::Schedule(), and StartRightNow().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ StartRightNow()

void ns3::FlowMonitor::StartRightNow ( )

Begin monitoring flows right now

Definition at line 404 of file flow-monitor.cc.

References m_enabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Start().

+ Here is the caller graph for this function:

◆ Stop()

void ns3::FlowMonitor::Stop ( const Time time)

Set the time, counting from the current time, from which to stop monitoring flows.

This method overwrites any previous calls to Stop()

Parameters
timedelta time to stop

Definition at line 395 of file flow-monitor.cc.

References ns3::Time::As(), ns3::Simulator::Cancel(), m_stopEvent, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, ns3::Simulator::Schedule(), and StopRightNow().

+ Here is the call graph for this function:

◆ StopRightNow()

void ns3::FlowMonitor::StopRightNow ( )

End monitoring flows right now

Definition at line 416 of file flow-monitor.cc.

References CheckForLostPackets(), m_enabled, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Stop().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_classifiers

std::list<Ptr<FlowClassifier> > ns3::FlowMonitor::m_classifiers
private

the FlowClassifiers

Definition at line 302 of file flow-monitor.h.

Referenced by AddFlowClassifier(), DoDispose(), and SerializeToXmlStream().

◆ m_delayBinWidth

double ns3::FlowMonitor::m_delayBinWidth
private

Delay bin width (for histograms)

Definition at line 307 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_enabled

bool ns3::FlowMonitor::m_enabled
private

FlowMon is enabled.

Definition at line 306 of file flow-monitor.h.

Referenced by ReportDrop(), ReportFirstTx(), ReportForwarding(), ReportLastRx(), Start(), StartRightNow(), and StopRightNow().

◆ m_flowInterruptionsBinWidth

double ns3::FlowMonitor::m_flowInterruptionsBinWidth
private

Flow interruptions bin width (for histograms)

Definition at line 310 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_flowInterruptionsMinTime

Time ns3::FlowMonitor::m_flowInterruptionsMinTime
private

Flow interruptions minimum time.

Definition at line 311 of file flow-monitor.h.

Referenced by GetTypeId(), and ReportLastRx().

◆ m_flowProbes

FlowProbeContainer ns3::FlowMonitor::m_flowProbes
private

all the FlowProbes

Definition at line 299 of file flow-monitor.h.

Referenced by AddProbe(), DoDispose(), GetAllProbes(), and SerializeToXmlStream().

◆ m_flowStats

FlowStatsContainer ns3::FlowMonitor::m_flowStats
private

◆ m_jitterBinWidth

double ns3::FlowMonitor::m_jitterBinWidth
private

Jitter bin width (for histograms)

Definition at line 308 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_maxPerHopDelay

Time ns3::FlowMonitor::m_maxPerHopDelay
private

Minimum per-hop delay.

Definition at line 298 of file flow-monitor.h.

Referenced by CheckForLostPackets(), and GetTypeId().

◆ m_packetSizeBinWidth

double ns3::FlowMonitor::m_packetSizeBinWidth
private

packet size bin width (for histograms)

Definition at line 309 of file flow-monitor.h.

Referenced by GetStatsForFlow(), and GetTypeId().

◆ m_startEvent

EventId ns3::FlowMonitor::m_startEvent
private

Start event.

Definition at line 304 of file flow-monitor.h.

Referenced by DoDispose(), and Start().

◆ m_stopEvent

EventId ns3::FlowMonitor::m_stopEvent
private

Stop event.

Definition at line 305 of file flow-monitor.h.

Referenced by DoDispose(), and Stop().

◆ m_trackedPackets

TrackedPacketMap ns3::FlowMonitor::m_trackedPackets
private

Tracked packets.

Definition at line 297 of file flow-monitor.h.

Referenced by CheckForLostPackets(), ReportDrop(), ReportFirstTx(), ReportForwarding(), and ReportLastRx().


The documentation for this class was generated from the following files:
