Models the channel condition. More...
#include "channel-condition-model.h"
Public Member Functions | |
ChannelConditionModel () | |
Constructor for the ChannelConditionModel class. | |
ChannelConditionModel (const ChannelConditionModel &)=delete | |
~ChannelConditionModel () override | |
Destructor for the ChannelConditionModel class. | |
virtual int64_t | AssignStreams (int64_t stream)=0 |
If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. | |
virtual Ptr< ChannelCondition > | GetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const =0 |
Computes the condition of the channel between a and b. | |
ChannelConditionModel & | operator= (const ChannelConditionModel &)=delete |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId () |
Register this type. | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId () |
Get the type ID. | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
Models the channel condition.
Computes the condition of the channel between the transmitter and the receiver
ns3::ChannelConditionModel is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 235 of file channel-condition-model.h.
ns3::ChannelConditionModel::ChannelConditionModel | ( | ) |
Constructor for the ChannelConditionModel class.
Definition at line 175 of file channel-condition-model.cc.
|
override |
Destructor for the ChannelConditionModel class.
Definition at line 179 of file channel-condition-model.cc.
|
delete |
|
pure virtual |
If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.
Return the number of streams (possibly zero) that have been assigned.
stream | the offset used to set the stream numbers |

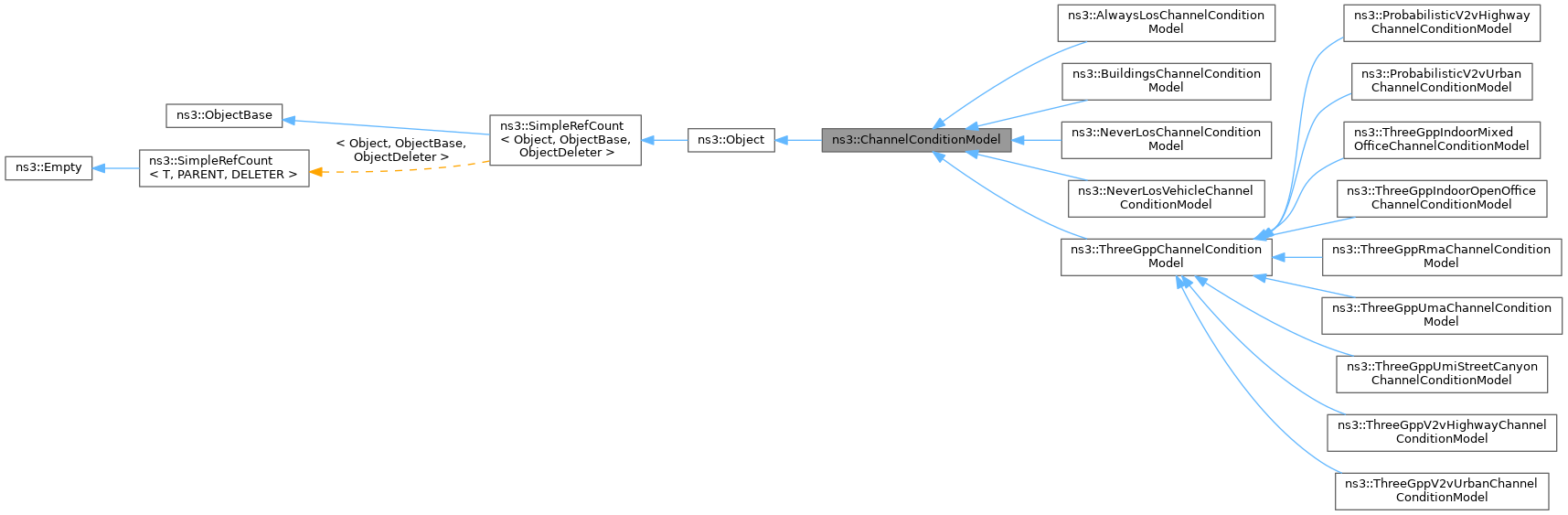

Implemented in ns3::BuildingsChannelConditionModel, ns3::AlwaysLosChannelConditionModel, ns3::NeverLosChannelConditionModel, ns3::NeverLosVehicleChannelConditionModel, and ns3::ThreeGppChannelConditionModel.
|
pure virtual |
Computes the condition of the channel between a and b.
a | mobility model |
b | mobility model |
Implemented in ns3::BuildingsChannelConditionModel, ns3::AlwaysLosChannelConditionModel, ns3::NeverLosChannelConditionModel, ns3::NeverLosVehicleChannelConditionModel, and ns3::ThreeGppChannelConditionModel.
|
static |

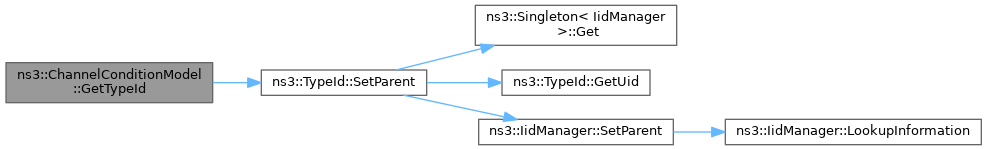

Get the type ID.
Get the type ID.
Definition at line 168 of file channel-condition-model.cc.
References ns3::TypeId::SetParent().
|
delete |
