test PHY reception of multiple CTS frames as a response to a MU-RTS frame. More...

Inheritance diagram for TestMultipleCtsResponsesFromMuRts:

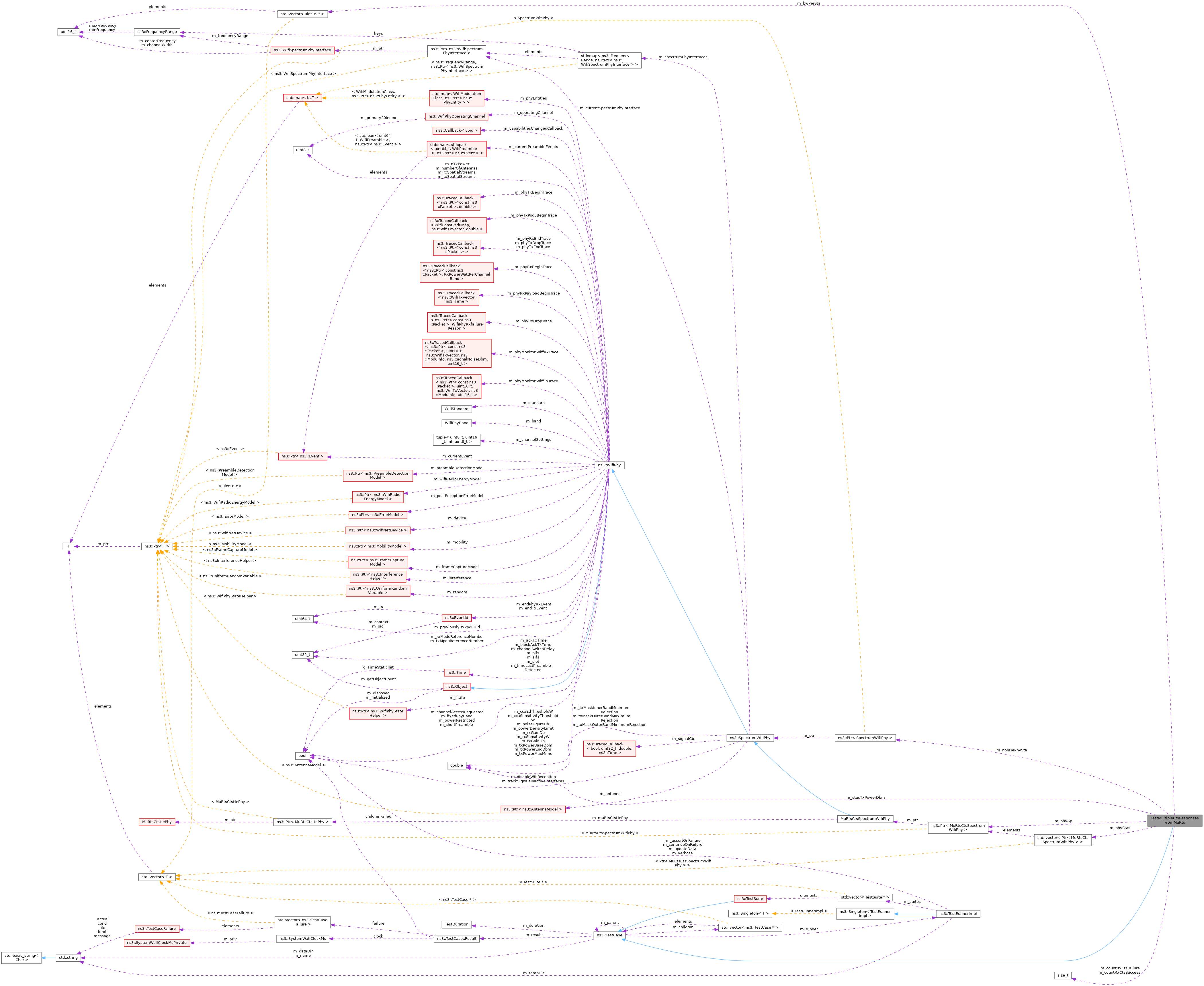

Collaboration diagram for TestMultipleCtsResponsesFromMuRts:

Public Member Functions
	TestMultipleCtsResponsesFromMuRts (const std::vector< uint16_t > &bwPerSta)
	Constructor.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CheckResults (std::size_t expectedRxCtsSuccess, std::size_t expectedRxCtsFailure)
	Check the results.

void	DoRun () override
	Implementation to actually run this TestCase.

void	DoSetup () override
	Implementation to do any local setup required for this TestCase.

void	DoTeardown () override
	Implementation to do any local setup required for this TestCase.

void	FakePreviousMuRts (uint16_t bw)
	Function called to fake the transmission of a MU-RTS.

void	RxCtsFailure (Ptr< const WifiPsdu > psdu)
	CTS RX failure function.

void	RxCtsSuccess (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
	CTS RX success function.

void	TxNonHtDuplicateCts (Ptr< SpectrumWifiPhy > phy, uint16_t bw)
	Function called to trigger a CTS frame sent by a STA using non-HT duplicate.

Private Attributes
std::vector< uint16_t >	m_bwPerSta
	Bandwidth per STA in MHz.

std::size_t	m_countRxCtsFailure
	count the number of unsuccessfully received CTS frames

std::size_t	m_countRxCtsSuccess
	count the number of successfully received CTS frames

Ptr< SpectrumWifiPhy >	m_nonHePhySta
	non-HE STA PHY

Ptr< MuRtsCtsSpectrumWifiPhy >	m_phyAp
	AP PHY.

std::vector< Ptr< MuRtsCtsSpectrumWifiPhy > >	m_phyStas
	STAs PHYs.

double	m_stasTxPowerDbm
	TX power in dBm configured for the STAs.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

test PHY reception of multiple CTS frames as a response to a MU-RTS frame.

The test is checking whether the reception of multiple identical CTS frames as a response to a MU-RTS frame is successfully received by the AP PHY and that only a single CTS frame is forwarded up to the MAC. Since the test is focusing on the PHY reception of multiple CTS response, the transmission of the MU-RTS frame is faked.

Definition at line 621 of file wifi-non-ht-dup-test.cc.

Constructor & Destructor Documentation

◆ TestMultipleCtsResponsesFromMuRts()

TestMultipleCtsResponsesFromMuRts::TestMultipleCtsResponsesFromMuRts ( const std::vector< uint16_t > & bwPerSta )

Constructor.

Parameters

bwPerSta the bandwidth to use for each STA (in MHz)

Definition at line 687 of file wifi-non-ht-dup-test.cc.

Member Function Documentation

◆ CheckResults()

void TestMultipleCtsResponsesFromMuRts::CheckResults	(	std::size_t	expectedRxCtsSuccess,
		std::size_t	expectedRxCtsFailure
	)

private

Check the results.

Parameters

expectedRxCtsSuccess	the expected number of CTS RX success
expectedRxCtsFailure	the expected number of CTS RX failures

Definition at line 770 of file wifi-non-ht-dup-test.cc.

References m_countRxCtsFailure, m_countRxCtsSuccess, and NS_TEST_ASSERT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void TestMultipleCtsResponsesFromMuRts::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 902 of file wifi-non-ht-dup-test.cc.

References CheckResults(), ns3::Simulator::Destroy(), FakePreviousMuRts(), m_bwPerSta, m_phyStas, ns3::NanoSeconds(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), and TxNonHtDuplicateCts().

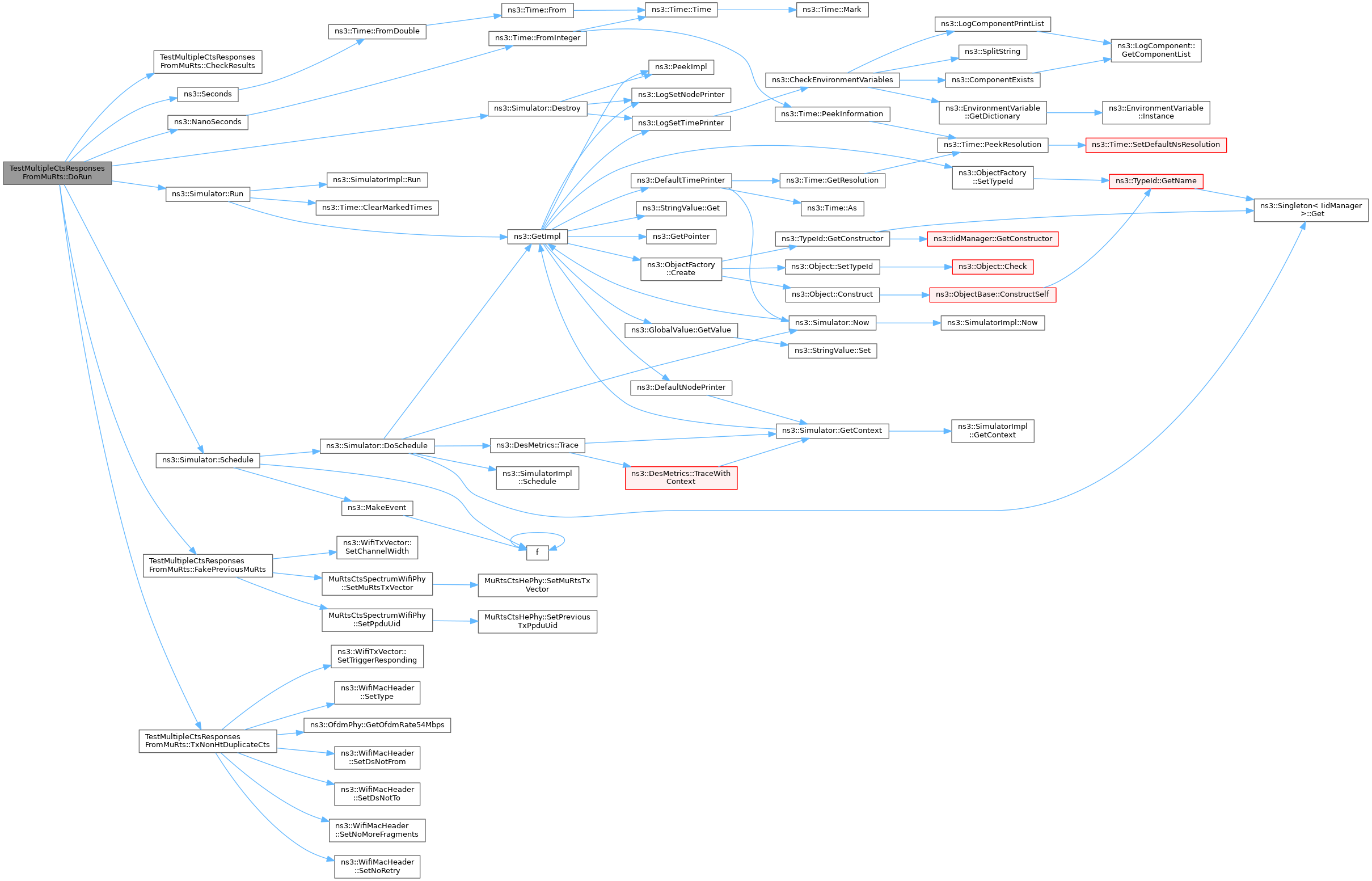

Here is the call graph for this function:

◆ DoSetup()

void TestMultipleCtsResponsesFromMuRts::DoSetup ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 782 of file wifi-non-ht-dup-test.cc.

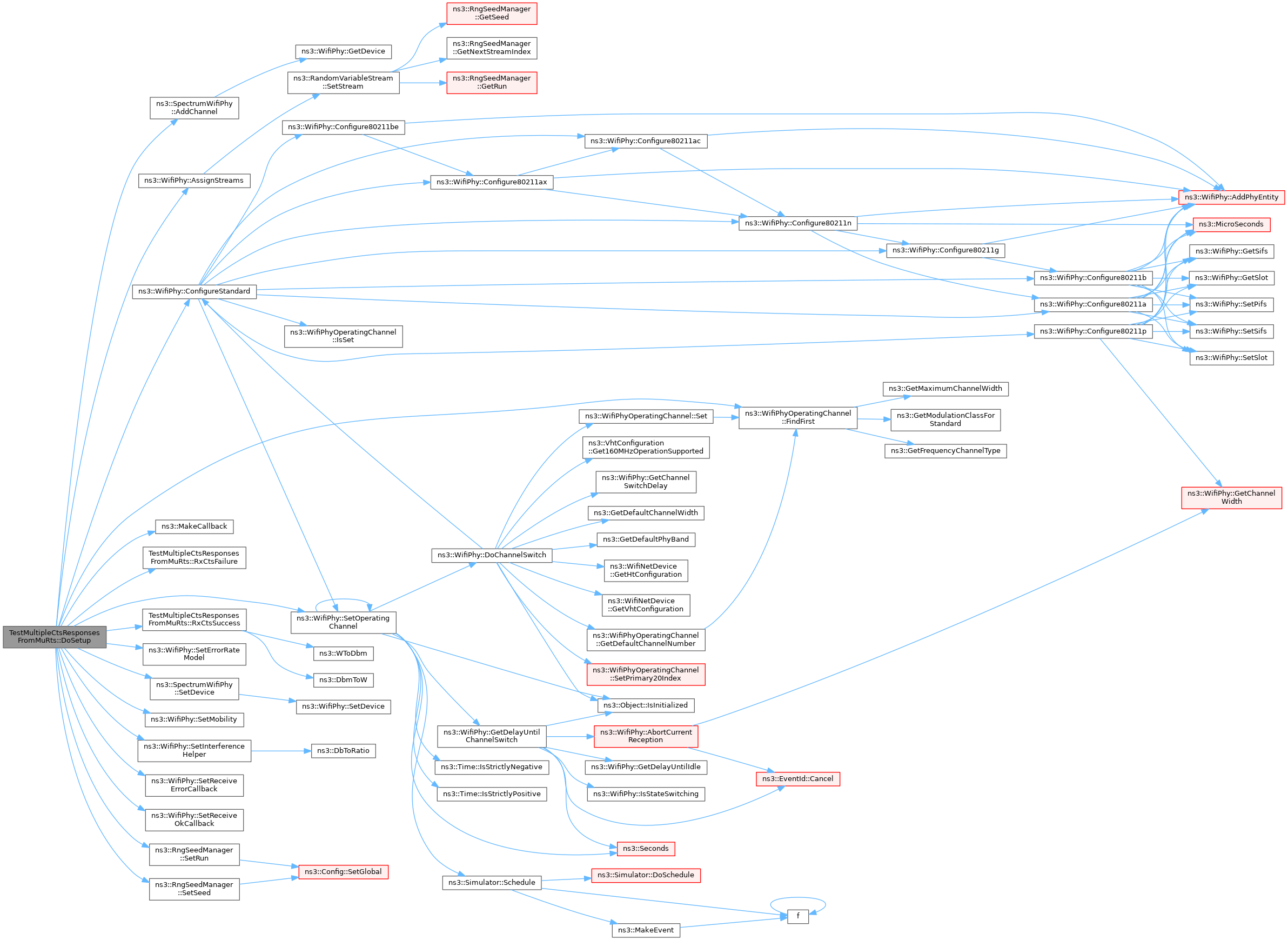

References ns3::SpectrumWifiPhy::AddChannel(), ns3::WifiPhy::AssignStreams(), ns3::WifiPhy::ConfigureStandard(), DEFAULT_FREQUENCY, ns3::WifiPhyOperatingChannel::FindFirst(), m_bwPerSta, m_nonHePhySta, m_phyAp, m_phyStas, m_stasTxPowerDbm, ns3::MakeCallback(), RxCtsFailure(), RxCtsSuccess(), ns3::SpectrumWifiPhy::SetDevice(), ns3::WifiPhy::SetErrorRateModel(), ns3::WifiPhy::SetInterferenceHelper(), ns3::WifiPhy::SetMobility(), ns3::WifiPhy::SetOperatingChannel(), ns3::WifiPhy::SetReceiveErrorCallback(), ns3::WifiPhy::SetReceiveOkCallback(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_STANDARD_80211ac, and ns3::WIFI_STANDARD_80211ax.

Here is the call graph for this function:

◆ DoTeardown()

void TestMultipleCtsResponsesFromMuRts::DoTeardown ( )

overrideprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 889 of file wifi-non-ht-dup-test.cc.

References ns3::Object::Dispose(), m_phyAp, and m_phyStas.

Here is the call graph for this function:

◆ FakePreviousMuRts()

void TestMultipleCtsResponsesFromMuRts::FakePreviousMuRts ( uint16_t bw )

private

Function called to fake the transmission of a MU-RTS.

Parameters

bw	the bandwidth to use for the transmission in MHz

Definition at line 698 of file wifi-non-ht-dup-test.cc.

References m_phyAp, m_phyStas, NS_LOG_FUNCTION, ns3::WifiTxVector::SetChannelWidth(), MuRtsCtsSpectrumWifiPhy::SetMuRtsTxVector(), and MuRtsCtsSpectrumWifiPhy::SetPpduUid().

Referenced by DoRun().

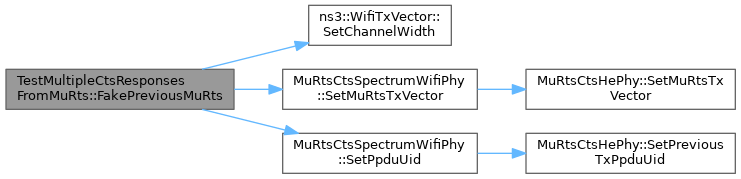

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RxCtsFailure()

void TestMultipleCtsResponsesFromMuRts::RxCtsFailure ( Ptr< const WifiPsdu > psdu )

private

CTS RX failure function.

Parameters

psdu the PSDU

Definition at line 763 of file wifi-non-ht-dup-test.cc.

References m_countRxCtsFailure, and NS_LOG_FUNCTION.

Referenced by DoSetup().

Here is the caller graph for this function:

◆ RxCtsSuccess()

void TestMultipleCtsResponsesFromMuRts::RxCtsSuccess	(	Ptr< const WifiPsdu >	psdu,
		RxSignalInfo	rxSignalInfo,
		WifiTxVector	txVector,
		std::vector< bool >	statusPerMpdu
	)

private

CTS RX success function.

Parameters

psdu	the PSDU
rxSignalInfo	the info on the received signal (

See also: RxSignalInfo)

Parameters

txVector	the transmit vector
statusPerMpdu	reception status per MPDU

Definition at line 749 of file wifi-non-ht-dup-test.cc.

References ns3::DbmToW(), m_bwPerSta, m_countRxCtsSuccess, m_stasTxPowerDbm, NS_LOG_FUNCTION, NS_TEST_EXPECT_MSG_EQ_TOL, ns3::RxSignalInfo::rssi, and ns3::WToDbm().

Referenced by DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TxNonHtDuplicateCts()

void TestMultipleCtsResponsesFromMuRts::TxNonHtDuplicateCts	(	Ptr< SpectrumWifiPhy >	phy,
		uint16_t	bw
	)

private

Function called to trigger a CTS frame sent by a STA using non-HT duplicate.

Parameters

phy	the PHY of the STA
bw	the bandwidth to use for the transmission in MHz

Definition at line 717 of file wifi-non-ht-dup-test.cc.

References ns3::OfdmPhy::GetOfdmRate54Mbps(), NS_LOG_FUNCTION, ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiTxVector::SetTriggerResponding(), ns3::WifiMacHeader::SetType(), ns3::WIFI_MAC_CTL_CTS, and ns3::WIFI_PREAMBLE_LONG.

Referenced by DoRun().

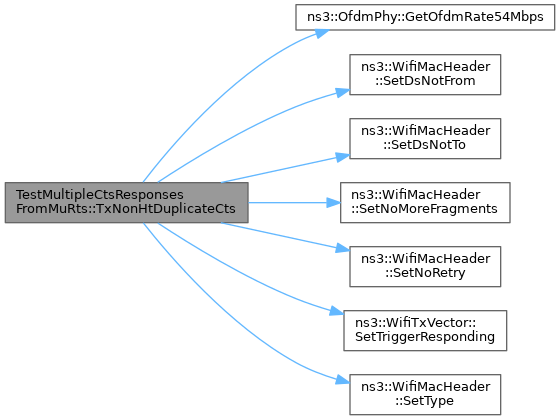

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_bwPerSta

std::vector<uint16_t> TestMultipleCtsResponsesFromMuRts::m_bwPerSta

private

Bandwidth per STA in MHz.

Definition at line 679 of file wifi-non-ht-dup-test.cc.

Referenced by DoRun(), DoSetup(), and RxCtsSuccess().

◆ m_countRxCtsFailure

std::size_t TestMultipleCtsResponsesFromMuRts::m_countRxCtsFailure

private

count the number of unsuccessfully received CTS frames

Definition at line 682 of file wifi-non-ht-dup-test.cc.

Referenced by CheckResults(), and RxCtsFailure().

◆ m_countRxCtsSuccess

std::size_t TestMultipleCtsResponsesFromMuRts::m_countRxCtsSuccess

private

count the number of successfully received CTS frames

Definition at line 681 of file wifi-non-ht-dup-test.cc.

Referenced by CheckResults(), and RxCtsSuccess().

◆ m_nonHePhySta

Ptr<SpectrumWifiPhy> TestMultipleCtsResponsesFromMuRts::m_nonHePhySta

private

non-HE STA PHY

Definition at line 677 of file wifi-non-ht-dup-test.cc.

Referenced by DoSetup().

◆ m_phyAp

Ptr<MuRtsCtsSpectrumWifiPhy> TestMultipleCtsResponsesFromMuRts::m_phyAp

private

AP PHY.

Definition at line 675 of file wifi-non-ht-dup-test.cc.

Referenced by DoSetup(), DoTeardown(), and FakePreviousMuRts().

◆ m_phyStas

std::vector<Ptr<MuRtsCtsSpectrumWifiPhy> > TestMultipleCtsResponsesFromMuRts::m_phyStas

private

STAs PHYs.

Definition at line 676 of file wifi-non-ht-dup-test.cc.

Referenced by DoRun(), DoSetup(), DoTeardown(), and FakePreviousMuRts().

◆ m_stasTxPowerDbm

double TestMultipleCtsResponsesFromMuRts::m_stasTxPowerDbm

private

TX power in dBm configured for the STAs.

Definition at line 684 of file wifi-non-ht-dup-test.cc.

Referenced by DoSetup(), and RxCtsSuccess().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-non-ht-dup-test.cc
