wifi-he-network.cc File Reference

#include "ns3/boolean.h"
#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/enum.h"
#include "ns3/he-phy.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/ipv4-global-routing-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/multi-model-spectrum-channel.h"
#include "ns3/on-off-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/packet-sink.h"
#include "ns3/rng-seed-manager.h"
#include "ns3/spectrum-wifi-helper.h"
#include "ns3/ssid.h"
#include "ns3/string.h"
#include "ns3/udp-client-server-helper.h"
#include "ns3/uinteger.h"
#include "ns3/wifi-acknowledgment.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"
#include <functional>

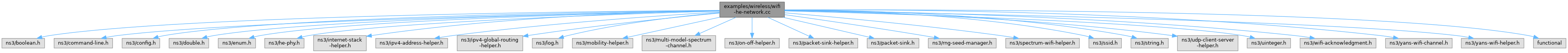

Include dependency graph for wifi-he-network.cc:

Go to the source code of this file.

Detailed Description

Usage

$ ./ns3 run "wifi-he-network [Program Options]"

Program Options

--frequency

Whether working in the 2.4, 5 or 6 GHz band (other values gets rejected) [5]

--distance

Distance in meters between the station and the access point [1]

--simulationTime

Simulation time in seconds [10]

--udp

UDP if set to 1, TCP otherwise [true]

--downlink

Generate downlink flows if set to 1, uplink flows otherwise [true]

--useRts

Enable/disable RTS/CTS [false]

--useExtendedBlockAck

Enable/disable use of extended BACK [false]

--nStations

Number of non-AP HE stations [1]

--dlAckType

Ack sequence type for DL OFDMA (NO-OFDMA, ACK-SU-FORMAT, MU-BAR, AGGR-MU-BAR) [NO-OFDMA]

--enableUlOfdma

Enable UL OFDMA (useful if DL OFDMA is enabled and TCP is used) [false]

--enableBsrp

Enable BSRP (useful if DL and UL OFDMA are enabled and TCP is used) [false]

--muSchedAccessReqInterval

Duration of the interval between two requests for channel access made by the MU scheduler [+0fs]

--mcs

if set, limit testing to a specific MCS (0-11) [-1]

--payloadSize

The application payload size in bytes [700]

--phyModel

PHY model to use when OFDMA is disabled (Yans or Spectrum). If OFDMA is enabled then Spectrum is automatically selected [Yans]

--minExpectedThroughput

if set, simulation fails if the lowest throughput is below this value [0]

--maxExpectedThroughput

if set, simulation fails if the highest throughput is above this value [0]

Definition in file wifi-he-network.cc.
