PeerManagementProtocolRegressionTest Class Reference

Peering Management Protocol regression test. More...

#include "pmp-regression.h"

+ Inheritance diagram for PeerManagementProtocolRegressionTest:
+ Collaboration diagram for PeerManagementProtocolRegressionTest:

Public Member Functions

 PeerManagementProtocolRegressionTest ()

 ~PeerManagementProtocolRegressionTest () override

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor.

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Member Functions

void CheckResults ()
 Check results function.

void CreateDevices ()
 Create devices function.

void CreateNodes ()
 Create nodes function.

void DoRun () override
 Implementation to actually run this TestCase.


Private Attributes

NodeContainerm_nodes

Time m_time
 Simulation time.


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor.

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite.

TestCaseGetParent () const
 Get the parent of this TestCase.

bool IsStatusFailure () const
 Check if any tests failed.

bool IsStatusSuccess () const
 Check if all tests passed.

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found.

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase.

bool MustAssertOnFailure () const
 Check if this run should assert on failure.

bool MustContinueOnFailure () const
 Check if this run should continue on failure.

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory.

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory.


Detailed Description

Peering Management Protocol regression test.

Initiate scenario with 2 stations. Procedure of opening peer link is the following:

* |----------->|  Beacon
* |----------->|  Peer Link Open frame
* |<-----------|  Peer Link Confirm frame
* |<-----------|  Peer Link Open frame
* |----------->|  Peer Link Confirm frame
* |............|
* |<---------->|  Other beacons
*

Definition at line 45 of file pmp-regression.h.

Constructor & Destructor Documentation

◆ PeerManagementProtocolRegressionTest()

PeerManagementProtocolRegressionTest::PeerManagementProtocolRegressionTest ( )

Definition at line 42 of file pmp-regression.cc.

◆ ~PeerManagementProtocolRegressionTest()

PeerManagementProtocolRegressionTest::~PeerManagementProtocolRegressionTest ( )
override

Definition at line 49 of file pmp-regression.cc.

References m_nodes.

Member Function Documentation

◆ CheckResults()

void PeerManagementProtocolRegressionTest::CheckResults ( )
private

Check results function.

Definition at line 119 of file pmp-regression.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

+ Here is the caller graph for this function:

◆ CreateDevices()

◆ CreateNodes()

void PeerManagementProtocolRegressionTest::CreateNodes ( )
private

Create nodes function.

Definition at line 72 of file pmp-regression.cc.

References ns3::NodeContainer::Create(), and m_nodes.

Referenced by DoRun().

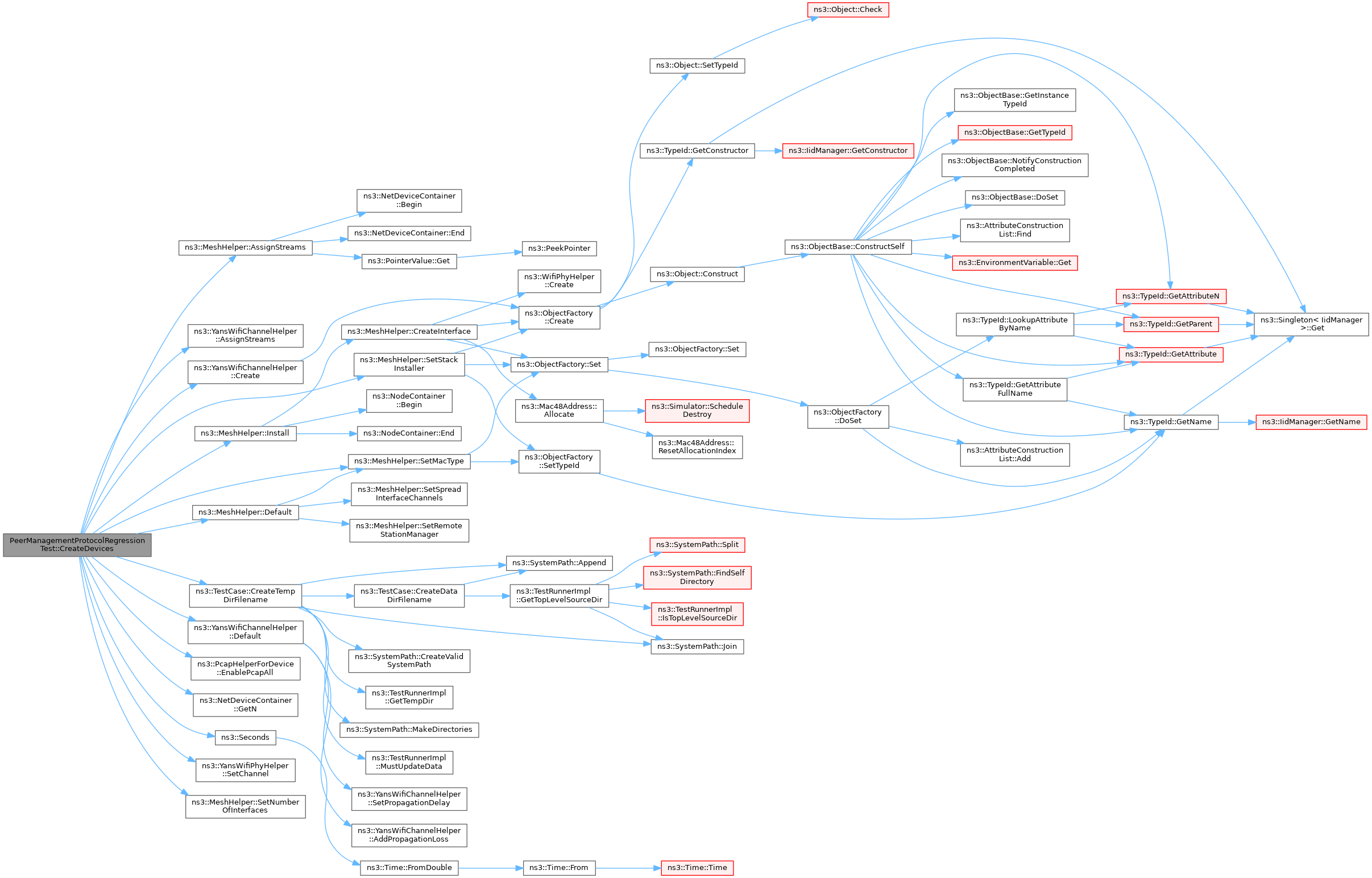

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

void PeerManagementProtocolRegressionTest::DoRun ( )
overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 55 of file pmp-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), ns3::Simulator::Destroy(), m_nodes, m_time, ns3::Simulator::Run(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), and ns3::Simulator::Stop().

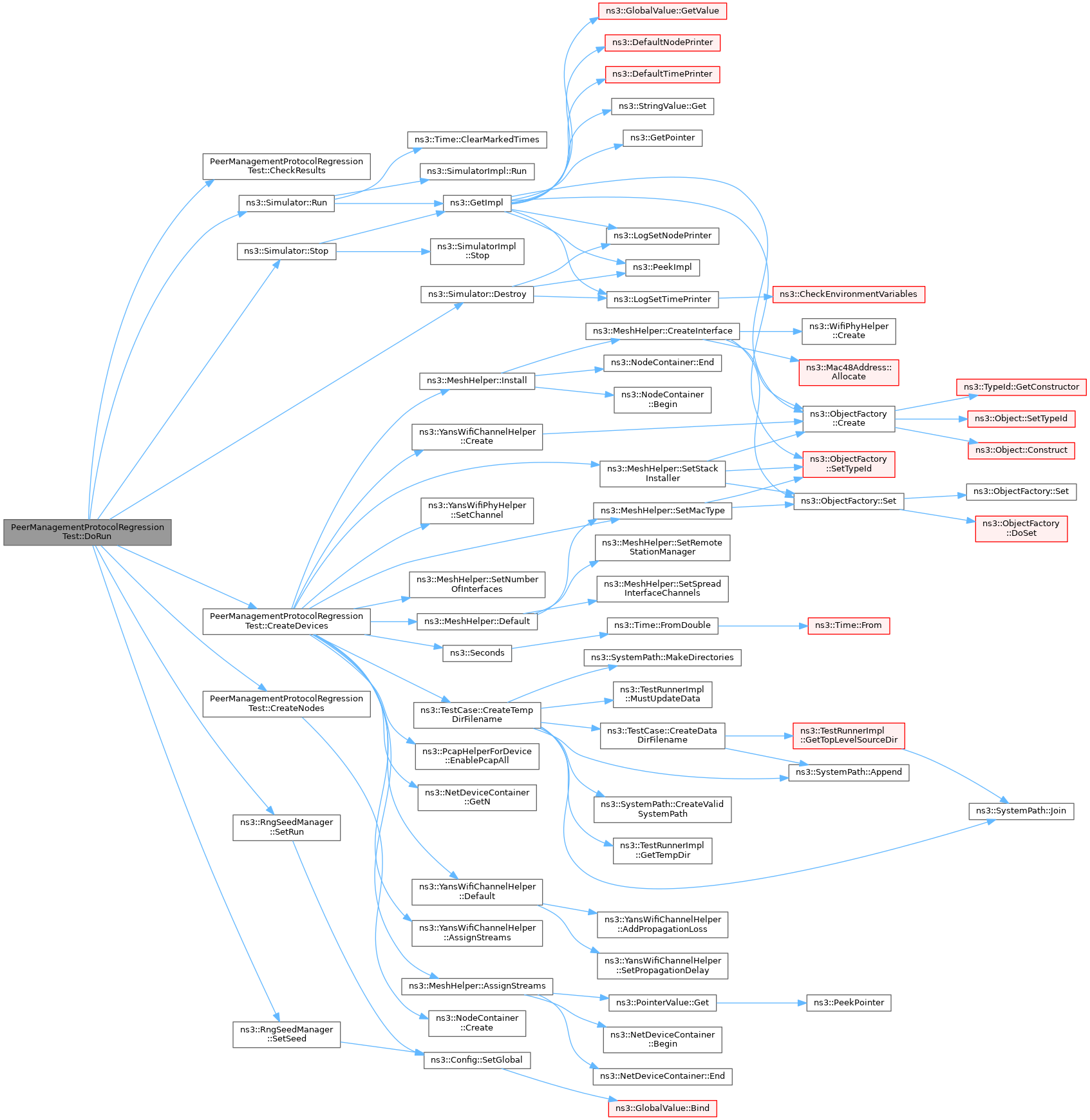

+ Here is the call graph for this function:

Member Data Documentation

◆ m_nodes

NodeContainer* PeerManagementProtocolRegressionTest::m_nodes
private
Internal: It is important to have pointers here

Definition at line 53 of file pmp-regression.h.

Referenced by ~PeerManagementProtocolRegressionTest(), CreateDevices(), CreateNodes(), and DoRun().

◆ m_time

Time PeerManagementProtocolRegressionTest::m_time
private

Simulation time.

Definition at line 55 of file pmp-regression.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
