ns3::V4PingHelper Class Reference

Create a IPv4 ping application and associate it to a node. More...

#include "v4ping-helper.h"

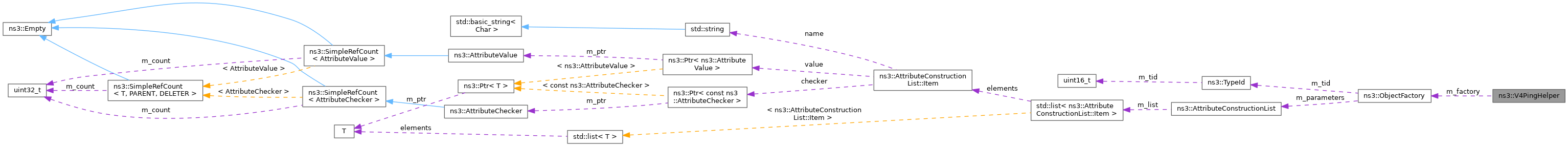

Collaboration diagram for ns3::V4PingHelper:

Public Member Functions
	V4PingHelper (Ipv4Address remote)
	Create a V4PingHelper which is used to make life easier for people wanting to use ping Applications.
ApplicationContainer	Install (NodeContainer nodes) const
	Install a Ping application on each Node in the provided NodeContainer.
ApplicationContainer	Install (Ptr< Node > node) const
	Install a Ping application on the provided Node.
ApplicationContainer	Install (std::string nodeName) const
	Install a Ping application on the provided Node.
void	SetAttribute (std::string name, const AttributeValue &value)
	Configure ping applications attribute.

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Do the actual application installation in the node.

Private Attributes
ObjectFactory	m_factory
	Object factory.

Detailed Description

Create a IPv4 ping application and associate it to a node.

This class creates one or multiple instances of ns3::V4Ping and associates it/them to one/multiple node(s).

Definition at line 37 of file v4ping-helper.h.

Constructor & Destructor Documentation

V4PingHelper()

ns3::V4PingHelper::V4PingHelper

(

Ipv4Address

remote

)

Create a V4PingHelper which is used to make life easier for people wanting to use ping Applications.

Parameters

remote

The address which should be pinged

Definition at line 29 of file v4ping-helper.cc.

References m_factory, NS_WARNING_POP, NS_WARNING_PUSH_DEPRECATED, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

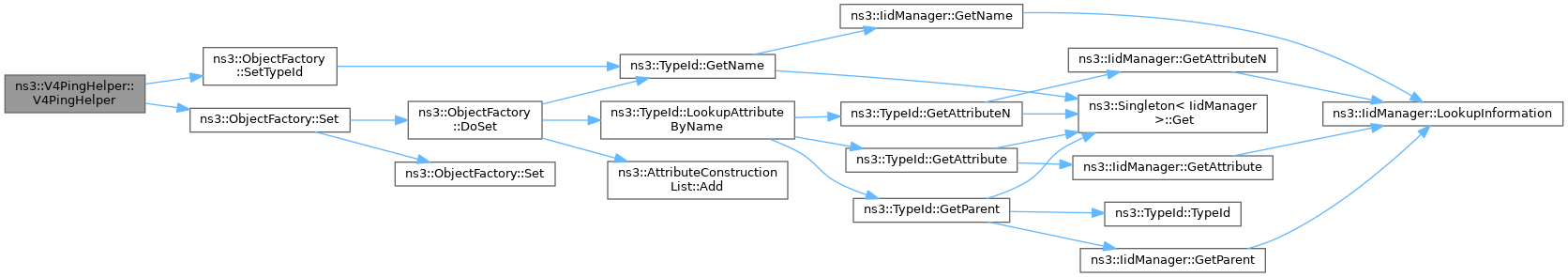

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::V4PingHelper::Install

(

NodeContainer

nodes

)

const

Install a Ping application on each Node in the provided NodeContainer.

Parameters

nodes

The NodeContainer containing all of the nodes to get a V4Ping application.

Returns

A list of Ping applications, one for each input node

Definition at line 57 of file v4ping-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

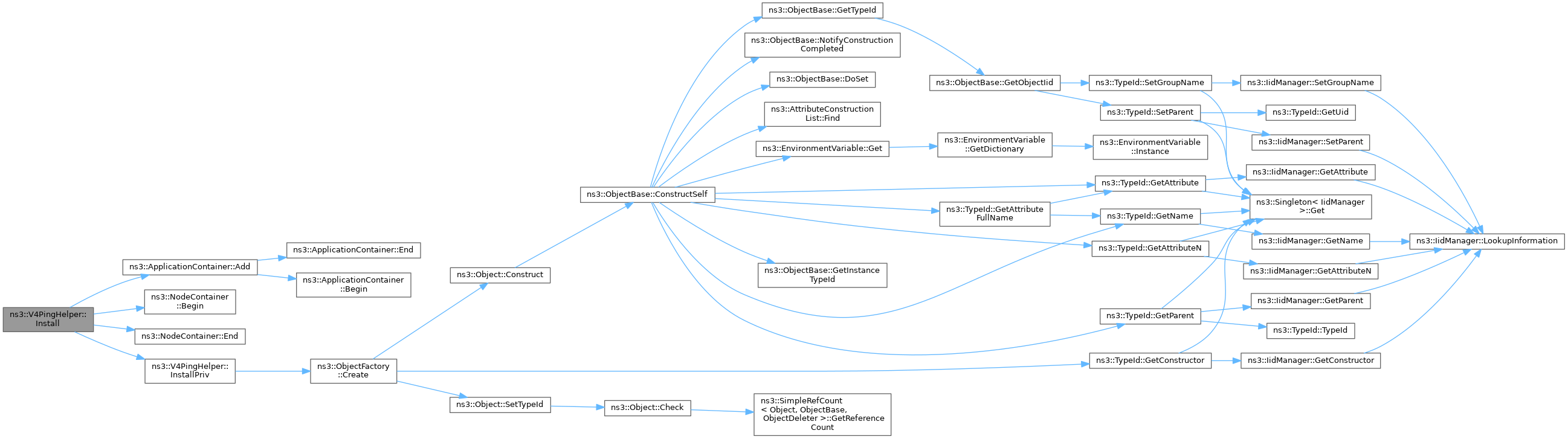

Here is the call graph for this function:

Install() [2/3]

ApplicationContainer ns3::V4PingHelper::Install

(

Ptr< Node >

node

)

const

Install a Ping application on the provided Node.

The Node is specified directly by a Ptr<Node>

Parameters

node	The node to install the V4PingApplication on.

Returns

An ApplicationContainer holding the Ping application created.

Definition at line 44 of file v4ping-helper.cc.

References InstallPriv().

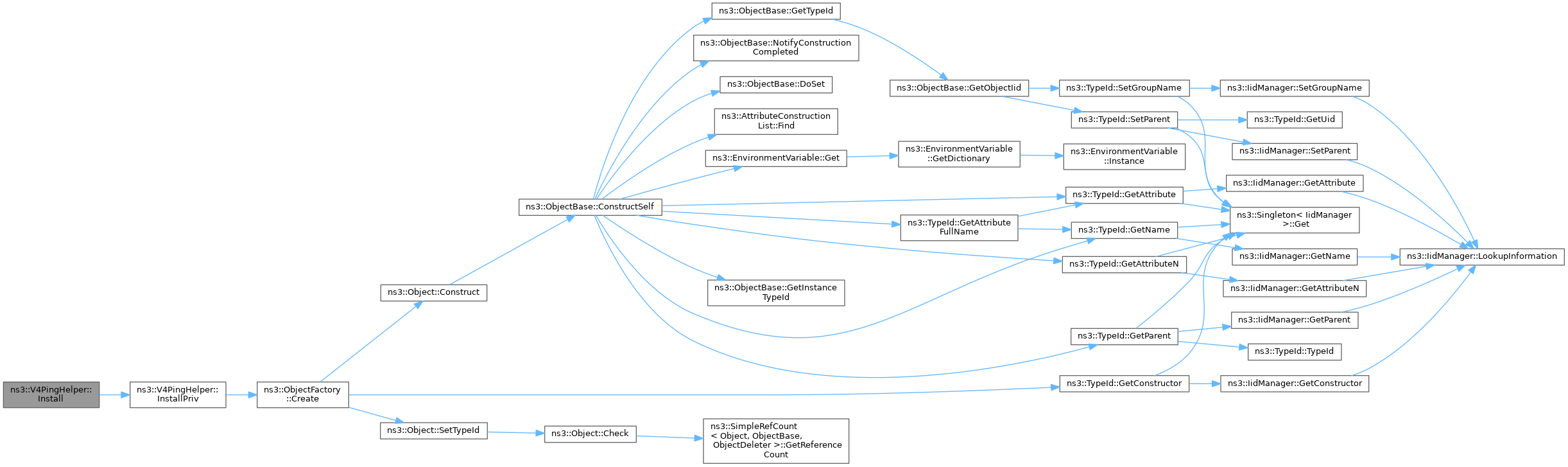

Here is the call graph for this function:

Install() [3/3]

ApplicationContainer ns3::V4PingHelper::Install

(

std::string

nodeName

)

const

Install a Ping application on the provided Node.

The Node is specified by a string that must have previously been associated with a Node using the Object Name Service.

Parameters

nodeName

The node to install the V4PingApplication on.

Returns

An ApplicationContainer holding the Ping application created.

Definition at line 50 of file v4ping-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::V4PingHelper::InstallPriv ( Ptr< Node >  node ) const

private

Do the actual application installation in the node.

Parameters

node

the node

Returns

a Smart pointer to the installed application

Definition at line 69 of file v4ping-helper.cc.

References ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

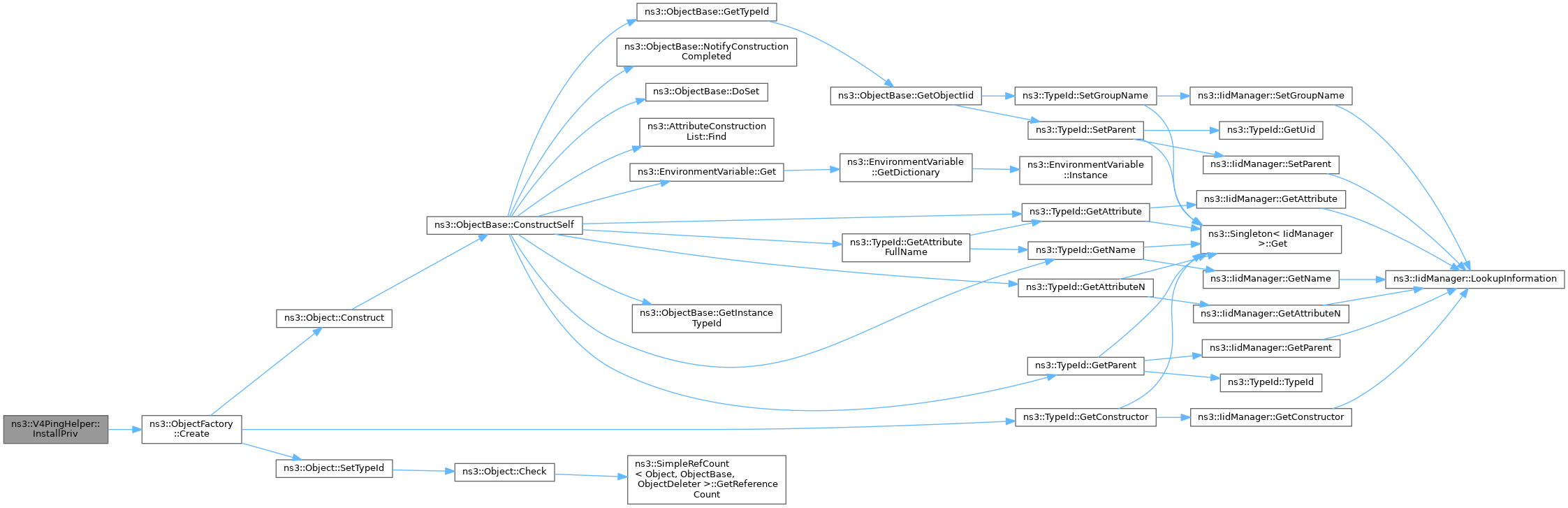

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::V4PingHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Configure ping applications attribute.

Parameters

name	attribute's name
value	attribute's value

Definition at line 38 of file v4ping-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

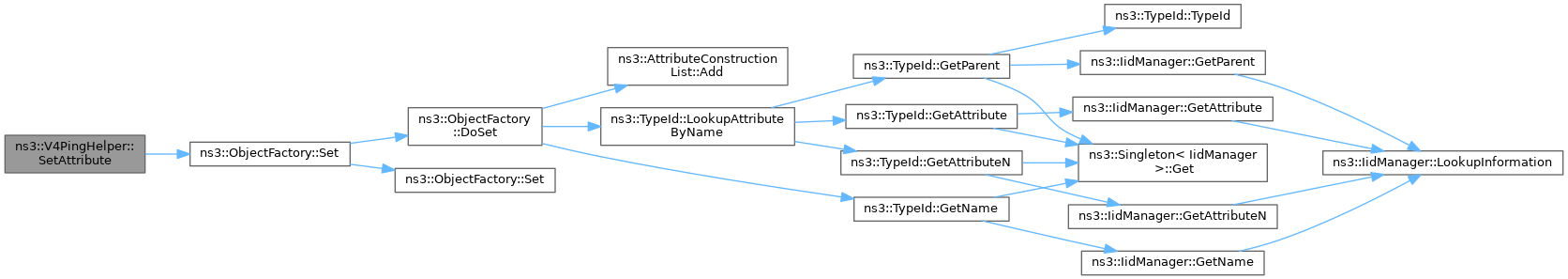

Here is the call graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::V4PingHelper::m_factory

private

Object factory.

Definition at line 95 of file v4ping-helper.h.

Referenced by V4PingHelper(), InstallPriv(), and SetAttribute().

---

The documentation for this class was generated from the following files:

• src/internet-apps/helper/v4ping-helper.h
• src/internet-apps/helper/v4ping-helper.cc
