ns3::GnuplotDataset Class Reference

Abstract class to store a plot line to be used by ns3::Gnuplot. More...

#include "gnuplot.h"

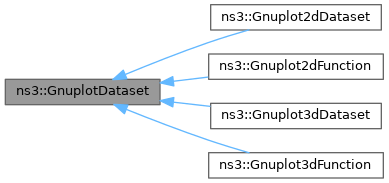

Inheritance diagram for ns3::GnuplotDataset:

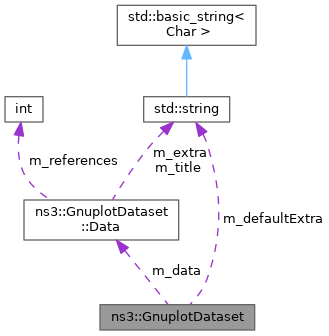

Collaboration diagram for ns3::GnuplotDataset:

Classes
struct	Data
	Structure storing the data to plot. More...

Public Member Functions
	GnuplotDataset (const GnuplotDataset &original)
	Reference-counting copy constructor.
	~GnuplotDataset ()
	Reference-counting destructor.
GnuplotDataset &	operator= (const GnuplotDataset &original)
	Reference-counting assignment operator.
void	SetExtra (const std::string &extra)
	Add extra formatting parameters to this dataset.
void	SetTitle (const std::string &title)
	Change line title.

Static Public Member Functions
static void	SetDefaultExtra (const std::string &extra)
	Change extra formatting style parameters for newly created objects.

Protected Member Functions
	GnuplotDataset (Data *data)
	Called by constructors of derived classes.

Protected Attributes
Data *	m_data
	Reference counted data object.

Static Protected Attributes
static std::string	m_defaultExtra = ""
	Extra gnuplot parameters set on every newly created dataset.

Friends
class	Gnuplot
	Friend because it accesses m_data and it's virtual functions directly in GenerateOutput().

Detailed Description

Abstract class to store a plot line to be used by ns3::Gnuplot.

This class contains a reference counted data object in m_data. The data object contains different structs derived from struct Data by subclasses.

Definition at line 38 of file gnuplot.h.

Constructor & Destructor Documentation

GnuplotDataset() [1/2]

ns3::GnuplotDataset::GnuplotDataset

(

const GnuplotDataset &

original

)

Reference-counting copy constructor.

Parameters

original

Original GnuPlotDataset

Definition at line 117 of file gnuplot.cc.

References m_data, and ns3::GnuplotDataset::Data::m_references.

~GnuplotDataset()

ns3::GnuplotDataset::~GnuplotDataset

(

)

Reference-counting destructor.

Definition at line 123 of file gnuplot.cc.

References m_data, and ns3::GnuplotDataset::Data::m_references.

GnuplotDataset() [2/2]

ns3::GnuplotDataset::GnuplotDataset ( Data *  data )

protected

Called by constructors of derived classes.

Parameters

data	the reference counted data object representing this dataset.

Definition at line 112 of file gnuplot.cc.

Member Function Documentation

operator=()

GnuplotDataset & ns3::GnuplotDataset::operator=

(

const GnuplotDataset &

original

)

Reference-counting assignment operator.

Parameters

original

Right-hand side of assignment operator

Returns

Copy of original GnuplotDataset

Definition at line 132 of file gnuplot.cc.

References m_data, and ns3::GnuplotDataset::Data::m_references.

SetDefaultExtra()

void ns3::GnuplotDataset::SetDefaultExtra ( const std::string &  extra )

static

Change extra formatting style parameters for newly created objects.

Parameters

extra

extra formatting

Definition at line 154 of file gnuplot.cc.

References m_defaultExtra.

Referenced by ns3::GnuplotAggregator::Set2dDatasetDefaultExtra().

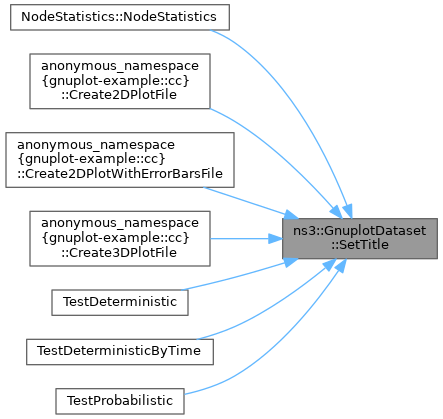

Here is the caller graph for this function:

SetExtra()

void ns3::GnuplotDataset::SetExtra

(

const std::string &

extra

)

Add extra formatting parameters to this dataset.

Parameters

extra

extra formatting

Definition at line 160 of file gnuplot.cc.

References m_data, and ns3::GnuplotDataset::Data::m_extra.

Referenced by TestProbabilistic().

Here is the caller graph for this function:

SetTitle()

void ns3::GnuplotDataset::SetTitle

(

const std::string &

title

)

Change line title.

Parameters

title

the new title string to use for this dataset.

Note

If you want your title to contain a newline character, escape it like this: "First line\\nSecond line" so that it is converted to "First line\nSecond line" in the plot file.

Definition at line 148 of file gnuplot.cc.

References m_data, and ns3::GnuplotDataset::Data::m_title.

Referenced by NodeStatistics::NodeStatistics(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().

Here is the caller graph for this function:

Friends And Related Function Documentation

Gnuplot

friend class Gnuplot

friend

Friend because it accesses m_data and it's virtual functions directly in GenerateOutput().

Definition at line 84 of file gnuplot.h.

Member Data Documentation

m_data

Data* ns3::GnuplotDataset::m_data

protected

Reference counted data object.

Definition at line 105 of file gnuplot.h.

Referenced by GnuplotDataset(), ~GnuplotDataset(), ns3::Gnuplot2dDataset::Add(), ns3::Gnuplot3dDataset::Add(), ns3::Gnuplot2dDataset::AddEmptyLine(), ns3::Gnuplot3dDataset::AddEmptyLine(), operator=(), ns3::Gnuplot2dDataset::SetErrorBars(), SetExtra(), ns3::Gnuplot2dFunction::SetFunction(), ns3::Gnuplot3dFunction::SetFunction(), ns3::Gnuplot3dDataset::SetStyle(), ns3::Gnuplot2dDataset::SetStyle(), and SetTitle().

m_defaultExtra

std::string ns3::GnuplotDataset::m_defaultExtra = ""

staticprotected

Extra gnuplot parameters set on every newly created dataset.

Definition at line 89 of file gnuplot.h.

Referenced by SetDefaultExtra().

---

The documentation for this class was generated from the following files:

• src/stats/model/gnuplot.h
• src/stats/model/gnuplot.cc
