ns3::CallbackValue Class Reference

AttributeValue implementation for Callback. More...

#include "callback.h"

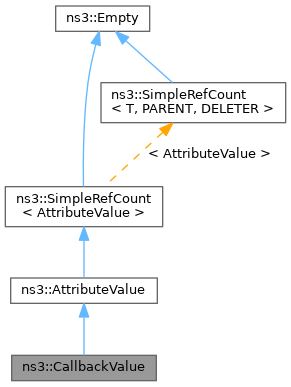

Inheritance diagram for ns3::CallbackValue:

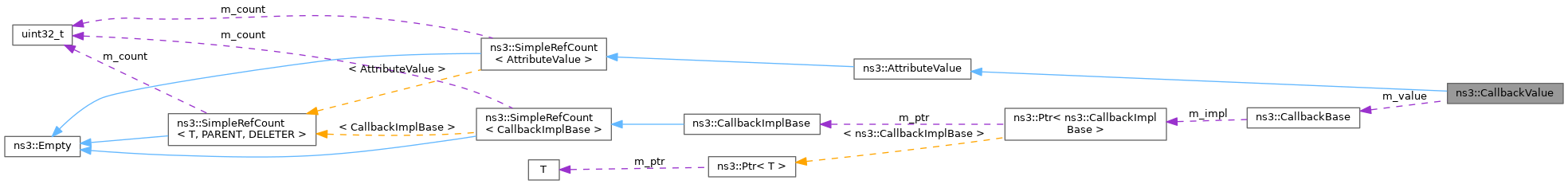

Collaboration diagram for ns3::CallbackValue:

Public Member Functions
	CallbackValue ()
	Constructor.
	CallbackValue (const CallbackBase &base)
	Copy constructor.
	~CallbackValue () override
	Destructor.
Ptr< AttributeValue >	Copy () const override
bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker) override
	Deserialize from string (not implemented)
template<typename T >
bool	GetAccessor (T &value) const
	Access the Callback value as type T.
std::string	SerializeToString (Ptr< const AttributeChecker > checker) const override
	Serialize to string.
void	Set (CallbackBase base)
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
virtual Ptr< AttributeValue >	Copy () const =0
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)=0
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const =0
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor.
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.
uint32_t	GetReferenceCount () const
	Get the reference count of the object.
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.
void	Ref () const
	Increment the reference count.
void	Unref () const
	Decrement the reference count.

Private Attributes
CallbackBase	m_value
	The stored Callback instance.

Detailed Description

AttributeValue implementation for Callback.

See also

AttributeValue

Definition at line 803 of file callback.h.

Constructor & Destructor Documentation

CallbackValue() [1/2]

ns3::CallbackValue::CallbackValue

(

)

Constructor.

Definition at line 35 of file callback.cc.

References NS_LOG_FUNCTION.

CallbackValue() [2/2]

ns3::CallbackValue::CallbackValue

(

const CallbackBase &

base

)

Copy constructor.

Parameters

[in]

base

Callback to copy

Definition at line 41 of file callback.cc.

~CallbackValue()

ns3::CallbackValue::~CallbackValue ( )

override

Destructor.

Definition at line 46 of file callback.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Copy()

Ptr< AttributeValue > ns3::CallbackValue::Copy ( ) const

overridevirtual

Returns

A copy of this CallBack

Implements ns3::AttributeValue.

Definition at line 60 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

DeserializeFromString()

bool ns3::CallbackValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

overridevirtual

Deserialize from string (not implemented)

Parameters

[in]	value	Source string
[in]	checker	Checker to validate with

Returns

true if successful

Implements ns3::AttributeValue.

Definition at line 76 of file callback.cc.

References NS_LOG_FUNCTION.

GetAccessor()

template<typename T >

bool ns3::CallbackValue::GetAccessor

(

T &

value

)

const

Access the Callback value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out]

value

The Callback value, as type T.

Returns

true.

Definition at line 852 of file callback.h.

References m_value, and NS_FATAL_ERROR_NO_MSG.

SerializeToString()

std::string ns3::CallbackValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

overridevirtual

Serialize to string.

Parameters

[in]

checker

The checker to validate with

Returns

Serialized form of this Callback.

Implements ns3::AttributeValue.

Definition at line 67 of file callback.cc.

References ns3::CallbackBase::GetImpl(), m_value, NS_LOG_FUNCTION, and ns3::PeekPointer().

Here is the call graph for this function:

Set()

void ns3::CallbackValue::Set

(

CallbackBase

base

)

Parameters

[in]

base

The CallbackBase to use

Definition at line 52 of file callback.cc.

References m_value, and NS_LOG_FUNCTION.

Member Data Documentation

m_value

Callback ns3::CallbackValue::m_value

private

The stored Callback instance.

Definition at line 839 of file callback.h.

Referenced by Copy(), GetAccessor(), SerializeToString(), and Set().

---

The documentation for this class was generated from the following files:

• src/core/model/callback.h
• src/core/model/callback.cc
• doc/introspected-doxygen.h
