ns3::MlmeStartRequestParams Struct Reference

MLME-START.request params. More...

#include "lr-wpan-mac.h"

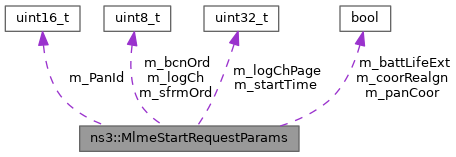

Collaboration diagram for ns3::MlmeStartRequestParams:

Public Attributes
bool	m_battLifeExt {false}
	Flag indicating whether or not the Battery life extension (BLE) features are used.
uint8_t	m_bcnOrd {15}
	Beacon Order, Used to calculate the beacon interval, a value of 15 indicates no periodic beacons will be transmitted.
bool	m_coorRealgn {false}
	True if a realignment request command is to be transmitted prior changing the superframe.
uint8_t	m_logCh {11}
	Logical channel on which to start using the new superframe configuration.
uint32_t	m_logChPage {0}
	Logical channel page on which to start using the new superframe configuration.
bool	m_panCoor {false}
	On true this device will become coordinator.
uint16_t	m_PanId {0}
	Pan Identifier used by the device.
uint8_t	m_sfrmOrd {15}
	Superframe Order, indicates the length of the CAP in time slots.
uint32_t	m_startTime {0}
	Time at which to begin transmitting beacons (Used by Coordinator not PAN Coordinators).

Detailed Description

MLME-START.request params.

See 802.15.4-2011 Section 6.2.12.1

Definition at line 474 of file lr-wpan-mac.h.

Member Data Documentation

m_battLifeExt

bool ns3::MlmeStartRequestParams::m_battLifeExt {false}

Flag indicating whether or not the Battery life extension (BLE) features are used.

Definition at line 487 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndStartRequest().

m_bcnOrd

uint8_t ns3::MlmeStartRequestParams::m_bcnOrd {15}

Beacon Order, Used to calculate the beacon interval, a value of 15 indicates no periodic beacons will be transmitted.

Definition at line 483 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::EndStartRequest().

m_coorRealgn

bool ns3::MlmeStartRequestParams::m_coorRealgn {false}

True if a realignment request command is to be transmitted prior changing the superframe.

Definition at line 489 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EndStartRequest().

m_logCh

uint8_t ns3::MlmeStartRequestParams::m_logCh {11}

Logical channel on which to start using the new superframe configuration.

Definition at line 477 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::PlmeSetAttributeConfirm().

m_logChPage

uint32_t ns3::MlmeStartRequestParams::m_logChPage {0}

Logical channel page on which to start using the new superframe configuration.

Definition at line 479 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::MlmeStartRequest().

m_panCoor

bool ns3::MlmeStartRequestParams::m_panCoor {false}

On true this device will become coordinator.

Definition at line 486 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::EndStartRequest().

m_PanId

uint16_t ns3::MlmeStartRequestParams::m_PanId {0}

Pan Identifier used by the device.

Definition at line 476 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::EndStartRequest().

m_sfrmOrd

uint8_t ns3::MlmeStartRequestParams::m_sfrmOrd {15}

Superframe Order, indicates the length of the CAP in time slots.

Definition at line 485 of file lr-wpan-mac.h.

Referenced by TestActiveScanPanDescriptors::DoRun(), and ns3::LrWpanMac::EndStartRequest().

m_startTime

uint32_t ns3::MlmeStartRequestParams::m_startTime {0}

Time at which to begin transmitting beacons (Used by Coordinator not PAN Coordinators).

The time is specified in symbols.

Definition at line 481 of file lr-wpan-mac.h.

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
