ns3::TypeId::TraceSourceInformation Struct Reference

TraceSource implementation. More...

#include "type-id.h"

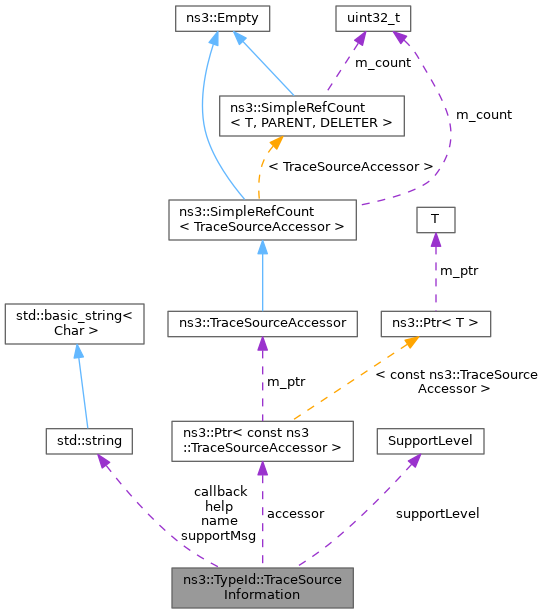

Collaboration diagram for ns3::TypeId::TraceSourceInformation:

Public Attributes
Ptr< const TraceSourceAccessor >	accessor
	Trace accessor.
std::string	callback
	Callback function signature type.
std::string	help
	Trace help string.
std::string	name
	Trace name.
TypeId::SupportLevel	supportLevel
	Support level/deprecation.
std::string	supportMsg
	Support message.

Detailed Description

TraceSource implementation.

Definition at line 103 of file type-id.h.

Member Data Documentation

accessor

Ptr<const TraceSourceAccessor> ns3::TypeId::TraceSourceInformation::accessor

Trace accessor.

Definition at line 112 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource(), and ns3::TypeId::LookupTraceSourceByName().

callback

std::string ns3::TypeId::TraceSourceInformation::callback

Callback function signature type.

Definition at line 110 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource(), and TracedValueCallbackTestCase::CheckTvCb< T >::Invoke().

help

std::string ns3::TypeId::TraceSourceInformation::help

Trace help string.

Definition at line 108 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource().

name

std::string ns3::TypeId::TraceSourceInformation::name

Trace name.

Definition at line 106 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource(), ns3::TypeId::LookupTraceSourceByName(), and anonymous_namespace{print-introspected-doxygen.cc}::SortedTraceSourceInfo().

supportLevel

TypeId::SupportLevel ns3::TypeId::TraceSourceInformation::supportLevel

Support level/deprecation.

Definition at line 114 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource(), and ns3::TypeId::LookupTraceSourceByName().

supportMsg

std::string ns3::TypeId::TraceSourceInformation::supportMsg

Support message.

Definition at line 116 of file type-id.h.

Referenced by ns3::IidManager::AddTraceSource(), and ns3::TypeId::LookupTraceSourceByName().

---

The documentation for this struct was generated from the following file:

• src/core/model/type-id.h
