The Classic recovery implementation. More...
#include "tcp-recovery-ops.h"
Public Member Functions | |
TcpClassicRecovery () | |
Constructor. | |
TcpClassicRecovery (const TcpClassicRecovery &recovery) | |
Copy constructor. | |
~TcpClassicRecovery () override | |
Constructor. | |
void | DoRecovery (Ptr< TcpSocketState > tcb, uint32_t deliveredBytes) override |
Performs recovery based on the recovery algorithm. | |
void | EnterRecovery (Ptr< TcpSocketState > tcb, uint32_t dupAckCount, uint32_t unAckDataCount, uint32_t deliveredBytes) override |
Performs variable initialization at the start of recovery. | |
void | ExitRecovery (Ptr< TcpSocketState > tcb) override |
Performs cwnd adjustments at the end of recovery. | |
Ptr< TcpRecoveryOps > | Fork () override |
Copy the recovery algorithm across socket. | |
std::string | GetName () const override |
Get the name of the recovery algorithm. | |
![]() | |
TcpRecoveryOps () | |
Constructor. | |
TcpRecoveryOps (const TcpRecoveryOps &other) | |
Copy constructor. | |
~TcpRecoveryOps () override | |
Deconstructor. | |
virtual void | DoRecovery (Ptr< TcpSocketState > tcb, uint32_t deliveredBytes)=0 |
Performs recovery based on the recovery algorithm. | |
virtual void | EnterRecovery (Ptr< TcpSocketState > tcb, uint32_t dupAckCount, uint32_t unAckDataCount, uint32_t deliveredBytes)=0 |
Performs variable initialization at the start of recovery. | |
virtual void | ExitRecovery (Ptr< TcpSocketState > tcb)=0 |
Performs cwnd adjustments at the end of recovery. | |
virtual Ptr< TcpRecoveryOps > | Fork ()=0 |
Copy the recovery algorithm across socket. | |
virtual std::string | GetName () const =0 |
Get the name of the recovery algorithm. | |
virtual void | UpdateBytesSent (uint32_t bytesSent) |
Keeps track of bytes sent during recovery phase. | |
![]() | |
Object () | |
Constructor. | |
~Object () override | |
Destructor. | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. | |
void | Dispose () |
Dispose of this Object. | |
AggregateIterator | GetAggregateIterator () const |
Get an iterator to the Objects aggregated to this one. | |
TypeId | GetInstanceTypeId () const override |
Get the most derived TypeId for this Object. | |
template<typename T > | |
Ptr< T > | GetObject () const |
Get a pointer to the requested aggregated Object. | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. | |
void | Initialize () |
Invoke DoInitialize on all Objects aggregated to this one. | |
bool | IsInitialized () const |
Check if the object has been initialized. | |
![]() | |
SimpleRefCount () | |
Default constructor. | |
SimpleRefCount (const SimpleRefCount &o) | |
Copy constructor. | |
uint32_t | GetReferenceCount () const |
Get the reference count of the object. | |
SimpleRefCount & | operator= (const SimpleRefCount &o) |
Assignment operator. | |
void | Ref () const |
Increment the reference count. | |
void | Unref () const |
Decrement the reference count. | |
![]() | |
virtual | ~ObjectBase () |
Virtual destructor. | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising errors. | |
virtual TypeId | GetInstanceTypeId () const =0 |
Get the most derived TypeId for this Object. | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
![]() | |
static TypeId | GetTypeId () |
Register this type. | |
![]() | |
static TypeId | GetTypeId () |
Get the type ID. | |
Additional Inherited Members | |
![]() | |
Object (const Object &o) | |
Copy an Object. | |
virtual void | DoDispose () |
Destructor implementation. | |
virtual void | DoInitialize () |
Initialize() implementation. | |
virtual void | NotifyNewAggregate () |
Notify all Objects aggregated to this one of a new Object being aggregated. | |
![]() | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. | |
virtual void | NotifyConstructionCompleted () |
Notifier called once the ObjectBase is fully constructed. | |
![]() | |
static TypeId | GetObjectIid () |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. | |
The Classic recovery implementation.
Introspection did not find any typical Config paths.
Classic recovery refers to the two well-established recovery algorithms, namely, NewReno (RFC 6582) and SACK based recovery (RFC 6675).
The idea of the algorithm is that when we enter recovery, we set the congestion window value to the slow start threshold and maintain it at such value until we are fully recovered (in other words, until the highest sequence transmitted at time of detecting the loss is ACKed by the receiver).
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).
Definition at line 160 of file tcp-recovery-ops.h.
ns3::TcpClassicRecovery::TcpClassicRecovery | ( | ) |
ns3::TcpClassicRecovery::TcpClassicRecovery | ( | const TcpClassicRecovery & | recovery | ) |
Copy constructor.
recovery | object to copy. |
Definition at line 85 of file tcp-recovery-ops.cc.
References NS_LOG_FUNCTION.
|
override |
|
overridevirtual |
Performs recovery based on the recovery algorithm.
The function is called on arrival of every ack when TcpSocketState is set to CA_RECOVERY. It performs the necessary cwnd changes as per the recovery algorithm.
tcb | internal congestion state |
deliveredBytes | bytes (S)ACKed in the last (S)ACK |
Implements ns3::TcpRecoveryOps.
Definition at line 108 of file tcp-recovery-ops.cc.
References NS_LOG_FUNCTION.
|
overridevirtual |
Performs variable initialization at the start of recovery.
The function is called when the TcpSocketState is changed to CA_RECOVERY.
tcb | internal congestion state |
dupAckCount | duplicate acknowldgement count |
unAckDataCount | total bytes of data unacknowledged |
deliveredBytes | bytes (S)ACKed in the last (S)ACK |
Implements ns3::TcpRecoveryOps.
Definition at line 97 of file tcp-recovery-ops.cc.
References NS_LOG_FUNCTION.
|
overridevirtual |
Performs cwnd adjustments at the end of recovery.
The function is called when the TcpSocketState is changed from CA_RECOVERY.
tcb | internal congestion state |
Implements ns3::TcpRecoveryOps.
Definition at line 115 of file tcp-recovery-ops.cc.
References NS_LOG_FUNCTION.
|
overridevirtual |
Copy the recovery algorithm across socket.
Implements ns3::TcpRecoveryOps.
Definition at line 133 of file tcp-recovery-ops.cc.
|
overridevirtual |
Get the name of the recovery algorithm.
Implements ns3::TcpRecoveryOps.
Definition at line 127 of file tcp-recovery-ops.cc.
|

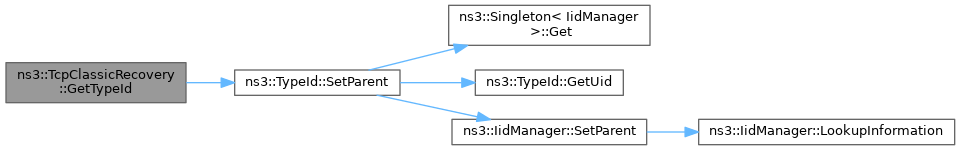

static |
Get the type ID.
Definition at line 70 of file tcp-recovery-ops.cc.
References ns3::TypeId::SetParent().
Referenced by Ns3TcpLossTestCase::DoSetup().
