EHT configuration. More...

#include "eht-configuration.h"

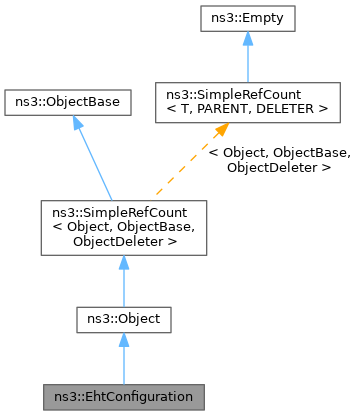

Inheritance diagram for ns3::EhtConfiguration:

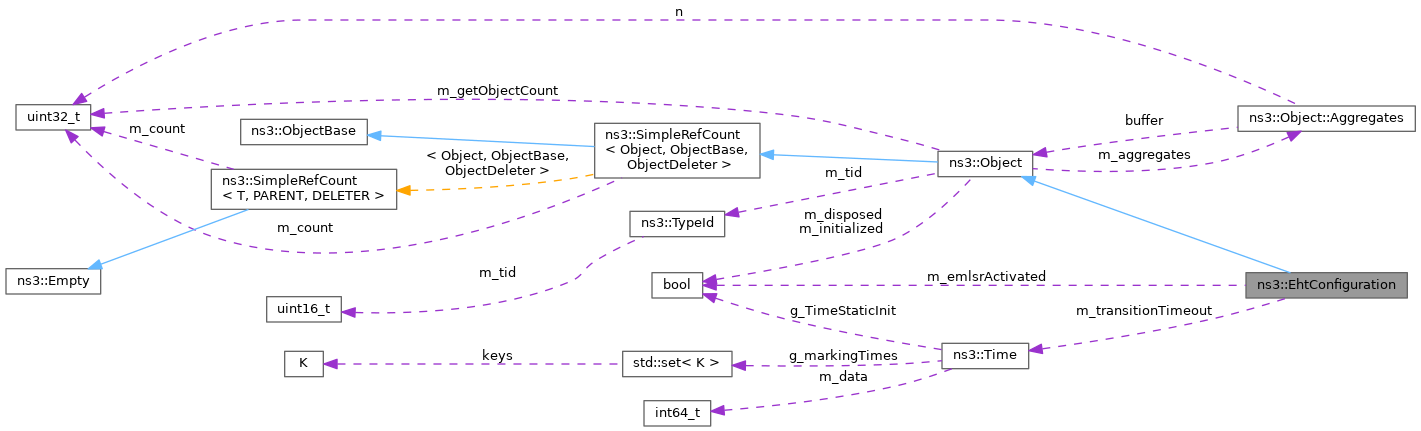

Collaboration diagram for ns3::EhtConfiguration:

Public Member Functions
	EhtConfiguration ()

	~EhtConfiguration () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

virtual TypeId	GetInstanceTypeId () const =0
	Get the most derived TypeId for this Object.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
bool	m_emlsrActivated
	whether EMLSR option is activated

Time	m_transitionTimeout
	Transition timeout.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

EHT configuration.

This object stores EHT configuration information, for use in modifying AP or STA behavior and for constructing EHT-related information elements.

Config Paths

ns3::EhtConfiguration is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/EhtConfiguration"

Attributes

EmlsrActivated: Whether EMLSR option is activated. If activated, EMLSR mode can be enabled on the EMLSR links by an installed EMLSR Manager.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructread
TransitionTimeout: The Transition Timeout (not used by non-AP MLDs). Possible values are 0us or 2^n us, with n=7..16.
- Set with class: ns3::TimeValue
- Underlying type: Time +0ns:+6.5536e+07ns
- Initial value: +0ns
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 37 of file eht-configuration.h.

Constructor & Destructor Documentation

◆ EhtConfiguration()

ns3::EhtConfiguration::EhtConfiguration ( )

Definition at line 32 of file eht-configuration.cc.

References NS_LOG_FUNCTION.

◆ ~EhtConfiguration()

ns3::EhtConfiguration::~EhtConfiguration ( )

override

Definition at line 37 of file eht-configuration.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::EhtConfiguration::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 43 of file eht-configuration.cc.

References ns3::TypeId::ATTR_CONSTRUCT, ns3::TypeId::ATTR_GET, m_emlsrActivated, m_transitionTimeout, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MicroSeconds(), and ns3::TypeId::SetParent().

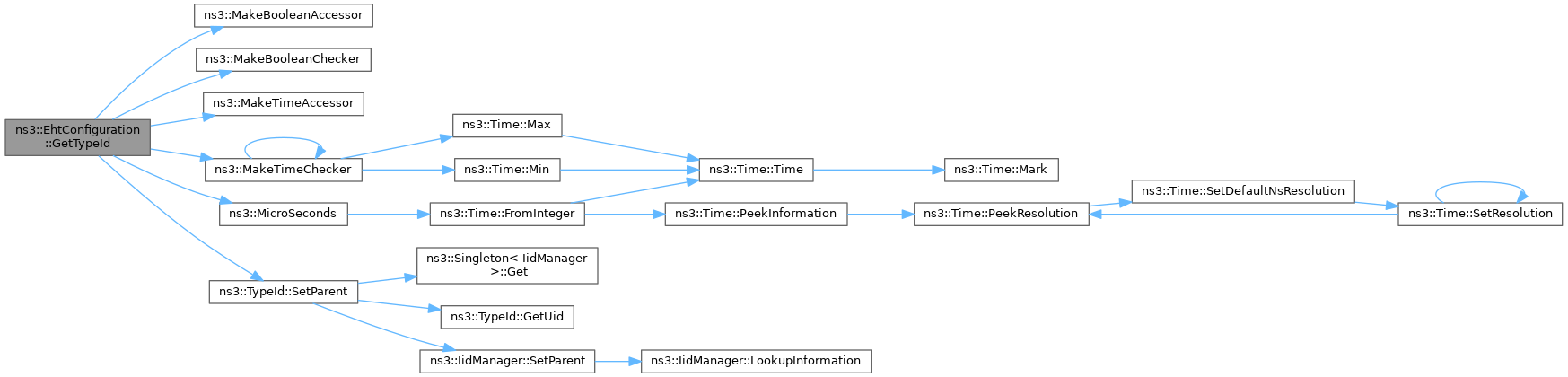

Here is the call graph for this function:

Member Data Documentation

◆ m_emlsrActivated

bool ns3::EhtConfiguration::m_emlsrActivated

private

whether EMLSR option is activated

Definition at line 50 of file eht-configuration.h.

Referenced by GetTypeId().

◆ m_transitionTimeout

Time ns3::EhtConfiguration::m_transitionTimeout

private

Transition timeout.

Definition at line 51 of file eht-configuration.h.
