AttributeTestCase< T > Class Template Reference

Test case template used for generic Attribute Value types – used to make sure that Attributes work as expected. More...

Inheritance diagram for AttributeTestCase< T >:

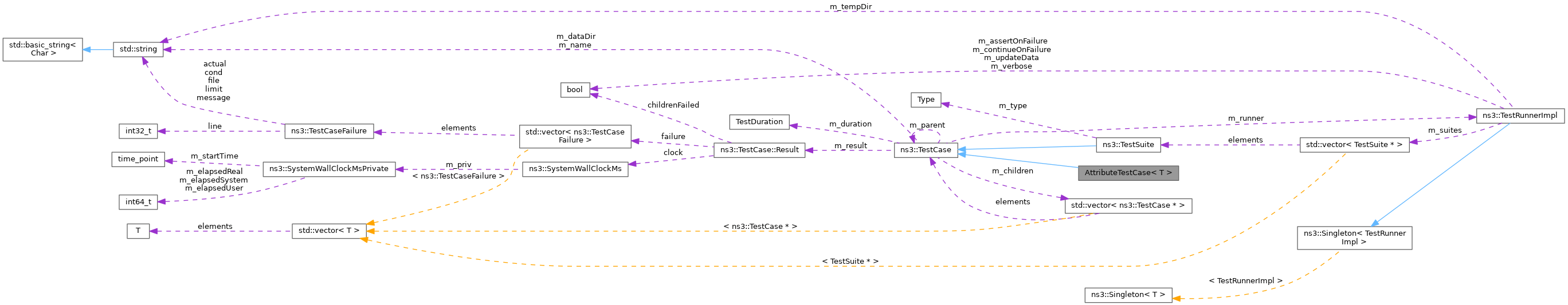

Collaboration diagram for AttributeTestCase< T >:

Public Member Functions
	AttributeTestCase (std::string description)
	Constructor.
	~AttributeTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor.
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
bool	CheckGetCodePaths (Ptr< Object > p, std::string attributeName, std::string expectedString, T expectedValue)
	Check the attribute path and value.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun ()
	Implementation to actually run this TestCase.
void	DoRun () override
	Implementation to actually run this TestCase.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.
TestCase *	GetParent () const
	Get the parent of this TestCase.
bool	IsStatusFailure () const
	Check if any tests failed.
bool	IsStatusSuccess () const
	Check if all tests passed.
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.
bool	MustAssertOnFailure () const
	Check if this run should assert on failure.
bool	MustContinueOnFailure () const
	Check if this run should continue on failure.
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

template<typename T>
class AttributeTestCase< T >

Test case template used for generic Attribute Value types – used to make sure that Attributes work as expected.

Definition at line 538 of file attribute-test-suite.cc.

Constructor & Destructor Documentation

AttributeTestCase()

template<typename T >

AttributeTestCase< T >::AttributeTestCase

(

std::string

description

)

Constructor.

Parameters

description

The TestCase description.

Definition at line 565 of file attribute-test-suite.cc.

~AttributeTestCase()

template<typename T >

AttributeTestCase< T >::~AttributeTestCase

override

Definition at line 571 of file attribute-test-suite.cc.

Member Function Documentation

CheckGetCodePaths()

template<typename T >

bool AttributeTestCase< T >::CheckGetCodePaths ( Ptr< Object >  p, std::string  attributeName, std::string  expectedString, T  expectedValue  )

private

Check the attribute path and value.

Parameters

p	The object to test.
attributeName	The attribute name.
expectedString	The expected attribute name.
expectedValue	The expected attribute value.

Returns

true if everything is as expected.

Definition at line 577 of file attribute-test-suite.cc.

References ns3::StringValue::Get().

Here is the call graph for this function:

DoRun() [1/7]

void AttributeTestCase< BooleanValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 605 of file attribute-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_NE, ns3::Config::SetDefault(), and ns3::Config::SetDefaultFailSafe().

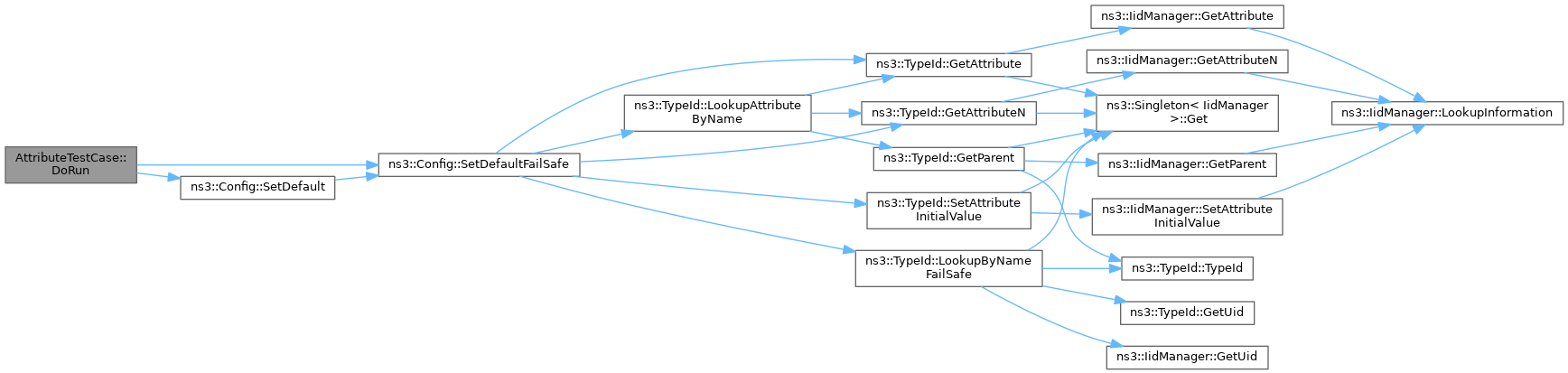

Here is the call graph for this function:

DoRun() [2/7]

void AttributeTestCase< IntegerValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 706 of file attribute-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_NE.

DoRun() [3/7]

void AttributeTestCase< UintegerValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 841 of file attribute-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_NE.

DoRun() [4/7]

void AttributeTestCase< DoubleValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 924 of file attribute-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_NE.

DoRun() [5/7]

void AttributeTestCase< EnumValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 953 of file attribute-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_NE, AttributeObjectTest::TEST_A, AttributeObjectTest::TEST_B, and AttributeObjectTest::TEST_C.

DoRun() [6/7]

void AttributeTestCase< TimeValue >::DoRun ( )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1031 of file attribute-test-suite.cc.

References ns3::Time::NS, NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_NE, ns3::Seconds(), and ns3::Time::SetResolution().

Here is the call graph for this function:

DoRun() [7/7]

template<typename T >

void AttributeTestCase< T >::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

---

The documentation for this class was generated from the following file:

• src/core/test/attribute-test-suite.cc
