IPv4 RIP SplitHorizon strategy Test. More...

Inheritance diagram for Ipv4RipSplitHorizonStrategyTest:

Collaboration diagram for Ipv4RipSplitHorizonStrategyTest:

Public Member Functions
	Ipv4RipSplitHorizonStrategyTest (Rip::SplitHorizonType_e strategy)
	Constructor.

void	DoRun () override
	Implementation to actually run this TestCase.

void	ReceivePktProbe (Ptr< Socket > socket)
	Receive data.

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor.

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Attributes
Rip::SplitHorizonType_e	m_detectedStrategy
	Strategy detected.

Rip::SplitHorizonType_e	m_setStrategy
	Strategy set.

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor.

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite.

TestCase *	GetParent () const
	Get the parent of this TestCase.

bool	IsStatusFailure () const
	Check if any tests failed.

bool	IsStatusSuccess () const
	Check if all tests passed.

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found.

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase.

bool	MustAssertOnFailure () const
	Check if this run should assert on failure.

bool	MustContinueOnFailure () const
	Check if this run should continue on failure.

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory.

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory.

Detailed Description

IPv4 RIP SplitHorizon strategy Test.

Definition at line 514 of file ipv4-rip-test.cc.

Constructor & Destructor Documentation

◆ Ipv4RipSplitHorizonStrategyTest()

Ipv4RipSplitHorizonStrategyTest::Ipv4RipSplitHorizonStrategyTest ( Rip::SplitHorizonType_e strategy )

Constructor.

Parameters

strategy The SplitHorizon strategy.

Definition at line 535 of file ipv4-rip-test.cc.

References m_setStrategy.

Member Function Documentation

◆ DoRun()

void Ipv4RipSplitHorizonStrategyTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 585 of file ipv4-rip-test.cc.

References ns3::NetDeviceContainer::Add(), ns3::Simulator::Destroy(), ns3::InternetStackHelper::Install(), m_detectedStrategy, m_setStrategy, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ReceivePktProbe(), ns3::Simulator::Run(), ns3::Seconds(), ns3::RipHelper::Set(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::Rip::SPLIT_HORIZON, and ns3::Simulator::Stop().

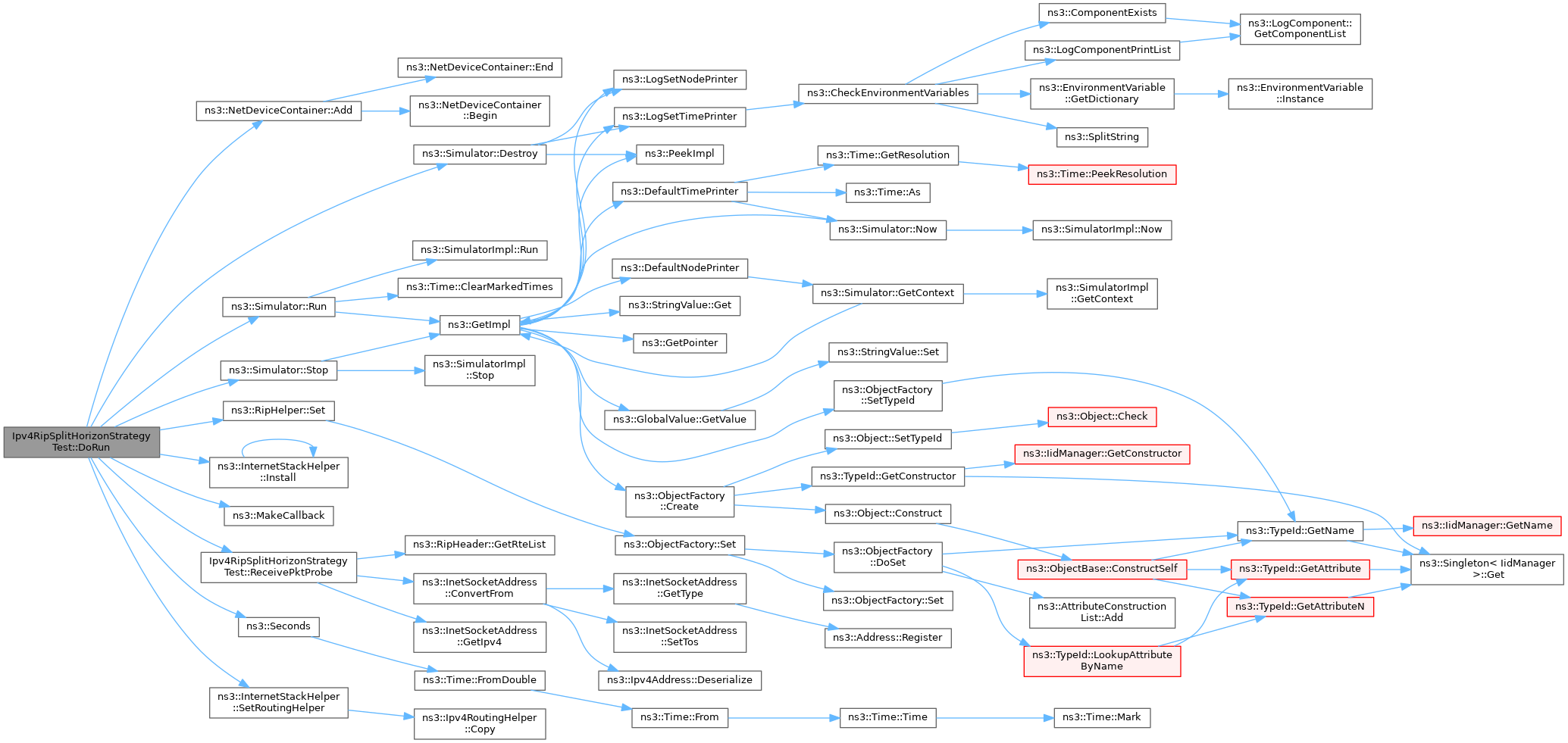

Here is the call graph for this function:

◆ ReceivePktProbe()

void Ipv4RipSplitHorizonStrategyTest::ReceivePktProbe ( Ptr< Socket > socket )

Receive data.

Parameters

socket The receiving socket.

Definition at line 542 of file ipv4-rip-test.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::RipHeader::GetRteList(), m_detectedStrategy, ns3::Rip::NO_SPLIT_HORIZON, NS_TEST_ASSERT_MSG_EQ, NS_TEST_EXPECT_MSG_EQ, and ns3::Rip::POISON_REVERSE.

Referenced by DoRun().

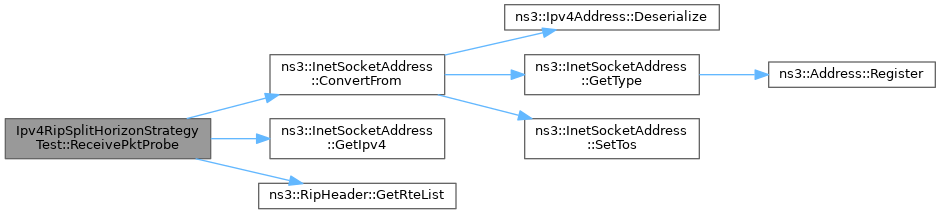

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_detectedStrategy

Rip::SplitHorizonType_e Ipv4RipSplitHorizonStrategyTest::m_detectedStrategy

private

Strategy detected.

Definition at line 517 of file ipv4-rip-test.cc.

Referenced by DoRun(), and ReceivePktProbe().

◆ m_setStrategy

Rip::SplitHorizonType_e Ipv4RipSplitHorizonStrategyTest::m_setStrategy

private

Strategy set.

Definition at line 516 of file ipv4-rip-test.cc.

Referenced by Ipv4RipSplitHorizonStrategyTest(), and DoRun().

The documentation for this class was generated from the following file:

src/internet/test/ipv4-rip-test.cc
