ns3::LteRrcSap::PhysicalConfigDedicatedSCell Struct Reference

PhysicalConfigDedicatedSCell structure. More...

#include "lte-rrc-sap.h"

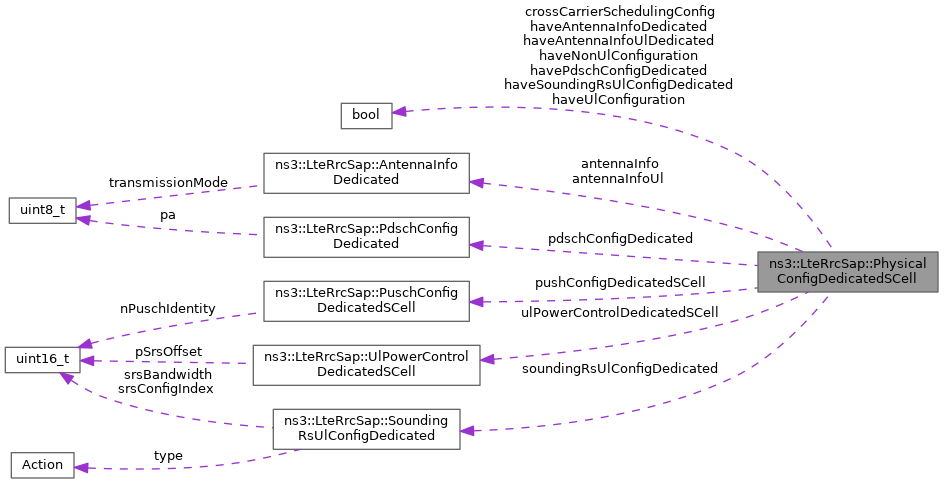

Collaboration diagram for ns3::LteRrcSap::PhysicalConfigDedicatedSCell:

Public Attributes
AntennaInfoDedicated	antennaInfo
	antenna info dedicated
AntennaInfoDedicated	antennaInfoUl
	antenna info UL
bool	crossCarrierSchedulingConfig
	currently implemented as boolean variable --> implementing crossCarrierScheduling is out of the scope of this GSoC proposal
bool	haveAntennaInfoDedicated
	have antenna info dedicated?
bool	haveAntennaInfoUlDedicated
	have antenna info UL dedicated?
bool	haveNonUlConfiguration
	have non UL configuration?
bool	havePdschConfigDedicated
	have PDSCH config dedicated?
bool	haveSoundingRsUlConfigDedicated
	have sounding RS UL config dedicated?
bool	haveUlConfiguration
	have UL configuration?
PdschConfigDedicated	pdschConfigDedicated
	PDSCH config dedicated.
PuschConfigDedicatedSCell	pushConfigDedicatedSCell
	PUSCH config dedicated SCell.
SoundingRsUlConfigDedicated	soundingRsUlConfigDedicated
	sounding RS UL config dedicated
UlPowerControlDedicatedSCell	ulPowerControlDedicatedSCell
	UL power control dedicated SCell.

Detailed Description

PhysicalConfigDedicatedSCell structure.

Definition at line 820 of file lte-rrc-sap.h.

Member Data Documentation

antennaInfo

AntennaInfoDedicated ns3::LteRrcSap::PhysicalConfigDedicatedSCell::antennaInfo

antenna info dedicated

Definition at line 825 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

antennaInfoUl

AntennaInfoDedicated ns3::LteRrcSap::PhysicalConfigDedicatedSCell::antennaInfoUl

antenna info UL

Definition at line 835 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

crossCarrierSchedulingConfig

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::crossCarrierSchedulingConfig

currently implemented as boolean variable --> implementing crossCarrierScheduling is out of the scope of this GSoC proposal

Definition at line 826 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa().

haveAntennaInfoDedicated

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::haveAntennaInfoDedicated

have antenna info dedicated?

Definition at line 824 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

haveAntennaInfoUlDedicated

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::haveAntennaInfoUlDedicated

have antenna info UL dedicated?

Definition at line 834 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

haveNonUlConfiguration

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::haveNonUlConfiguration

have non UL configuration?

Definition at line 823 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

havePdschConfigDedicated

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::havePdschConfigDedicated

have PDSCH config dedicated?

Definition at line 829 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

haveSoundingRsUlConfigDedicated

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::haveSoundingRsUlConfigDedicated

have sounding RS UL config dedicated?

Definition at line 839 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

haveUlConfiguration

bool ns3::LteRrcSap::PhysicalConfigDedicatedSCell::haveUlConfiguration

have UL configuration?

Definition at line 833 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

pdschConfigDedicated

PdschConfigDedicated ns3::LteRrcSap::PhysicalConfigDedicatedSCell::pdschConfigDedicated

PDSCH config dedicated.

Definition at line 830 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

pushConfigDedicatedSCell

PuschConfigDedicatedSCell ns3::LteRrcSap::PhysicalConfigDedicatedSCell::pushConfigDedicatedSCell

PUSCH config dedicated SCell.

Definition at line 836 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa().

soundingRsUlConfigDedicated

SoundingRsUlConfigDedicated ns3::LteRrcSap::PhysicalConfigDedicatedSCell::soundingRsUlConfigDedicated

sounding RS UL config dedicated

Definition at line 841 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa(), ns3::RrcAsn1Header::DeserializePhysicalConfigDedicatedSCell(), and ns3::RrcAsn1Header::SerializePhysicalConfigDedicatedSCell().

ulPowerControlDedicatedSCell

UlPowerControlDedicatedSCell ns3::LteRrcSap::PhysicalConfigDedicatedSCell::ulPowerControlDedicatedSCell

UL power control dedicated SCell.

Definition at line 838 of file lte-rrc-sap.h.

Referenced by ns3::UeManager::BuildNonCriticalExtensionConfigurationCa().

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-rrc-sap.h
