ns3::OmnetDataOutput::OmnetOutputCallback Class Reference

Class to generate OMNeT output. More...

Inheritance diagram for ns3::OmnetDataOutput::OmnetOutputCallback:

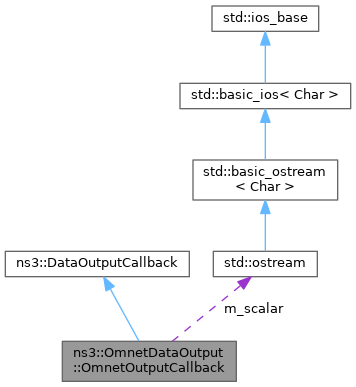

Collaboration diagram for ns3::OmnetDataOutput::OmnetOutputCallback:

Public Member Functions
	OmnetOutputCallback (std::ostream *scalar)
	Constructor.
void	OutputSingleton (std::string context, std::string name, double val) override
	Generates a single data output.
void	OutputSingleton (std::string context, std::string name, int val) override
	Generates a single data output.
void	OutputSingleton (std::string context, std::string name, std::string val) override
	Generates a single data output.
void	OutputSingleton (std::string context, std::string name, Time val) override
	Generates a single data output.
void	OutputSingleton (std::string context, std::string name, uint32_t val) override
	Generates a single data output.
void	OutputStatistic (std::string context, std::string name, const StatisticalSummary *statSum) override
	Generates data statistics.
Public Member Functions inherited from ns3::DataOutputCallback
virtual	~DataOutputCallback ()
	Destructor.
virtual void	OutputSingleton (std::string key, std::string variable, double val)=0
	Associates the double value with the variable name for a specific output format.
virtual void	OutputSingleton (std::string key, std::string variable, int val)=0
	Associates the integer value with the variable name for a specific output format.
virtual void	OutputSingleton (std::string key, std::string variable, std::string val)=0
	Associates the string value with the variable name for a specific output format.
virtual void	OutputSingleton (std::string key, std::string variable, Time val)=0
	Associates the Time value with the variable name for a specific output format.
virtual void	OutputSingleton (std::string key, std::string variable, uint32_t val)=0
	Associates the uint32_t value with the variable name for a specific output format.
virtual void	OutputStatistic (std::string key, std::string variable, const StatisticalSummary *statSum)=0
	Outputs the data from the specified StatisticalSummary.

Private Attributes
std::ostream *	m_scalar
	output stream

Detailed Description

Class to generate OMNeT output.

Definition at line 61 of file omnet-data-output.h.

Constructor & Destructor Documentation

OmnetOutputCallback()

OmnetDataOutput::OmnetOutputCallback::OmnetOutputCallback

(

std::ostream *

scalar

)

Constructor.

Parameters

scalar

the output stream

Definition at line 157 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

OutputSingleton() [1/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, double  val  )

overridevirtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 248 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [2/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, int  val  )

overridevirtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 210 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [3/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, std::string  val  )

overridevirtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 267 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [4/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, Time  val  )

overridevirtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 286 of file omnet-data-output.cc.

References ns3::Time::GetTimeStep(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

OutputSingleton() [5/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, uint32_t  val  )

overridevirtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 229 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputStatistic()

void OmnetDataOutput::OmnetOutputCallback::OutputStatistic ( std::string  context, std::string  name, const StatisticalSummary *  statSum  )

overridevirtual

Generates data statistics.

Parameters

context	the output context
name	the output name
statSum	the stats to print

Implements ns3::DataOutputCallback.

Definition at line 164 of file omnet-data-output.cc.

References ns3::StatisticalSummary::getCount(), ns3::StatisticalSummary::getMax(), ns3::StatisticalSummary::getMean(), ns3::StatisticalSummary::getMin(), ns3::StatisticalSummary::getSqrSum(), ns3::StatisticalSummary::getStddev(), ns3::StatisticalSummary::getSum(), ns3::isNaN(), and NS_LOG_FUNCTION.

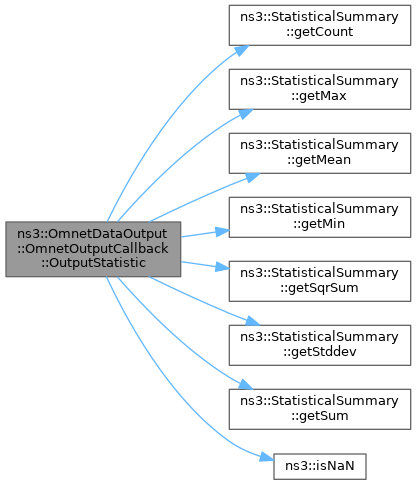

Here is the call graph for this function:

Member Data Documentation

m_scalar

std::ostream* ns3::OmnetDataOutput::OmnetOutputCallback::m_scalar

private

output stream

Definition at line 121 of file omnet-data-output.h.

---

The documentation for this class was generated from the following files:

• src/stats/model/omnet-data-output.h
• src/stats/model/omnet-data-output.cc
