This class can contain 16 bit addresses. More...

#include "mac16-address.h"

Collaboration diagram for ns3::Mac16Address:

Public Member Functions
	Mac16Address ()

	Mac16Address (const char *str)

	Mac16Address (uint16_t addr)

Address	ConvertTo () const

uint16_t	ConvertToInt () const

void	CopyFrom (const uint8_t buffer[2])

void	CopyTo (uint8_t buffer[2]) const

bool	IsBroadcast () const
	Checks if the address is a broadcast address according to 802.15.4 scheme (i.e., 0xFFFF).

bool	IsMulticast () const
	Checks if the address is a multicast address according to RFC 4944 Section 9 (i.e., if its first 3 bits are 100).

	operator Address () const

Static Public Member Functions
static Mac16Address	Allocate ()
	Allocate a new Mac16Address.

static Mac16Address	ConvertFrom (const Address &address)

static Mac16Address	GetBroadcast ()

static Mac16Address	GetMulticast (Ipv6Address address)
	Returns the multicast address associated with an IPv6 address according to RFC 4944 Section 9.

static bool	IsMatchingType (const Address &address)

static void	ResetAllocationIndex ()
	Reset the Mac16Address allocation index.

Static Private Member Functions
static uint8_t	GetType ()
	Return the Type of address.

Private Attributes
uint8_t	m_address [2]
	address value

Static Private Attributes
static uint64_t	m_allocationIndex = 0
	Address allocation index.

Friends
bool	operator!= (const Mac16Address &a, const Mac16Address &b)
	Not equal to operator.

bool	operator< (const Mac16Address &a, const Mac16Address &b)
	Less than operator.

std::ostream &	operator<< (std::ostream &os, const Mac16Address &address)
	Stream insertion operator.

bool	operator== (const Mac16Address &a, const Mac16Address &b)
	Equal to operator.

std::istream &	operator>> (std::istream &is, Mac16Address &address)
	Stream extraction operator.

Detailed Description

This class can contain 16 bit addresses.

See also: Mac16Address Attribute

Definition at line 43 of file mac16-address.h.

Constructor & Destructor Documentation

◆ Mac16Address() [1/3]

ns3::Mac16Address::Mac16Address ( )

Definition at line 69 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by GetBroadcast().

Here is the caller graph for this function:

◆ Mac16Address() [2/3]

ns3::Mac16Address::Mac16Address ( const char * str )

Parameters

str	a string representing the new Mac16Address

Definition at line 75 of file mac16-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Mac16Address() [3/3]

ns3::Mac16Address::Mac16Address ( uint16_t addr )

Parameters

addr	The 16 bit unsigned integer used to create a Mac16Address object.

Create a Mac16Address from an 16 bit unsigned integer.

Definition at line 107 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Member Function Documentation

◆ Allocate()

Mac16Address ns3::Mac16Address::Allocate ( )

static

Allocate a new Mac16Address.

Returns: newly allocated mac16Address

Definition at line 167 of file mac16-address.cc.

References m_allocationIndex, NS_LOG_FUNCTION_NOARGS, ResetAllocationIndex(), and ns3::Simulator::ScheduleDestroy().

Here is the call graph for this function:

◆ ConvertFrom()

Mac16Address ns3::Mac16Address::ConvertFrom ( const Address & address )

static

Parameters

address a polymorphic address

Returns: a new Mac16Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac16Address.

Definition at line 141 of file mac16-address.cc.

References GetType(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::SixLowPanMesh::Print(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), ns3::LrWpanNetDevice::Send(), and ns3::LrWpanNetDevice::SetAddress().

Here is the call graph for this function:

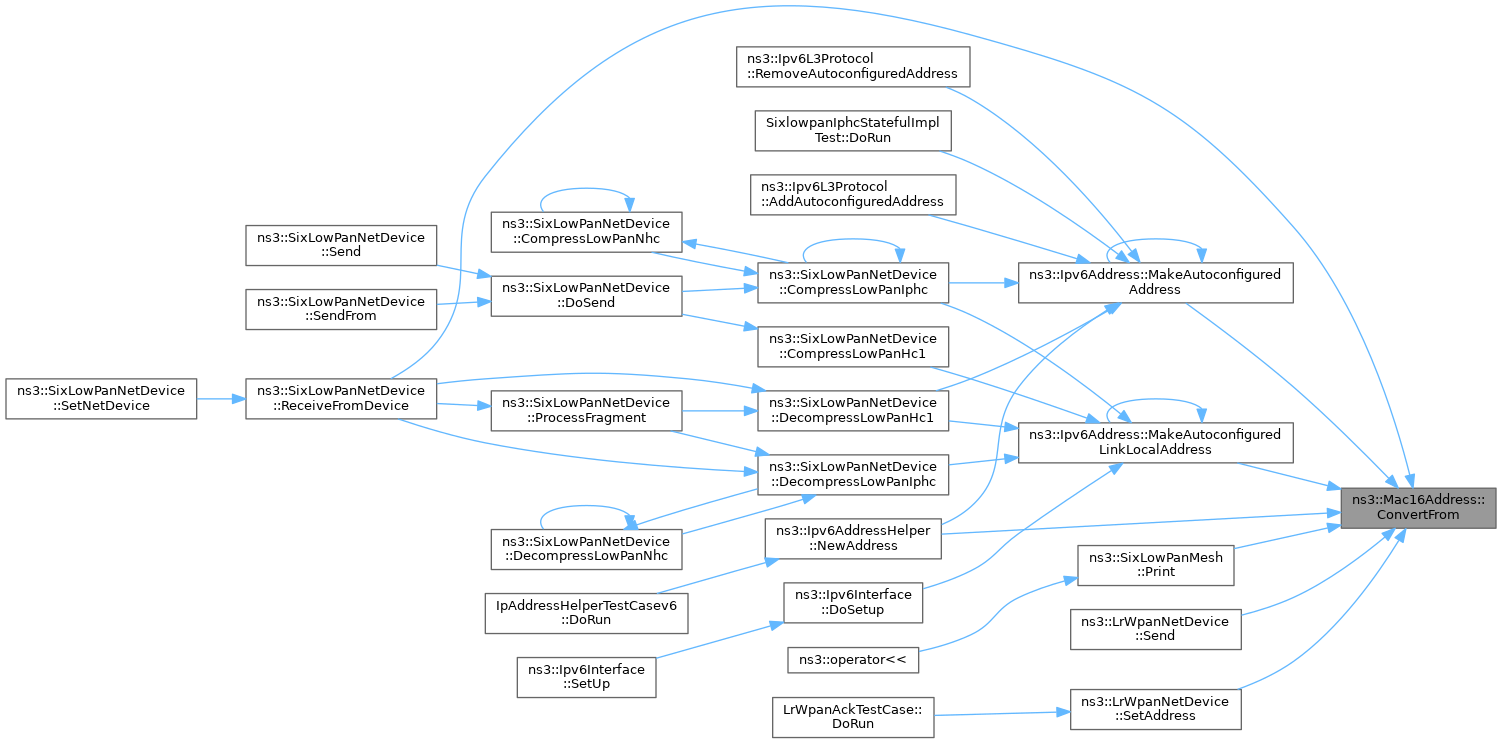

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::Mac16Address::ConvertTo ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 151 of file mac16-address.cc.

References GetType(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ConvertToInt()

uint16_t ns3::Mac16Address::ConvertToInt ( ) const

Returns: the mac address in a 16 bit unsigned integer

Convert an instance of this class to a 16 bit unsigned integer.

Definition at line 158 of file mac16-address.cc.

References m_address.

◆ CopyFrom()

void ns3::Mac16Address::CopyFrom ( const uint8_t buffer[2] )

Parameters

buffer address in network order

Copy the input address to our internal buffer.

Definition at line 115 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by AssociateIndication(), ns3::LrWpanHelper::CreateAssociatedPan(), ns3::SixLowPanNetDevice::Get16MacFrom48Mac(), GetMulticast(), ns3::ReadFrom(), ns3::LrWpanNetDevice::Send(), and ns3::LrWpanNetDevice::SetAddress().

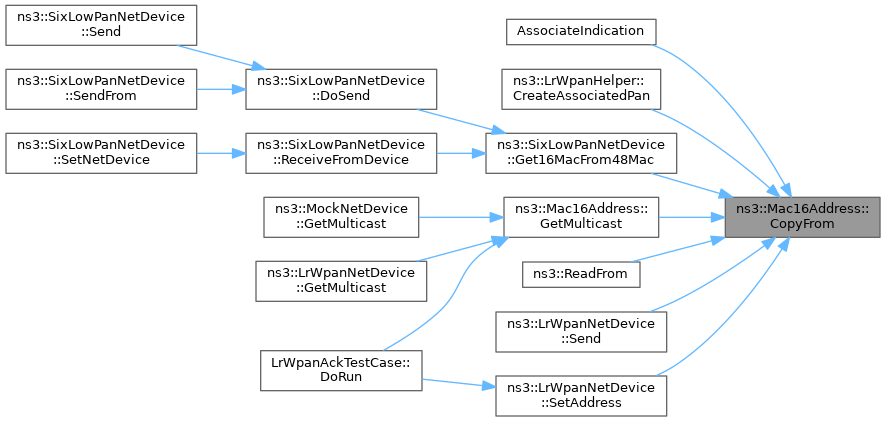

Here is the caller graph for this function:

◆ CopyTo()

void ns3::Mac16Address::CopyTo ( uint8_t buffer[2] ) const

Parameters

buffer address in network order

Copy the internal address to the input buffer.

Definition at line 122 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::LrWpanNetDevice::BuildPseudoMacAddress(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), and ns3::WriteTo().

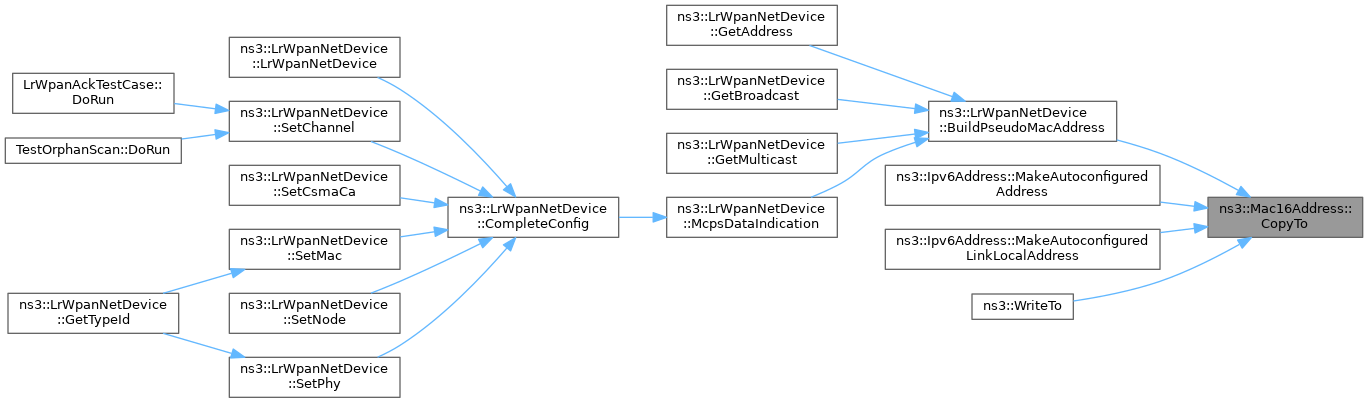

Here is the caller graph for this function:

◆ GetBroadcast()

Mac16Address ns3::Mac16Address::GetBroadcast ( )

static

Returns: the broadcast address (0xFFFF)

Definition at line 200 of file mac16-address.cc.

References Mac16Address(), and NS_LOG_FUNCTION_NOARGS.

Referenced by LrWpanAckTestCase::DoRun(), ns3::LrWpanNetDevice::GetBroadcast(), and ns3::MockNetDevice::GetBroadcast().

Here is the call graph for this function:

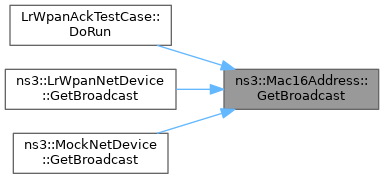

Here is the caller graph for this function:

◆ GetMulticast()

Mac16Address ns3::Mac16Address::GetMulticast ( Ipv6Address address )

static

Returns the multicast address associated with an IPv6 address according to RFC 4944 Section 9.

An IPv6 packet with a multicast destination address (DST), consisting of the sixteen octets DST[1] through DST[16], is transmitted to the following 802.15.4 16-bit multicast address:

  0                   1
  0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |1 0 0|DST[15]* |   DST[16]     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Here, DST[15]* refers to the last 5 bits in octet DST[15], that is, bits 3-7 within DST[15]. The initial 3-bit pattern of "100" follows the 16-bit address format for multicast addresses (Section 12).

Parameters

address base IPv6 address

Returns: the multicast 16-bit address.

Definition at line 209 of file mac16-address.cc.

References CopyFrom(), and NS_LOG_FUNCTION.

Referenced by LrWpanAckTestCase::DoRun(), ns3::MockNetDevice::GetMulticast(), and ns3::LrWpanNetDevice::GetMulticast().

Here is the call graph for this function:

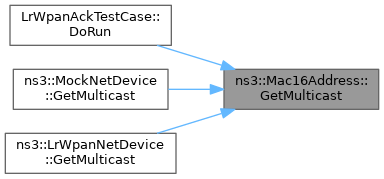

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::Mac16Address::GetType ( )

staticprivate

Return the Type of address.

Returns: type of address

Definition at line 191 of file mac16-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

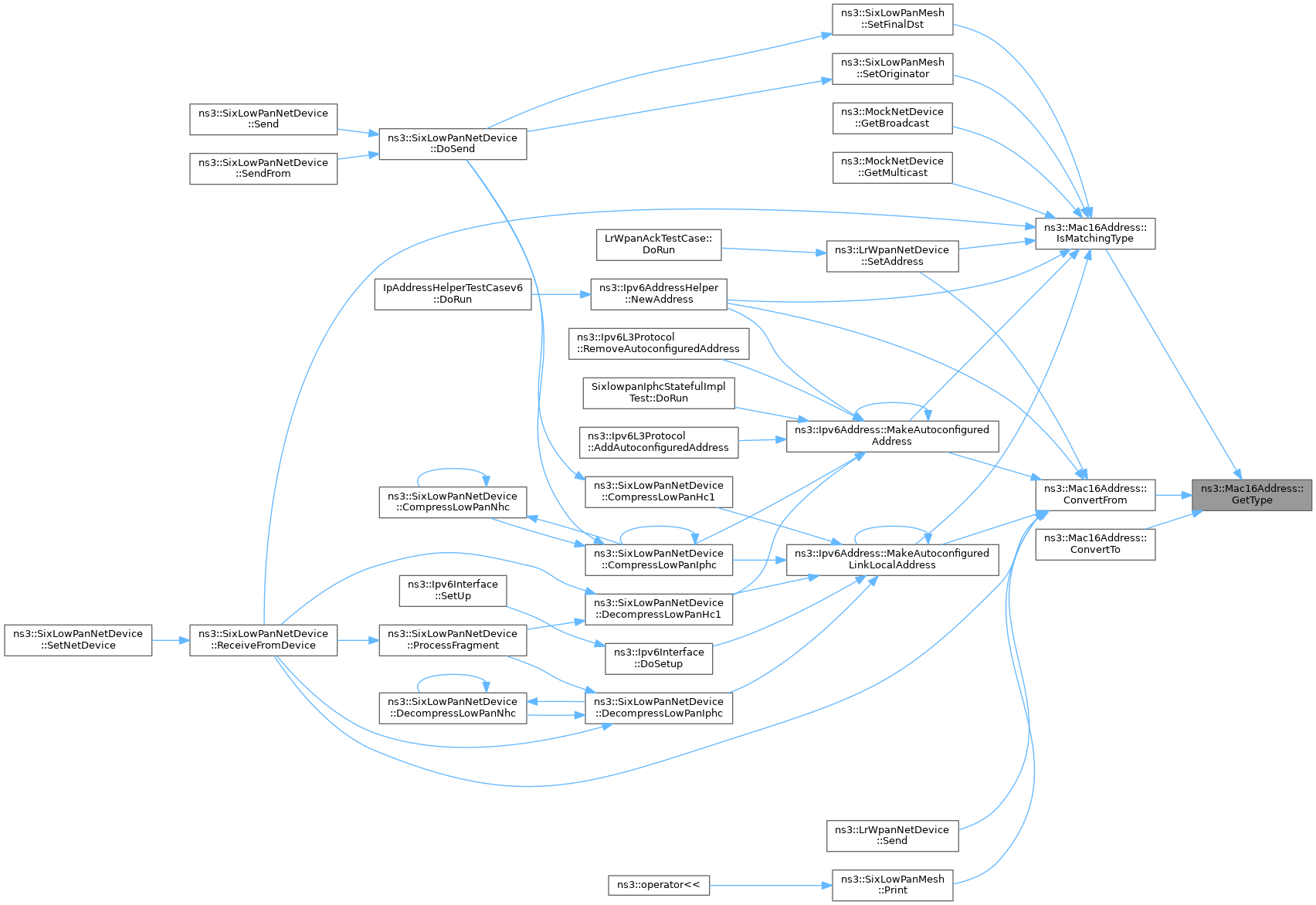

Here is the caller graph for this function:

◆ IsBroadcast()

bool ns3::Mac16Address::IsBroadcast ( ) const

Checks if the address is a broadcast address according to 802.15.4 scheme (i.e., 0xFFFF).

Returns: true if the address is 0xFFFF

Definition at line 228 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by LrWpanDataIfsTestCase::DataReceivedDev0(), LrWpanDataIfsTestCase::DataReceivedDev1(), ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataIndication(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), and ns3::LrWpanMac::RemoveFirstTxQElement().

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::Mac16Address::IsMatchingType ( const Address & address )

static

Parameters

address address to test

Returns: true if the address matches, false otherwise.

Definition at line 129 of file mac16-address.cc.

References GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::MockNetDevice::GetBroadcast(), ns3::MockNetDevice::GetMulticast(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), ns3::LrWpanNetDevice::SetAddress(), ns3::SixLowPanMesh::SetFinalDst(), and ns3::SixLowPanMesh::SetOriginator().

Here is the call graph for this function:

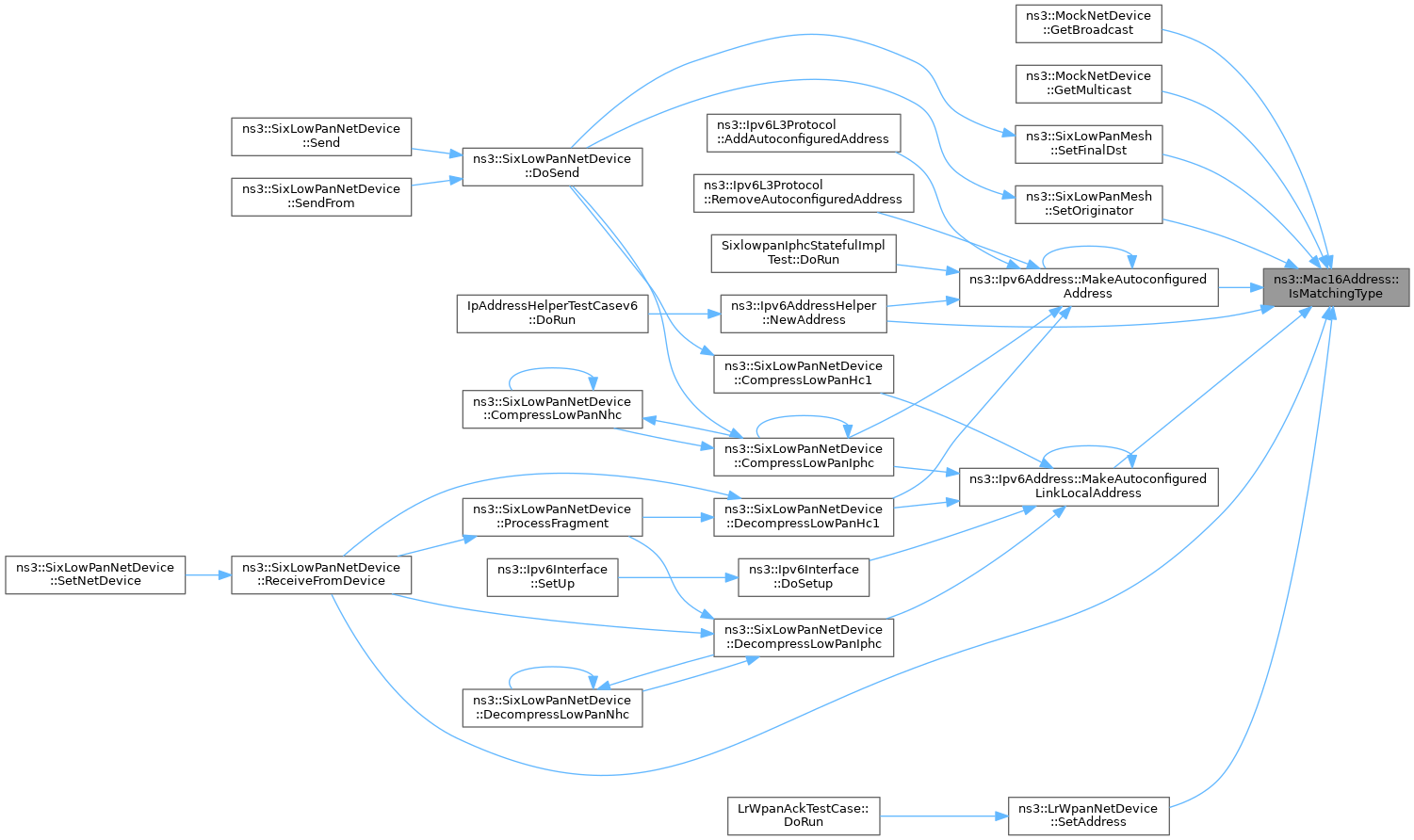

Here is the caller graph for this function:

◆ IsMulticast()

bool ns3::Mac16Address::IsMulticast ( ) const

Checks if the address is a multicast address according to RFC 4944 Section 9 (i.e., if its first 3 bits are 100).

Returns: true if the address is in the range 0x8000 - 0x9FFF

Definition at line 235 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::LrWpanMac::McpsDataRequest(), ns3::LrWpanMac::PdDataIndication(), ns3::SixLowPanNetDevice::ReceiveFromDevice(), and ns3::LrWpanMac::RemoveFirstTxQElement().

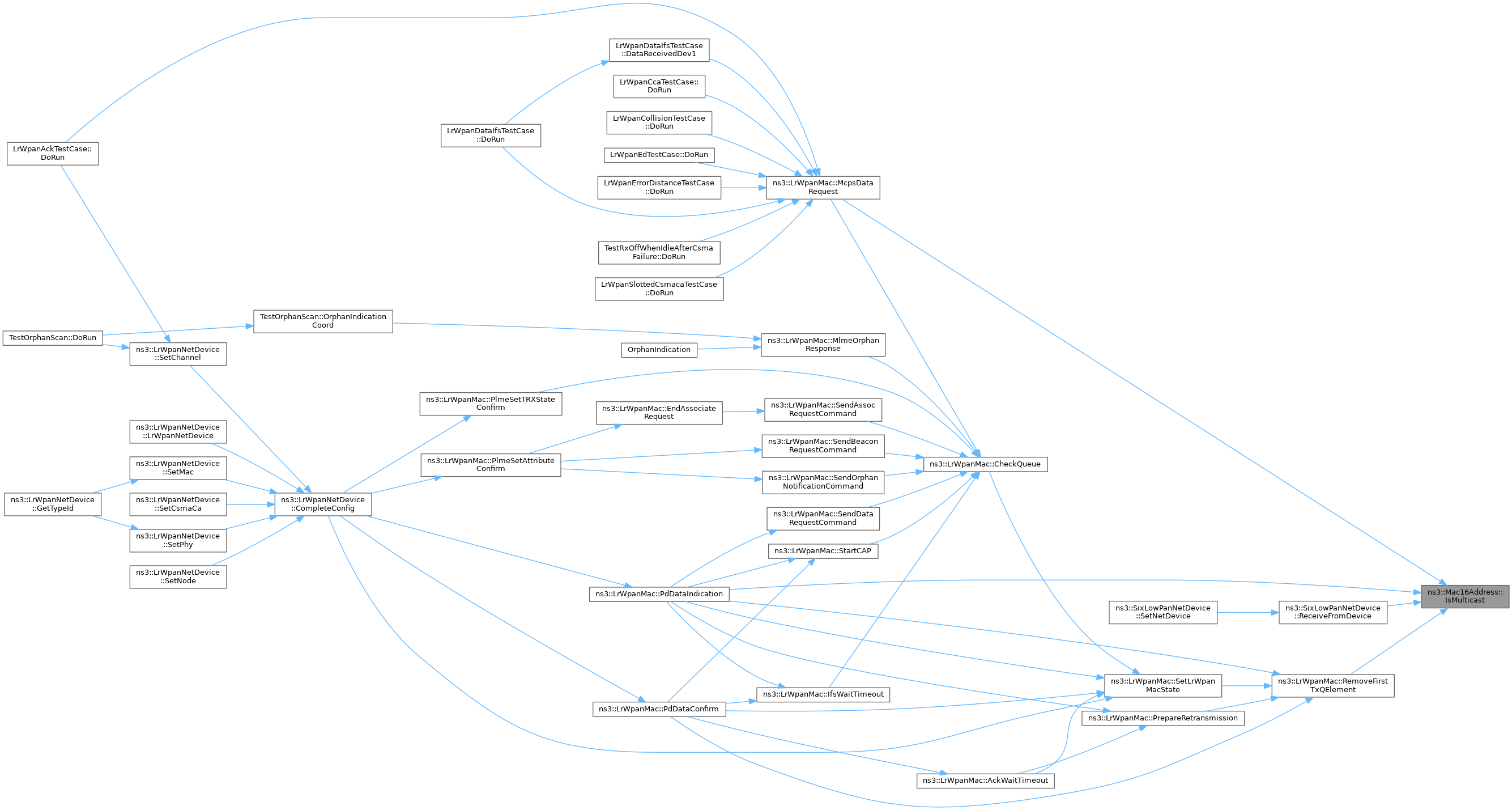

Here is the caller graph for this function:

◆ operator Address()

ns3::Mac16Address::operator Address ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 135 of file mac16-address.cc.

◆ ResetAllocationIndex()

void ns3::Mac16Address::ResetAllocationIndex ( )

static

Reset the Mac16Address allocation index.

This function resets (to zero) the global integer that is used for unique address allocation. It is automatically called whenever

SimulatorDestroy ();

is called. It may also be optionally called by user code if there is a need to force a reset of this allocation index.

Definition at line 184 of file mac16-address.cc.

References m_allocationIndex, and NS_LOG_FUNCTION_NOARGS.

Referenced by Allocate().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	const Mac16Address &	a,
		const Mac16Address &	b
	)

friend

Not equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are not equal

Definition at line 243 of file mac16-address.h.

◆ operator<

bool operator<	(	const Mac16Address &	a,
		const Mac16Address &	b
	)

friend

Less than operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operand a is less than operand b

Definition at line 248 of file mac16-address.h.

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Mac16Address &	address
	)

friend

Stream insertion operator.

Parameters

os	the stream
address	the address

Returns: a reference to the stream

Definition at line 243 of file mac16-address.cc.

◆ operator==

bool operator==	(	const Mac16Address &	a,
		const Mac16Address &	b
	)

friend

Equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are equal

Definition at line 237 of file mac16-address.h.

◆ operator>>

std::istream & operator>>	(	std::istream &	is,
		Mac16Address &	address
	)

friend

Stream extraction operator.

Parameters

is	the stream
address	the address

Returns: a reference to the stream

Definition at line 263 of file mac16-address.cc.

Member Data Documentation

◆ m_address

uint8_t ns3::Mac16Address::m_address[2]

private

address value

Definition at line 231 of file mac16-address.h.

Referenced by Mac16Address(), ConvertFrom(), ConvertTo(), ConvertToInt(), CopyFrom(), CopyTo(), IsBroadcast(), and IsMulticast().

◆ m_allocationIndex

uint64_t ns3::Mac16Address::m_allocationIndex = 0

staticprivate

Address allocation index.

Definition at line 230 of file mac16-address.h.

Referenced by Allocate(), and ResetAllocationIndex().

The documentation for this class was generated from the following files:

src/network/utils/mac16-address.h
src/network/utils/mac16-address.cc
