ns3::Ping6Helper Class Reference

Ping6 application helper. More...

#include "ping6-helper.h"

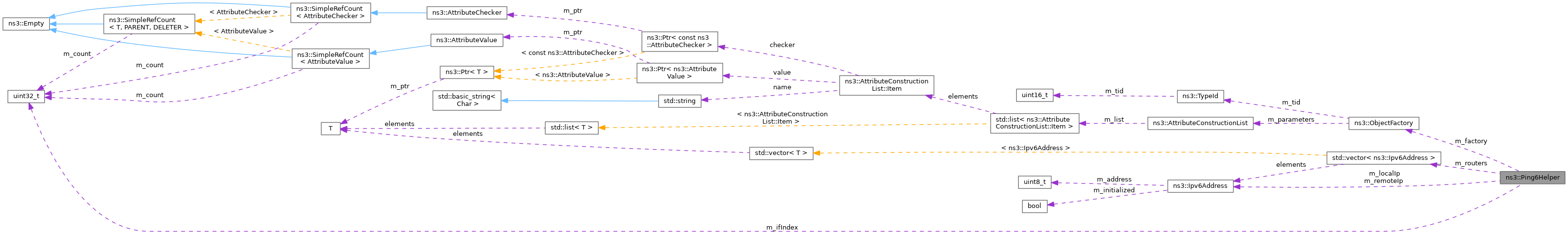

Collaboration diagram for ns3::Ping6Helper:

Public Member Functions
	Ping6Helper ()
	Constructor.
ApplicationContainer	Install (NodeContainer c)
	Install the application in Nodes.
void	SetAttribute (std::string name, const AttributeValue &value)
	Set some attributes.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index.
void	SetLocal (Ipv6Address ip)
	Set the local IPv6 address.
void	SetRemote (Ipv6Address ip)
	Set the remote IPv6 address.
void	SetRoutersAddress (std::vector< Ipv6Address > routers)
	Set routers addresses for routing type 0.

Private Attributes
ObjectFactory	m_factory
	An object factory.
uint32_t	m_ifIndex
	Out interface index.
Ipv6Address	m_localIp
	The local IPv6 address.
Ipv6Address	m_remoteIp
	The remote IPv6 address.
std::vector< Ipv6Address >	m_routers
	Routers addresses.

Detailed Description

Ping6 application helper.

Definition at line 37 of file ping6-helper.h.

Constructor & Destructor Documentation

Ping6Helper()

ns3::Ping6Helper::Ping6Helper

(

)

Constructor.

Definition at line 29 of file ping6-helper.cc.

References m_factory, NS_WARNING_POP, NS_WARNING_PUSH_DEPRECATED, and ns3::ObjectFactory::SetTypeId().

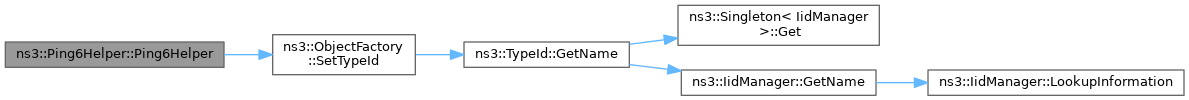

Here is the call graph for this function:

Member Function Documentation

Install()

ApplicationContainer ns3::Ping6Helper::Install

(

NodeContainer

c

)

Install the application in Nodes.

Parameters

c	list of Nodes

Returns

application container

Definition at line 56 of file ping6-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NodeContainer::End(), m_factory, m_ifIndex, m_localIp, m_remoteIp, and m_routers.

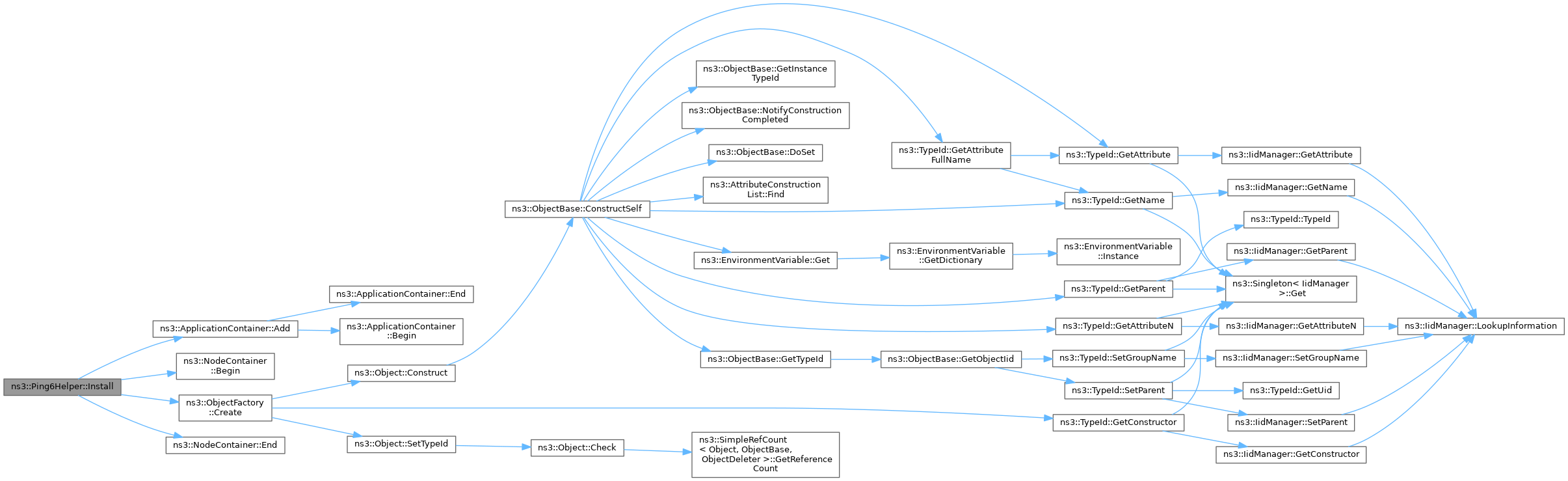

Here is the call graph for this function:

SetAttribute()

void ns3::Ping6Helper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set some attributes.

Parameters

name	attribute name
value	attribute value

Definition at line 50 of file ping6-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

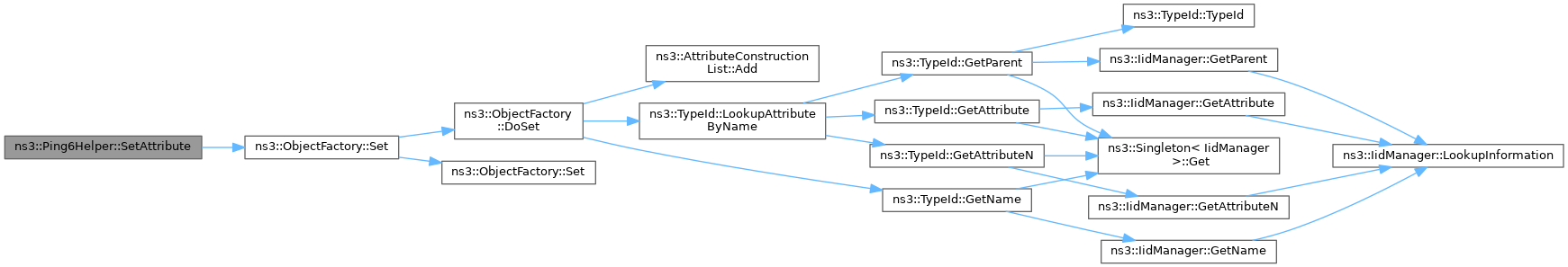

Here is the call graph for this function:

SetIfIndex()

void ns3::Ping6Helper::SetIfIndex

(

uint32_t

ifIndex

)

Set the out interface index.

This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters

ifIndex

interface index

Definition at line 79 of file ping6-helper.cc.

References m_ifIndex.

SetLocal()

void ns3::Ping6Helper::SetLocal

(

Ipv6Address

ip

)

Set the local IPv6 address.

Parameters

ip	local IPv6 address

Definition at line 38 of file ping6-helper.cc.

References m_localIp.

SetRemote()

void ns3::Ping6Helper::SetRemote

(

Ipv6Address

ip

)

Set the remote IPv6 address.

Parameters

ip	remote IPv6 address

Definition at line 44 of file ping6-helper.cc.

References m_remoteIp.

SetRoutersAddress()

void ns3::Ping6Helper::SetRoutersAddress

(

std::vector< Ipv6Address >

routers

)

Set routers addresses for routing type 0.

Parameters

routers

routers addresses

Definition at line 85 of file ping6-helper.cc.

References m_routers.

Member Data Documentation

m_factory

ObjectFactory ns3::Ping6Helper::m_factory

private

An object factory.

Definition at line 91 of file ping6-helper.h.

Referenced by Ping6Helper(), Install(), and SetAttribute().

m_ifIndex

uint32_t ns3::Ping6Helper::m_ifIndex

private

Out interface index.

Definition at line 106 of file ping6-helper.h.

Referenced by Install(), and SetIfIndex().

m_localIp

Ipv6Address ns3::Ping6Helper::m_localIp

private

The local IPv6 address.

Definition at line 96 of file ping6-helper.h.

Referenced by Install(), and SetLocal().

m_remoteIp

Ipv6Address ns3::Ping6Helper::m_remoteIp

private

The remote IPv6 address.

Definition at line 101 of file ping6-helper.h.

Referenced by Install(), and SetRemote().

m_routers

std::vector<Ipv6Address> ns3::Ping6Helper::m_routers

private

Routers addresses.

Definition at line 111 of file ping6-helper.h.

Referenced by Install(), and SetRoutersAddress().

---

The documentation for this class was generated from the following files:

• src/internet-apps/helper/ping6-helper.h
• src/internet-apps/helper/ping6-helper.cc
